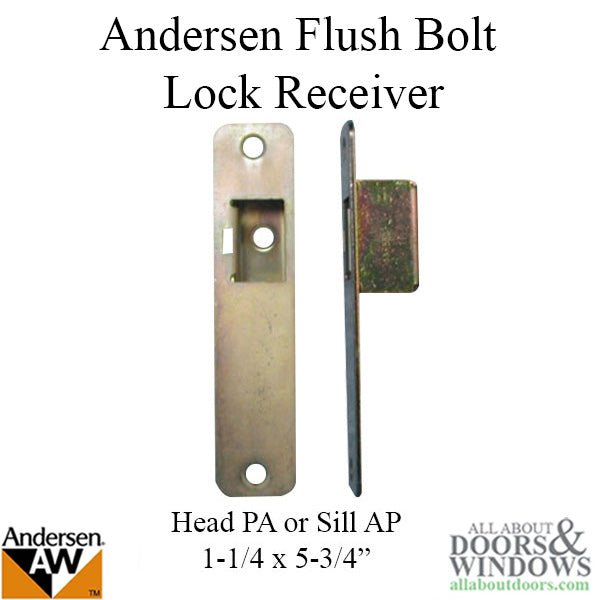

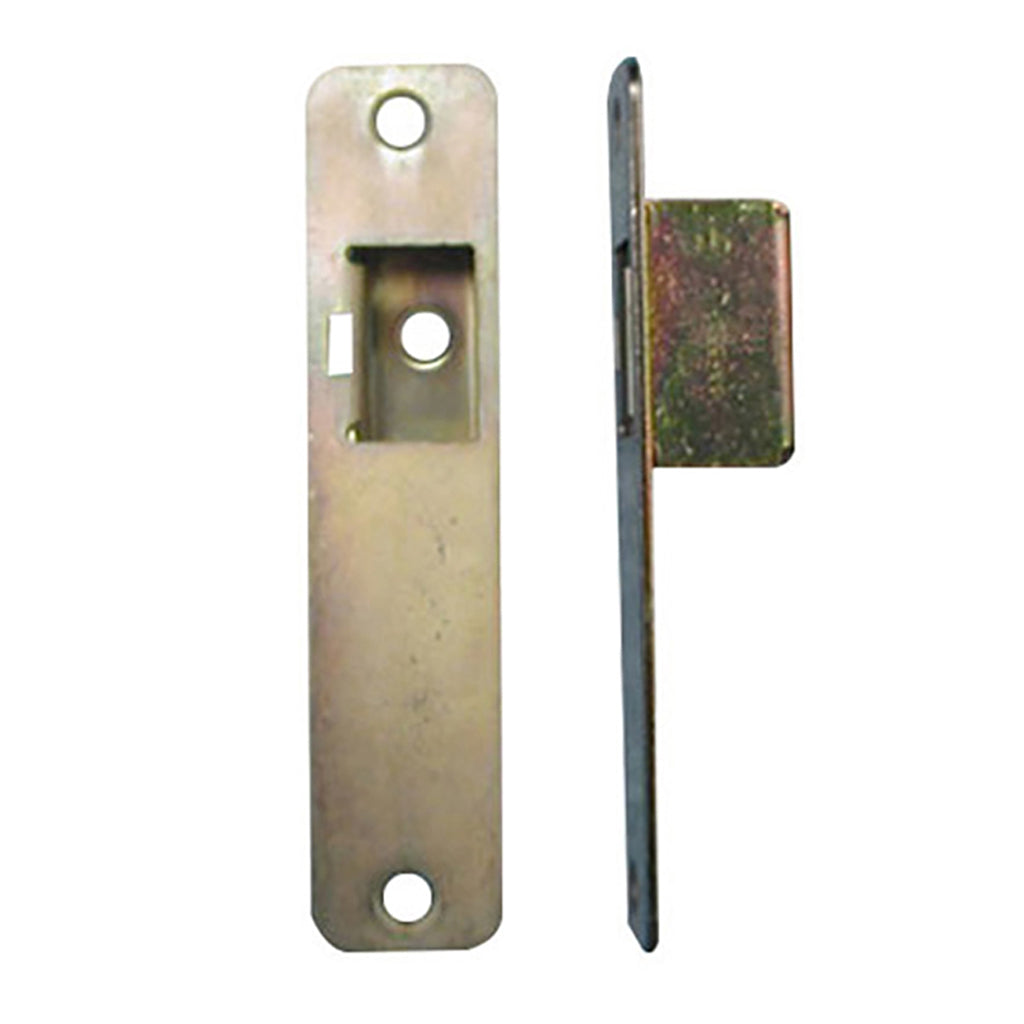

Receiver, Flush Bolt Head PA / Sill AP
Part Number: Price: $12.81Flush bolt lock receiver for Andersen INSWING Frenchwood Hinged door
Has an adjustable tab that can be bent in or out with slotted screw driver
1993-2003 replacement
Used on head passive/active or sill active/passive (viewed from outside)
From outside if the left door is active and the right door is passive, then this will fit the sill
The head would be part number 2579561

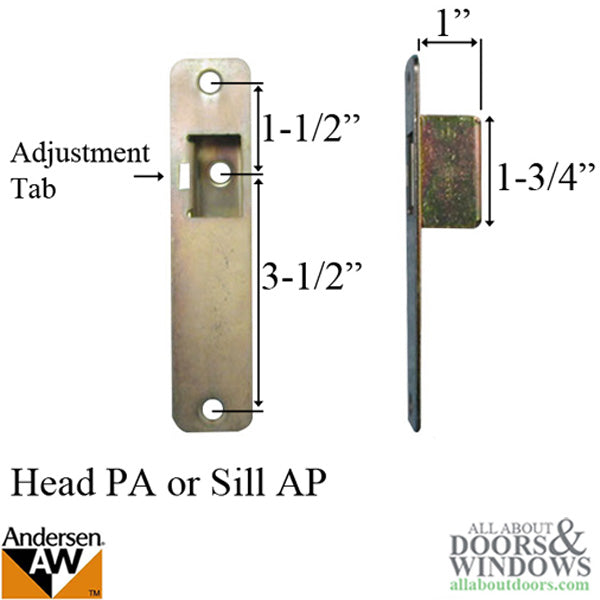

Dimensions: 1-1/4 inch x 5-3/4 inch
Screw Hole Spacing: 5 inches
Receiver Box: 1 inch x 1-3/4 inch
Amerock 7055-46/7055-44
Priced and sold each
