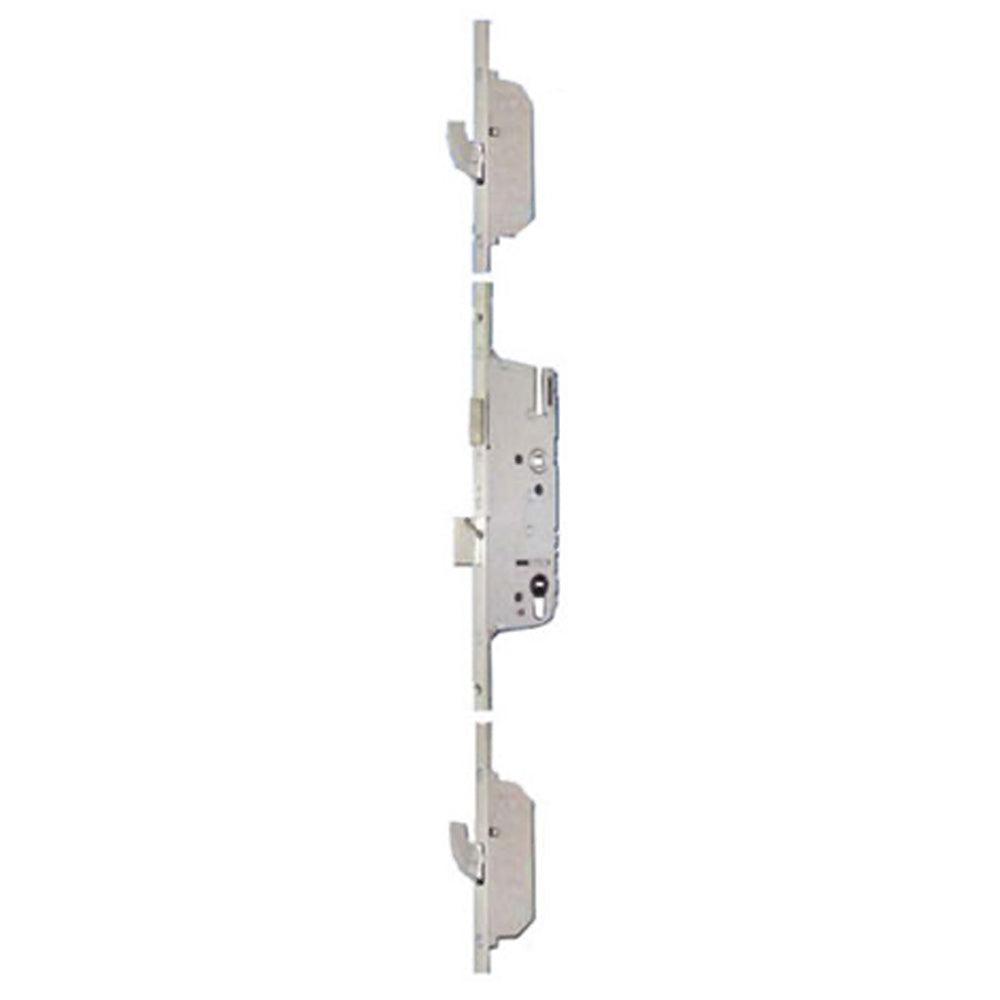

Rhino 50/92 Active 3-Point Hook Bolt , G-U / Ferco - Silver
Specifications:
-
Backset: 2 inch ( 50mm)
-
Faceplate Width: 5/8 inch (16mm)
-
Faceplate Finish: Silver Ferguard
-
Handle / Cylinder PZ: 3-5/8 inches ( 92mm)
-
Spindle: 5/16 inch (8mm) Square
-
Handle Height: 35 inches ( 889mm)
-
Overall Length: 78-15/16 inch ( 2005mm)

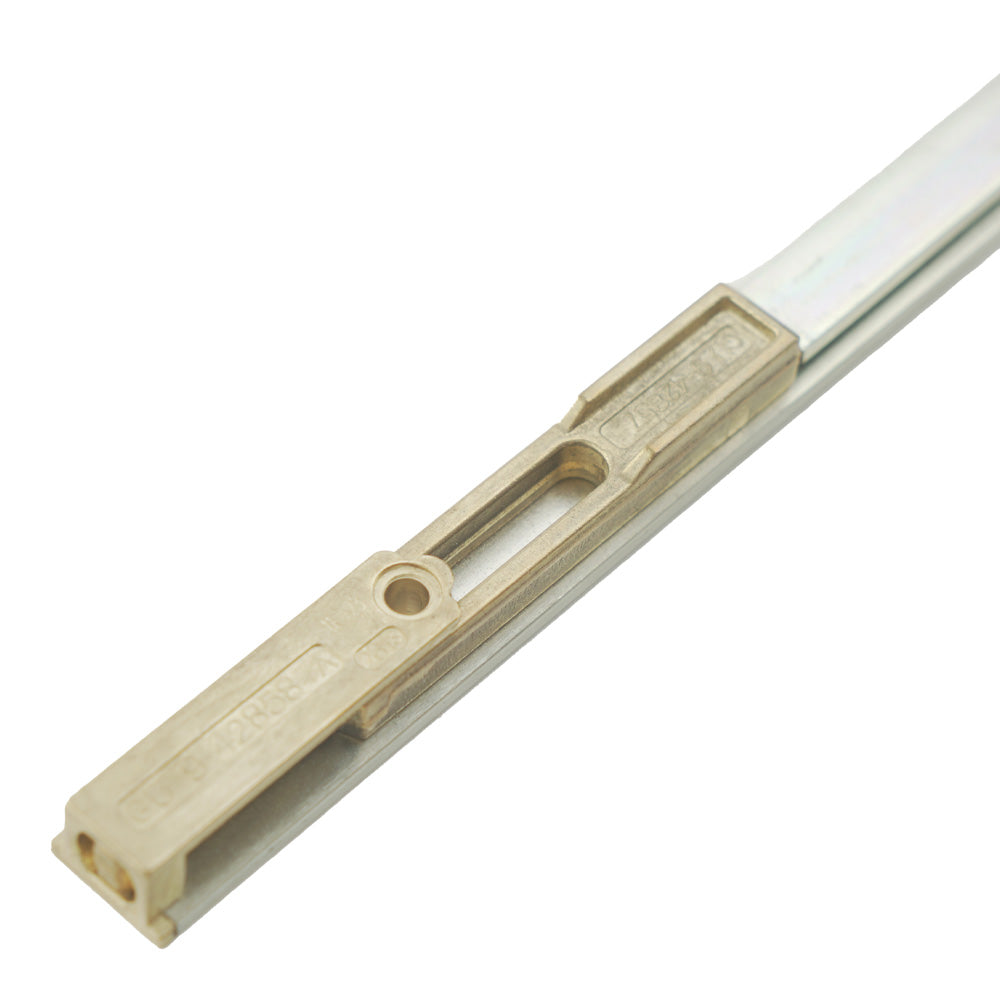

- Adjustable Top to add Additional Extensions for taller doors
-
Cylinder Type: American with Flat Tailpiece
-
Deadbolt Projection: 3/4 inch ( 20mm)
-
Hookbolt Projection: 1 inch (25mm)
-

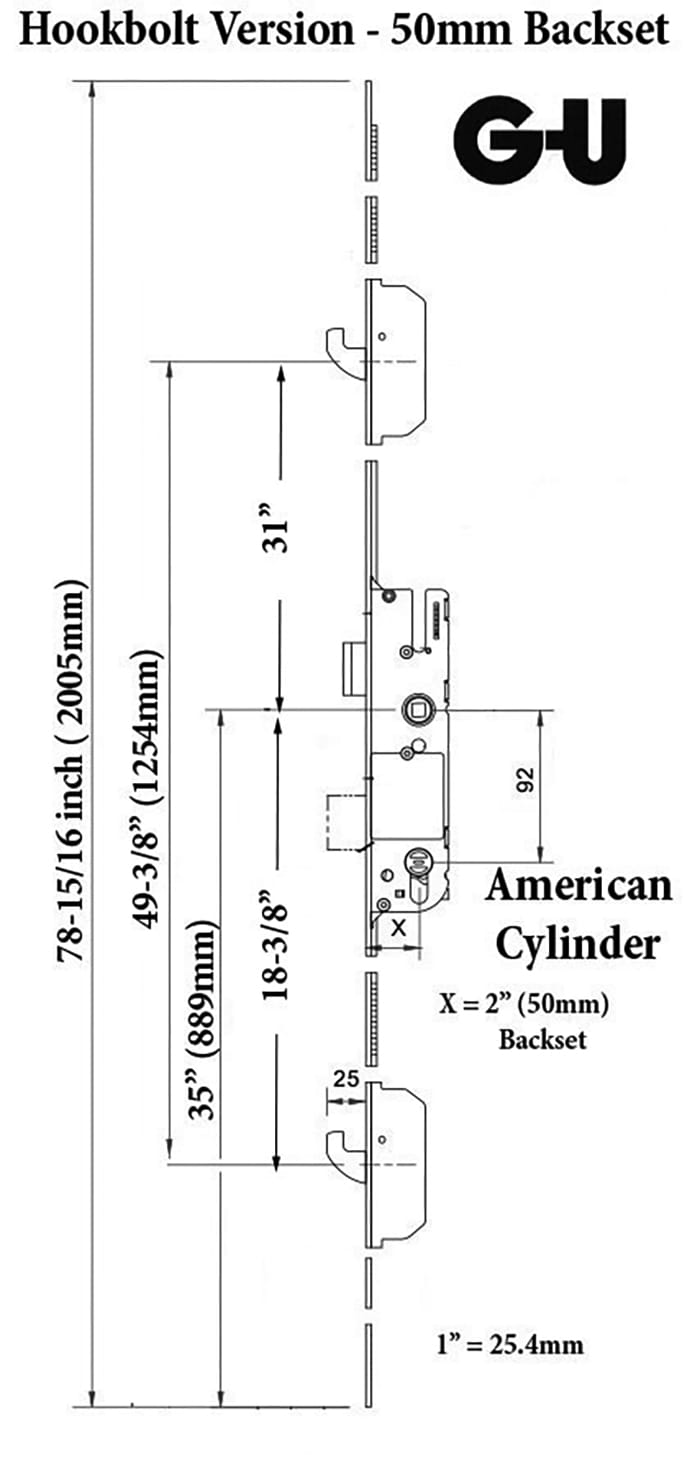

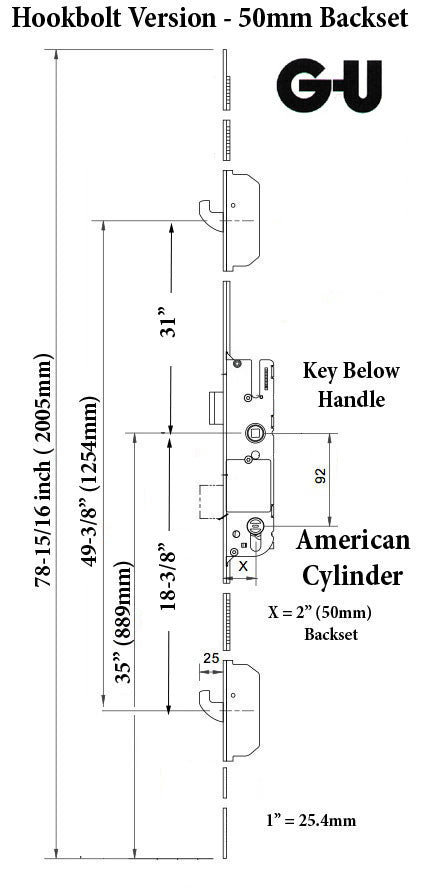

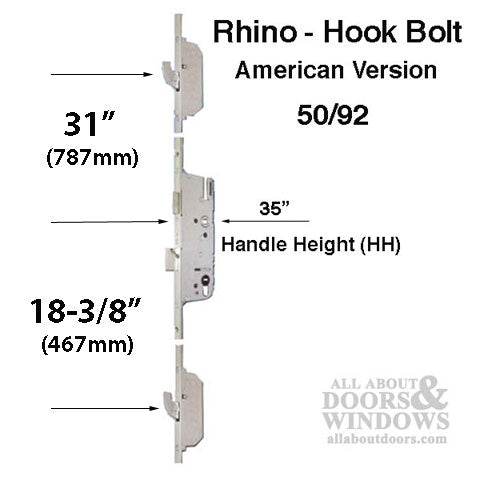

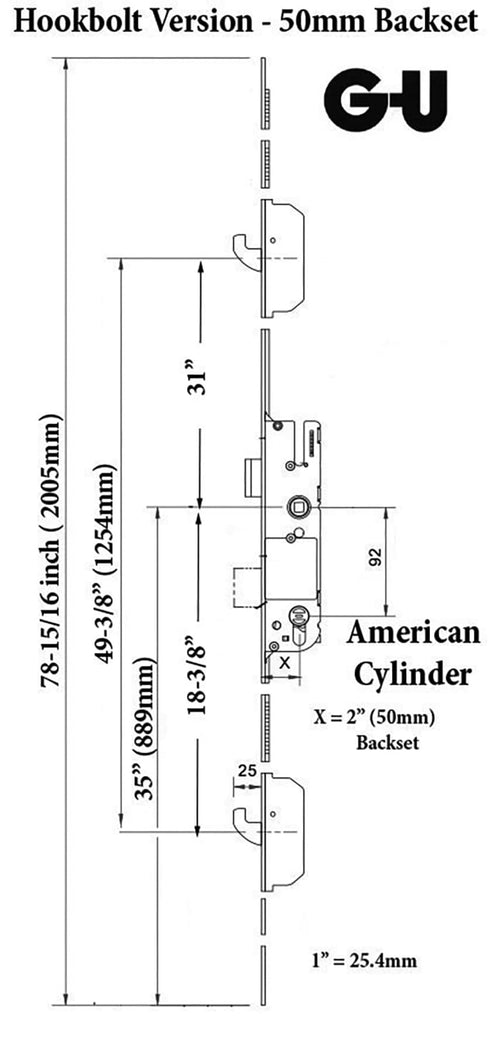

Hookbolt Location, Bottom: 18-3/8 Inch ( 466.7mm) Center of handle to center of hook
-
Hookbolt Location, Top: 31 inch (787.4mm) Center of handle to center of hook
-
Hookbolt Spacing: 49 3/8 inches (1254mm) Centers
Numbers on orange label on lock case box:
6-33105-AT-0-0
50-92-8 = Backset - Handle Spacing - Spindle Diameter
