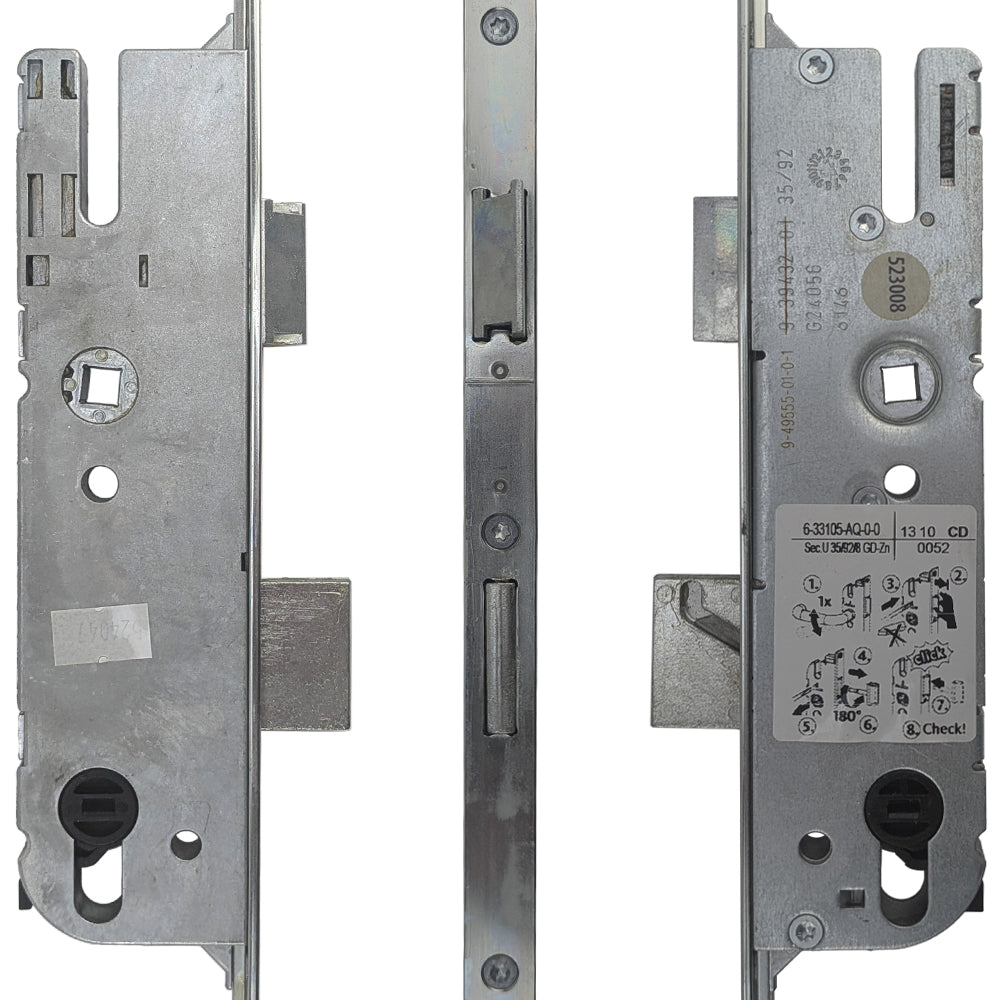

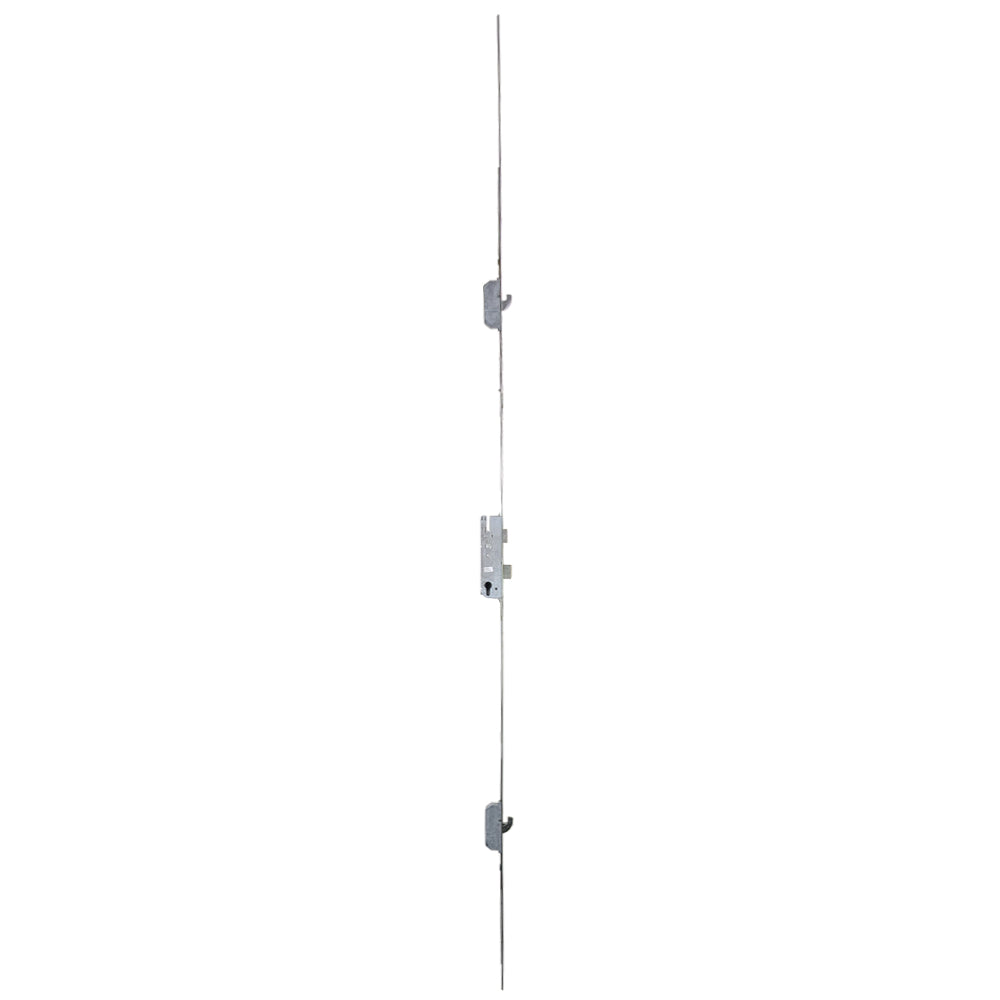

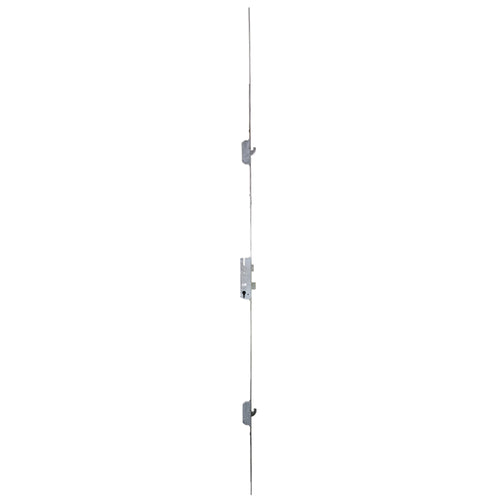

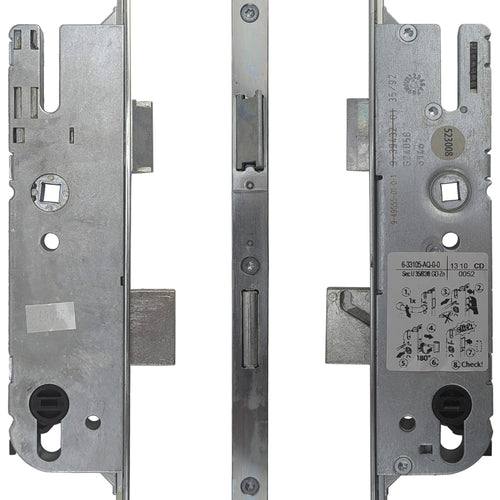

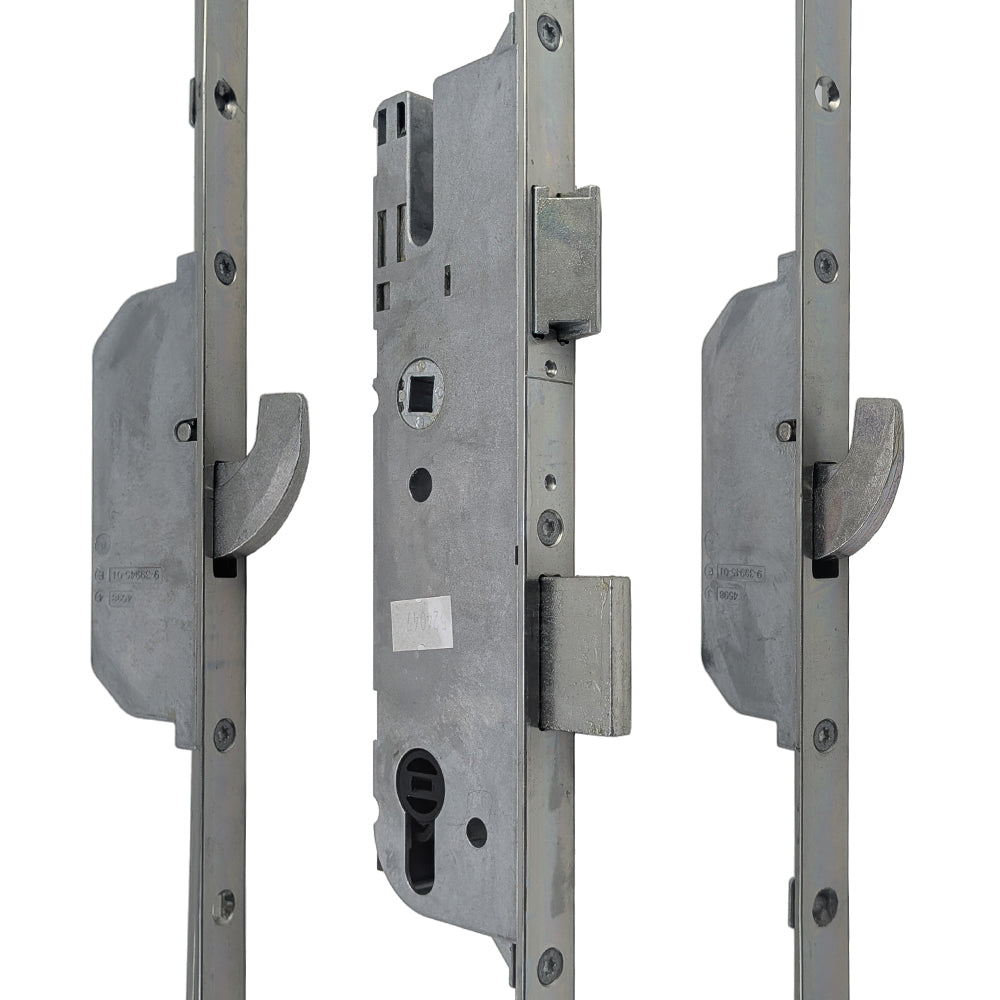

G-U/Ferco Active 3-Point Lock

Features an adjustable handle height, two Rhino hooks, and a deadbolt

This lock kit fits door panels up to 90 inches tall.

For door panels greater than 90 inches, extensions can be purchased separately.

Please contact our office for ordering information.

Specifications:

• Handle Height:  30.5 inches minimum height adjustable up to 41.3 inches maximum height
• Backset:  35 mm
• PZ (Distance from center-of-spindle to center-of-cylinder):  3-5/8 inch (92 mm)
• Overall Length:  90 inches (2285 mm)
• Adjustable Length:  90 inches maximum, can be cut down to 58.7 inches minimum
• Faceplate Width:  5/8 inch (16 mm)
• Faceplate Finish:  Silver Ferguard (not available in Stainless Steel)
• Lock Body Style:  Europa - Handle above key
• Handle to Top Hook:  22-1/4 inches Center of handle to center of hook
• Handle to Bottom Hook:  26-3/16 inches Center of handle to center of hook
• Cylinder Type:  American Cylinder with flat tail piece

Package Includes:

• Main lock body with upper and lower hook bolts
• Screws (Silver Ferguard finish to match faceplate finish)
