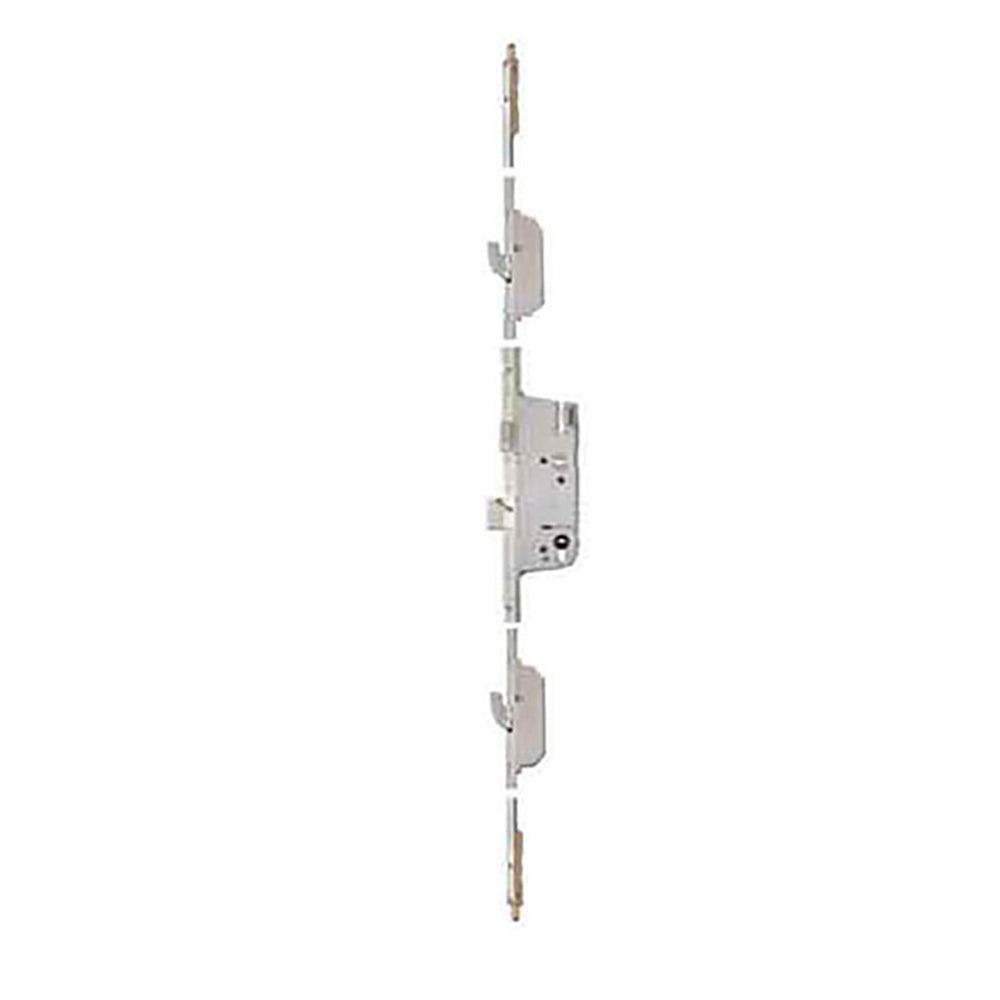

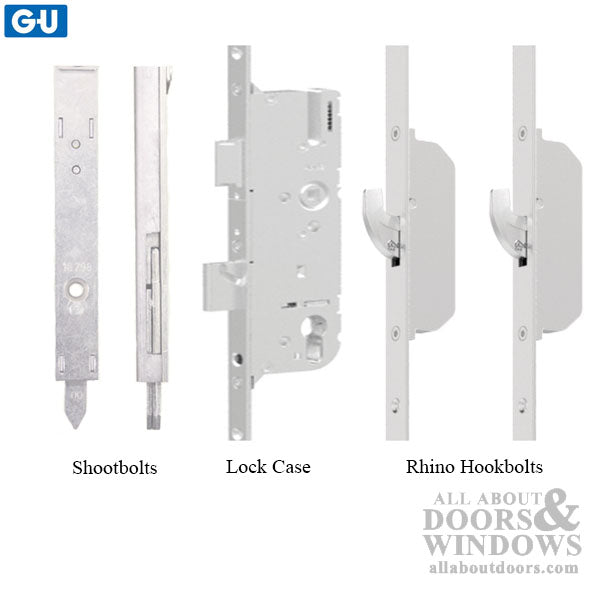

G-U/Ferco active 5-point lock with 2 Rhino Hookbolts, 2 Shootbolts and a Deadbolt.

This lock kit fits door panels up to 90 inches tall.
For door panels greater than 90 inches, extensions can be purchased separately.
Please contact our office for ordering information.

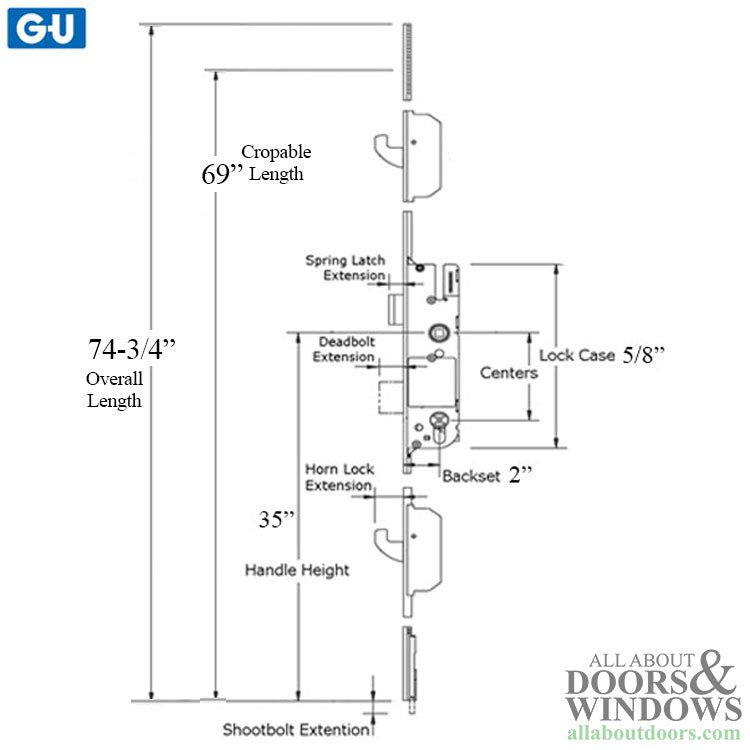

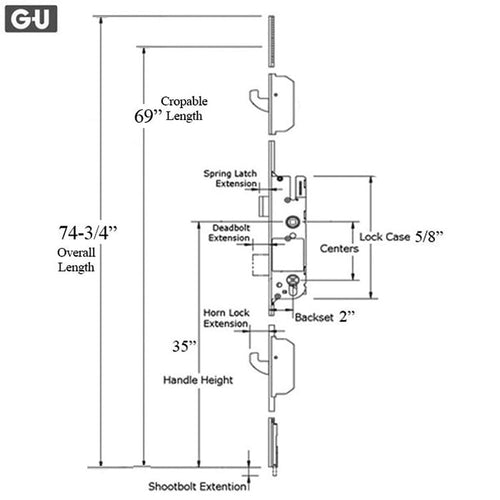

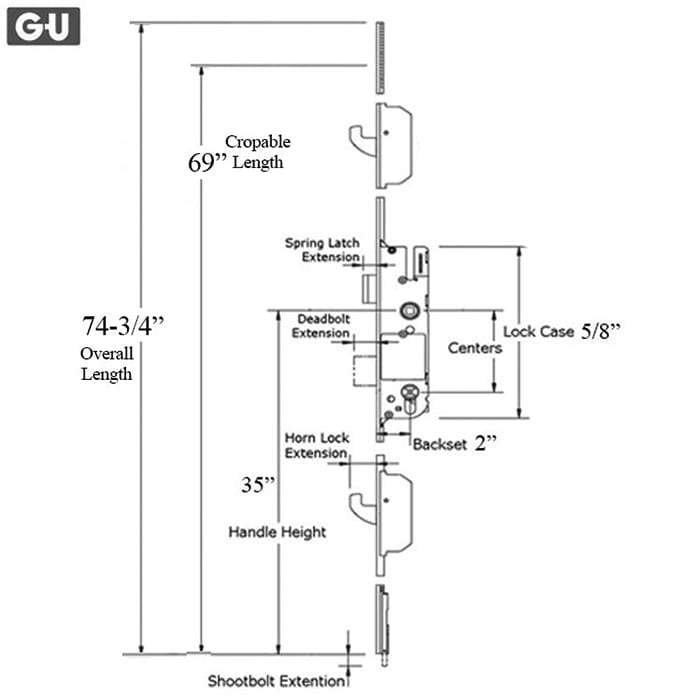

G-U/Ferco Rhino Lock Specs:
Handle Height: 35 inches
Available Backsets: 50 mm
Handle PZ: 3-5/8 inch ( 92 mm)
Overall Length: 74-3/4 inches (2060 mm)
Adjustable Length: 69 inches minimum. Gear is Crop-able for shorter heights
Faceplate Width: 5/8 inch (16 mm)
Faceplate Finish: Stainless Steel
Lock Body Style: Europa - key below handle
Handle to Top Hook: 22-3/8 inches Center of handle to center of hook
Handle to Bottom Hook: 25-15/16 inches Center of handle to center of hook

Cylinder Type: American Cylinder with flat tail piece

Priced and sold as a package.
