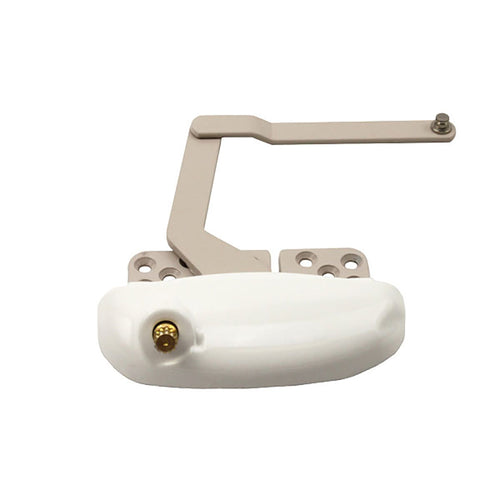

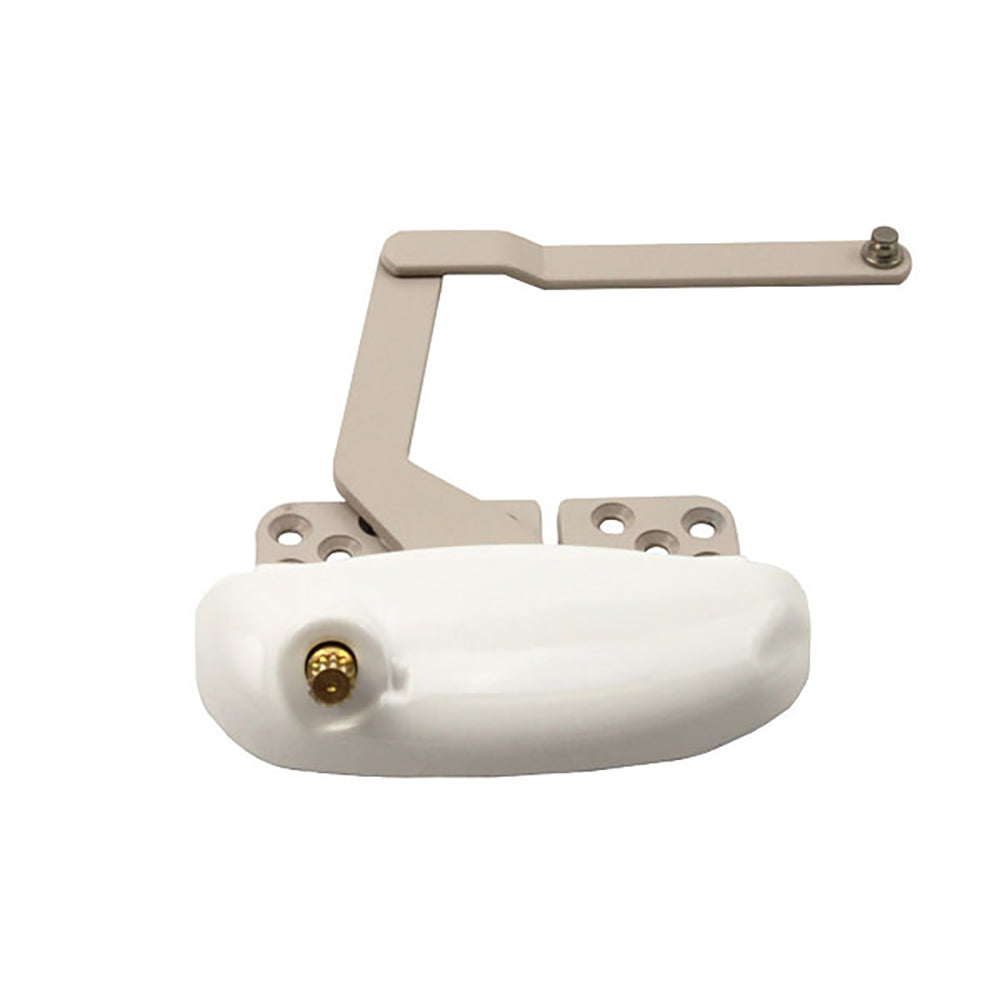

Roto 8-1/64" Split Arm X-Drive LH inverted for Wood Windows

Roto X Drive Split Arm for Wood Window Application.

Brand: Roto Hardware
Application: Wood Windows

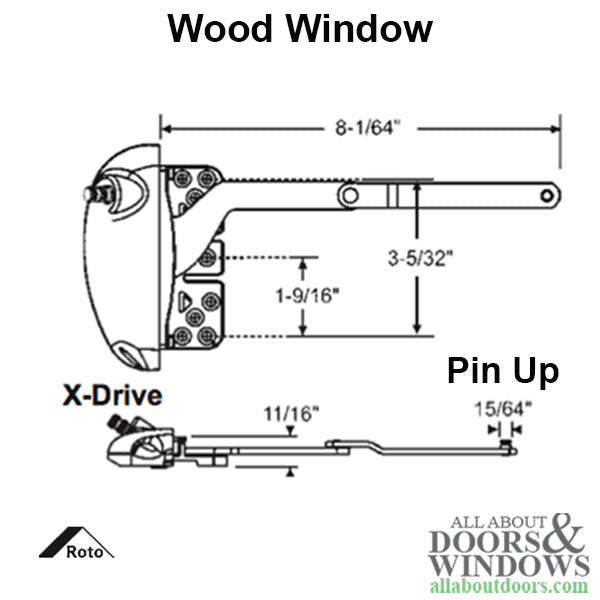

Arm Length: 8-1/64" from housing to middle of arm
Pin Position: UP
Link Offset: Yes
Stack: 11/16" wood window ( Either 9/16 Vinyl or 11/16" wood)
Handed: Left handed


Note:

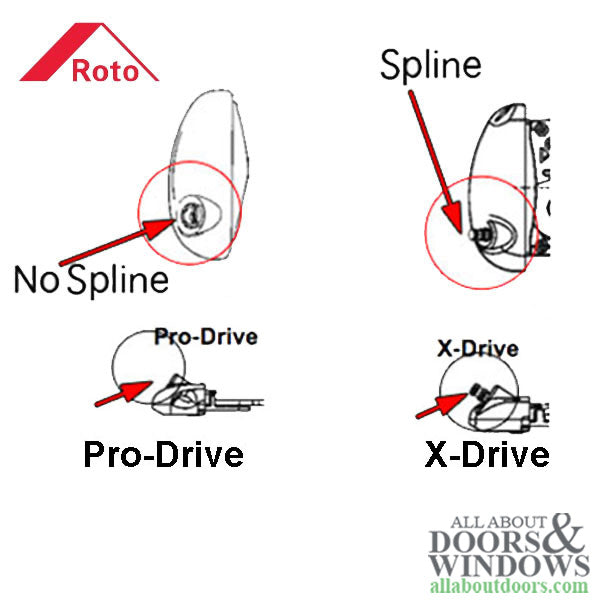

The X-Drive and Pro Drive are the same operator that uses a different crank handle.
The Pro drive operators have a hex shaped hole in the operator and the handle with a 5/16\" hex stud pushes into operator.
The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it.
