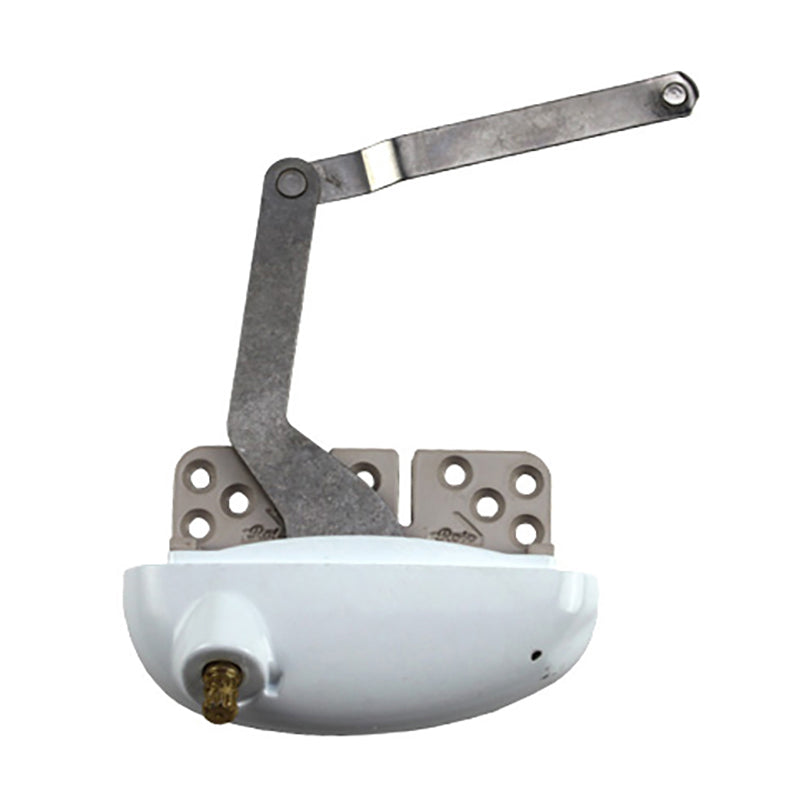

Roto X Drive Split Arm for Vinyl Window Application, 9/16 Thin Base

Brand: Roto Hardware
Application: Vinyl Windows
Base: 1/8 inch Thin base, 9/16 Overall

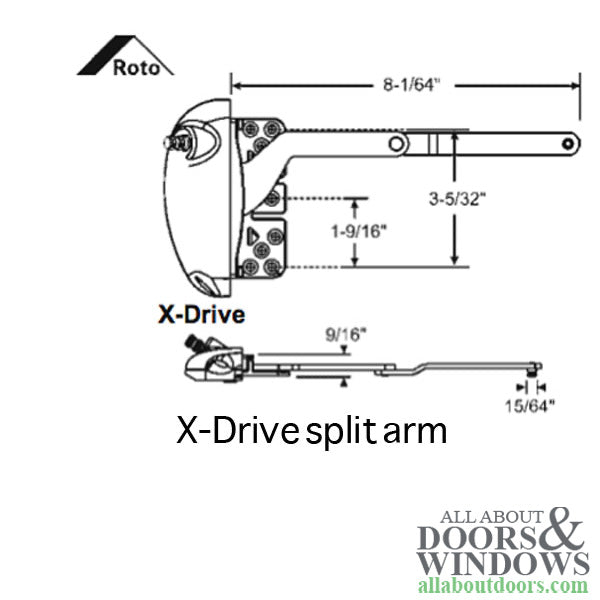

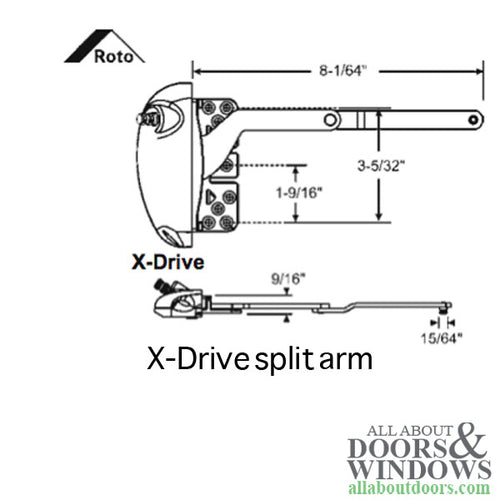

Arm Length: 8-1/64" from housing to middle of arm
Pin Position: DOWN
Link Offset: Yes, UP

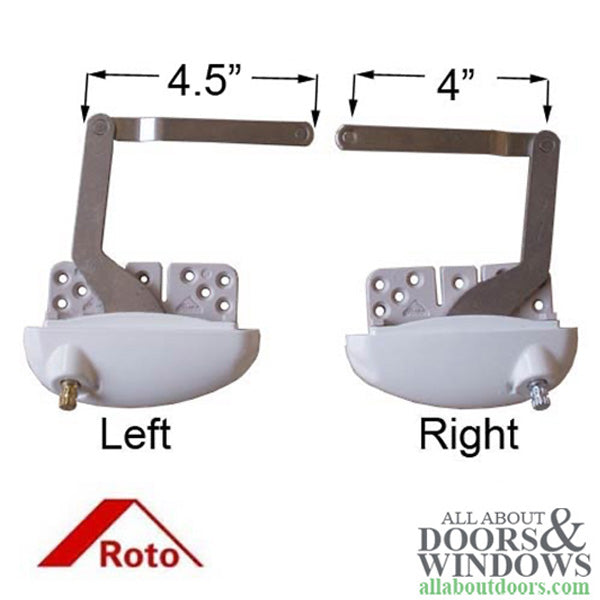

Handed: Yes, Left Hand as Shown
Colors/Finish: White

Roto Operator Notes:

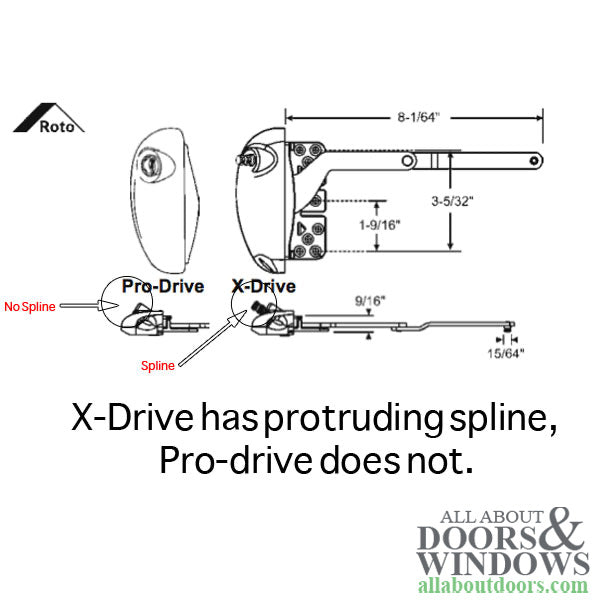

• The X-Drive and Pro Drive are the same operator that uses a different crank handle.
• The Pro drive operators have a hex shaped hole in the operator and the handle with a 5/16" hex stud pushes into operator. These have been discontinued but can be replaced with the X-Drive operators.
• The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it.
