Roto 8-1/64" Stainless Steel Split Arm, X-Drive, RH Vinyl Window Application - G2 White
Part Number: Price: $39.95Roto X Drive Stainless Steel Split Arm for Vinyl Window Application, 9/16 Thin base
Brand: Roto Hardware
Application: Vinyl Windows
Base: 1/8" Thin base, 9/1 overall

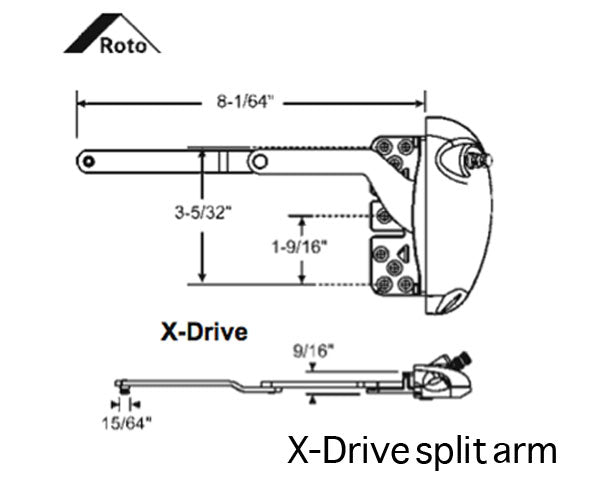

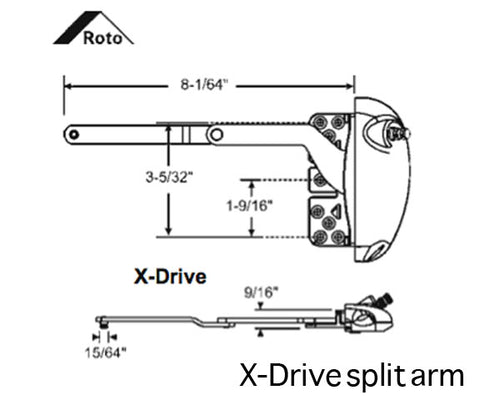

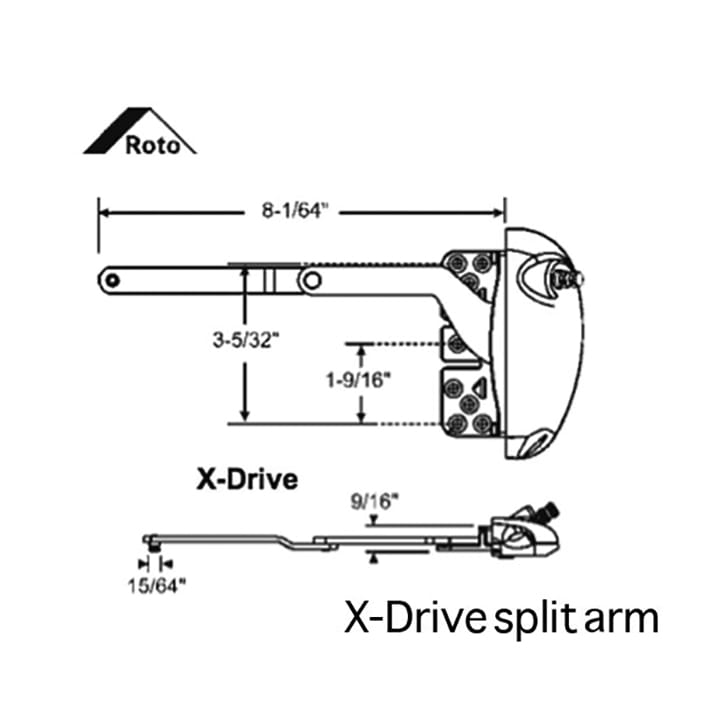

Arm Length: 8-1/64" from housing to middle of arm

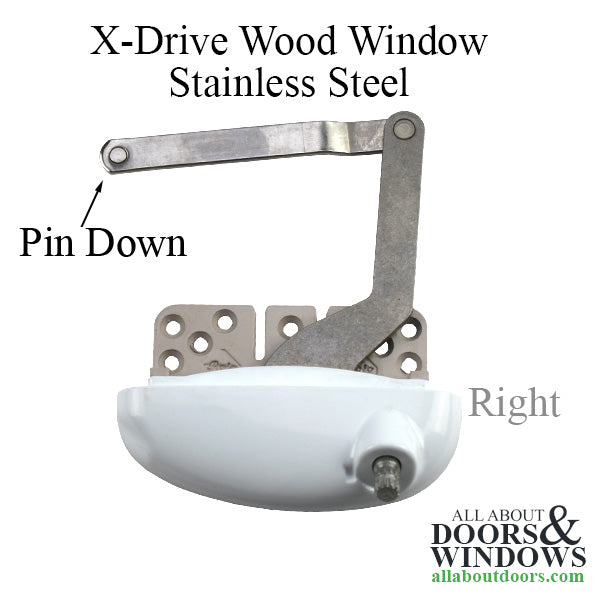

Pin Position: DOWN
Link Offset: Yes
Handed: Yes, Left and right hand as shown
Colors/Finish: White
Note:

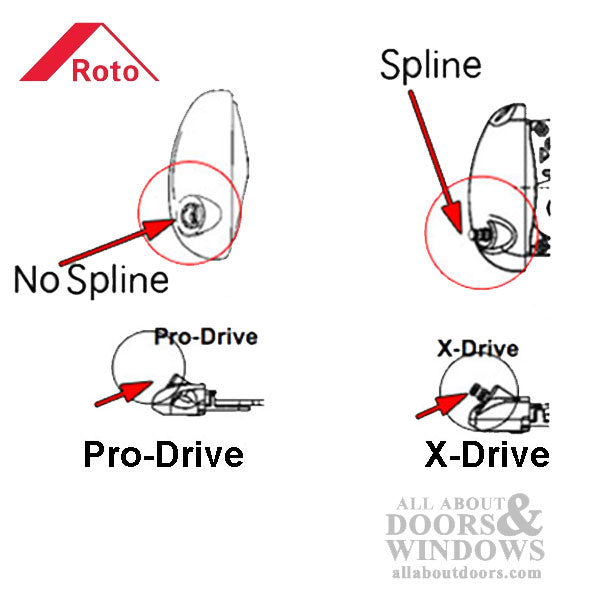

The X-Drive and Pro Drive are the same operator that uses a different crank handle.
The Pro drive operators have a hex shaped hole in the operator and the handle with a 5/16" hex stud pushes into operator.
The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it.
Brand: Roto Hardware
Application: Vinyl Windows
Base: 1/8" Thin base, 9/1 overall
Arm Length: 8-1/64" from housing to middle of arm
Pin Position: DOWN
Link Offset: Yes
Handed: Yes, Left and right hand as shown
Colors/Finish: White
Note:
The X-Drive and Pro Drive are the same operator that uses a different crank handle.
The Pro drive operators have a hex shaped hole in the operator and the handle with a 5/16" hex stud pushes into operator.
The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it.
