This item has been discontinued and is no longer available.

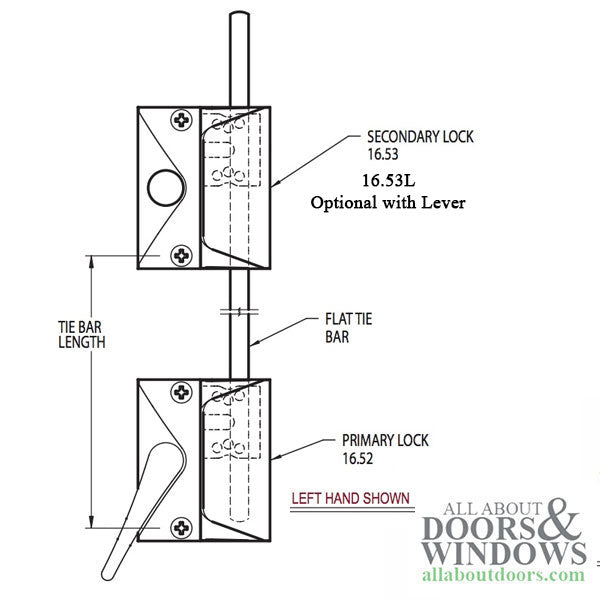

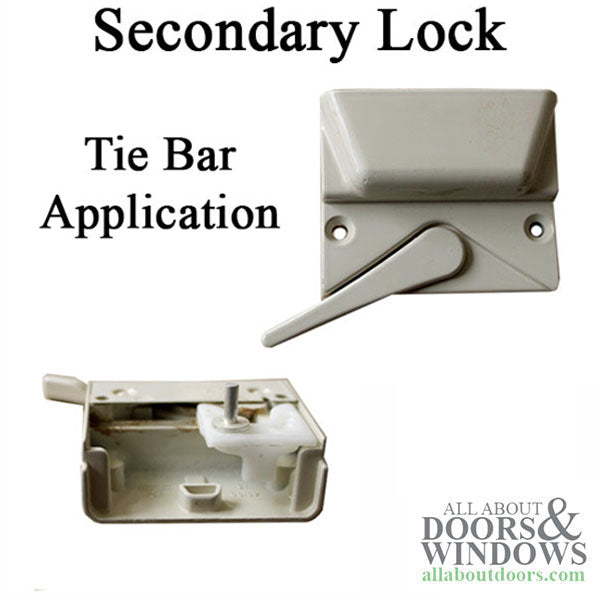

Tie Bar sash lock used in Multipoint Lock applications. There is a pin on the bottom that is used in conjunction with one or more sash locks.
There are 2 types, one with Lever and one without. This ones has the operating lever.
Used by Hayfield Windows, Semco, VOS and Others
Application: Casement Window with Tie Bar

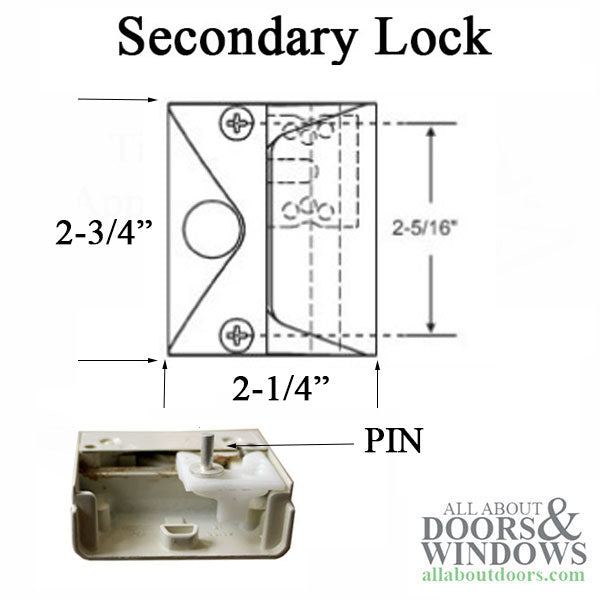

Sash Lock Width: 2-1/4 inch
Sash Lock Height: 2-3/4 inch
Screw Holes: 2-5/16 inch
Color; White and Beige
Sold each, No Screws
Priced and sold each.
Related Truth Casement Parts: Tie Bar Application
Truth 16.52 Homegard Primary Lock
Truth 16.53 Homegard Secondary Lock, No Lever
