Secury Automatic Multipoint Lock Key Operated 45mm Backset 92mm PZ Gear Driven
Use the arrows or swipe left to view all images for this product
Secury Automatic Multipoint Lock Key Operated 45mm Backset 92mm PZ Gear Driven
Part Number: $537.98Secury(R) Automatic Multipoint Lock Key Operated 45mm Backset 92mm PZ Gear Driven

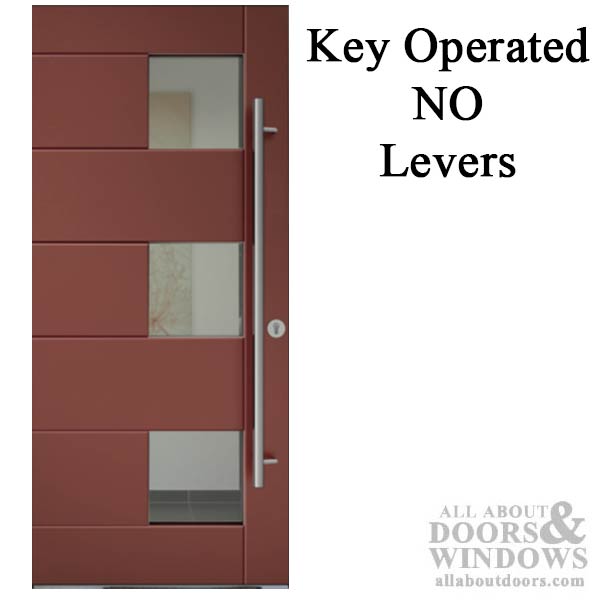

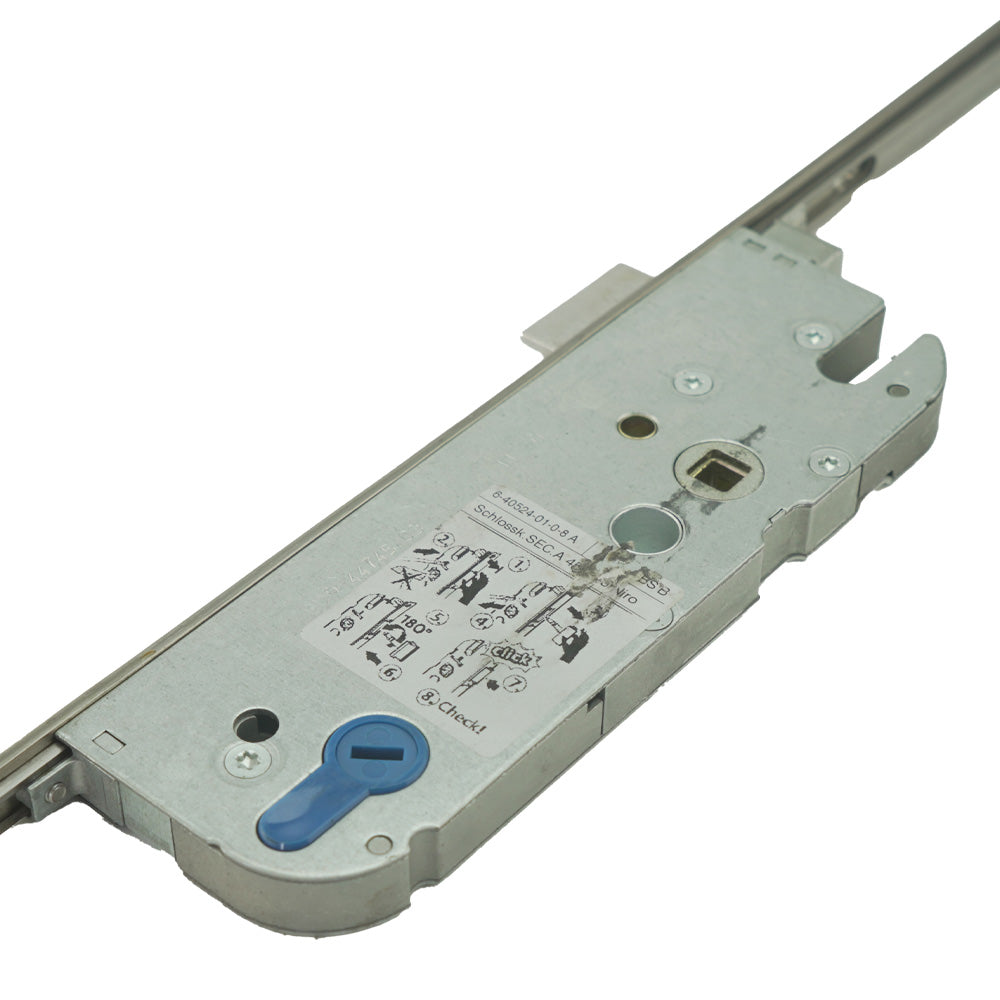

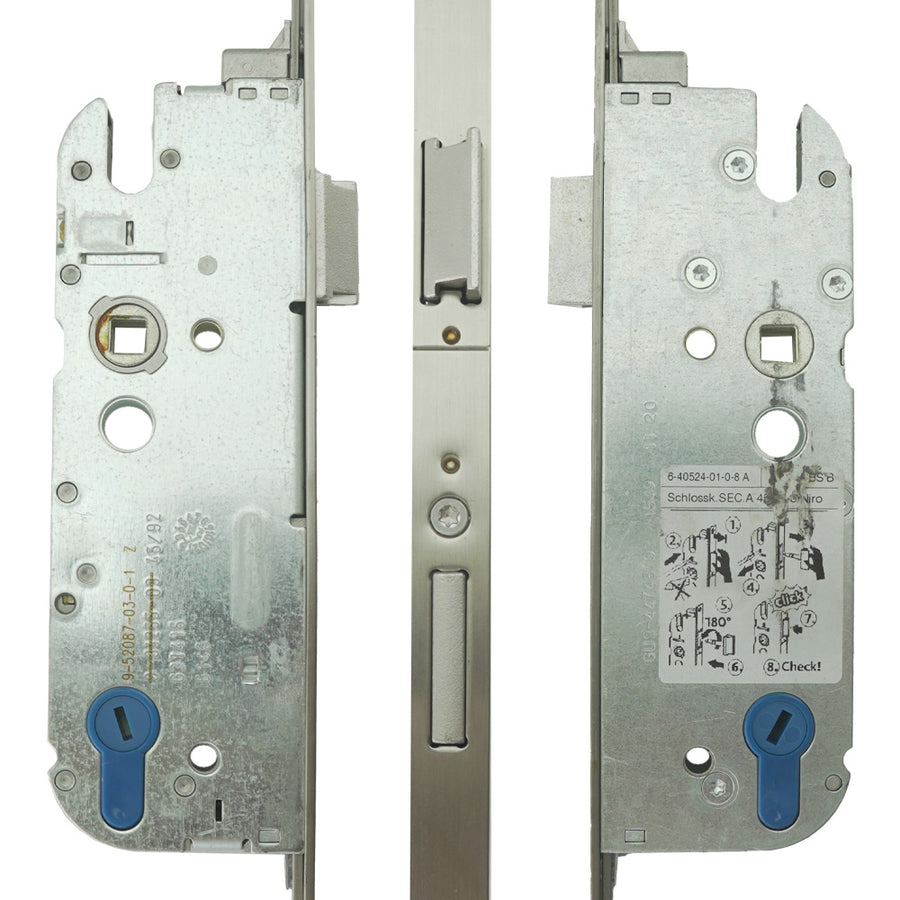

GU Secury(R) Automatic European Profile cylinder operated lock. . Use your key or thumb turn to lock and unlock door, Levers are not needed. Used for a clean modern looking door, Optional Push/Pull bars available. The Secury(R) Automatic would be an excellent choice because there is no second operation to engage the multi-points to keep the door in alignment. Every time the door closes the latches extend without lifting the handle.
Specifications:
- Faceplate Width: 5/8 inch (16mm)

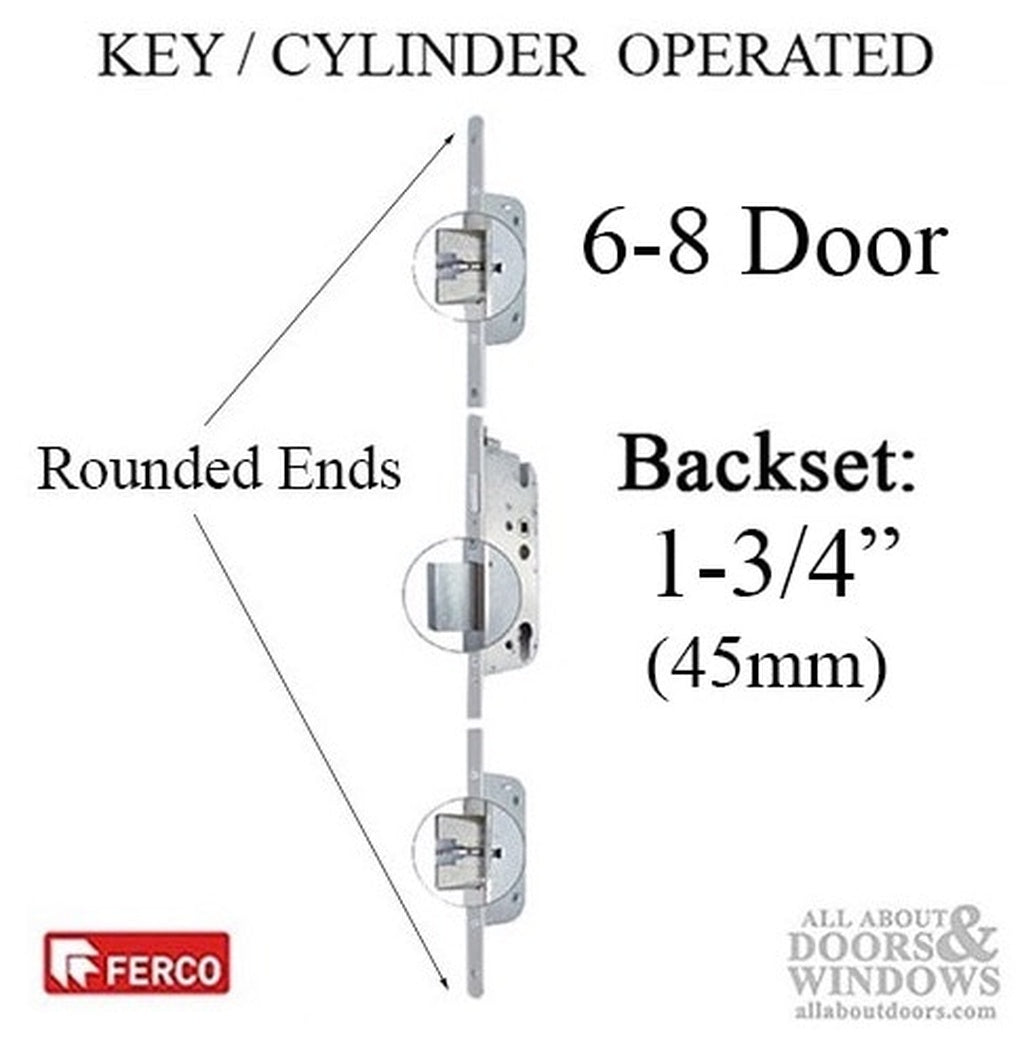

- Backset: 1-3/4 inch (45mm)

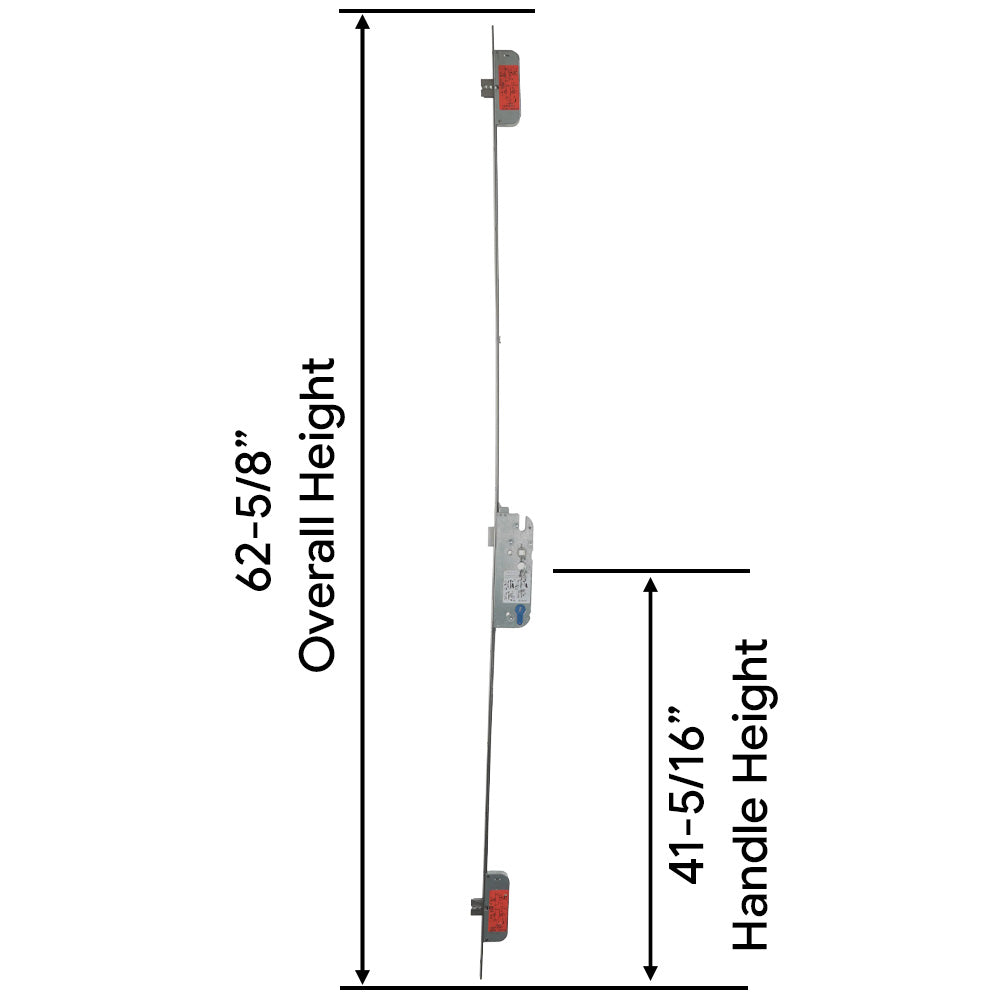

- Handle Height: 41.338 inch (1050mm) Croppable
- Deadbolt Throw: 3/4 inch (20mm)
- Spindle Hub: 5/16 inch (8mm)
- Cylinder to Spindle: 3-5/8 inch (92mm)
- Overall Length: 62-5/8 inch Fits 6-8 / 80 +/- inch door

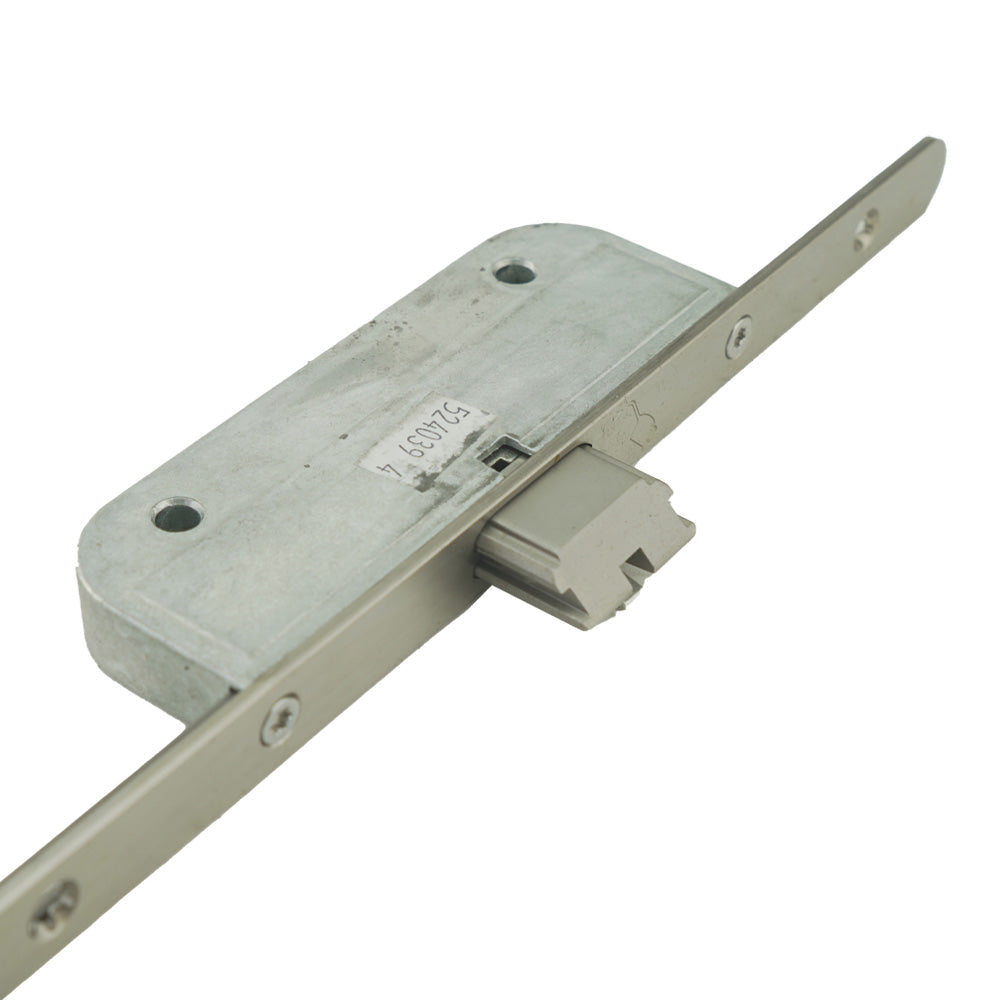

- Bottom Latch bolt Position: 23-1/2 inch ( 597mm)
- Upper Latch bolt Position: 29-1/4 inch (743mm)
- Material: 304 Stainless Steel
Compatible With:
K-C8153-01-0-0 - Set Motor Secury Automatic Universal
K-C5560-20-4-BLPC GU - SECURE Connect 200
See additional information tab for notes regarding the lock operation and related parts.
Lock Operation:
Simply close the door and the top and bottom latches extend 3/4 inch (20mm) to secure the door in the locked position.
Open the door with exterior key or interior thumb turn.
Turning Key or thumb turn 180 degrees will retract deadbolt, and additional 180 degrees will retract latches.NOTE: Bluetooth devices will work with the Danalock Smart Lock Components.Related Hardware: Push - Pull Handles
K-C0340-08-P-8B Double Pull bars, Round, Length 31.496 inch (800mm)
K-C0340-12-P-8B Double Pull bars, Round, Length 47.244 inch (1200mm)
K-C0340-18-P-8B Double Pull bars, Round, Length 70.866 inch ( 1800mm)K-C0345-08-P-8B Double Pull bars, Round 45 degrees Offset 800mm
K-C0345-12-P-8B Double Pull bars, Round 45 degrees Offset 1200mm
K-C0345-18-P-8B Double Pull bars, Round 45 degrees Offset 1800mmK-C0350-12-P-8B Double Pull bars, Rectangular 1200mm6-C0531-00-0-8B Interior Caps for Pull Bars (1)
K-C0960-00-0-8B Support Plates for Pull Bars (4)
