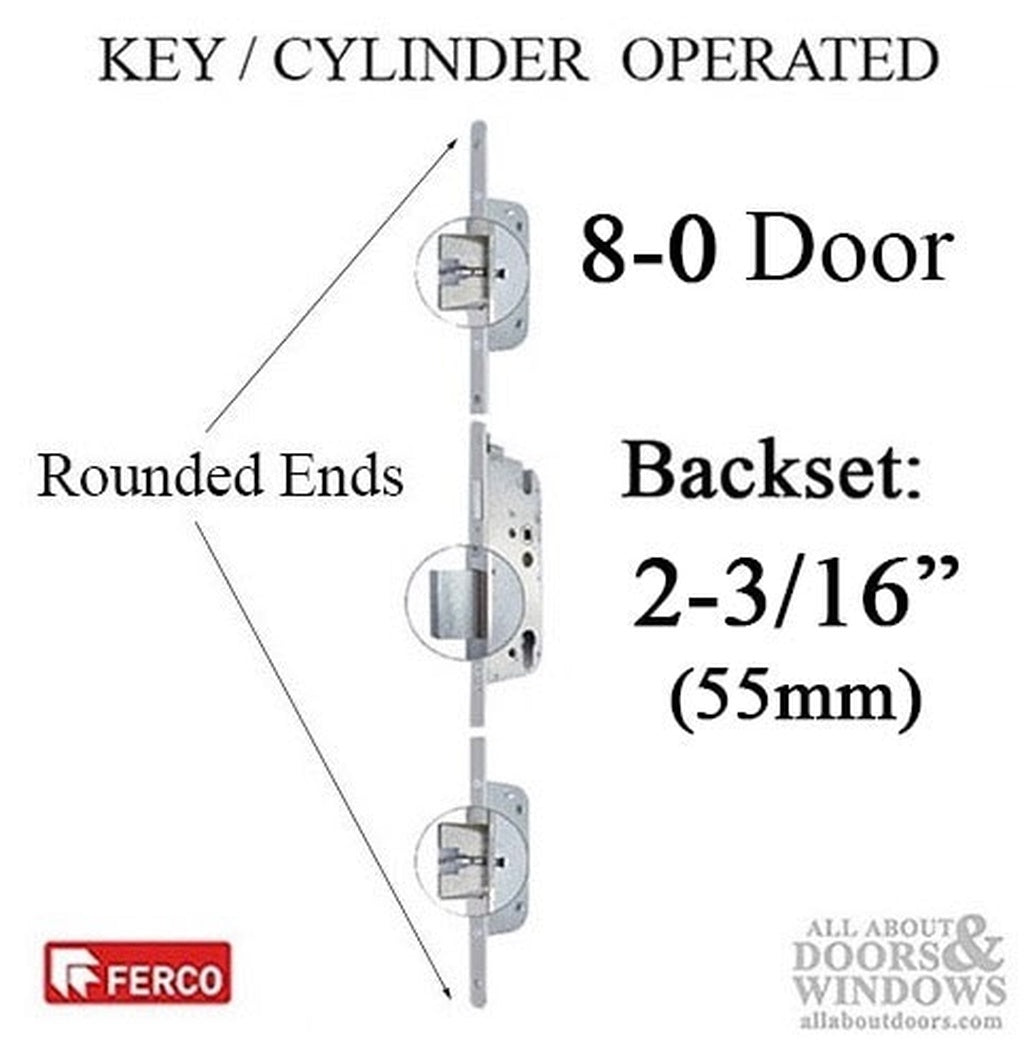

GU Secury Automatic European Profile cylinder key operated, gear driven lock.
Use your key or thumb turn to lock and unlock door, Levers are not needed for Pivot doors and when using electronics, smart lock, or motorization
Used for a clean modern looking door, Optional Push / Pull bars and other accessories are available

The Secury Automatic would be an excellent choice because there is no second operation to engage the multi-points to keep the door in alignment. Every time the door closes the latches extend without lifting the handle.

Faceplate width: 5/8 inch (16mm)
Backset: 2-3/16 inch (55mm)
Optional Backsets: 1-3/8 (35mm), 1-3/4 (45mm), 1-9/16 (55mm), 2-9/16 (65mm)
Handle Height: 41.338 inch (1050mm) Croppable for shorter heights
Deadbolt Throw: 3/4 inch (20mm)
Spindle Hub: 5/16 inch (8mm)
Cylinder to Spindle: 3-5/8 inch (92mm)
Overall Length: Fits 8-0 Door
Bottom Latchbolt Position: 23-5/16 ( 592mm) 23.307
Upper Latchbolt Position: 41-1/2 ( 1054mm) 41.496
Material: 304 Stainless Steel

Lock Operation:
Simply close the door and the top and bottom latches extend 3/4 inch (20mm) to secure the door in the locked position. Extend deadbolt with Key or Thumb turn.
Open the door with exterior key or interior thumb turn.
Turning Key or thumb turn 180° will retract deadbolt, and additional 180° will retract latches.

NOTE 1: Bluetooth devices will work with the Danalock Smart Lock Components.

NOTE 2: there is a temporary Blue American adapter insert in the profile cylinder hole, it is there for shipping and on site construction purposes and is removed prior to operation.

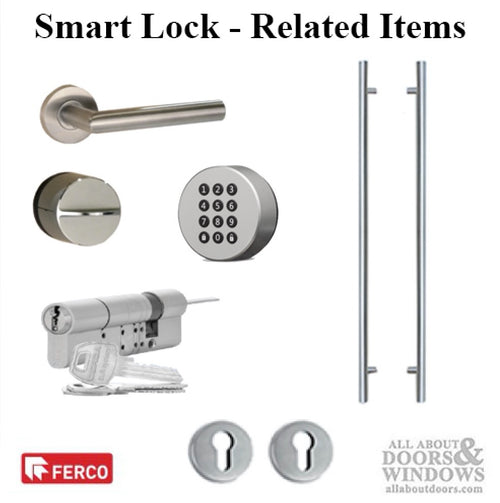

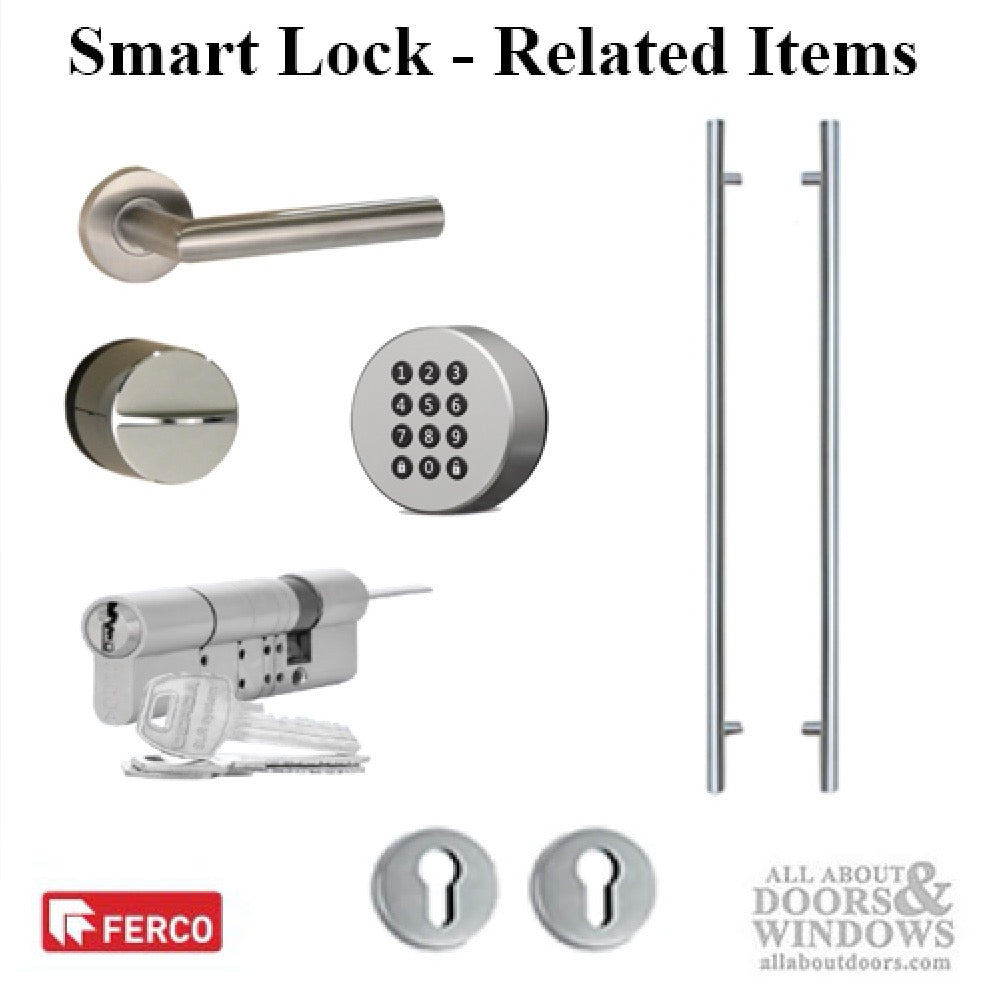

K-C0340-08-P-8B Double Pull bars, Round, Length 31.496 inch (800mm)
K-C0340-12-P-8B Double Pull bars, Round, Length 47.244 inch (1200mm)
K-C0340-18-P-8B Double Pull bars, Round, Length 70.866 inch ( 1800mm)

K-C0345-08-P-8B Double Pull bars, Round 45° Offset 800mm
K-C0345-12-P-8B Double Pull bars, Round 45° Offset 1200mm
K-C0345-18-P-8B Double Pull bars, Round 45° Offset 1800mm

K-C0350-12-P-8B Double Pull bars, Rectangular 1200mm

6-C0531-00-0-8B Interior Caps for Pull Bars (1)
K-C0960-00-0-8B Support Plates for Pull Bars (4)
