Sentinel XP25 Swing Multipoint Lock

450 Standard Series Stainless Steel Bottom Shootbolt Section

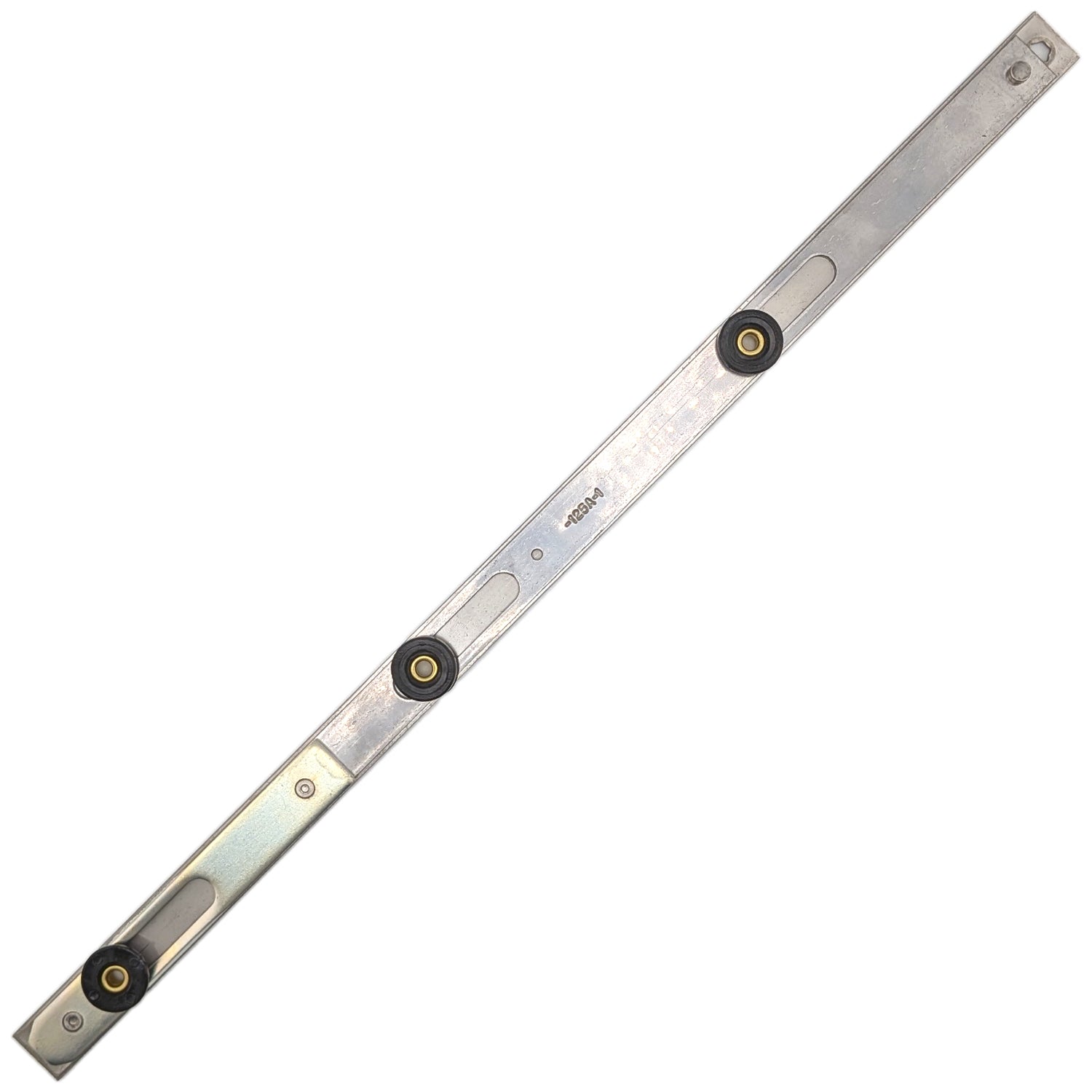

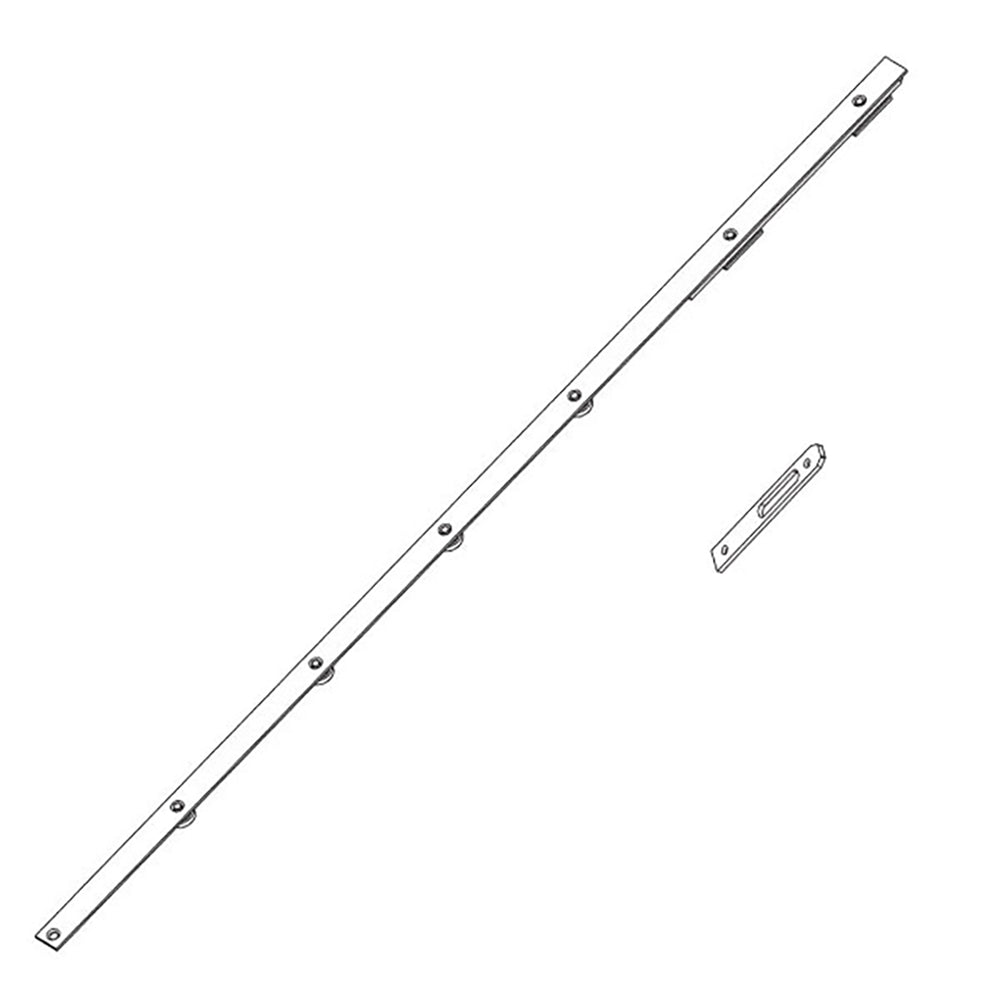

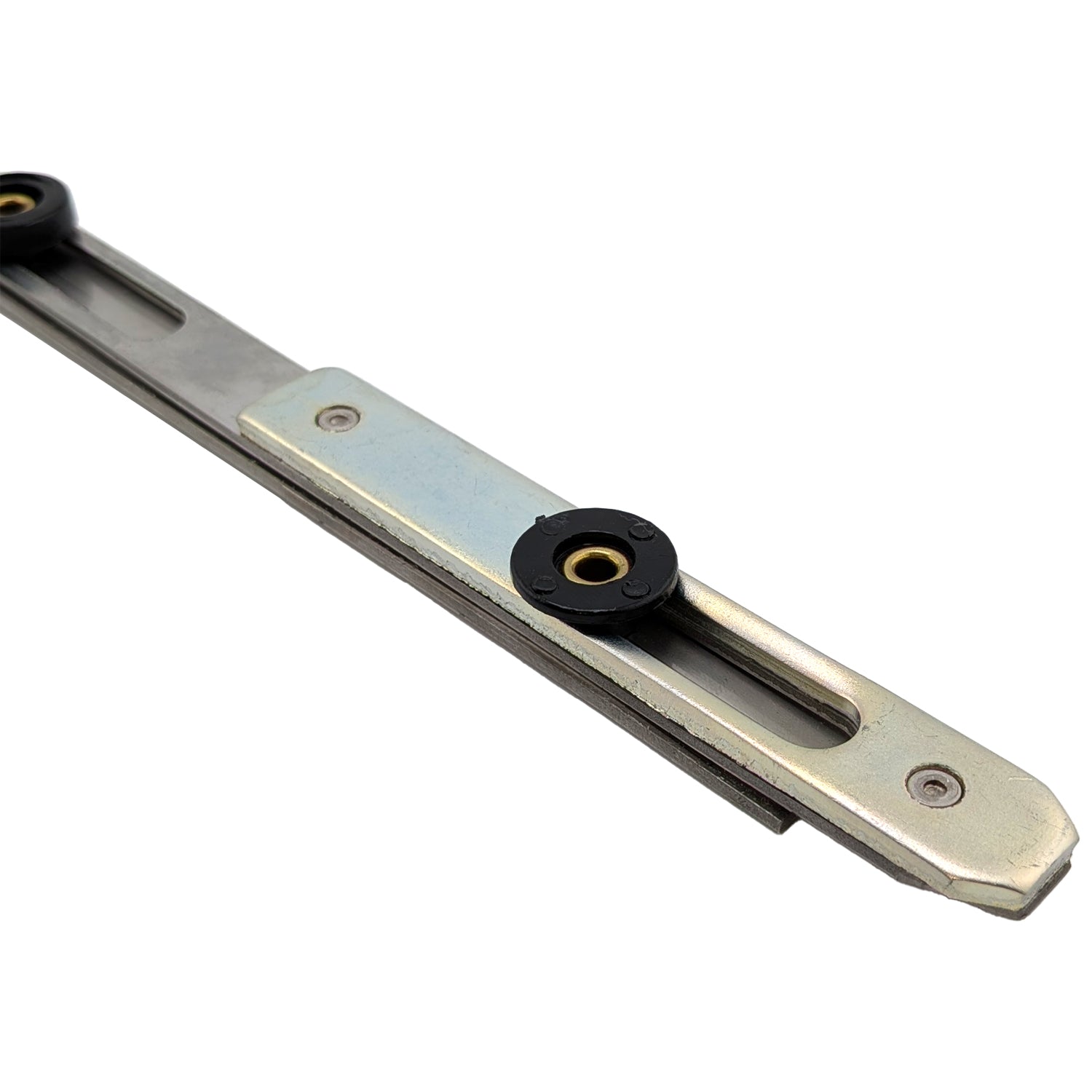

This is the bottom shootbolt section of the Sentinel XP25 swing multipoint lock.

This part, the 450 bottom shootbolt is 1 of 3 pieces that comprise a complete multipoint lock.

Specifications:

• Handle Height:  36 inches with this bottom extension
• Extension Width:  25/32 inch (20mm)

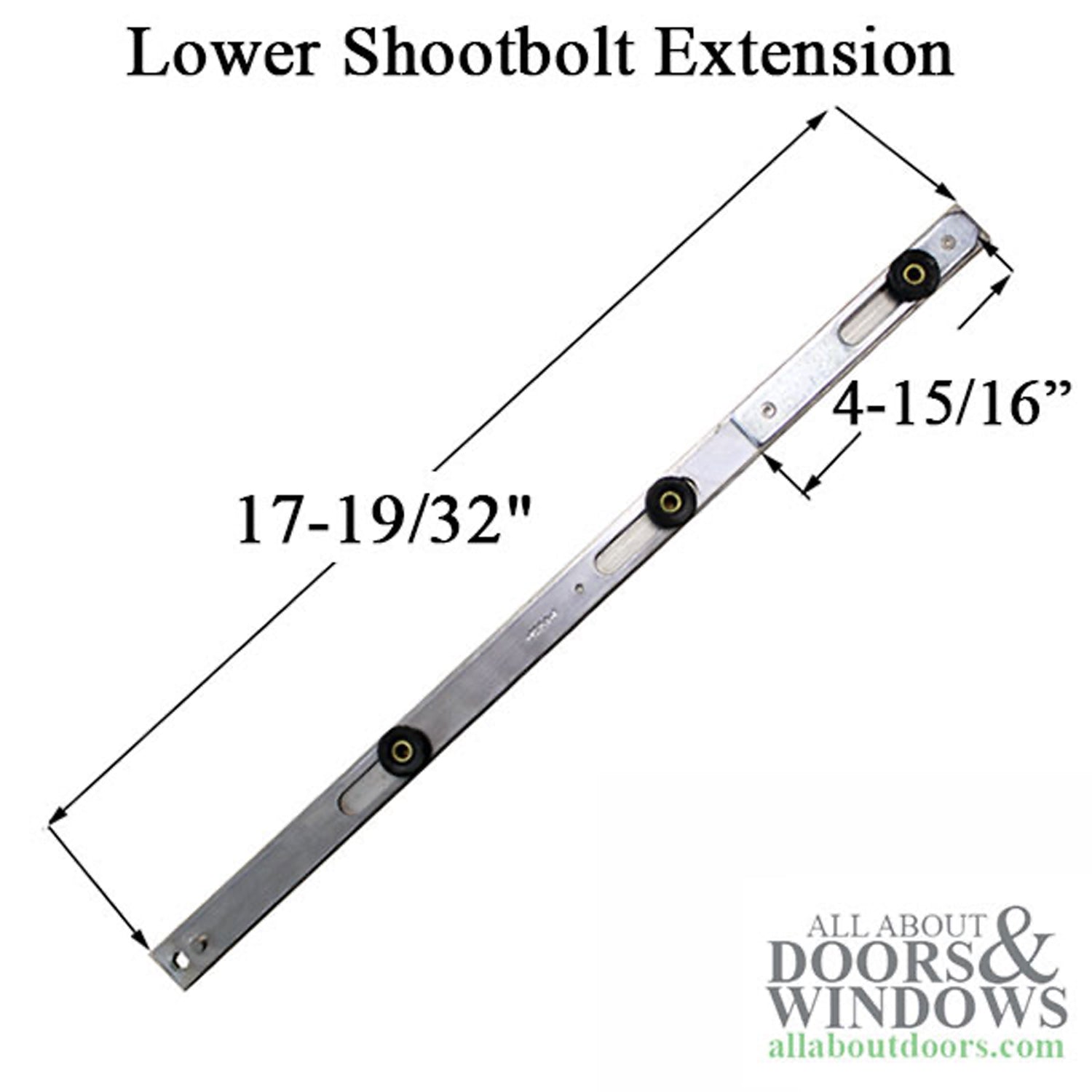

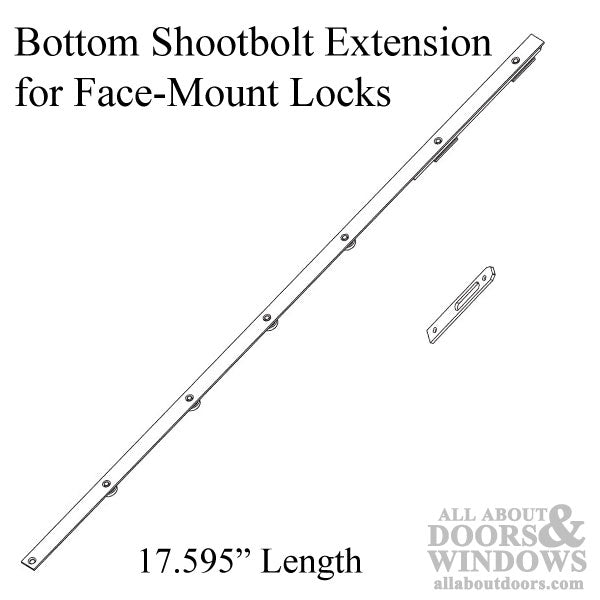

• Overall Length:  17-19/32" / 17.595 inches (447mm) Shootbolt retracted

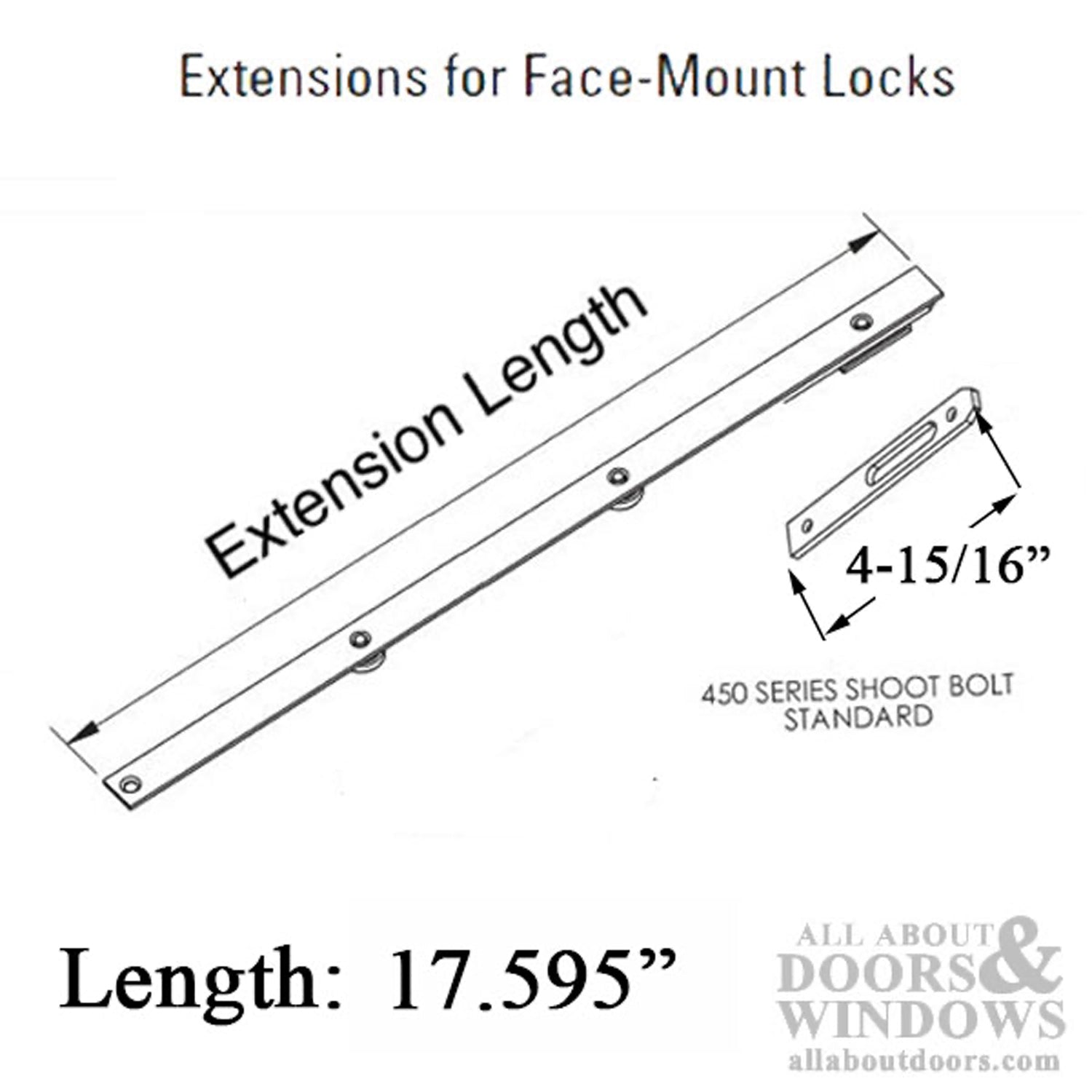

• Shootbolt Tip:  450 Standard Series
• Material:  Stainless Steel

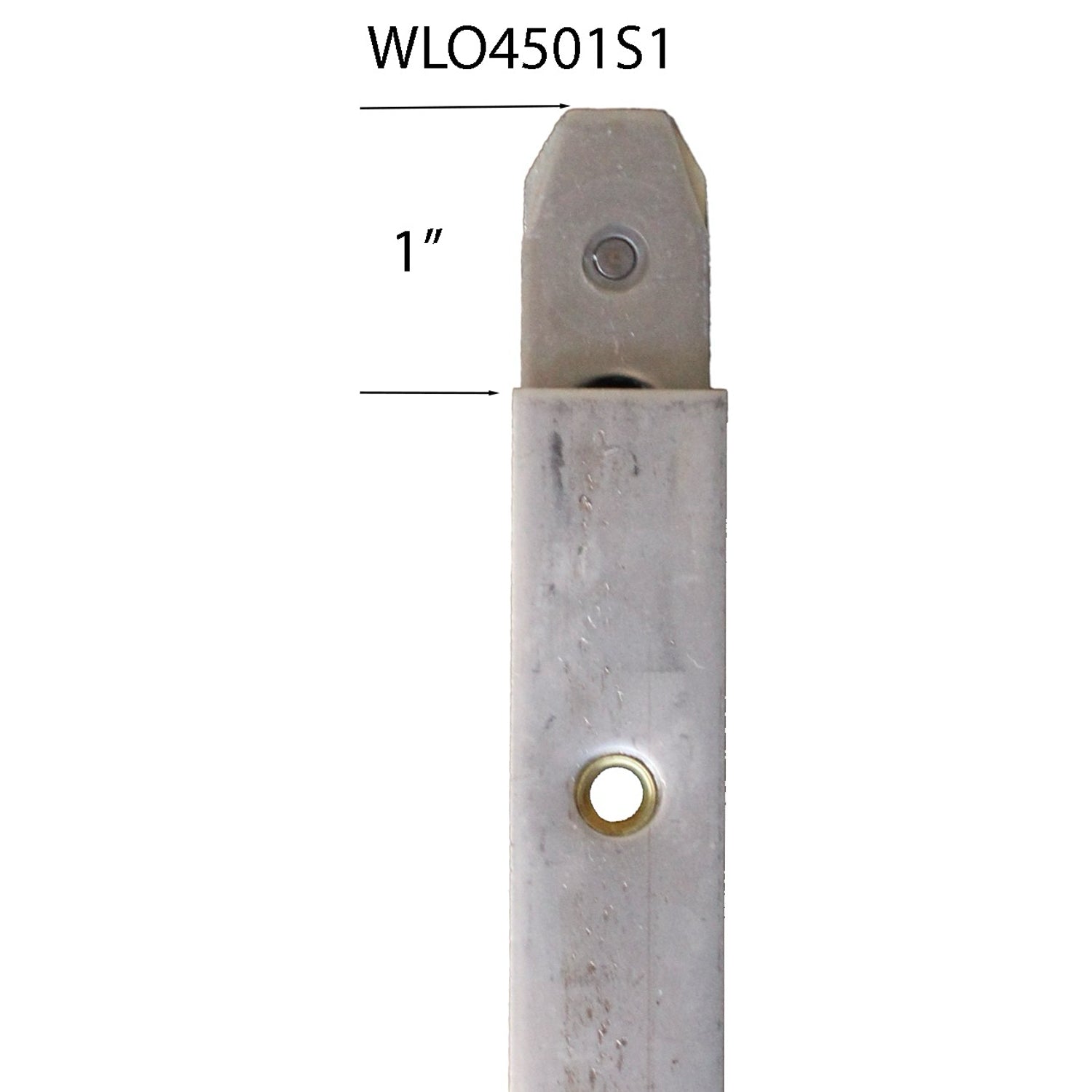

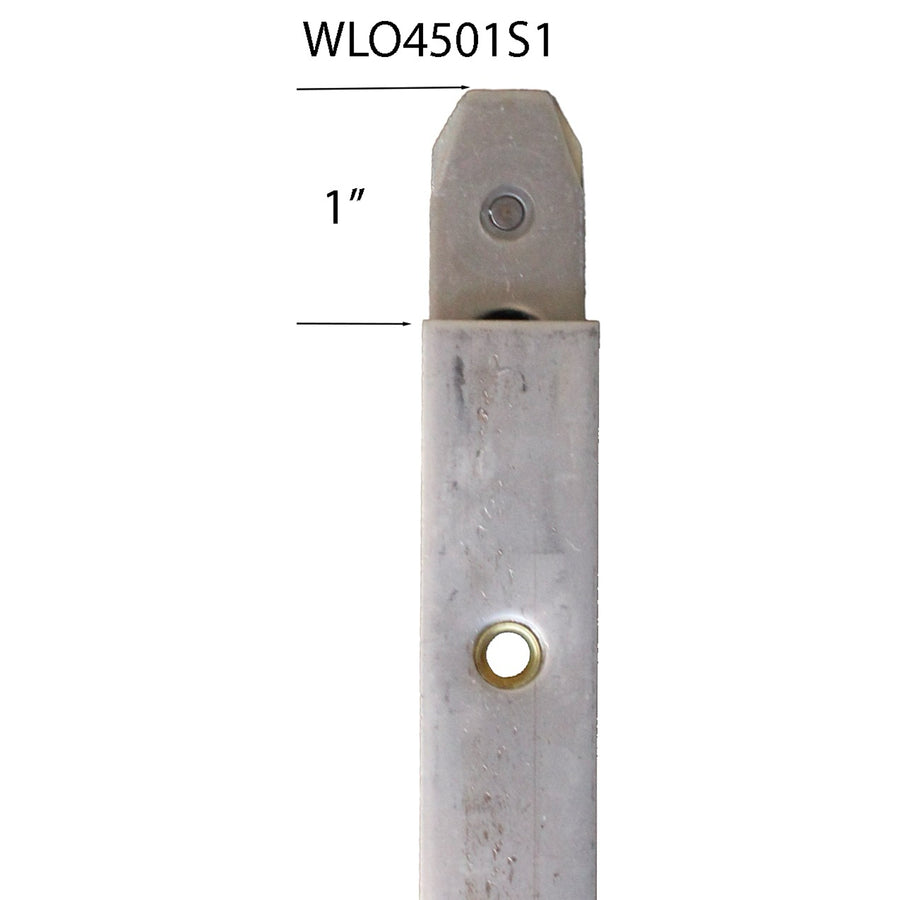

• Ashland Part #:  WLO-450-1S1 / WLO4501S1

Note 1:  The bottom / lower extension is the same as the upper. Handle height can be altered by using extensions of different lengths.

Note 2:  Cut-down kits are available to achieve custom sizes.
