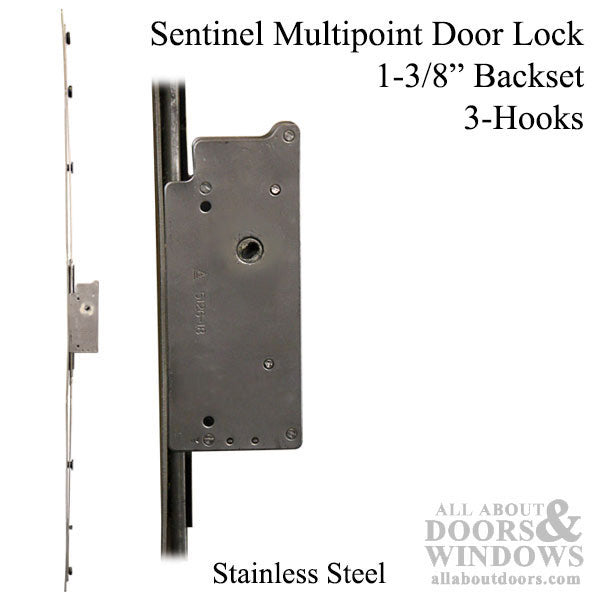

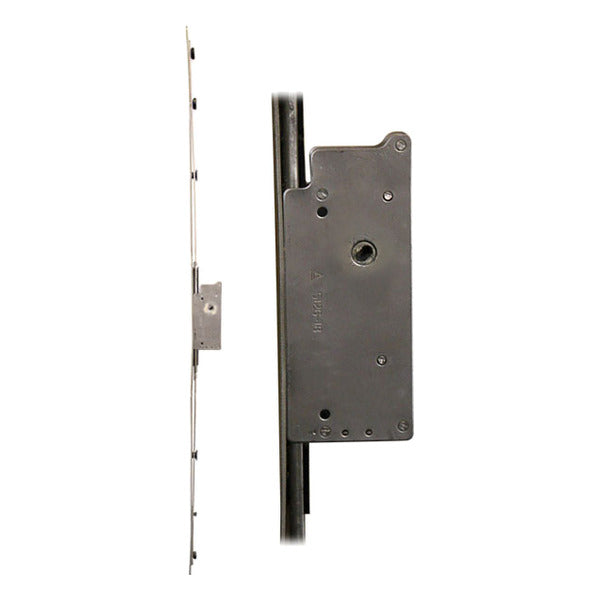

Sentinel Multipoint Sliding Door Lock 3 hooks 35mm Narrow Style Stainless Steel

Part Number:40216 Price: $205.00

Sentinel Multipoint Sliding Door Lock 3 hooks 35mm Narrow Style Stainless Steel

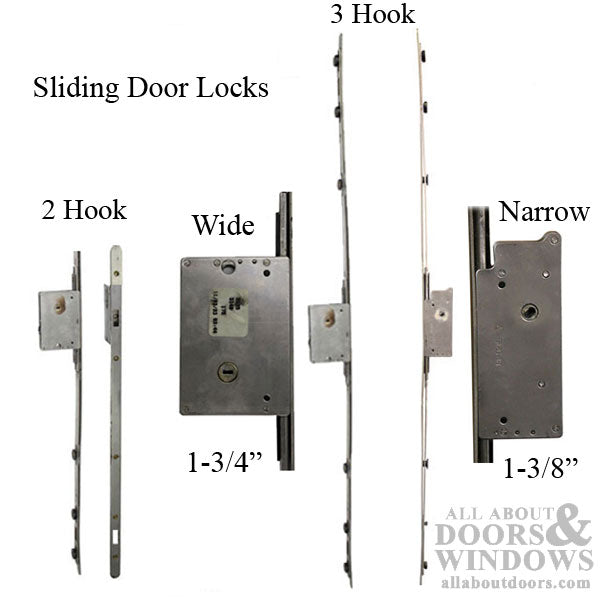

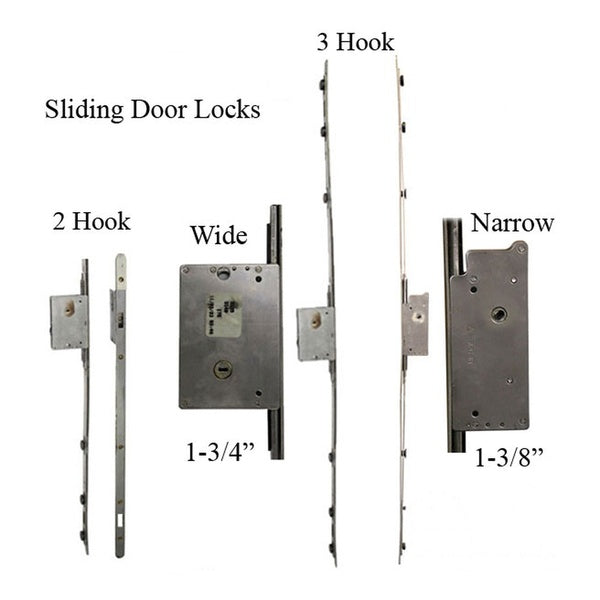

Sentinel Narrow Style multipoint sliding door lock with receptacles for 3 hooks.

Used by Caradco, Jeldwen and others.

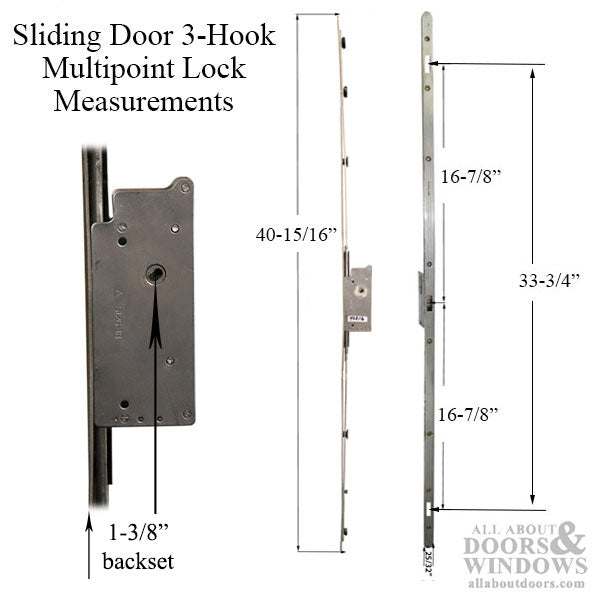

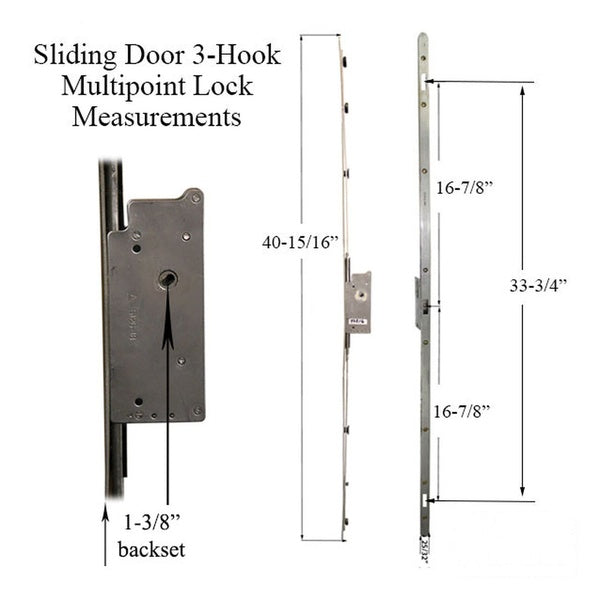

Backset: 1-3/8 inch ( 35 mm)
Overall Length: 40-15/16 inch, Radius ends
Hooks: 3 - spaced 16-7/8 inch
Lock Body case: 2-1/8 x 4-7/8 inch
Lock case Markings: 5126-18

See additional information tab for related parts, lock operation and notes.

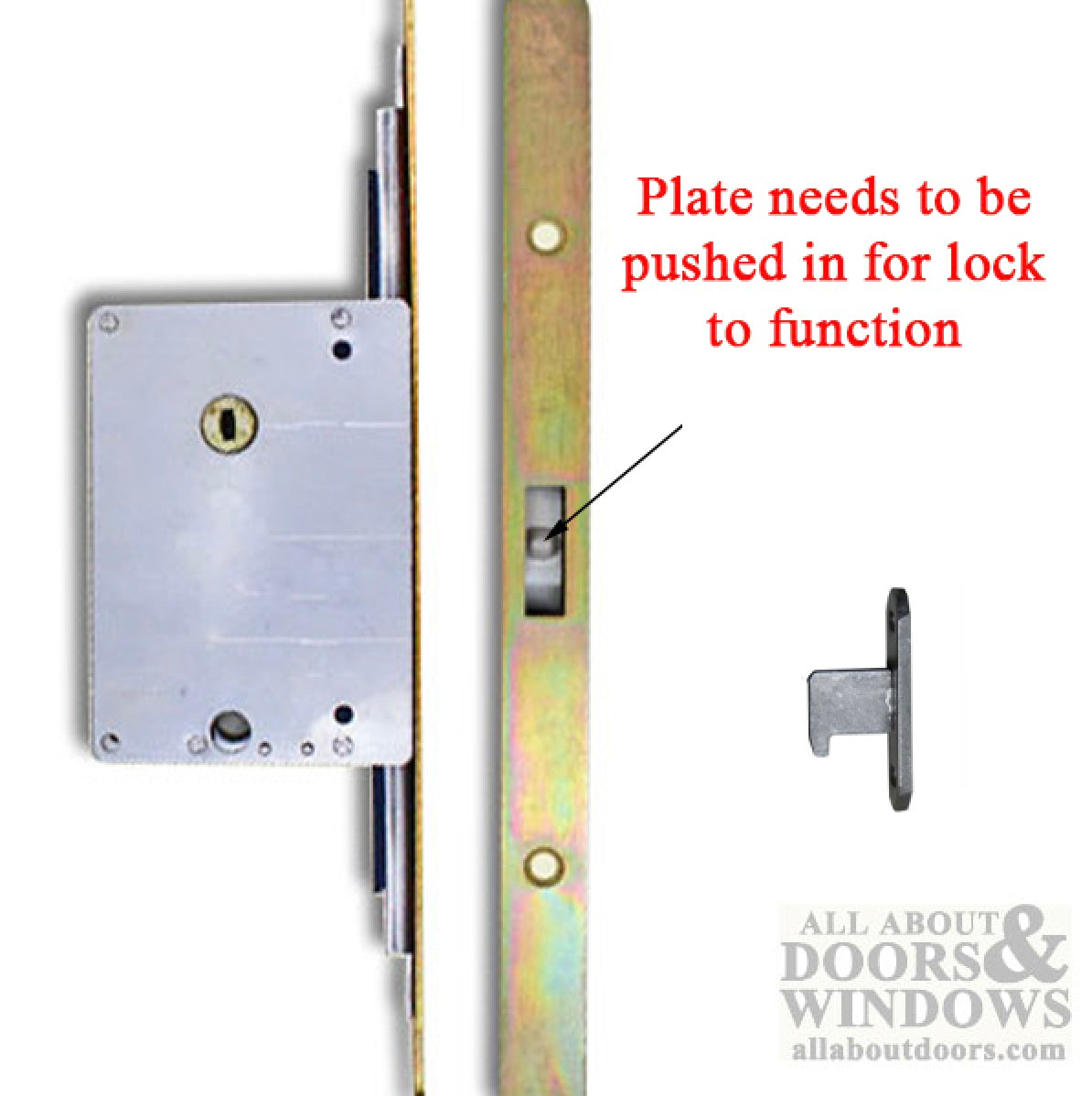

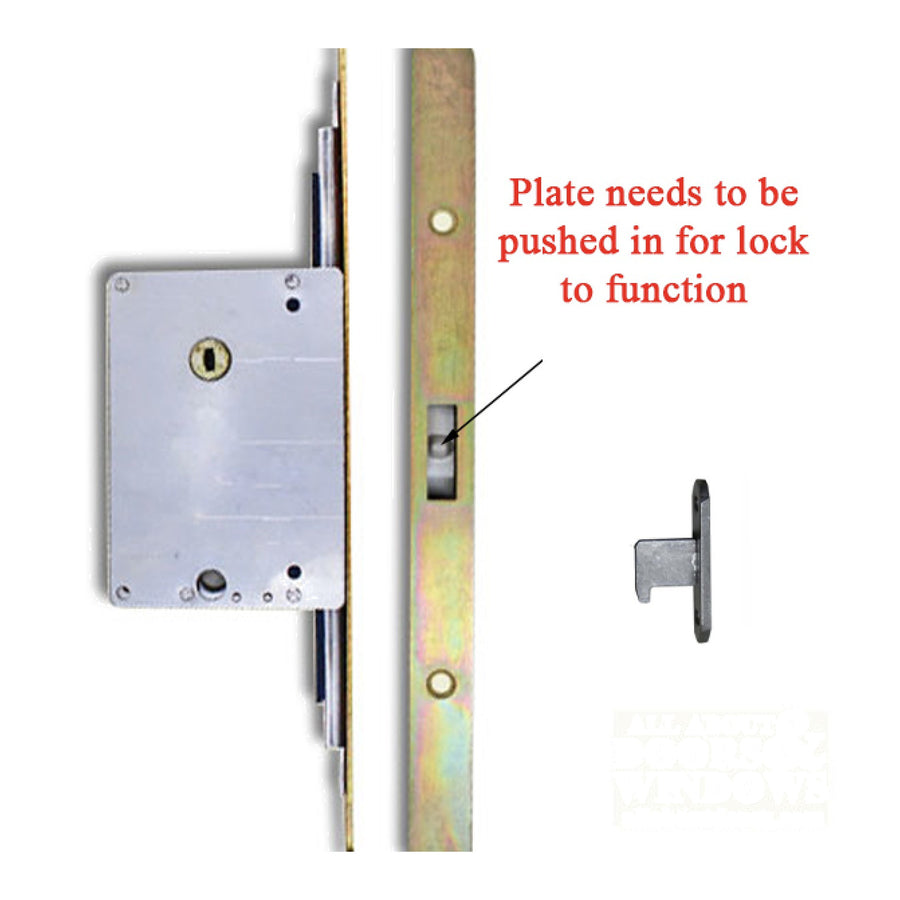

<p><span style="font-size:18px;"><strong>Operation of Lock: </strong></span><br /><span style="font-size:18px;">This lock uses hooks; the center hook goes into the lock case and pushes the plate back. This allows the thumb turn or key to turn and secure door in locked position.</span><br /><span style="font-size:18px;">We recommend that before you close your door to check out the functionality of the lock by inserting a screw driver or pencil into the center lock hole, pushing the plate back and testing the operation of lock. </span><br /><br /><span style="font-size:18px;"><strong>Related Handleset Trim:</strong></span><br /><span style="font-size:18px;">14545 - Narrow plate, 1-1/4 inch wide handle set trim</span><br /><span style="font-size:18px;">14552 - Wide plate, 1-11/16 inch wide handle set trim</span><br /><br /><span style="font-size:18px;">NOTE: IF you have Marvin trim, you will need to go back with same brand. They have a special drill hole pattern for their hardware.</span></p>
