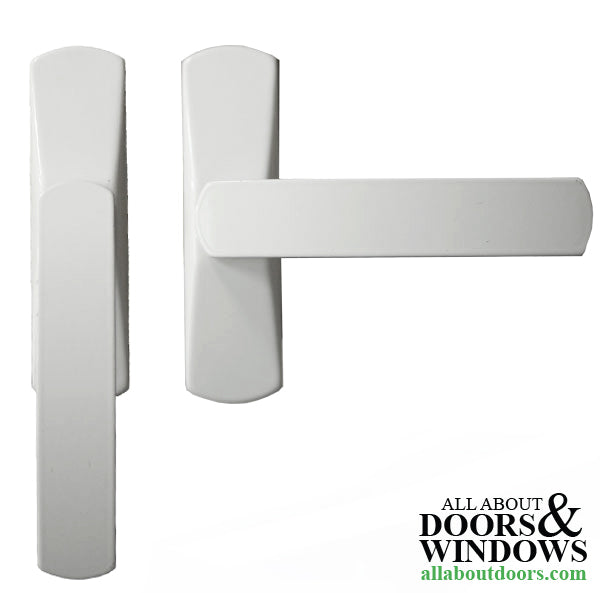

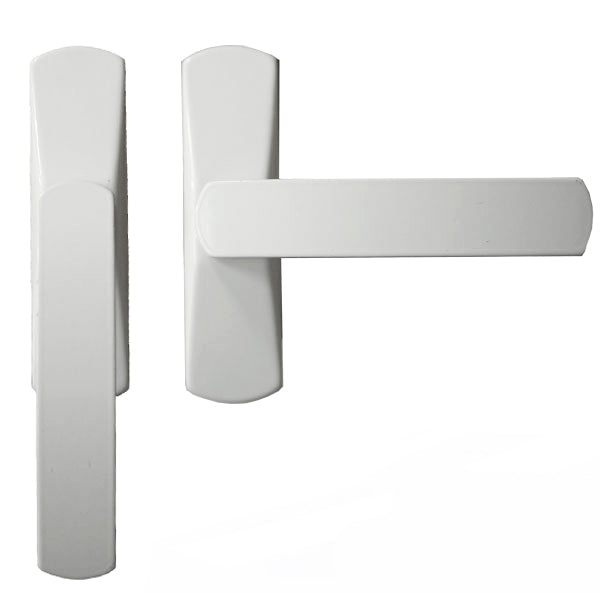

Metra & Erreti Due & Sotralu Balcony / Terrace door Handle for side hung windows and doors with external rods.

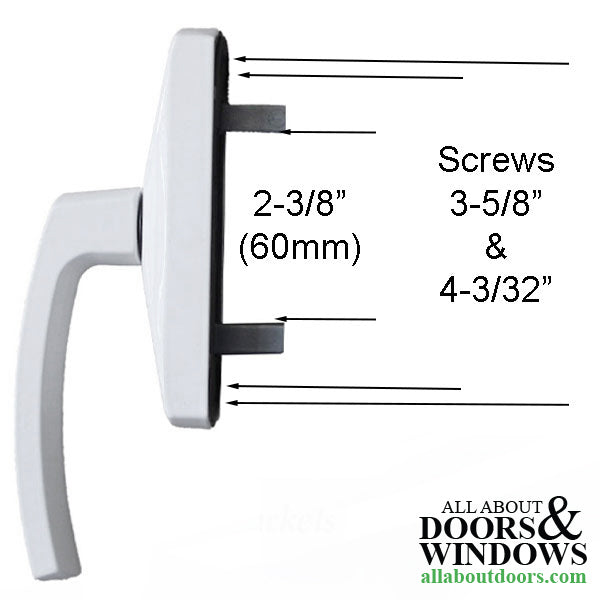

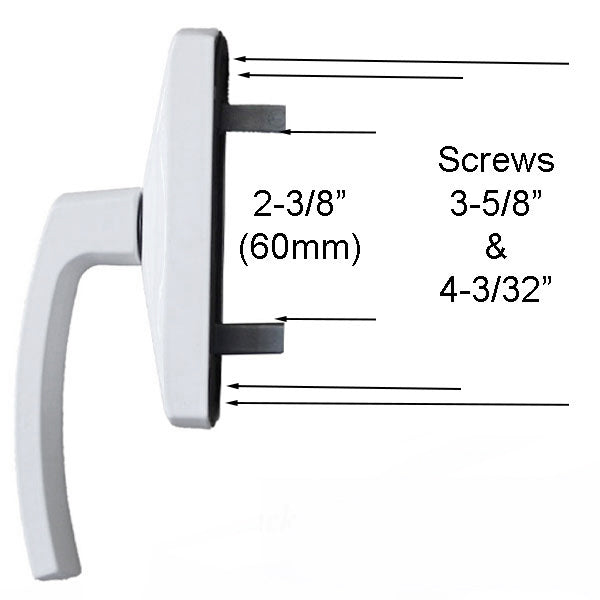

Installation Screw Holes: Top to Bottom 3-5/8 inch (92mm) & 4-3/32 inch (104mm)
Blade width: 3/8 inch (10mm)
Blade Projection: 3/4 inch (20mm)
Blades Maximum Spread Interior 2-3/8 inch (60mm)
Blades Minimum Spread Interior 1 inch (25mm)
Blades Maximum Spread Exterior 3-1/8 inch (79mm)
Blades Minimum Spread Exterior 1-3/4 inch (44mm)
NOTE: Screw hole spacing and spread on the two bars vary by brand.
Base Width 34mm
Base Length 127mm
Handle Length: 125mm
Handle Rotation 90°
Handed: Yes, Right is standard, Left Optional
Color: White
Markings: Logo on Black Plastic MA4437S (-) SX E11769/ MA4437S (+) DX E11768
Made in Italy

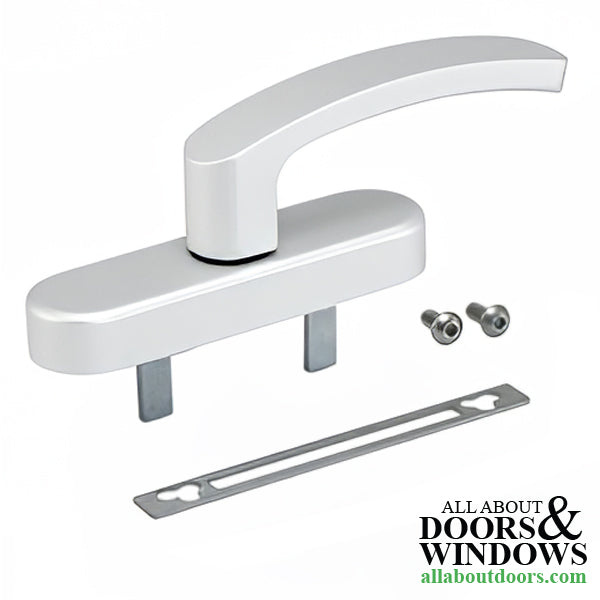

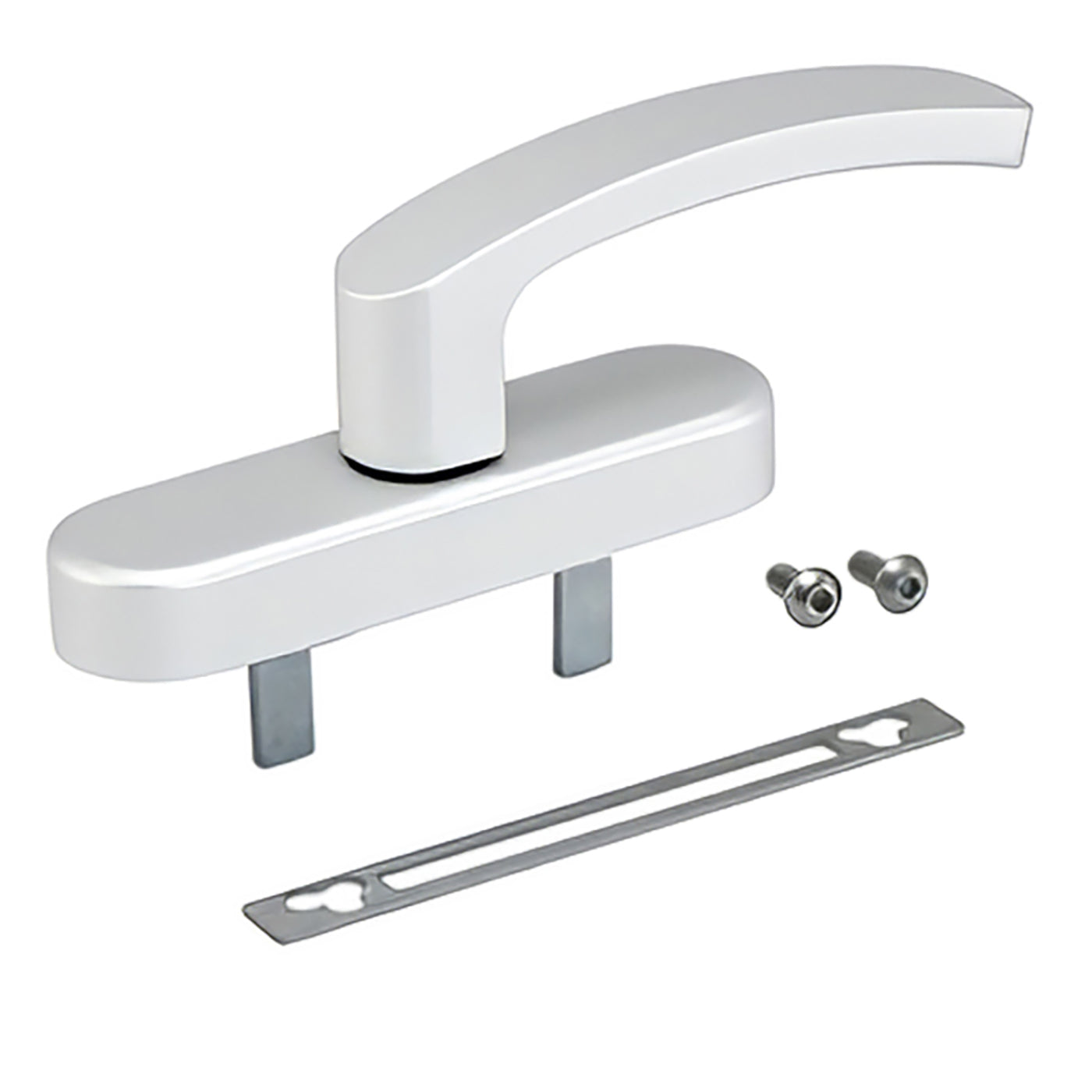

Supplied with: 1 Cremone 2 blade bolt, 1 fixing 12mm x 124mm back plate, 2 M5x12mm hex head screws

Additional Information
Description: Extruded aluminium lever, deep-drawn aluminium body cover, galvanized steel locking screw, nylon shim washer. Body, gear, removable sliders, in die-cast zamak. Steel 90° latch spring. Lower handle base in acetalic resin. Stainless steel fixing screws and plate.

Opening: The side hung cremone bolt is supplied right-handed (the left-hand version is available on request); kit ZC1965 (pair of left-hand sliders) is necessary to
modify from right-hand to left-hand opening.

Optional: Connection blocks for side hung wing.
