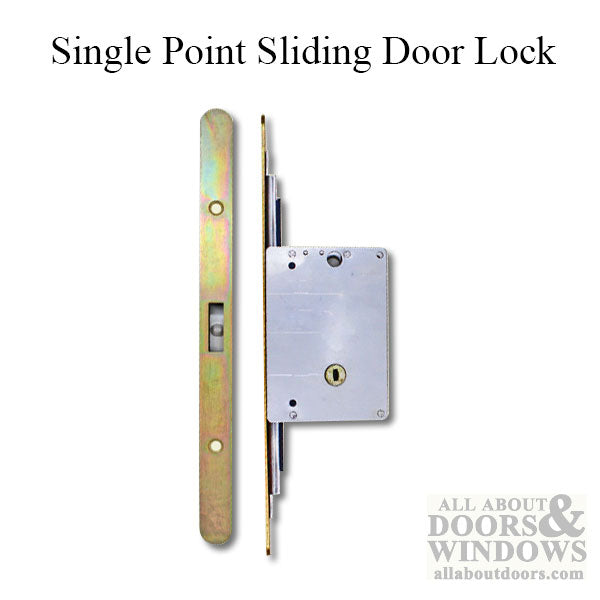

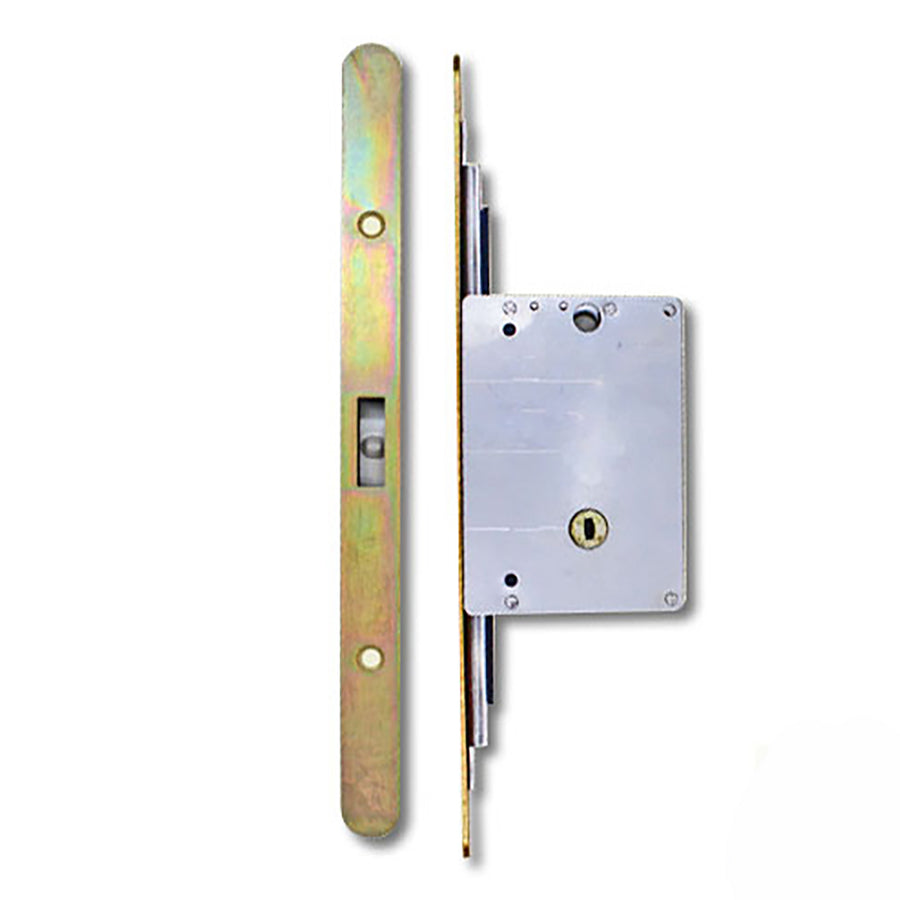

Single point lock for sliding glass wood, vinyl or fiberglass doors
The strike is on the jamb and goes into the lock body, then a flat metal slides down to secure door.

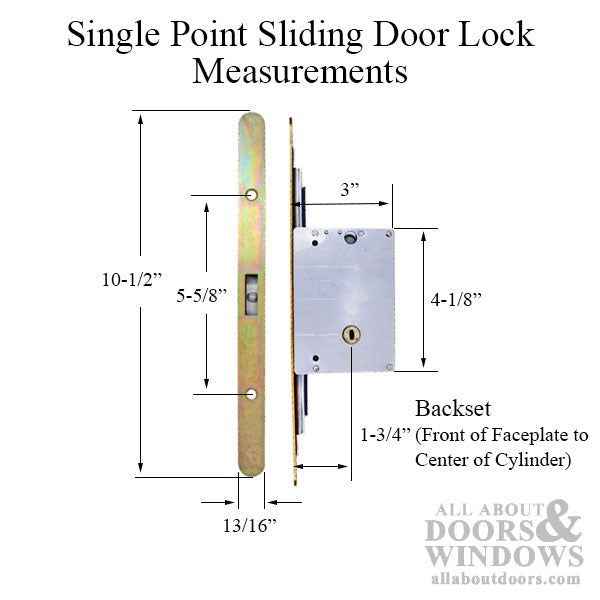

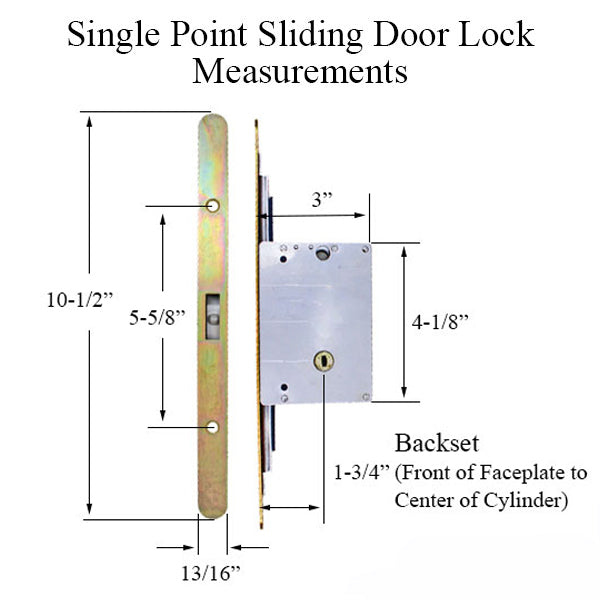

Faceplate Width: 25/32 inch (20mm)
Faceplate ends: Round
Backset: 1-3/4 (45mm)
Faceplate Length: 10 -1/2 inch, radius ends
Screw Hole: 5-5/8 inch
Lock Depth: 3 inch
Height: 4-1/8 inch
Faceplate Material: Steel, Yellow DiChromate (YDI)

Operation of Lock:

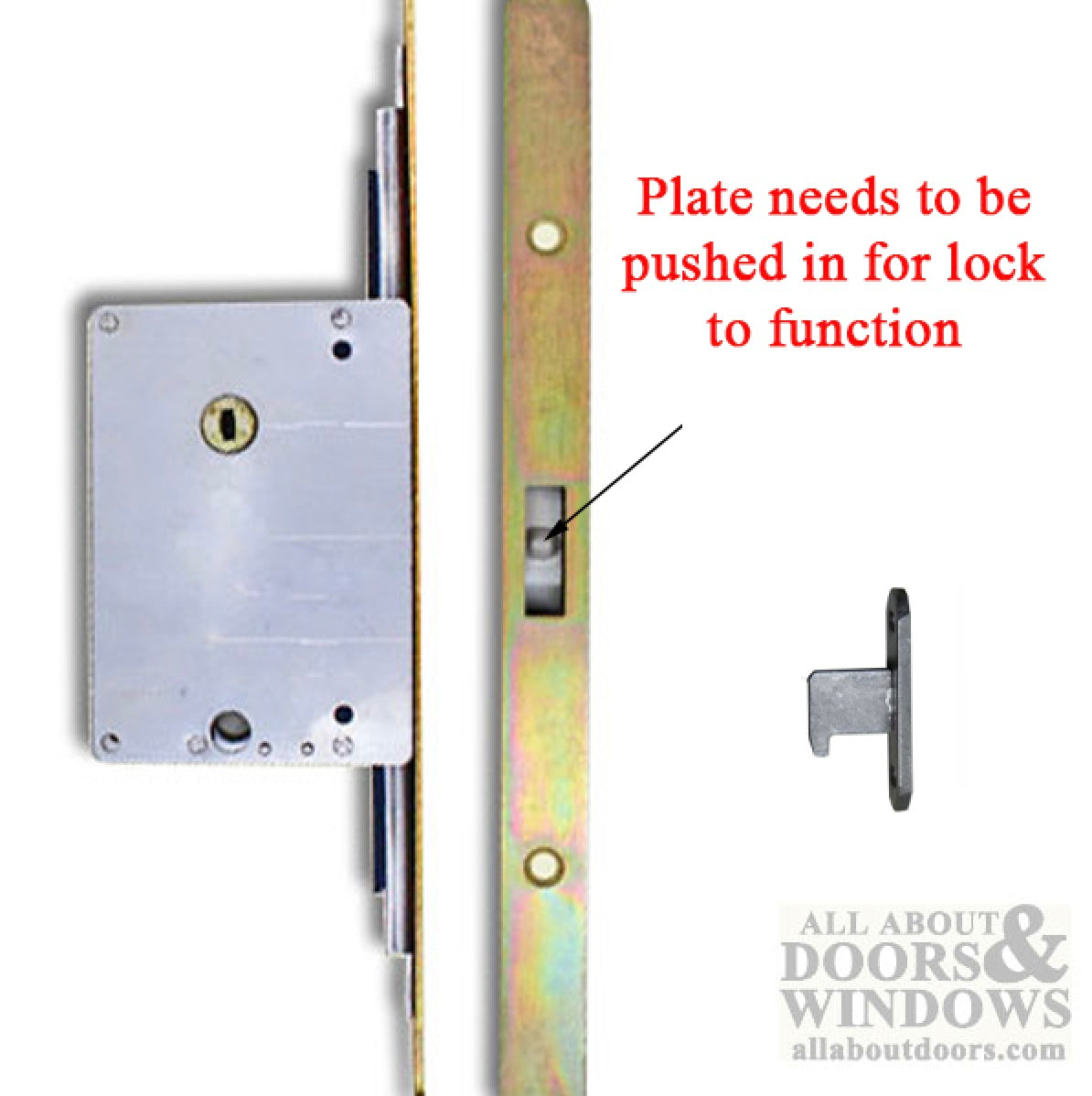

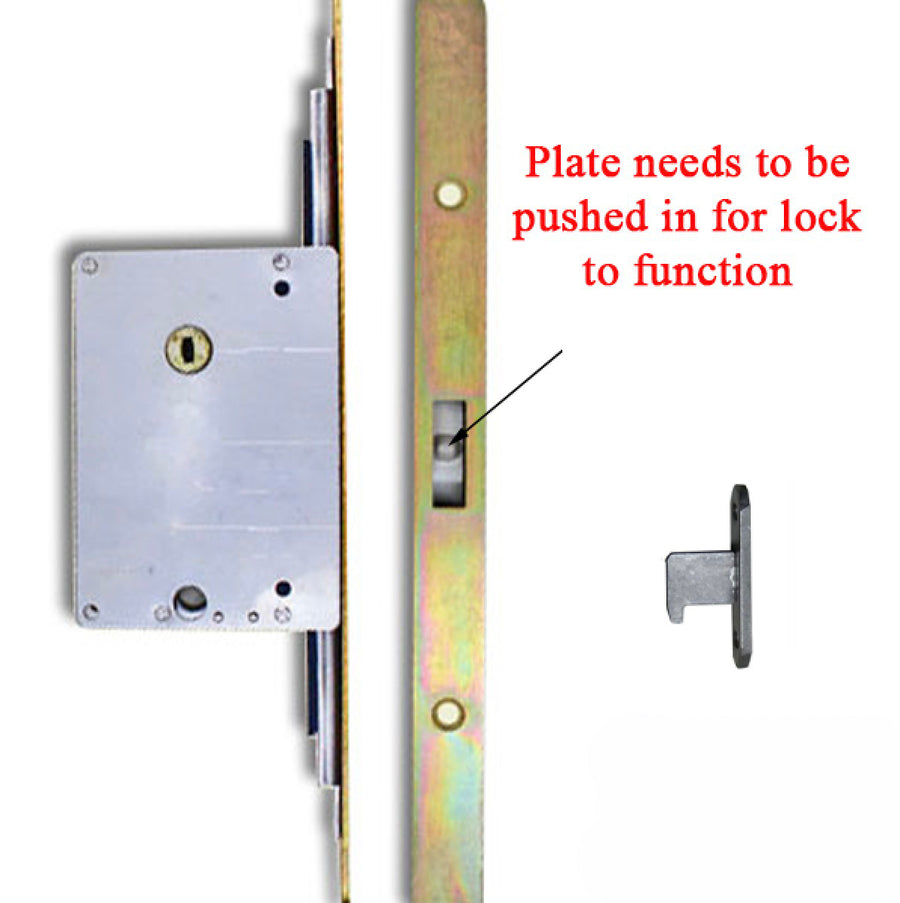

This lock uses hooks; the center hook goes into the lock case and pushes the plate back. This allows the thumb turn or key to turn and secure door in locked position.
We recommend that before you close your door to check out the functionality of the lock by inserting a screw driver or pencil into the center lock hole, pushing the plate back and testing the operation of lock.


Related Handleset Trim:
14545 - Narrow plate, 1-1/4 inch wide handle set trim
14552 - Wide plate, 1-11/16 inch wide handle set trim

NOTE: IF you have Marvin trim, you will need to go back with same brand. They have a special drill hole pattern for their hardware.
