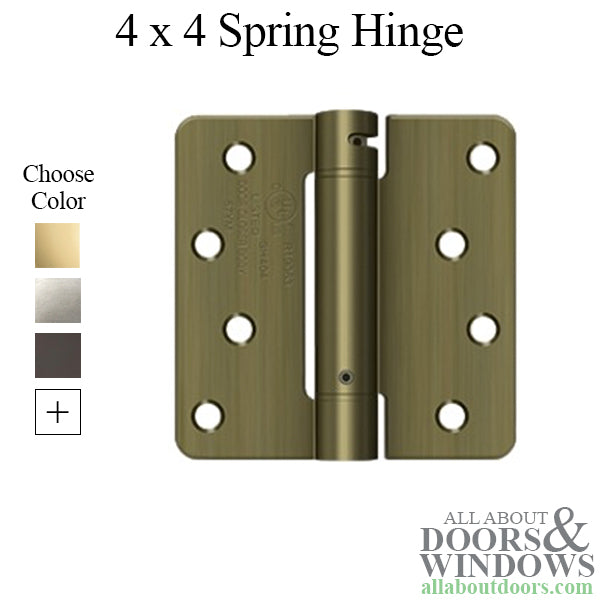

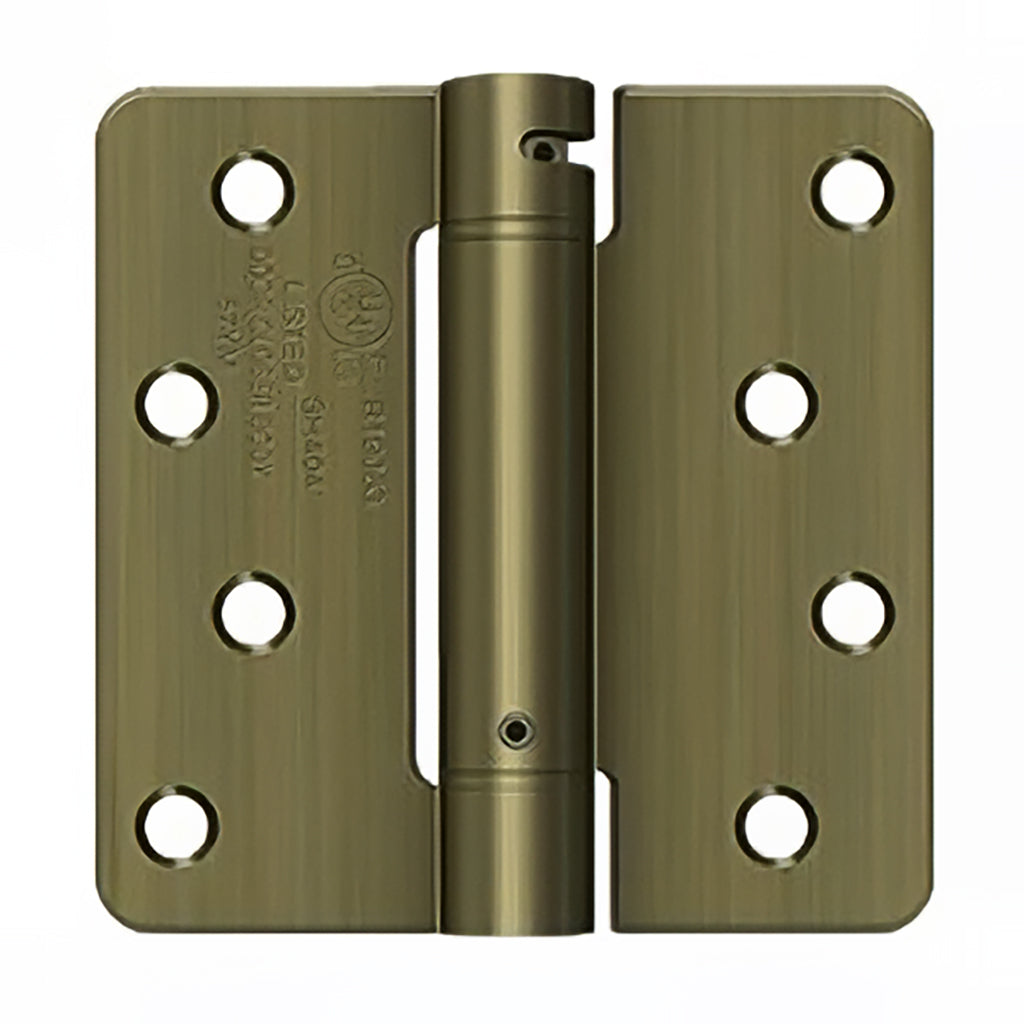

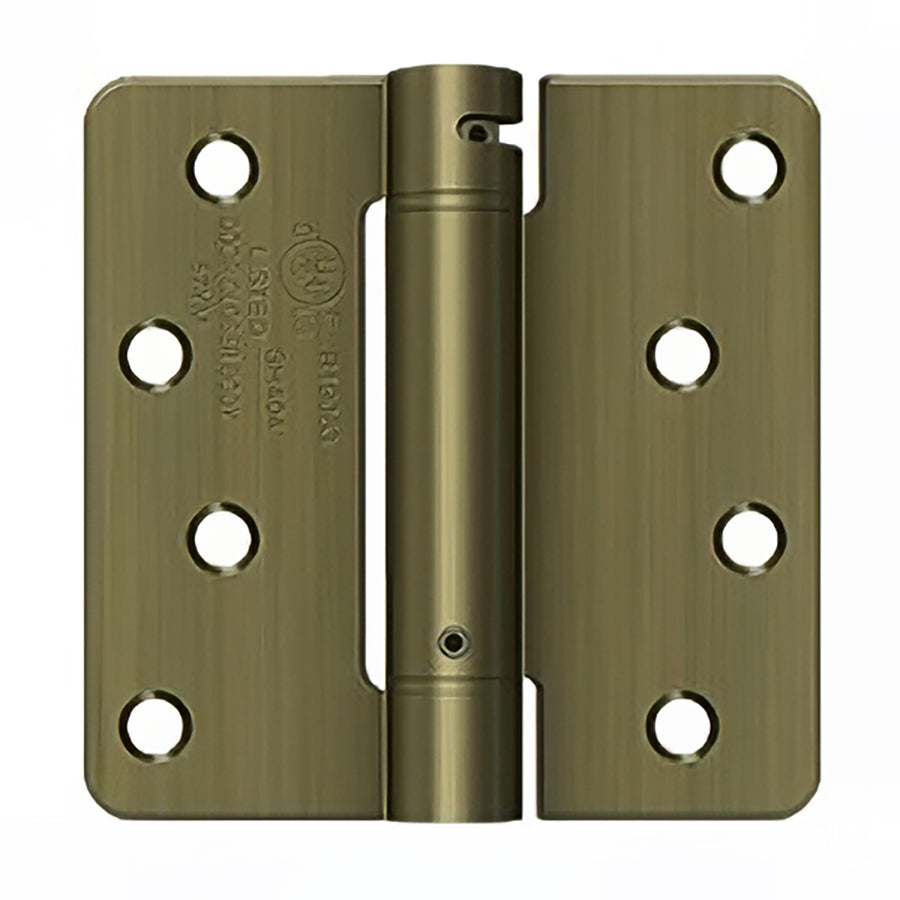

Spring Hinge 4 x 4 x 1/4 Radius Corners, Single Action
Part Number: 363612-BSN Price: $20.30 to $23.494 x 4 x 1/4 Radius corner Self Closing Adjustable Spring Hinge
Type: Single Action Spring loaded hinge
Application: Residential Exterior and Commercial Doors
Hinge Corners - 1/4 Radius

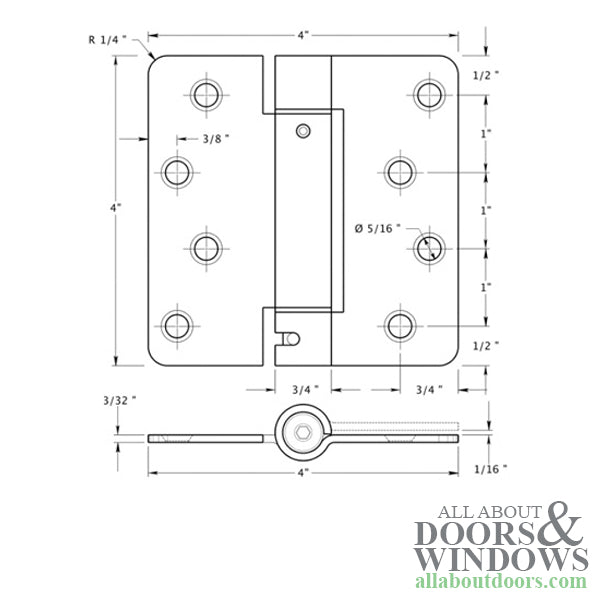

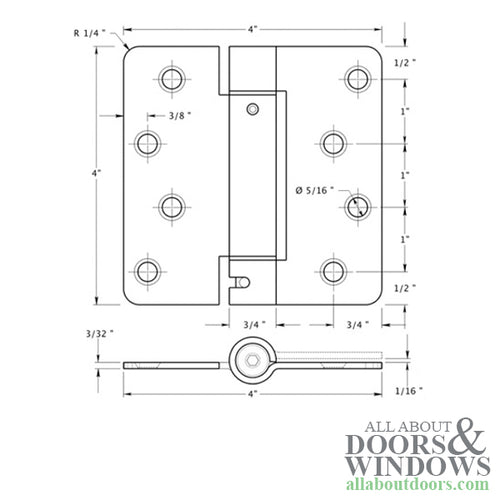

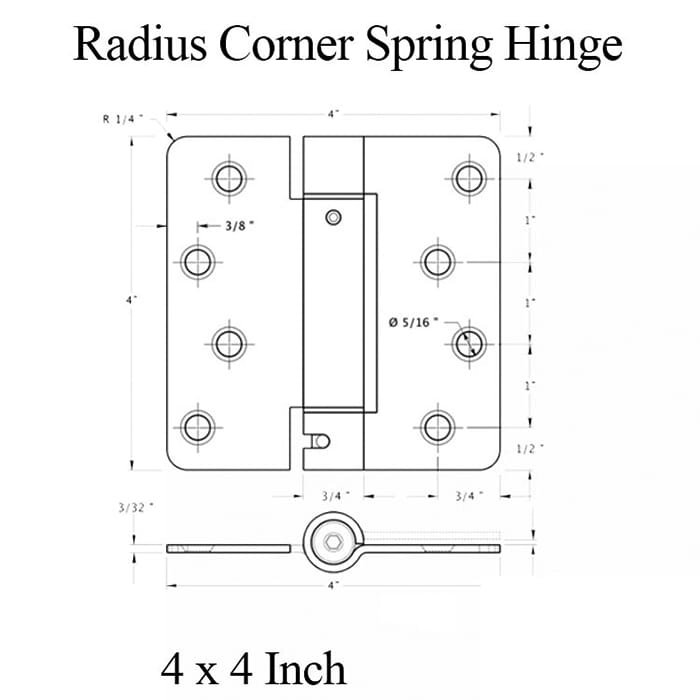

Size - 4.0 x 4.0 inch (101.6mm x 101.6mm)
Base Metal - Steel
Thickness - 0.097 inch (2.46mm)
SOLD: Each, 1 Hinge equals 1/2 pair
NOTE: Some hinges are boxed in each, 2's or 3's - Ours are sold each
Hinges are sold in half pairs - price is PER hinge, as shown in Picture
Available Finishes:
Polished Brass
Brushed/Satin Brass
Oil Rubbed Bronze
Additional Information:
Quantity - Half Pair (1 Hinge)
Primary Usage - Standard
Wood Screw Size - #10 x 1 inch
Metal Screw Size - #10 x 1/2 inch
NOTE:
1. For maximum versatility, when adjusting hinges, use all spring hinges on door
2. Wind conditions, weather stripping and other factors may require the use of all spring hinges.
Type: Single Action Spring loaded hinge
Application: Residential Exterior and Commercial Doors
Hinge Corners - 1/4 Radius
Size - 4.0 x 4.0 inch (101.6mm x 101.6mm)
Base Metal - Steel
Thickness - 0.097 inch (2.46mm)
SOLD: Each, 1 Hinge equals 1/2 pair
NOTE: Some hinges are boxed in each, 2's or 3's - Ours are sold each
Hinges are sold in half pairs - price is PER hinge, as shown in Picture
Available Finishes:
Polished Brass
Brushed/Satin Brass
Oil Rubbed Bronze
Additional Information:
Quantity - Half Pair (1 Hinge)
Primary Usage - Standard
Wood Screw Size - #10 x 1 inch
Metal Screw Size - #10 x 1/2 inch
NOTE:
1. For maximum versatility, when adjusting hinges, use all spring hinges on door
2. Wind conditions, weather stripping and other factors may require the use of all spring hinges.
