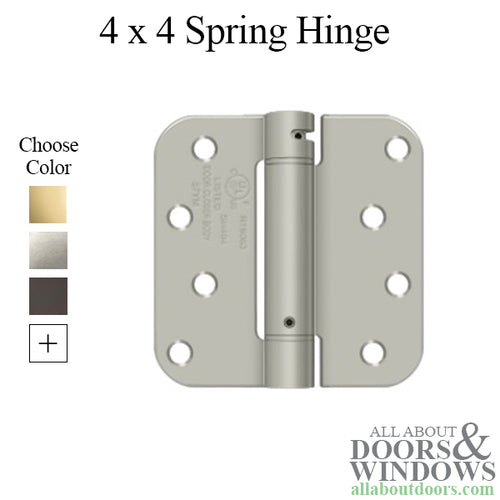

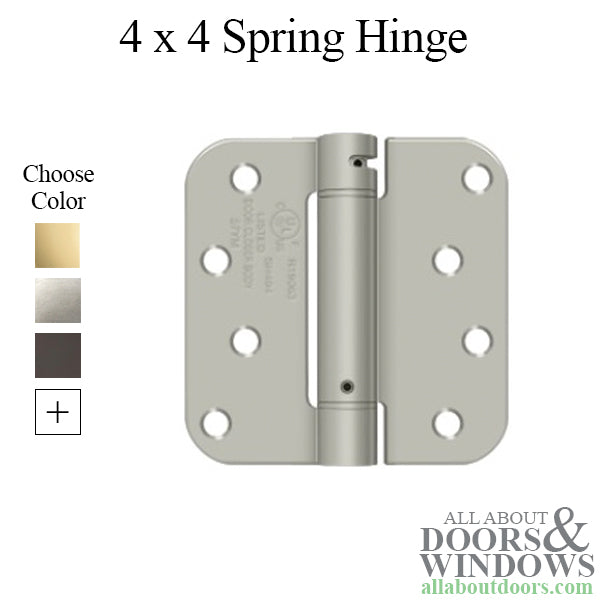

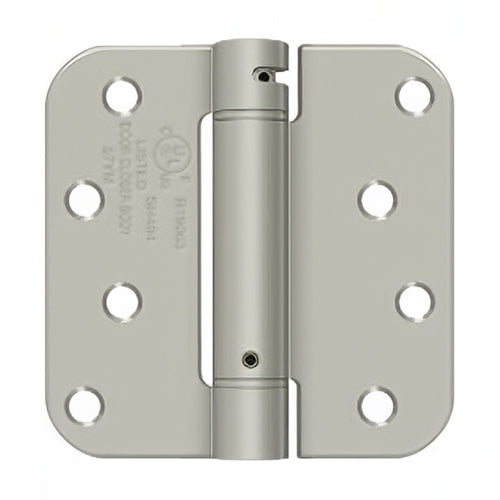

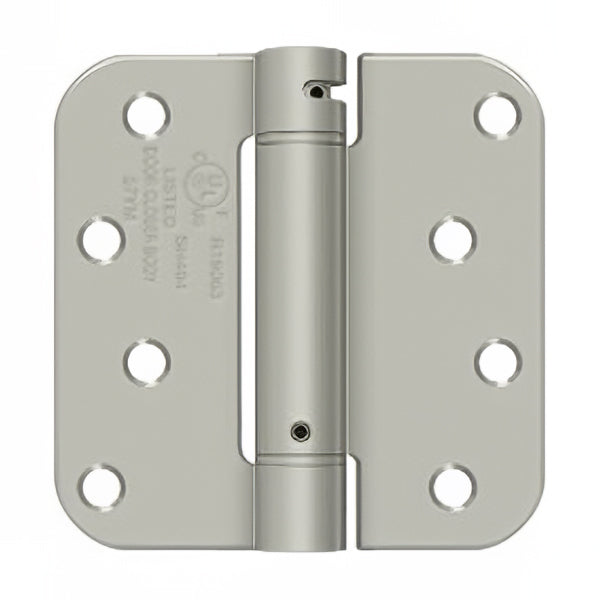

Spring Hinge 4 x 4 x 5/8 Radius Corner, Deltana Single Action
Part Number: 363613-AB Price: $20.30 to $23.494 x 4 x 5/8 Radius Corner Spring Hinge.

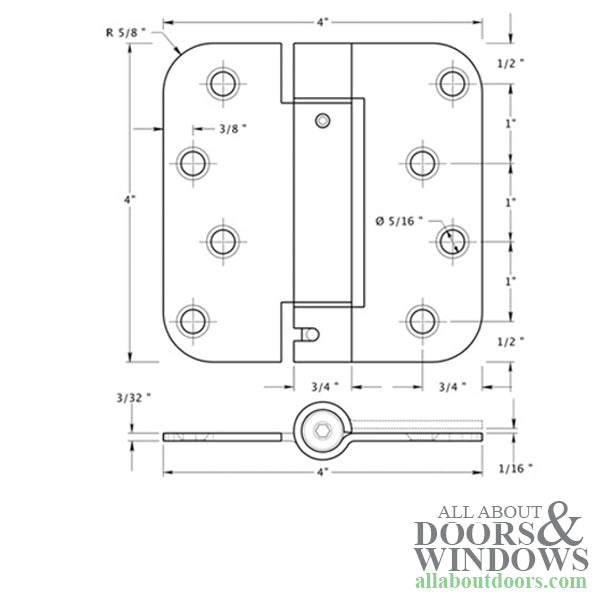

Size - 4 x 4 inch (101.6mm x 101.6mm)
Hinge Corners - Square
Base Metal - Steel
SOLD: Each, 1 Hinge equals 1/2 pair
Color/Finish: 11 Colors, as Shown
Available Finishes:
Brushed/Satin Brass
Prime Coat White
Brushed Chrome
Polished Brass
Antique Brass
Antique Nickel
Polished Chrome
Additional Information:
NOTE: Some hinges are boxed in each, 2's or 3's - Ours are sold Each
Quantity - Half Pair (1 HINGE)
Thickness - 0.097inch
Primary Usage - Standard, usually used on Interior 1-3/8 inch doors
Wood Screw Size: #10 x 1 inch length
Metal Screw Size: #10 x 1/2 inch length
Size - 4 x 4 inch (101.6mm x 101.6mm)
Hinge Corners - Square
Base Metal - Steel
SOLD: Each, 1 Hinge equals 1/2 pair
Color/Finish: 11 Colors, as Shown
Available Finishes:
Brushed/Satin Brass
Prime Coat White
Brushed Chrome
Polished Brass
Antique Brass
Antique Nickel
Polished Chrome
Additional Information:
NOTE: Some hinges are boxed in each, 2's or 3's - Ours are sold Each
Quantity - Half Pair (1 HINGE)
Thickness - 0.097inch
Primary Usage - Standard, usually used on Interior 1-3/8 inch doors
Wood Screw Size: #10 x 1 inch length
Metal Screw Size: #10 x 1/2 inch length
