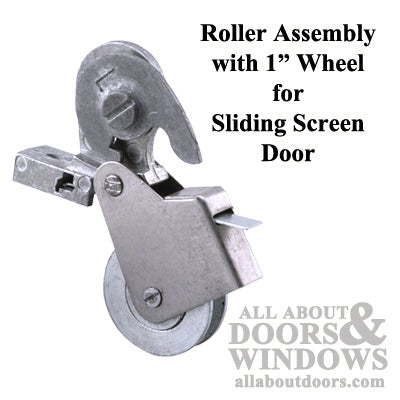

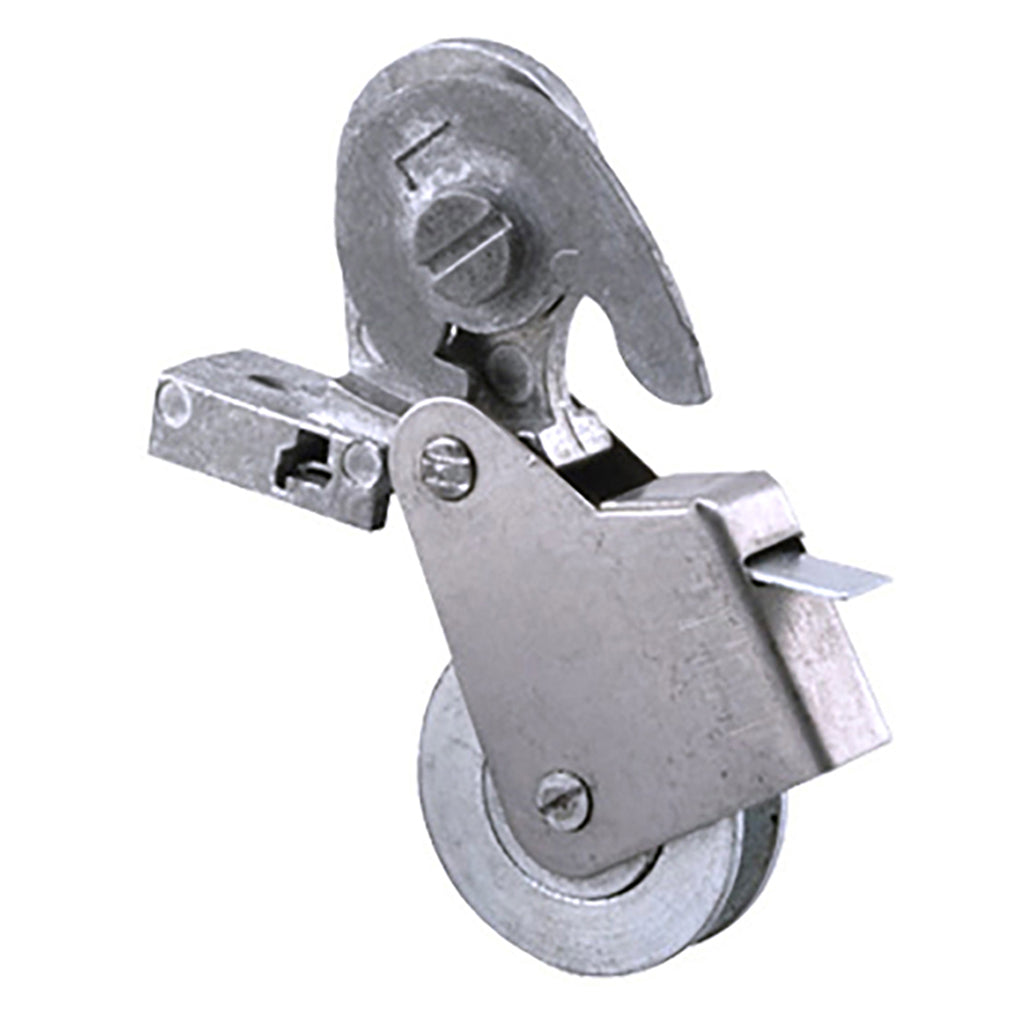

Steel Roller Assembly with 1 Inch Steel Roller for Sliding Screen Door

Part Number: 11042 Price: $12.23

Steel Roller Assembly with 1 inch Steel Roller for Sliding Screen Door.
Roller Assembly consists of steel ball bearing wheel and adjustable diecast mounting bracket with stamped steel housing.
These Roller can be right or left handed.

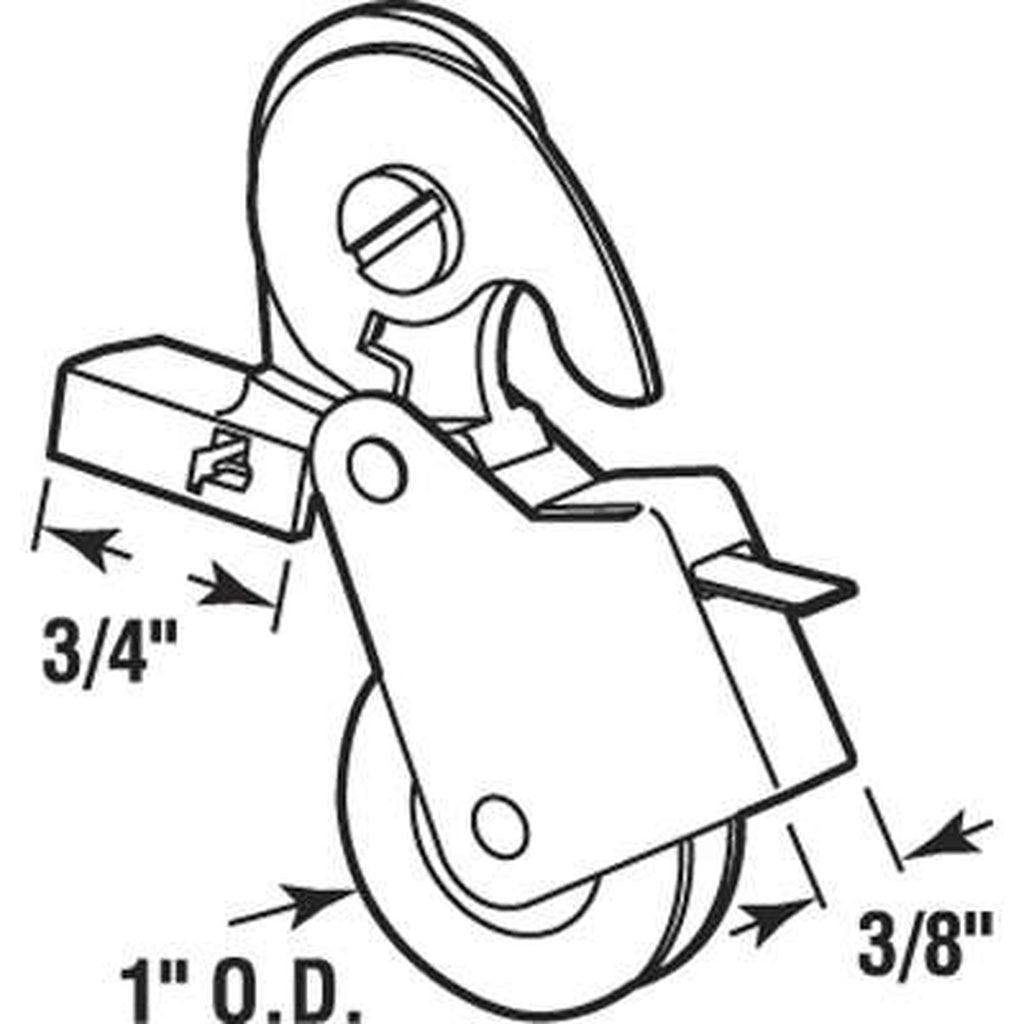

Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 3/8 Inch
Roller Diameter: 1-Inch
Priced and Sold in Pairs.

IMPORTANT NOTE:
Adjustment screw only turns one way, (clockwise) it works on a cam that increases and then drops back to a low position and starts over.
The bottom rollers should be adjusted first, the top rollers should be adjust enough so the screen does not jump off the track - do not overly tighten the top rollers.


This product is similar to or the same as the following part numbers in these brands:<br>Prime-Line Products: B 663<br>Strybuc Industries: 900-12879<br>




<style type="text/css">
p.p1 {margin: 0.0px 0.0px 0.0px 0.0px; font: 10.0px Geneva}
</style>


<p class="p1"><font size="2">Marvin Part:&nbsp;</font><span style="font-size: small;">05570466 LH W,&nbsp;&nbsp;</span><span style="font-size: small;">05570465 RH W</span></p><p class="p1"><span style="font-size: small;">Slideco: 112190</span></p>
