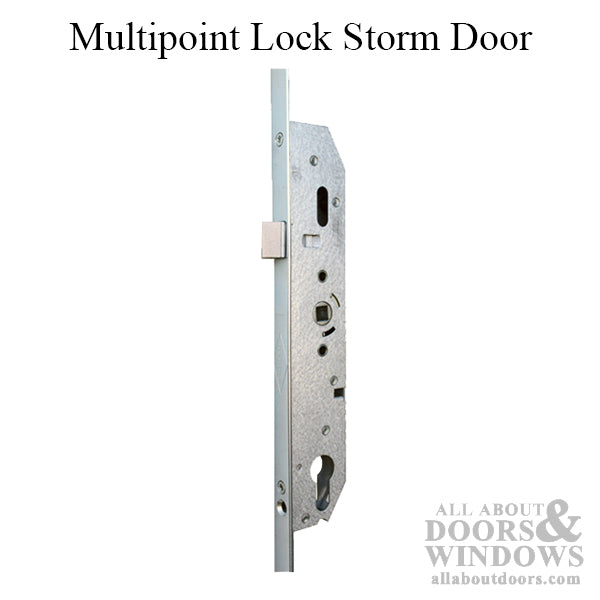

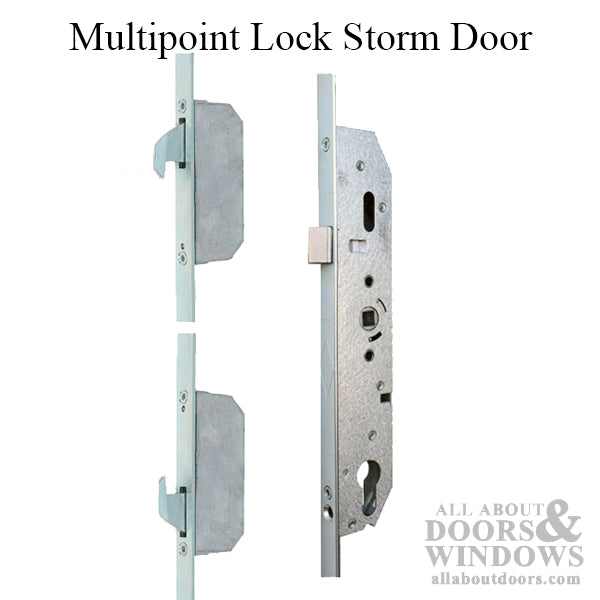

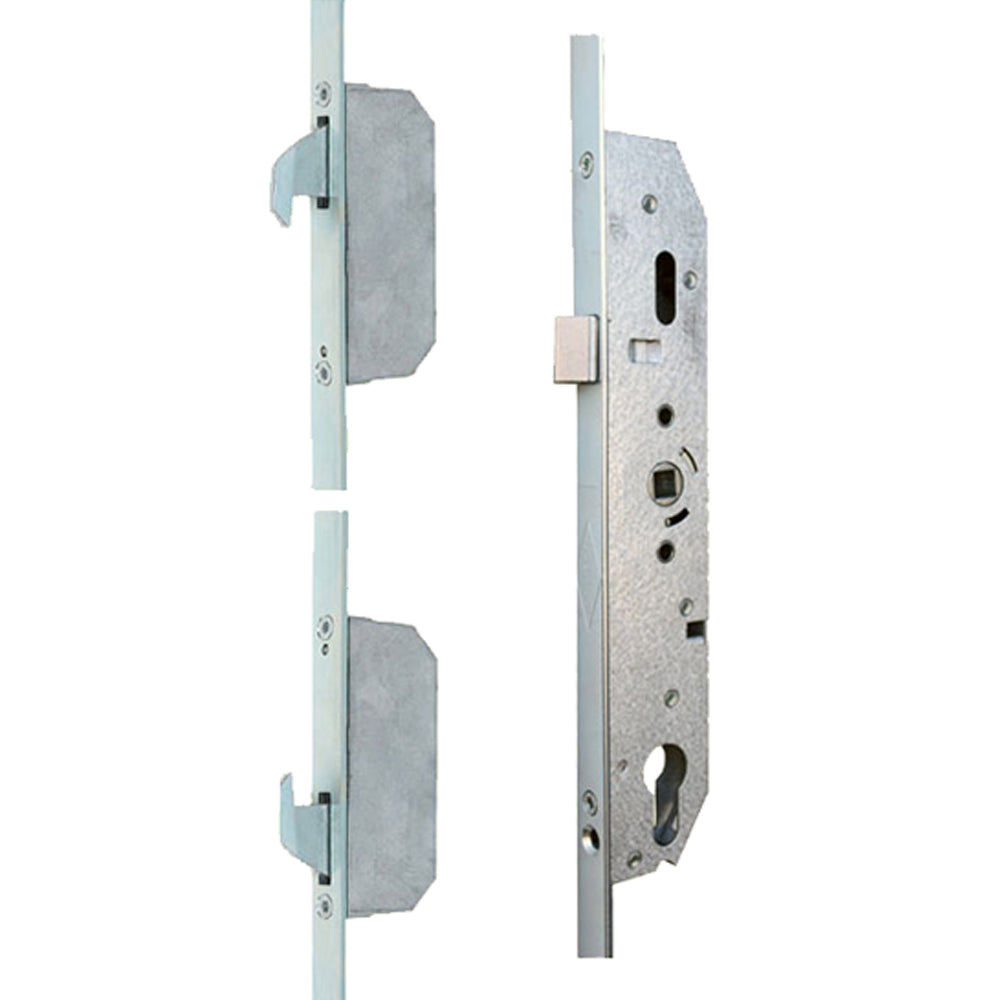

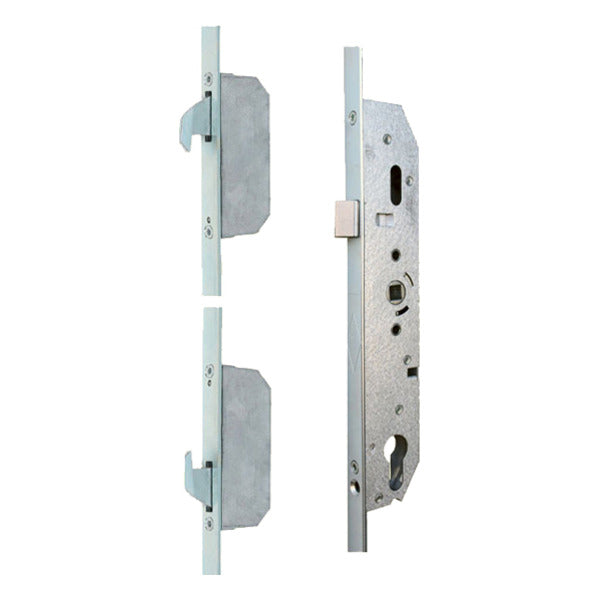

Storm Door Multipoint Lock with Top and Bottom Hooks and Spring Latch

Part Number:305017 Price: $88.61

Storm Door Multipoint Lock with Top and Bottom Hooks and Spring Latch

Used by: Pella, Larson and other door companies.

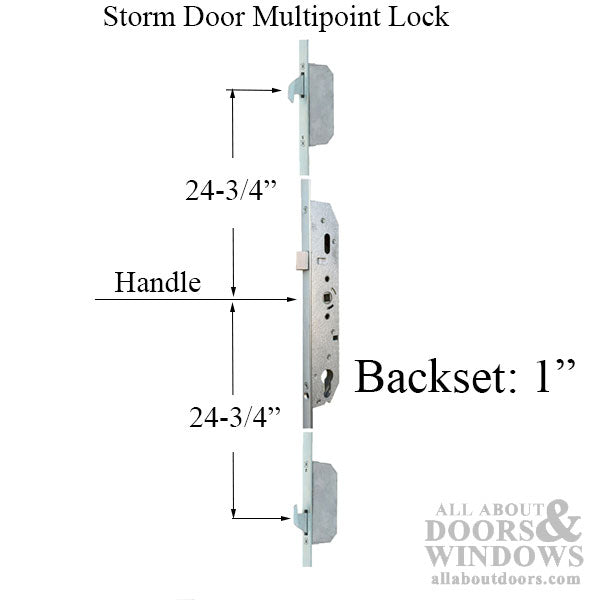

Overall Length: 59 inches
Backset: 1 inch ( Optional backset 1-3/8 inch )
Top Hook: 24-3/4 inch
Bottom Hook: 24-3/4 inch
Hook to Hook: 49-1/2 inch (1257mm)
Handle PZ: 3-5/8 inch
Deadbolt Throw: Hooks - 3/4 inch
Spring Latch throw: 1/2 inch

Note: This door can use the Standard Multipoint lock hardware trim with Euro Cylinder


To reverse (rehand) this lock, a Phillips head screwdriver is required.

On the side of the mortise case, aligned with the latch, there is a small Phillips head screw. Remove this screw to release and fully remove the latch from the lock case. Once removed, rotate (flip) the latch to the desired orientation and reinstall it into the case. Secure the latch by tightening the Phillips head screw.


Priced and Sold Each.
