Non-handed and designed to be compatible with the INTERLOCK® lever compression lock, our handles complete the ideal multi-point locking solution for aluminum and vinyl swing door applications.

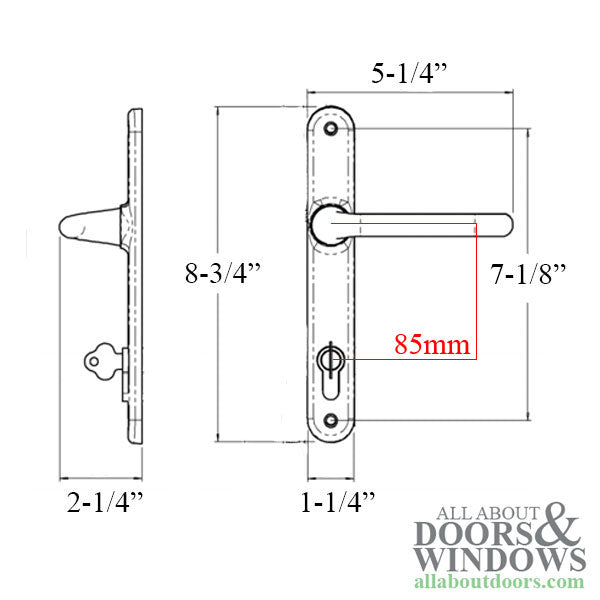

Handle to Cylinder PZ: 3-11/32 inch (85mm) 3.346
Screw hole spacing: 7-1/8 inch (181mm)
Plate width: 1-1/4 inch (30mm)
Plate length: 8-3/4 inch (222mm)
Plate thickness: 3/8 inch (10mm)
Handed: no, fits left or right hand doors

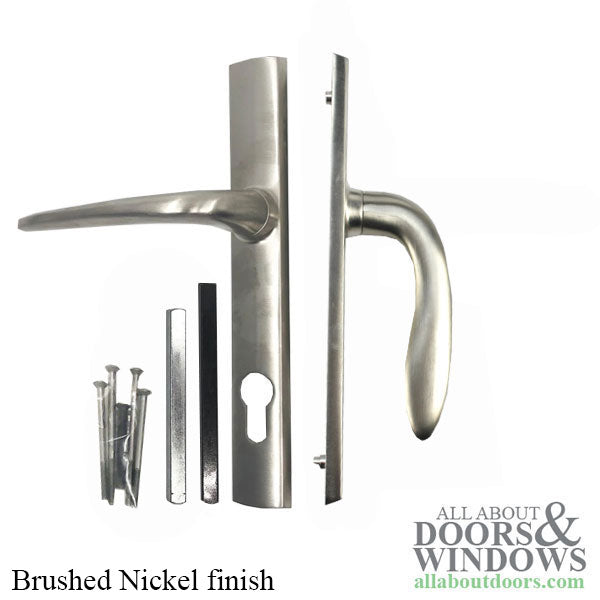

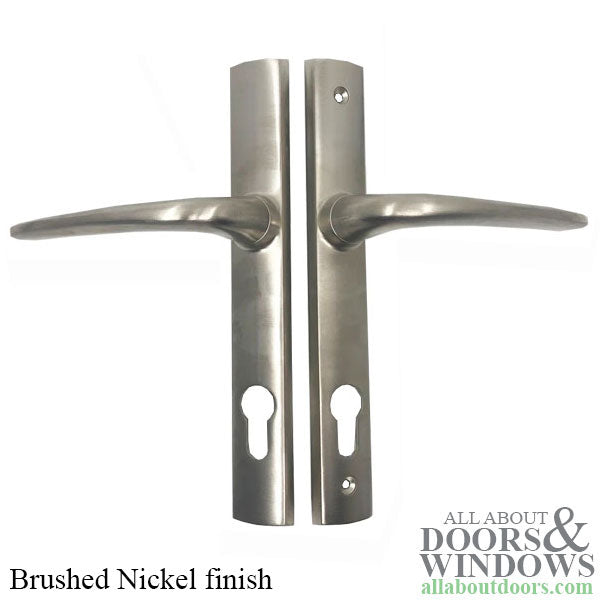

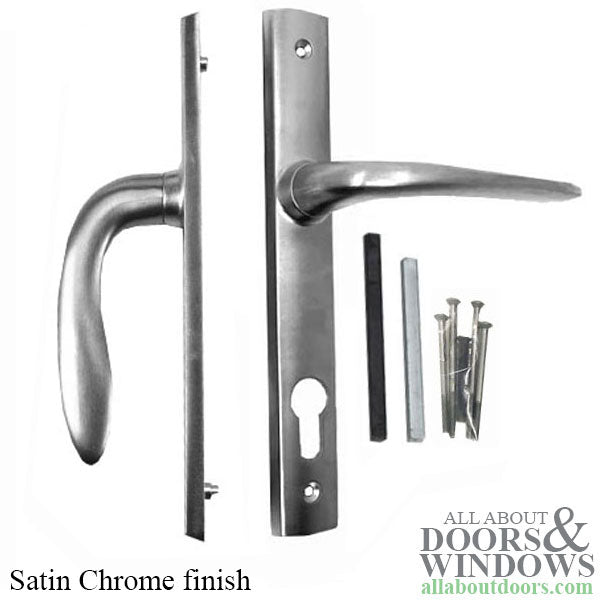

Color/Finishes: Satin Chrome or Brushed/Satin Nickel
Features
Single-Motion handle activation of deadbolt and all remote locking points
Zinc alloy composition with nickel plating
