Support Cover, Triple Coil Spring , 1-1/4 pocket- White

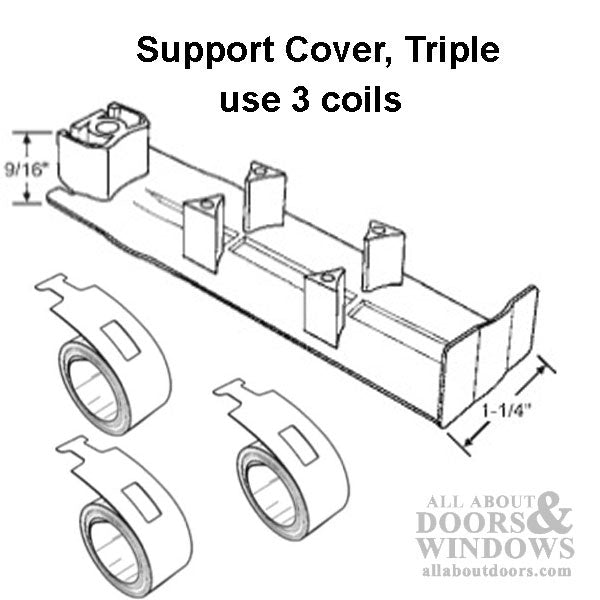

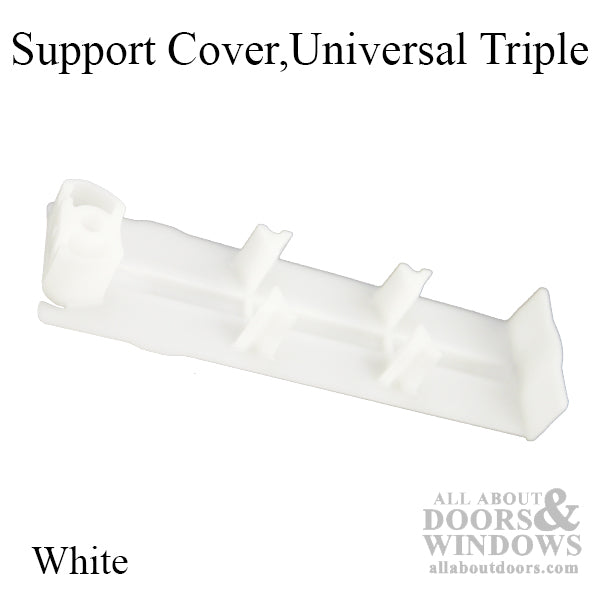

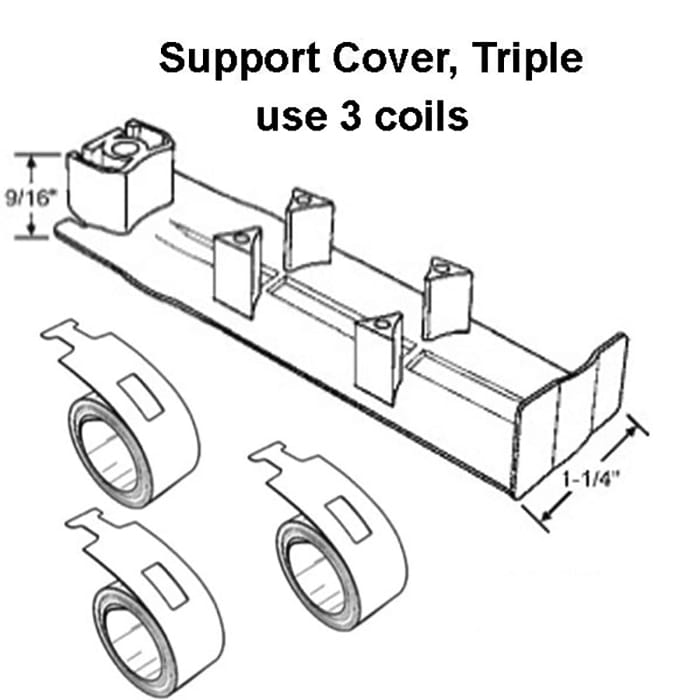

Part Number: Price: $1.89Support cover for Constant Force Balance with 3 Coils
Type: Triple Coil
Width: 1-3/16 inch
Length: 4-1/8 inch
Markings: PATENT # 5.232.208 ; 5.365.638; 6.584.644 B2 PART # 801030
NOTE:

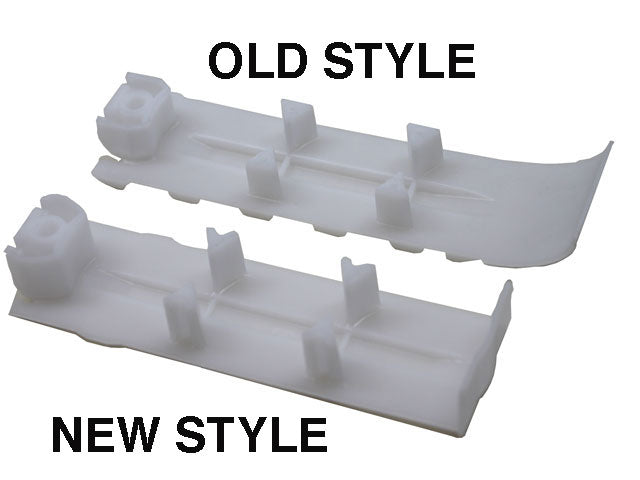

Old style ( used by Simonton ) had a curved leading edge the new ones are squared
The curved edge allows the finger latch to pass by the cover when closing window.
To close the window with the square top you need to retract the finger latches to prevent them from hitting the top of cover
Type: Triple Coil
Width: 1-3/16 inch
Length: 4-1/8 inch
Markings: PATENT # 5.232.208 ; 5.365.638; 6.584.644 B2 PART # 801030
NOTE:
Old style ( used by Simonton ) had a curved leading edge the new ones are squared
The curved edge allows the finger latch to pass by the cover when closing window.
To close the window with the square top you need to retract the finger latches to prevent them from hitting the top of cover
