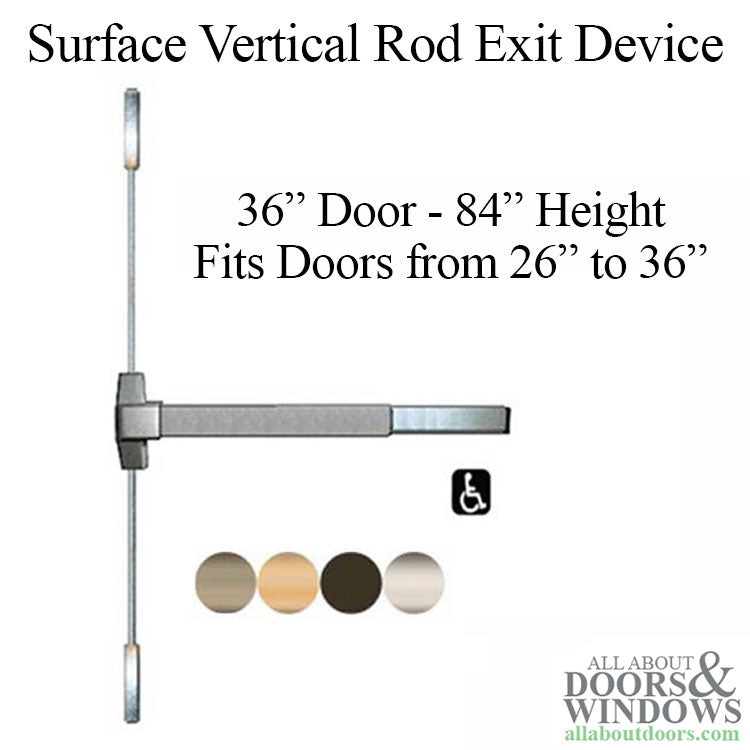

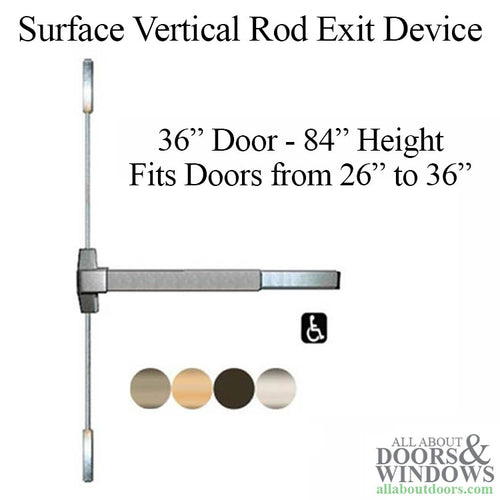

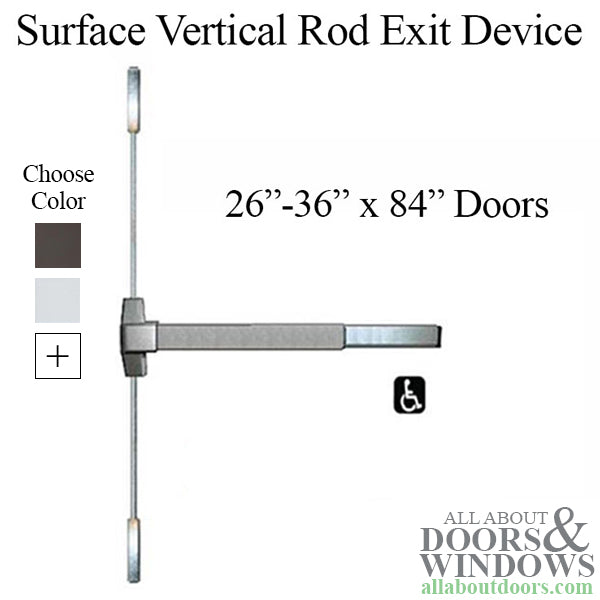

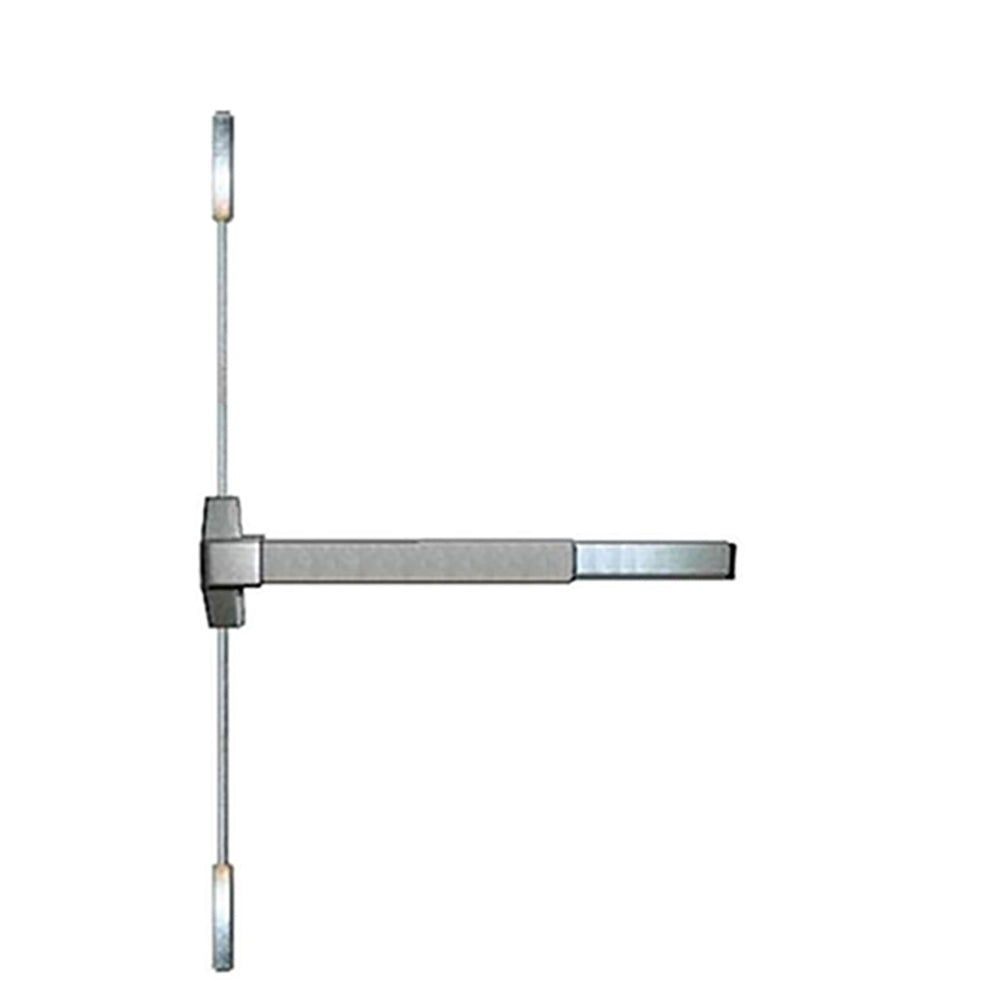

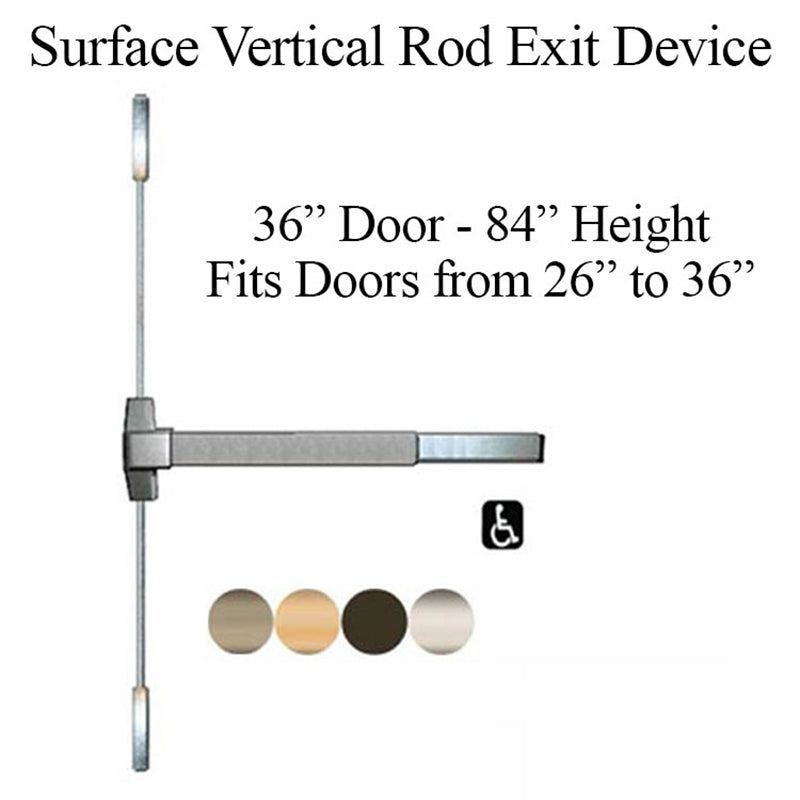

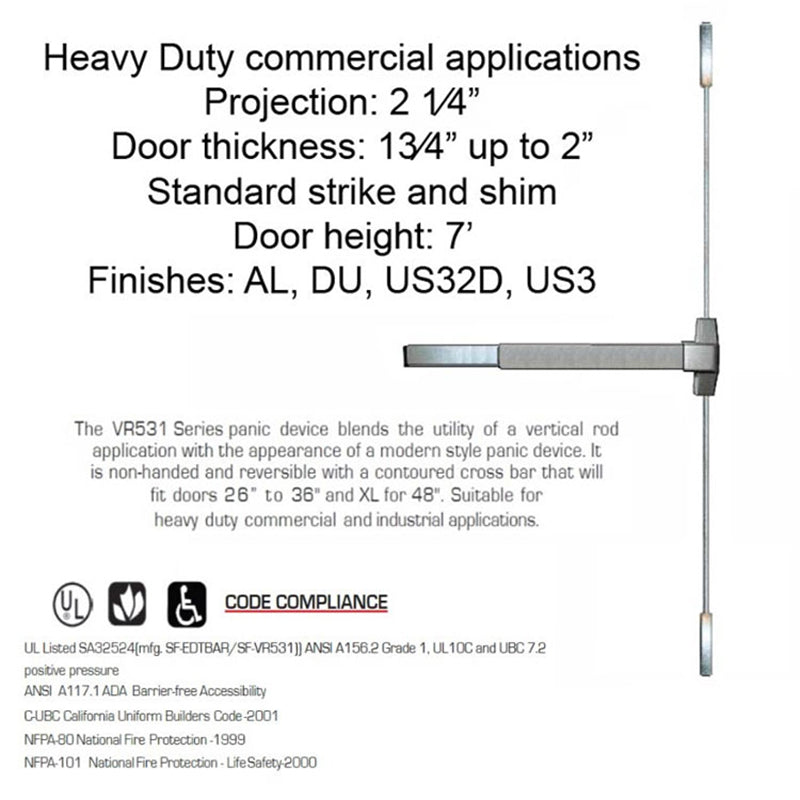

Surface Mount Vertical Rod Exit Device, 36" push panic bar
Use the arrows or swipe left to view all images for this product
Surface Mount Vertical Rod Exit Device, 36" push panic bar
Part Number: $315.00 to $329.62The VR531 Series Grade 1 panic device blends the utility of a vertical rod application with the appearance of a modern style panic device. It is non-handed and reversible with a contoured cross bar that will fit doors 26" to 36" Suitable for heavy duty commercial and industrial applications, like Schools, Churches, Hospitals, etc.
ED-VR531 VERTICAL ROD EXIT DEVICE, Surface Mount
FEATURES
ANSI A 156.3 Grade 1
UL10C fire rated; barrier free
Fits Door width: 26 inch to 36 inch
Projection: 2 1/4"
Door thickness: 1 3/4" up to 2"
Comes with standard strike and shim
Door height: 7'
Warranty: 1 year
Plastic end cap, Can be cut down to 26" in length
Spring loaded latches
Finishes: Aluminum, Duranodic Bronze, Stainless Steel US32D and Polished Brass US3
CODE COMPLIANCE
UL Listed SA32524(mfg. SF-EDTBAR/SF-SVRTBAR)) ANSI A156.2 Grade 1, UL10C and UBC 7.2 positive pressure
ANSI A117.1 ADA Barrier-free Accessibility
C-UBC California Uniform Builders Code -2001
NFPA-80 National Fire Protection -1999
NFPA-101 National Fire Protection - Life Safety-2000
Related Exit Rod Hardware
ED-ROD12 - 12" extension rod available
ED-VR531XL - XL for 48" Wide Doors

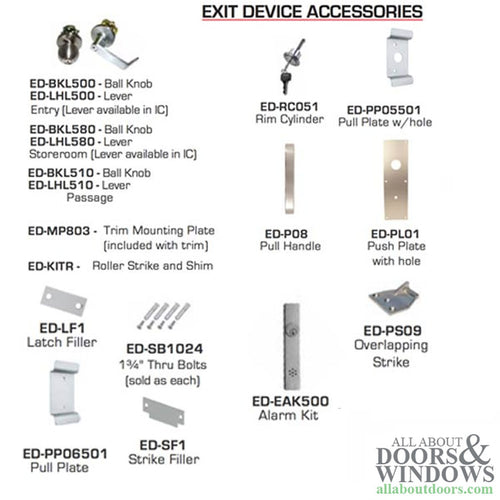

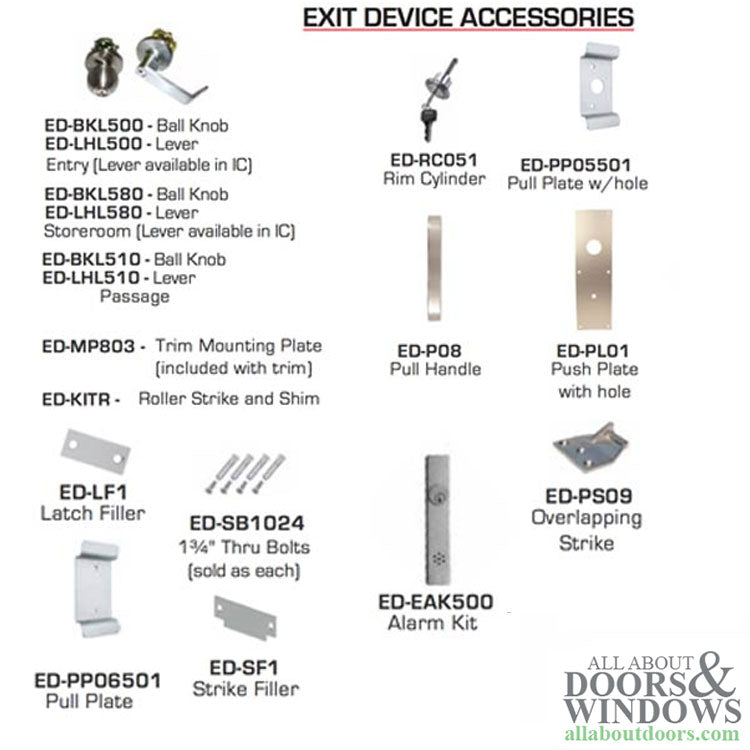

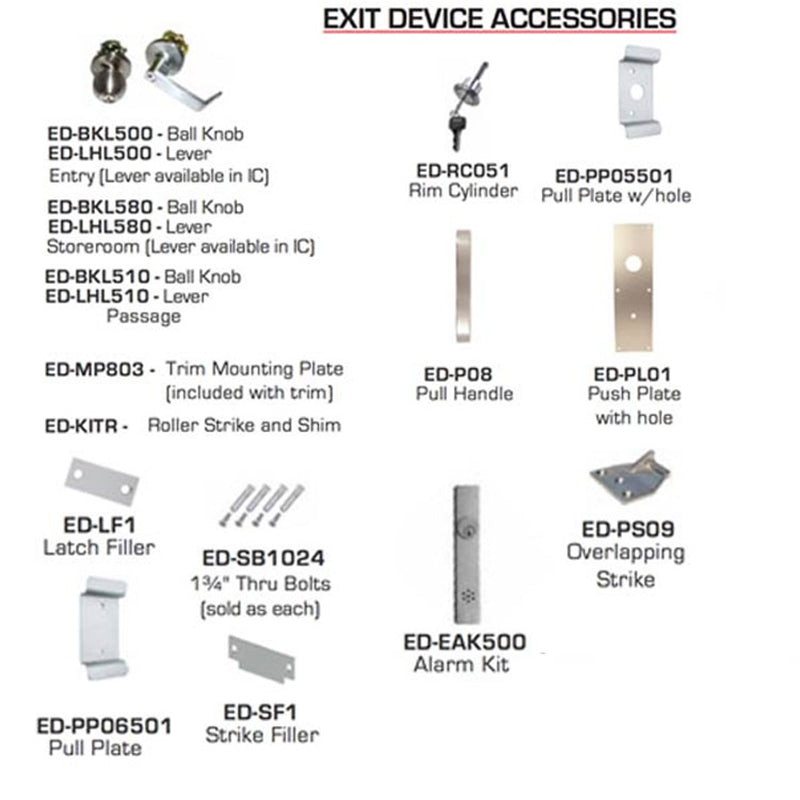

Assorted Accessories - see 4th image

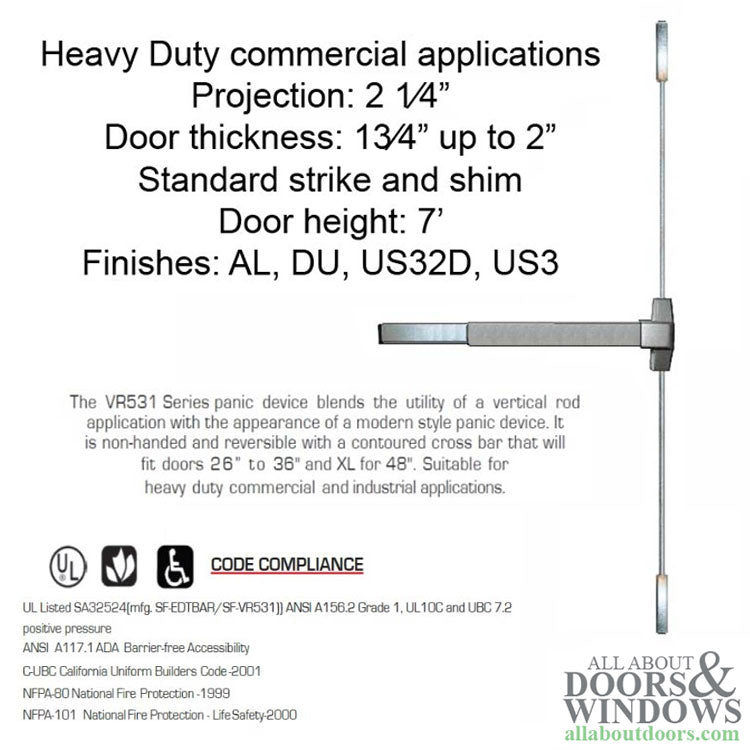

The VR531 Series Grade 1 panic device blends the utility of a vertical rod application with the appearance of a modern style panic device. It is non-handed and reversible with a contoured cross bar that will fit doors 26” to 36" Suitable for heavy duty commercial and industrial applications, like Schools, Churches, Hospitals, etc.
ED-VR531 VERTICAL ROD EXIT DEVICE, Surface Mount
FEATURES
ANSI A 156.3 Grade 1
UL10C fire rated; barrier free
Fits Door width: 26 inch to 36 inch
Projection: 2 1⁄4”
Door thickness: 13⁄4” up to 2”
Comes with standard strike and shim
Door height: 7'
Warranty: 1 year
Plastic end cap, Can be cut down to 26” in length
Spring loaded latches
Finishes: Aluminum, Duranodic Bronze, Stainless Steel US32D and Polished Brass US3
CODE COMPLIANCE
UL Listed SA32524(mfg. SF-EDTBAR/SF-SVRTBAR)) ANSI A156.2 Grade 1, UL10C and UBC 7.2 positive pressure
ANSI A117.1 ADA Barrier-free Accessibility
C-UBC California Uniform Builders Code -2001
NFPA-80 National Fire Protection -1999
NFPA-101 National Fire Protection - Life Safety-2000
Related Exit Rod Hardware
ED-ROD12 - 12" extension rod available
ED-VR531XL - XL for 48" Wide Doors
Assorted Accessories - see 4th image
