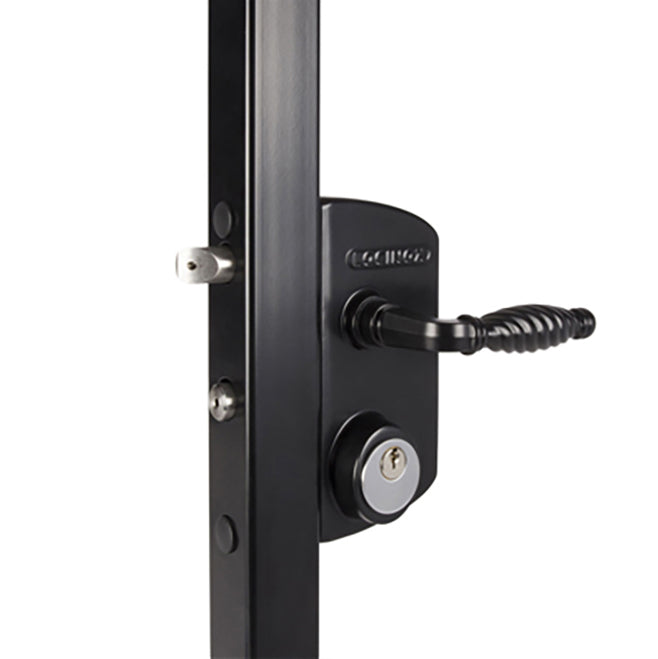

Surface-Mounted Mortise Cylinder Gate Lock with Double Cylinder Deadbolt- Choose Color & Cylinder Option
- For use with 1-1/8” mortise profile cylinder (choose if you want Schlage C keyway cylinders included or not)

Manufactured by Locinox

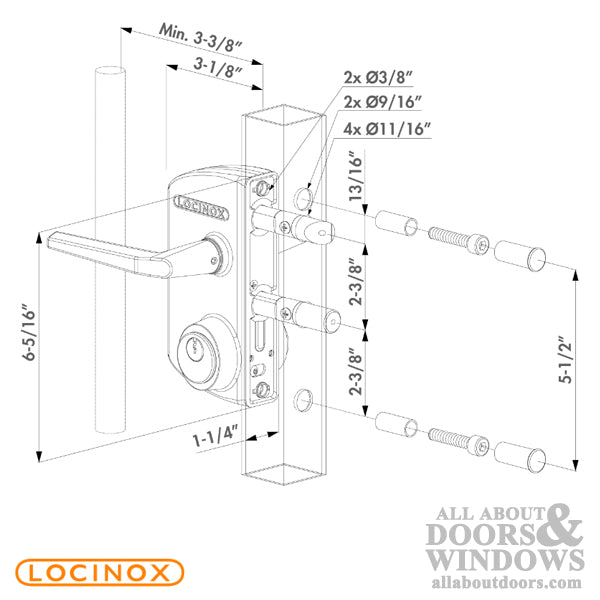

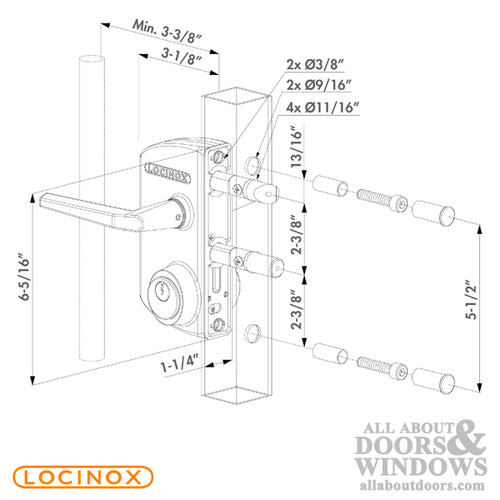

Lock box requires a 3-3/8" spacing to the first picket, fitting nicely into most gates
Deadbolt throw: 7/8” in one turn of key
Fits gate frame profiles (thickness of gate where lock is mounted): 1-1/4” - 1-1/2”
Key-operated self-latching bolt, allows Free Exit application
Adjustment of the bolts up to 3/8" continuous without removing the lock
4-hole mounting with two hex head socket screws
Deadbolt can easily be switched from left hand to right hand and vice versa

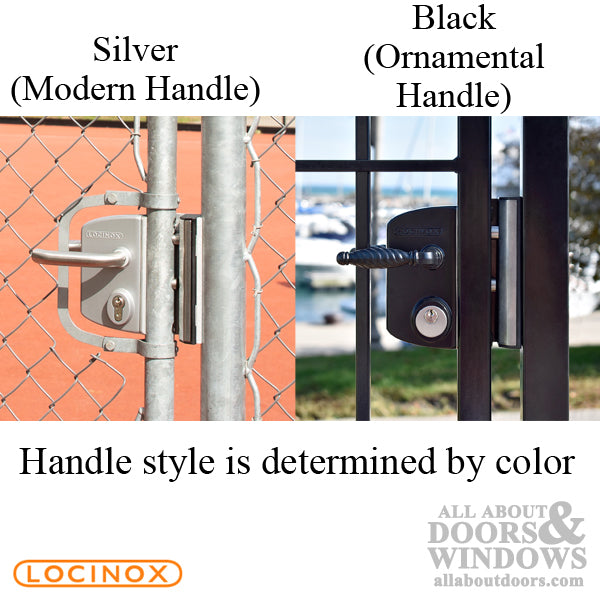

Style Options:
Black finish, made of zamac alloy, ornamental handles
Black finish, made of aluminum, ornamental handles
Silver finish, made of aluminum, modern handles (most commonly used on chain link fences)

Cylinder Options:
Can come with Schlage C keyway cylinders included, or you can provide your own cylinders and order without

Resources:
Easy installation tool: Drill-Fix
Video from manufacturer: How to Install Surface-Mounted Mortise Cylinder Gate Lock
PDF: Installation Instructions + How to Re-Hand Lock


Gate Locks for Other Gate Thicknesses:
LUKY40: Surface-Mounted Mortise Cylinder Lock for Gates 1-1/2" - 2" Thick
LUKY50: Surface-Mounted Mortise Cylinder Lock for Gates 2" - 2-3/8" Thick
LUKY60: Surface-Mounted Mortise Cylinder Lock for Gates 2-1/2" - 2-3/4" Thick
