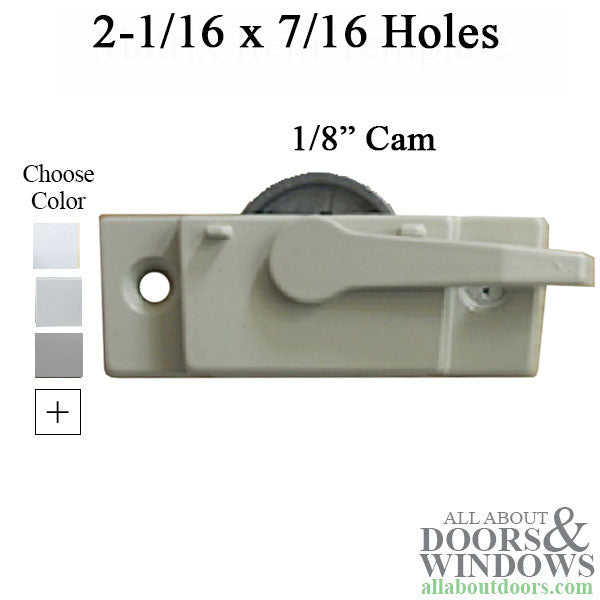

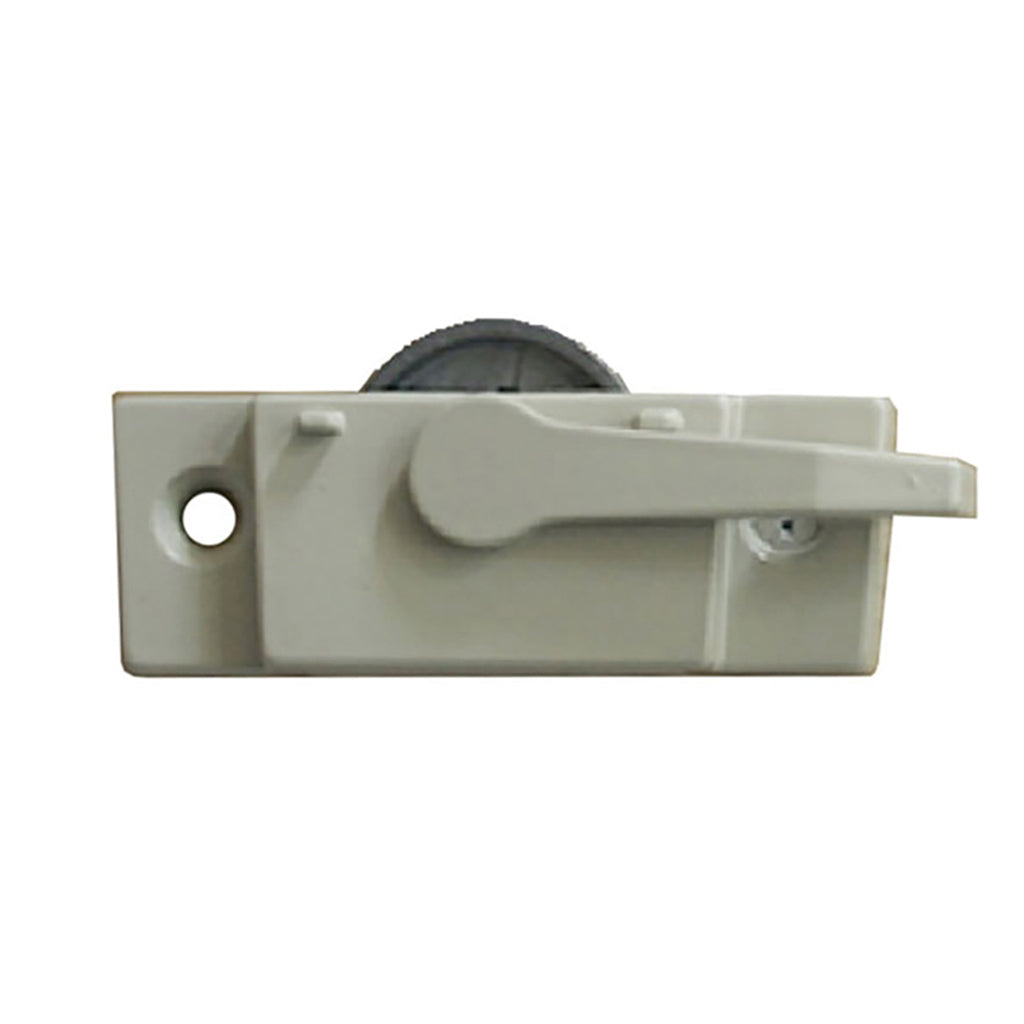

Sweep Sash Lock, 2-1/16 x 7/16 Screw Holes, 1/8 cam -
Part Number: 500556-L-ALMDSingle or Double hung sash lock (Sweep Latch) with 2-1/16 screws spaced 7/16 from front, Large 1/8 inch pull in for cam.

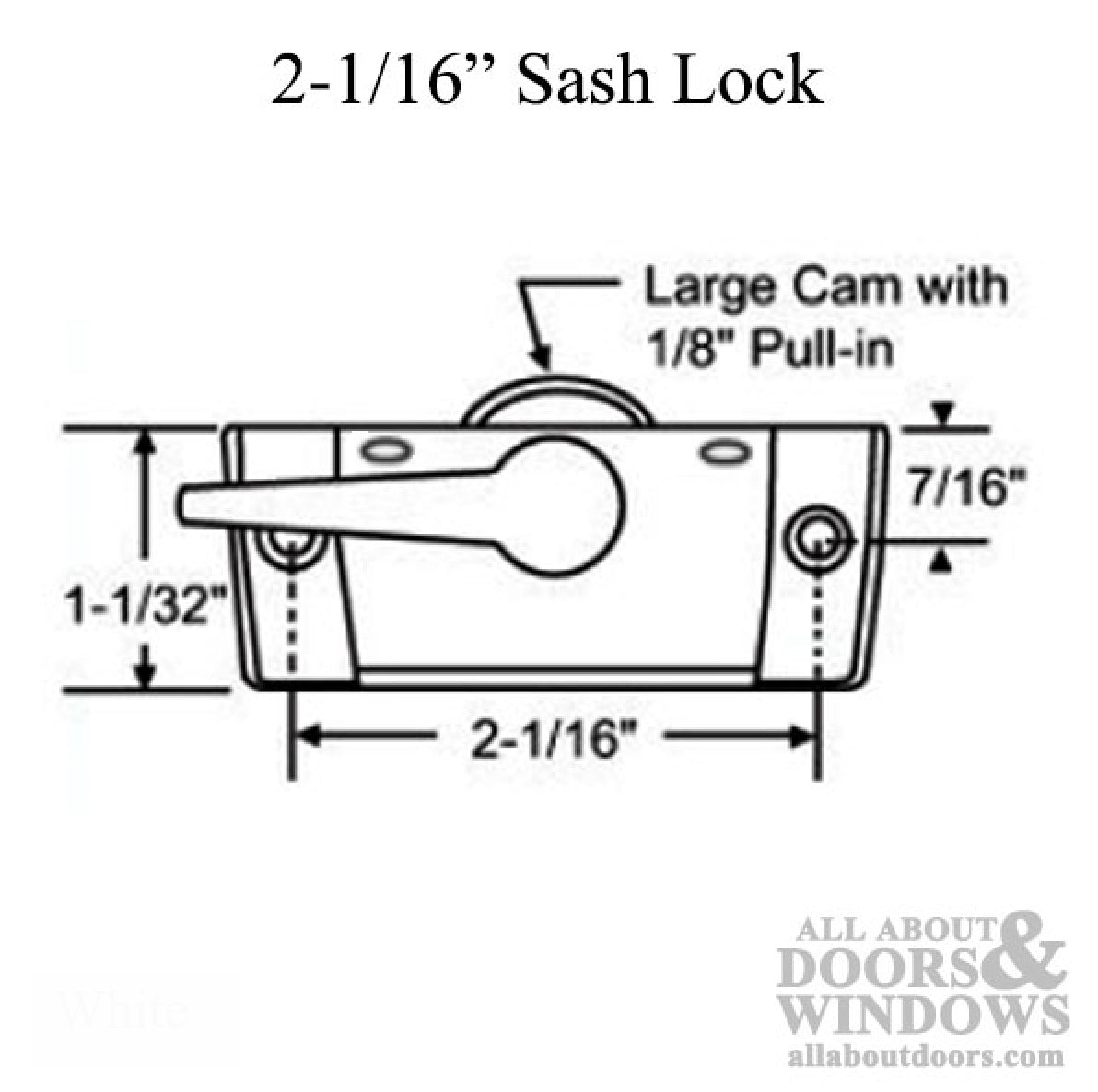

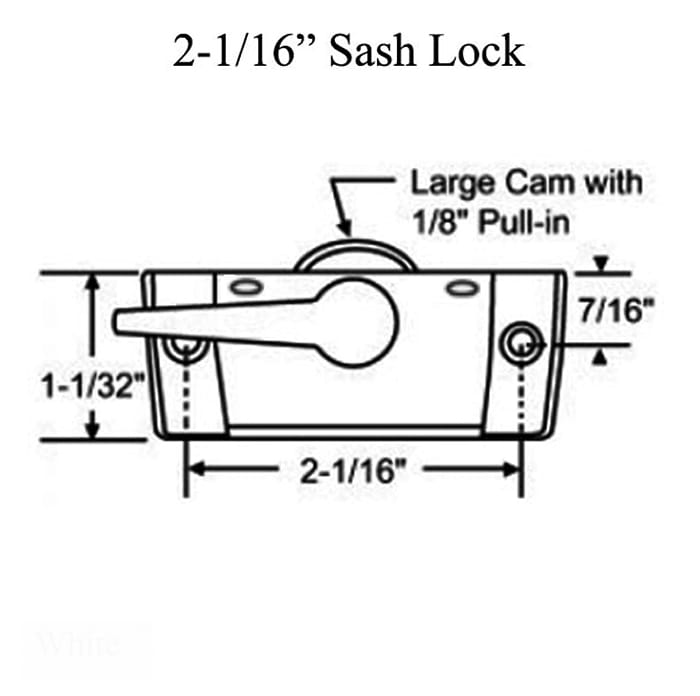

Screw Holes: 2-1/16 inch (52.375mm) 2.062
Screw Hole Set Back: 7/16 inch (11.1mm) 0.43
Cam Type: Large 5/16 cam
Cam Pull In: 1/8 inch
Material: Zinc Die Cast
Color: Beige / Almond
Markings: 2182 on Cam
Hardware Note:

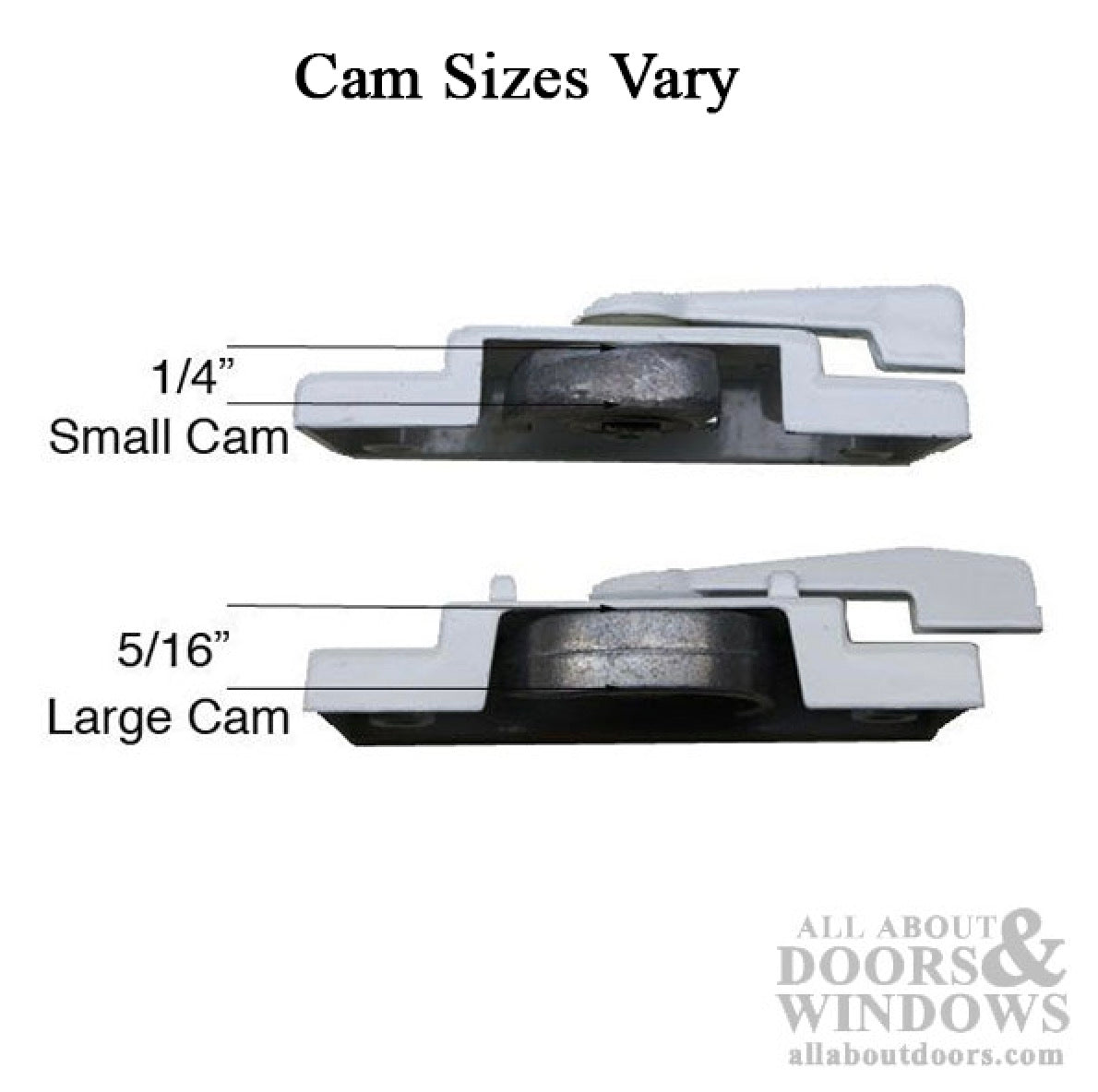

These come with small 1/16 in pull in (1/4 inch thick) and large 1/8 inch pull in (5/16 inch thick) cams.
The Small cam has .062 pull in, large cam has .125 pull in
Priced and sold each.
limited to existing inventory
Screw Holes: 2-1/16 inch (52.375mm) 2.062
Screw Hole Set Back: 7/16 inch (11.1mm) 0.43
Cam Type: Large 5/16 cam
Cam Pull In: 1/8 inch
Material: Zinc Die Cast
Color: Beige / Almond
Markings: 2182 on Cam
Hardware Note:
These come with small 1/16 in pull in (1/4 inch thick) and large 1/8 inch pull in (5/16 inch thick) cams.
The Small cam has .062 pull in, large cam has .125 pull in
Priced and sold each.
limited to existing inventory
