Use the arrows or swipe left to view all images for this product

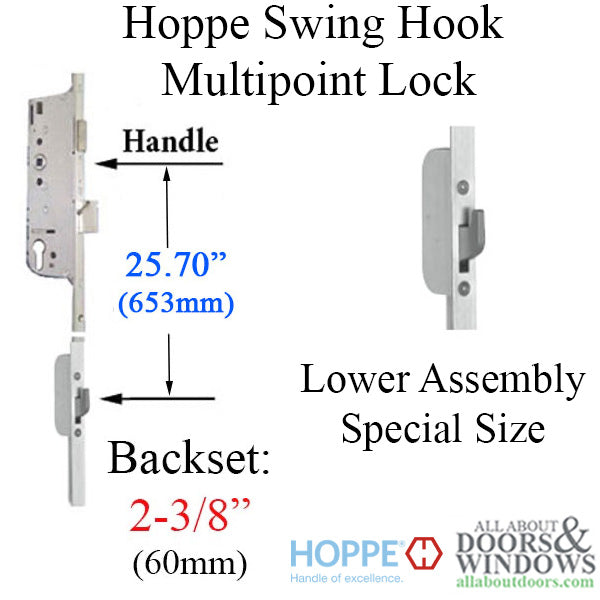

SPECIAL SIZE Hoppe HLS9000 Swinghook with 41.11 inch Handle Height and Swing hook 25.70 inches below handle

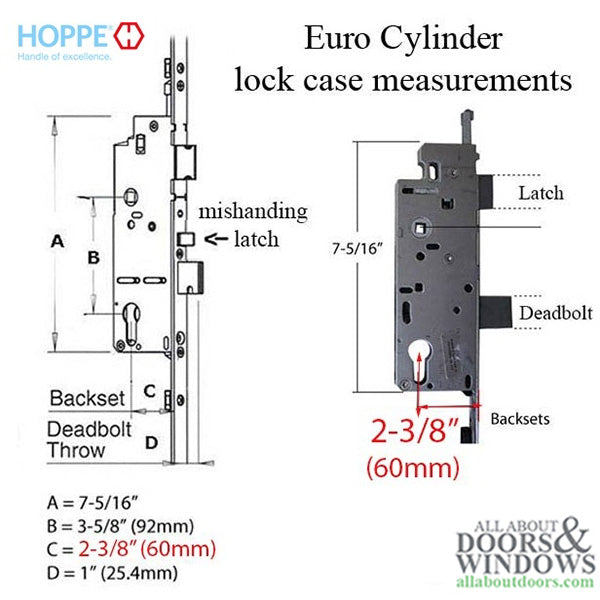

Faceplate: 5/8" (16mm)
Backset: 2-3/8" (60mm)
Deadbolt Throw: 1" (25mm)
Handle Height: 41.11" (1044.4mm) can be cropped to fit 33.63" to 41.11"
Bottom Swing Hook Position: 25.70" (653mm) Not Standard
Number of Screws: 5
Related Parts:
Available Bottom Gears: Hook at 29.65"
3868868 - 35/92 / 1-3/8" (35mm) Backset
3868876 - 45/92 / 1-3/4" (45mm) Backset
3868884 - 60/92 / 2-3/8" (60mm) Backset
3868892 - 70/92 / 2-3/4" (70mm) Backset
SPECIAL SIZE Hook @ 25.7" / 41.11" Handle Height - 3814341
Available Top Extensions
Part Number Doors Panels Height: Hook Position
3868770 - Doors 62.80-79.25” hook @ 19.69“
3868796 - Doors 78.54-79.25” hook @ 35.43“
3868809 - Doors 78.54-92.24” hook @ 35.43“
3868817 - Doors 78.54-92.24” hook @ 19.69“ & 35.43”
3868825 - Doors 90.08-106.30" hook @ 23.62“ & 46.97”
3868833 - Doors 102.17 - 126.97” hook @ 23.62“ & 59.05”
To better understand please see our Multipoint Lock Glossary Of Terms
Hoppe Multipoint Lock Resources:
Multipoint Lock Introduction
How to Rehand a Hoppe HLS9000 MPLock
How to Remove & Install Hoppe 90° Cylinder
How to Remove & Install Hoppe HLS9000 MPLock
How to Trim a Hoppe Multipoint Lock
HOPPE/FUHR Infosheet
Related Videos:
Connecting the Top Extension on a HOPPE Multipoint Lock
How to Convert a HOPPE 90º Cylinder into a 360º Cylinder
How to Rehand HOPPE Multipoint Lock
For further assistance, please fill out the HOPPE Worksheet for your lock and send it to us.
