This spindle swivels, but does not expand like a screw type would.
Application: Used on Privacy and Entrance locks, usually with levers that allow the inside and outside to work independently.

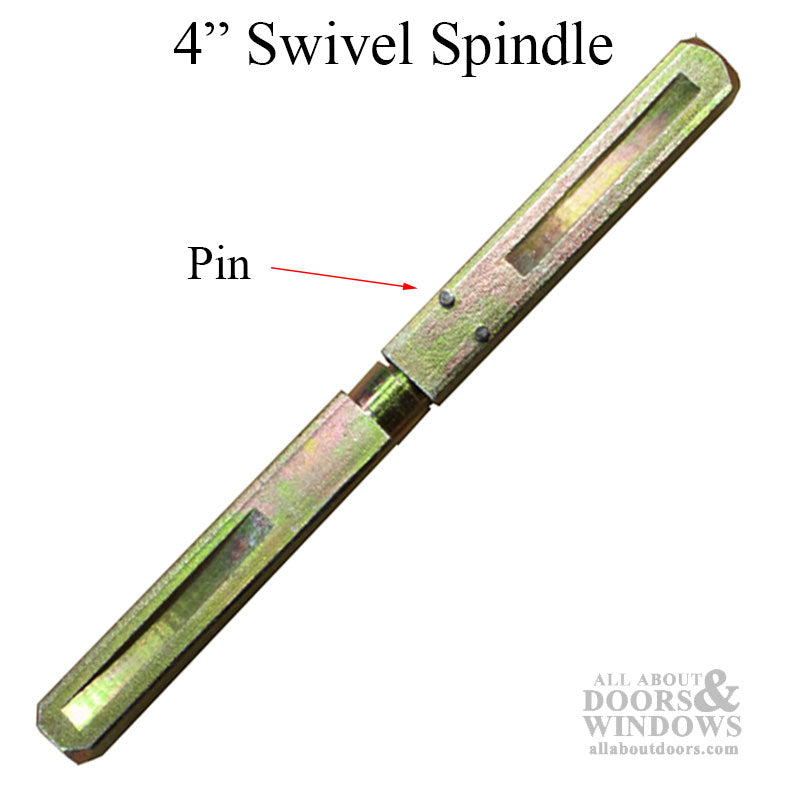

Spindle Type: Swivel, with Pin Stop

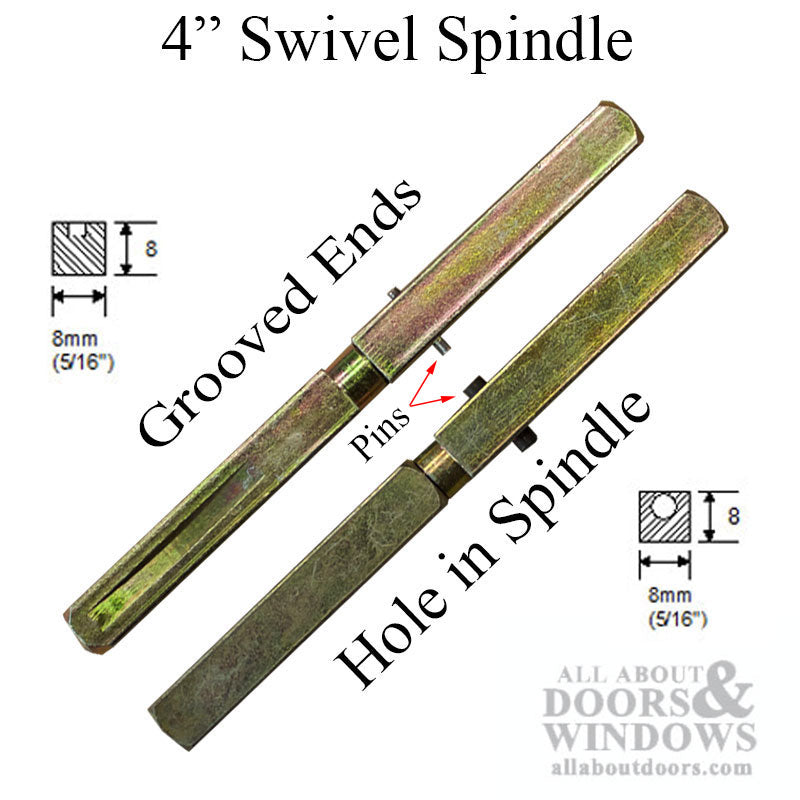

Shaft Type: Grooved

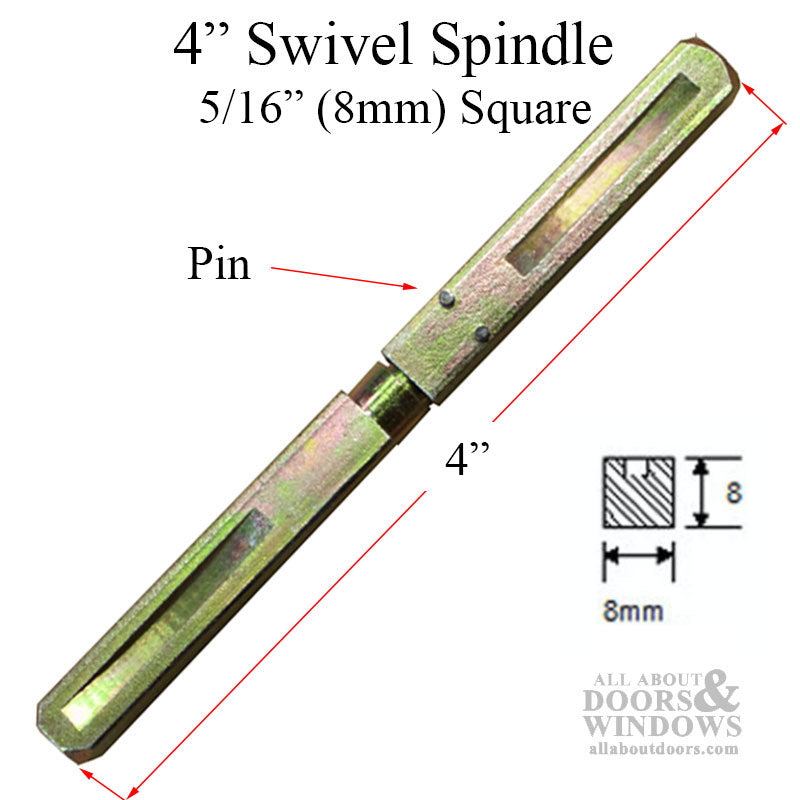

Diameter: 5/16 inch (8mm) Square
Length: 4 inch (100mm)

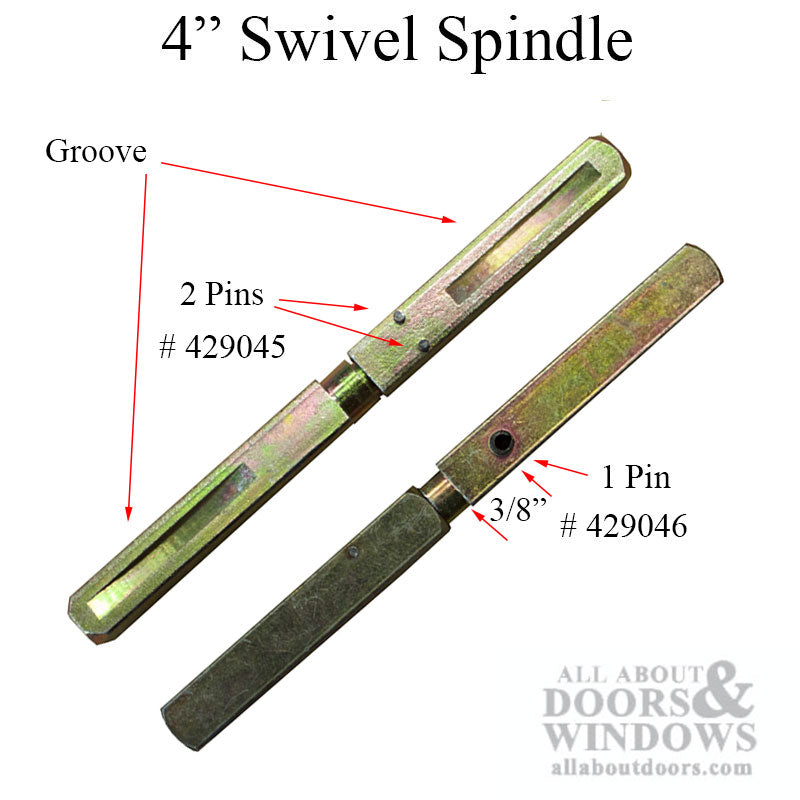

NOTE:
429045 has a groove on both sides of the spindle for a set screw
429046 has a hole drilled from the end near the surface for a set screw
Both have different Pin Stops
