T-Head Pivot Bar, 2 hole 3 inch - Zinc Die cast

Part Number: 533010 Price: $4.50
T-head pivot bar constructed of zinc die cast.

Used with Owens Corning vinyl window.

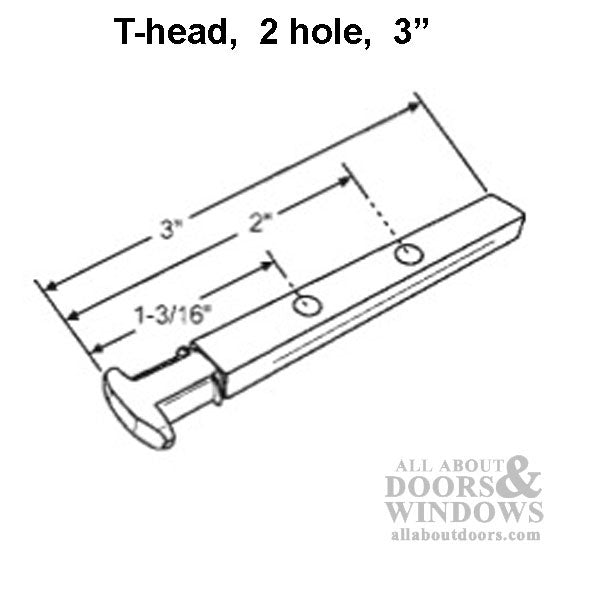

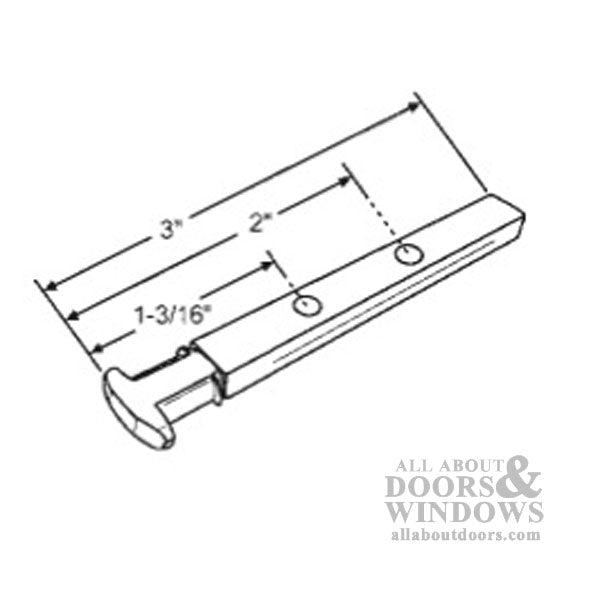

Overall Length: 3 inches
Width: 5/16 inch
Thick: 3/16 inch
Hole Center to Center: 13/16 inch
From square end to first hole: 1 inch

Two holes.

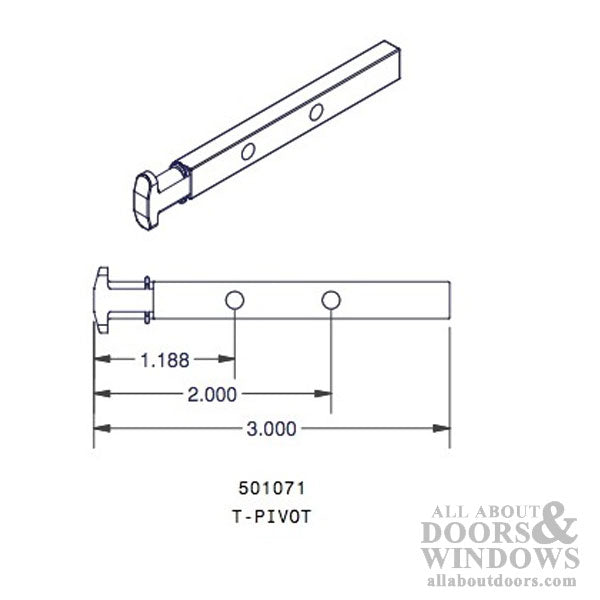

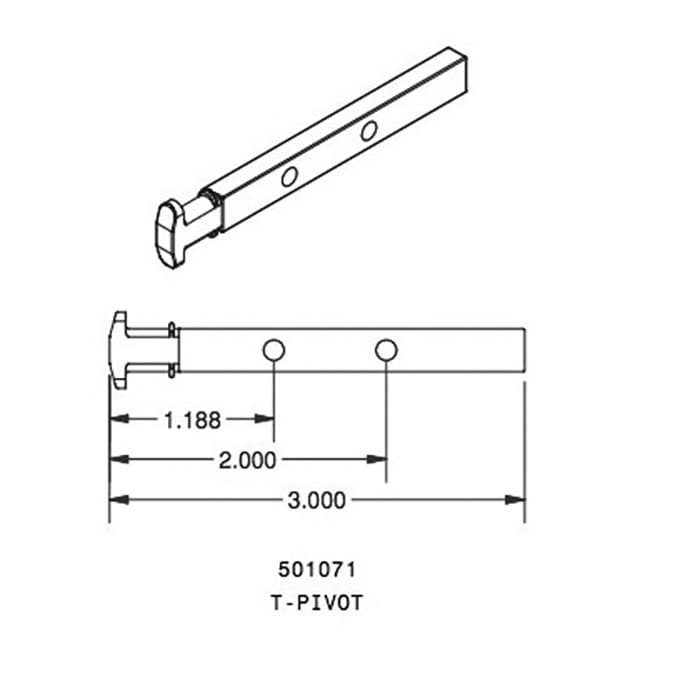

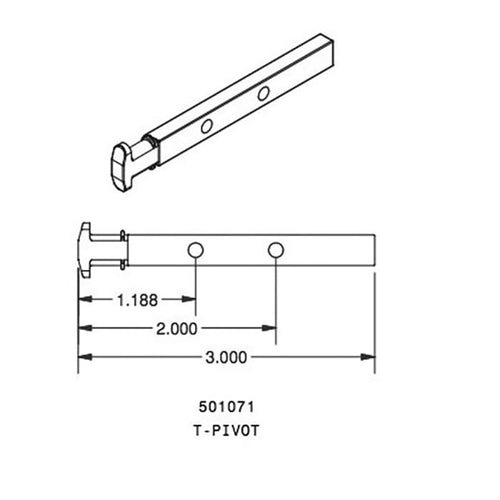

Numbers stamped on bar 3. or 501071

Priced and sold each.
This product is similar to or the same as the following part numbers in these brands:<br/>Strybuc Industries: 62-553<br/>
