Patio Sliding Door Two Wheel Metal 1.25 Inch Roller .75 Inch Steel Tab Housing

Part Number: 13270 Price: $9.95

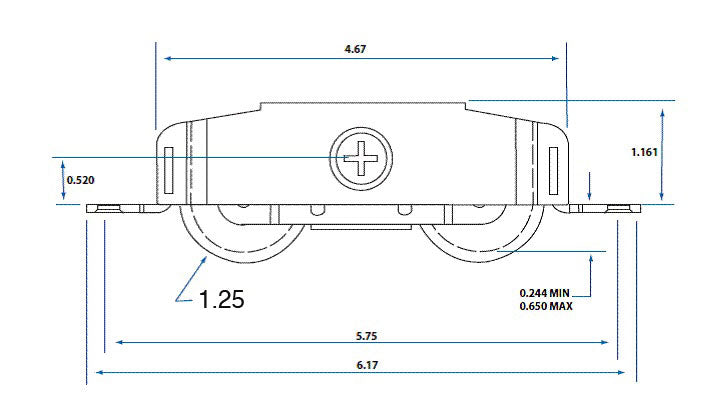

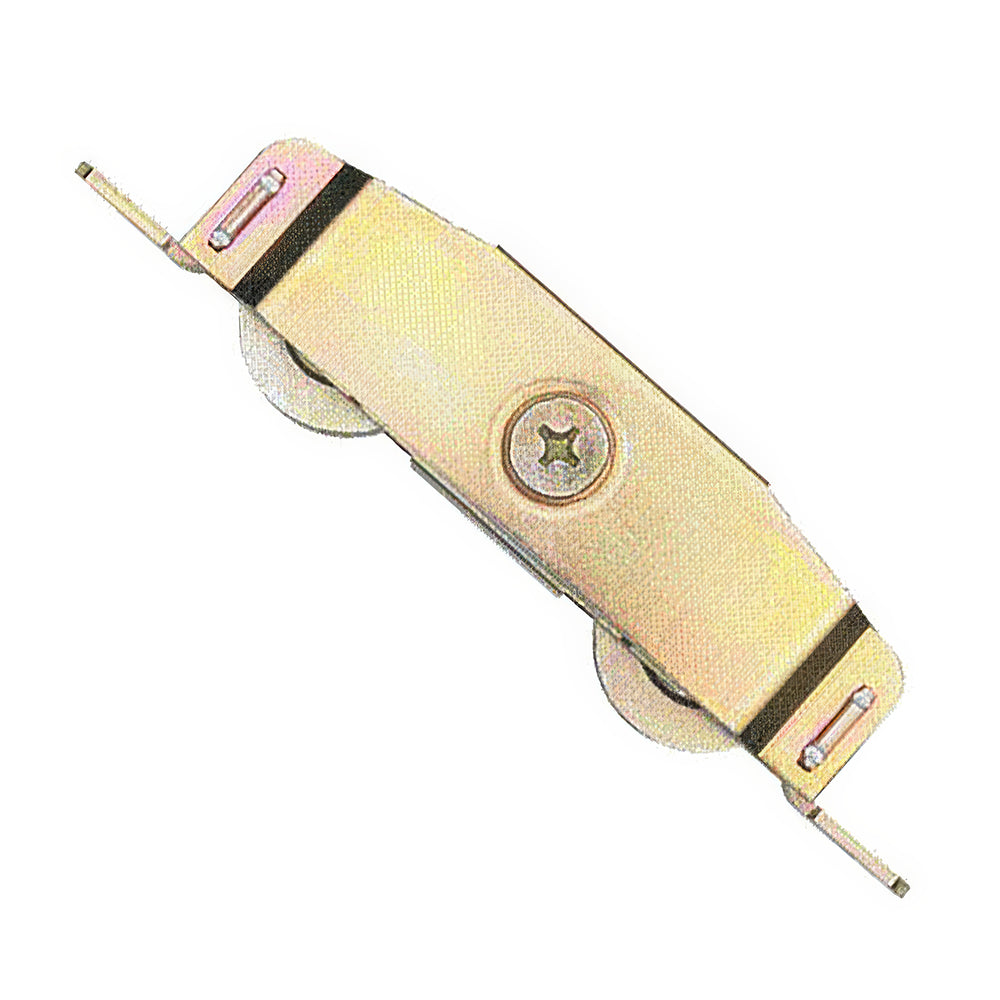

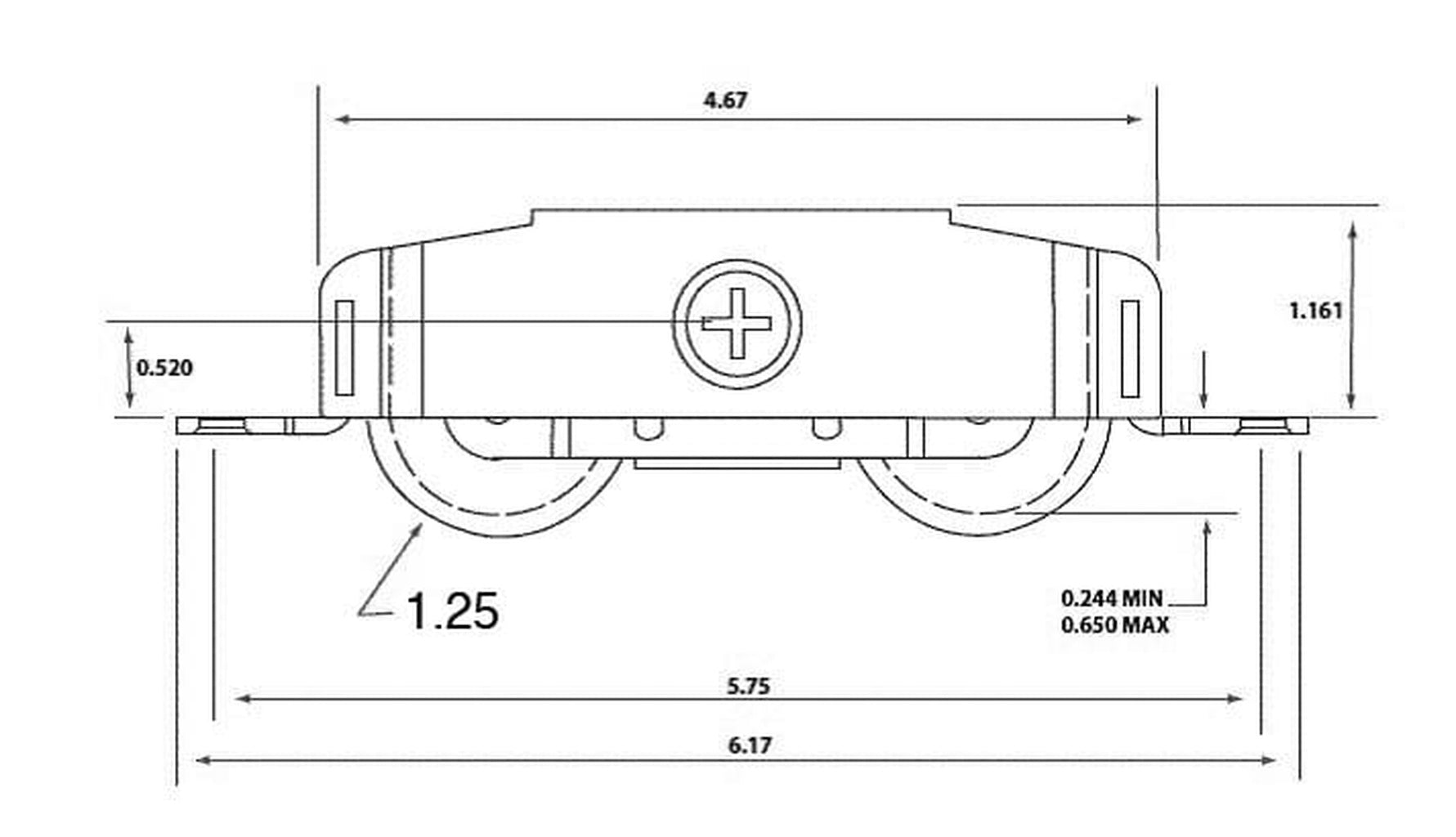

Patio Sliding door roller assembly with 1-1/4 inch steel wheel

Housing Tab Style: Unique Housing - Straight

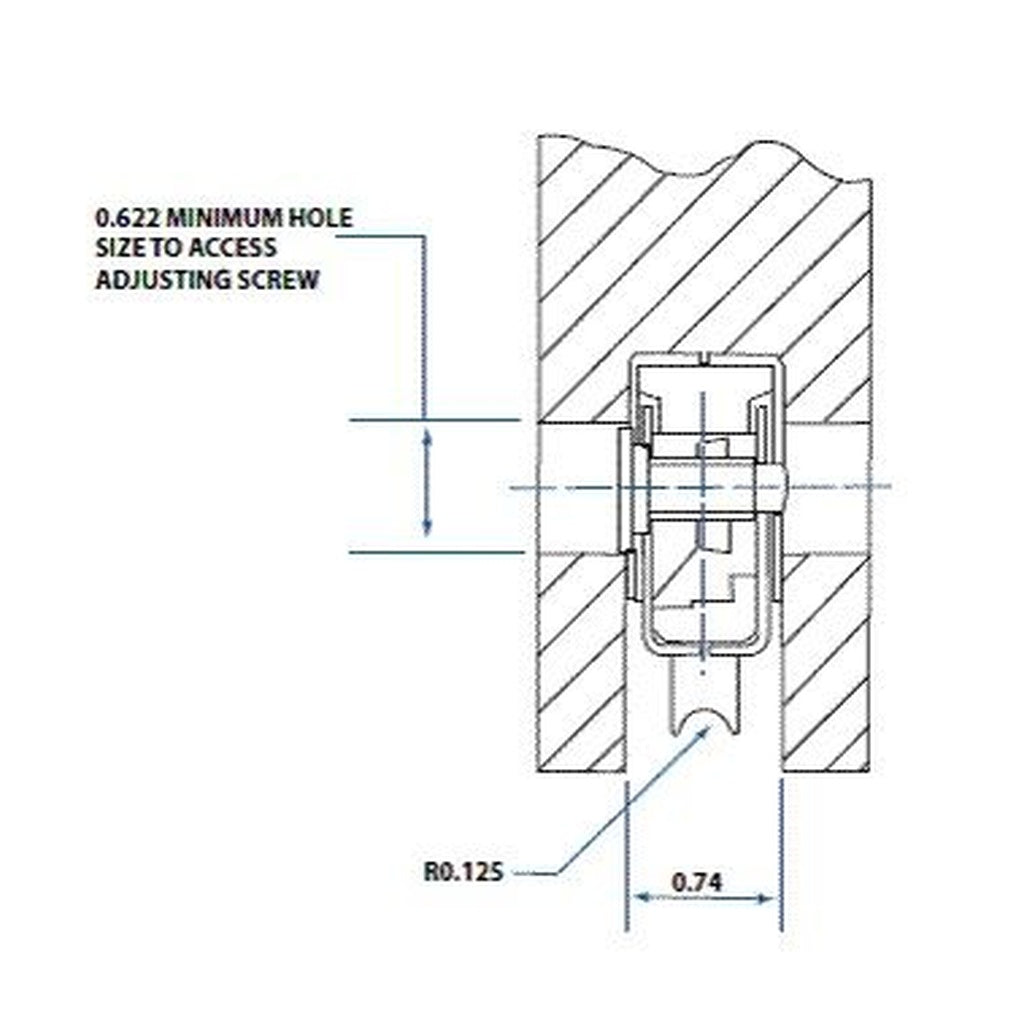

Housing Width: 3/4 inch + 1/16 inch adj. Screw
Housing Material: Steel
Roller Diameter: 1-1/4-inch
Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 5/16 inch
Installation Screw Holes: 5-3/4 inch

NOTE:
13093 has 11/16 thick housing.

How to Adjust Sliding Door Rollers
