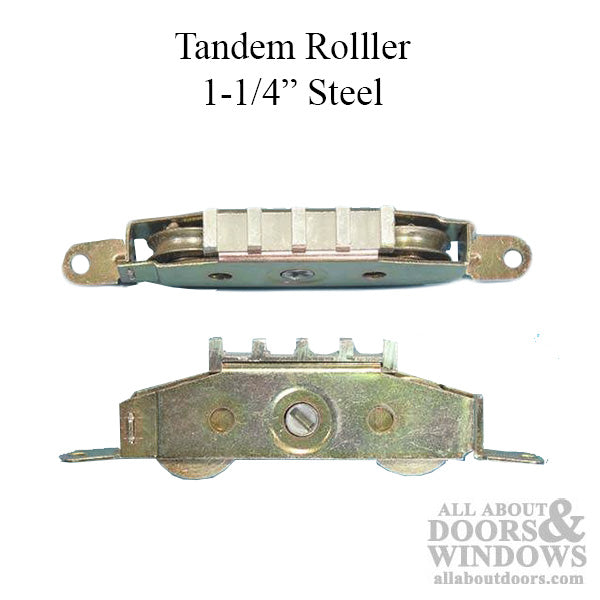

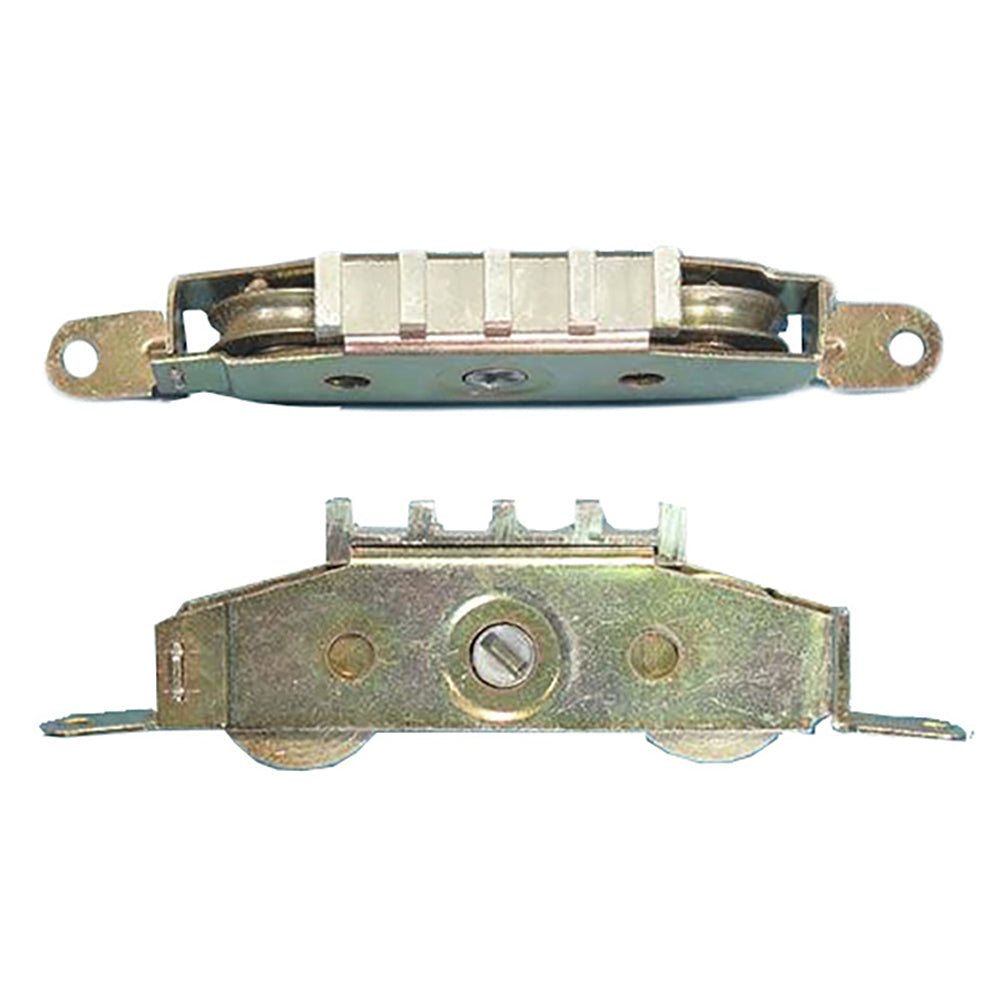

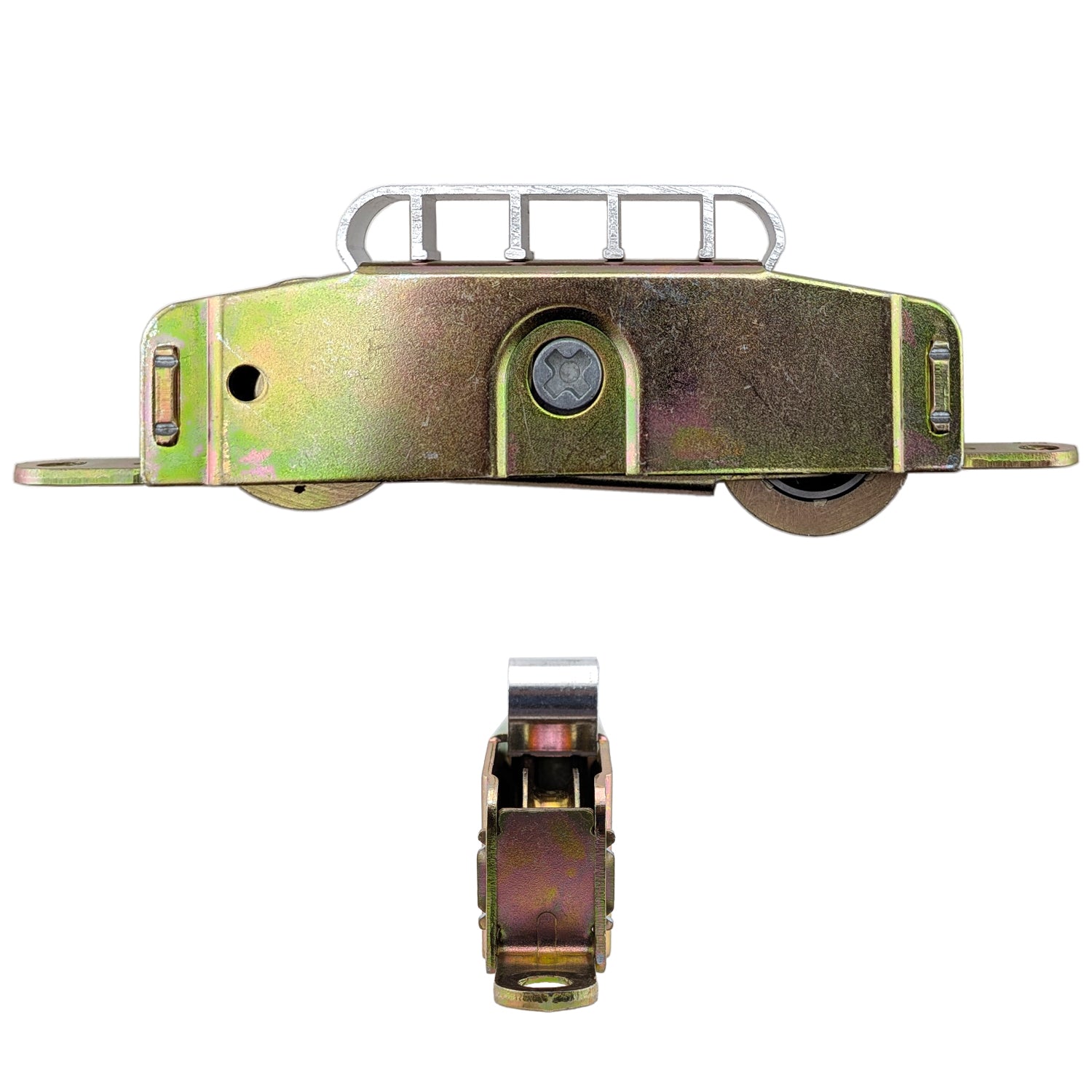

Tandem Roller Assembly for Vinyl sliding patio doors

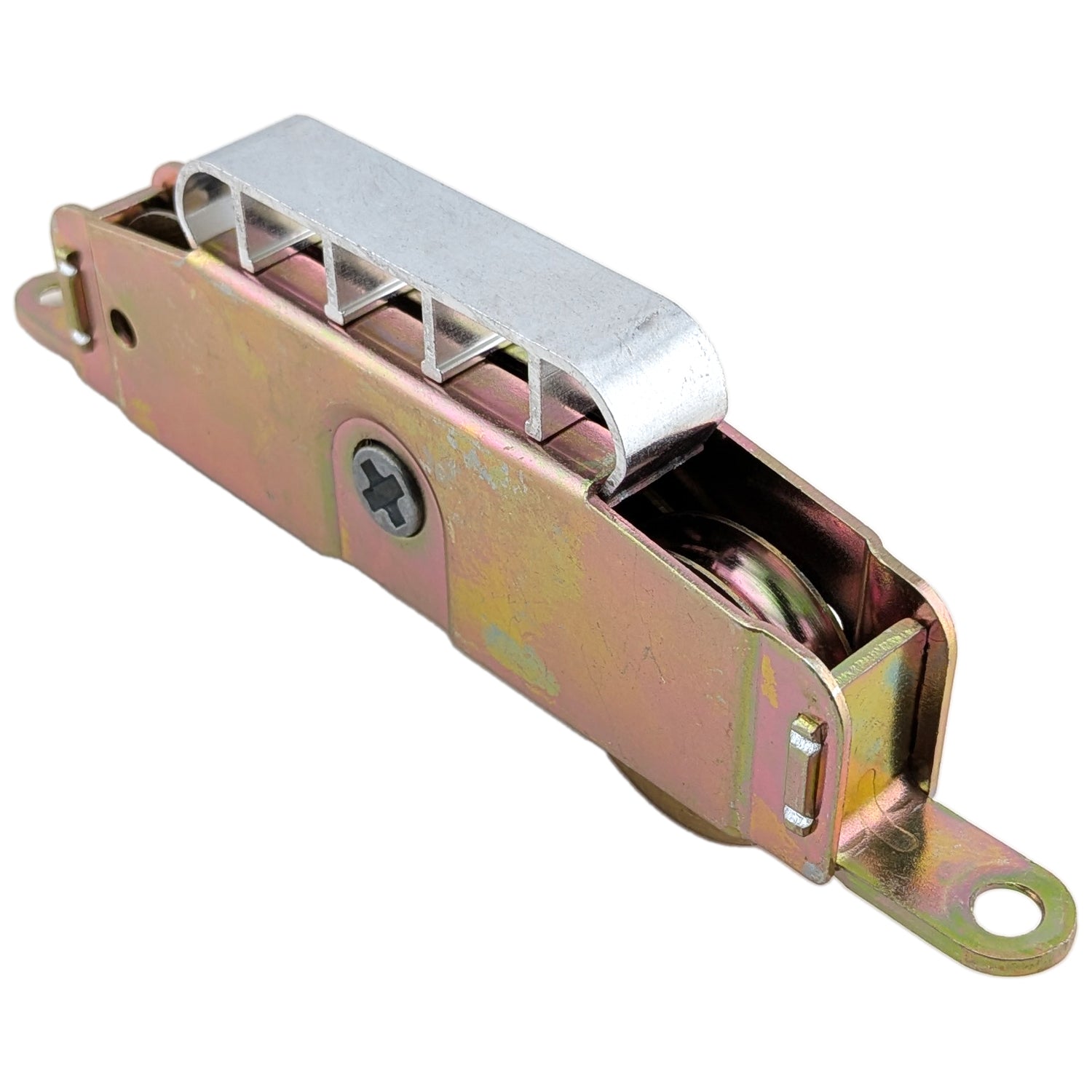

aluminum Spacer / filler mounted on top.
Application: Used on Vinyl Doors

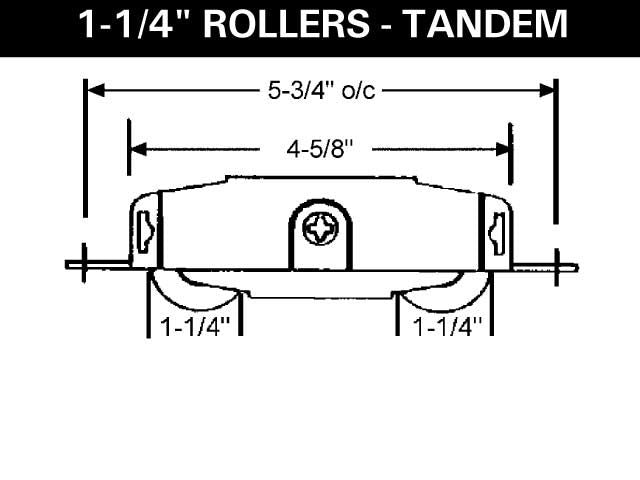

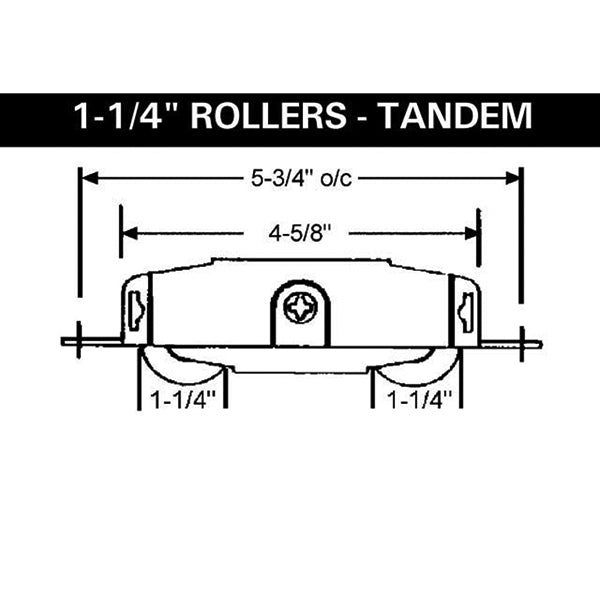

Spacer Measuring 1/2 x 2-3/8 x 5/16 inch tall.
Roller Wheel: 1-1/4 inch Steel
Screw hole spacing: 5-3/4 inch
Priced and sold each.
Note:
Assembly can be replaced with Roller # 13243 with 1-1/2 inch wheels or 13093 with 1-1/4 inch roller, but will require a spacer provided by others to fill space above housing.
The spacer provides support for the weight of the door and spreads the weight from the screws to the door Panel. The Spacer is necessary to prevent damage to door panel.
How to Adjust Sliding Door Rollers
aluminum Spacer / filler mounted on top.
Application: Used on Vinyl Doors
Spacer Measuring 1/2 x 2-3/8 x 5/16 inch tall.
Roller Wheel: 1-1/4 inch Steel
Screw hole spacing: 5-3/4 inch
Priced and sold each.
Note:
Assembly can be replaced with Roller # 13243 with 1-1/2 inch wheels or 13093 with 1-1/4 inch roller, but will require a spacer provided by others to fill space above housing.
The spacer provides support for the weight of the door and spreads the weight from the screws to the door Panel. The Spacer is necessary to prevent damage to door panel.
