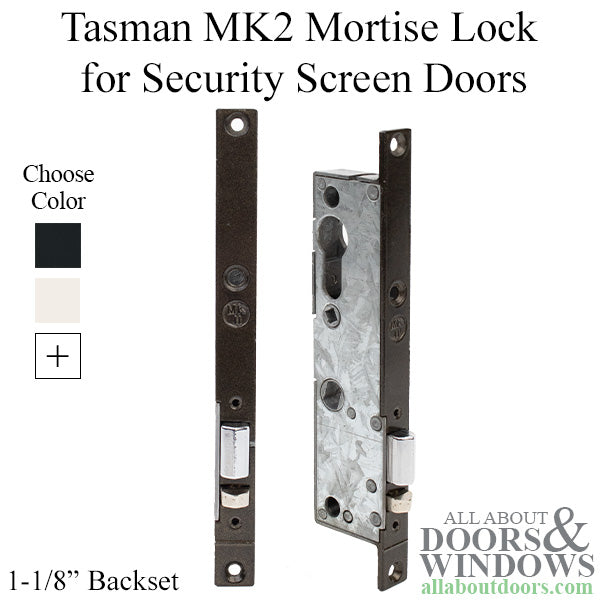

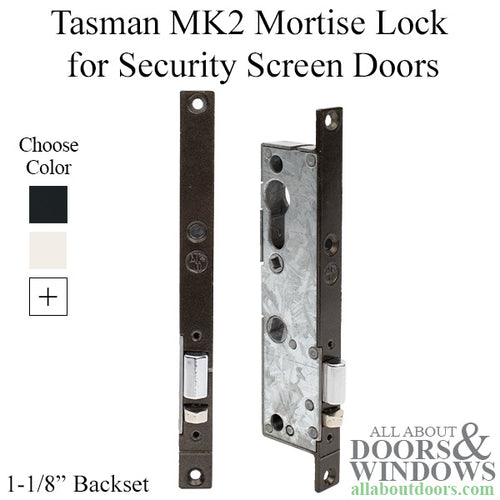

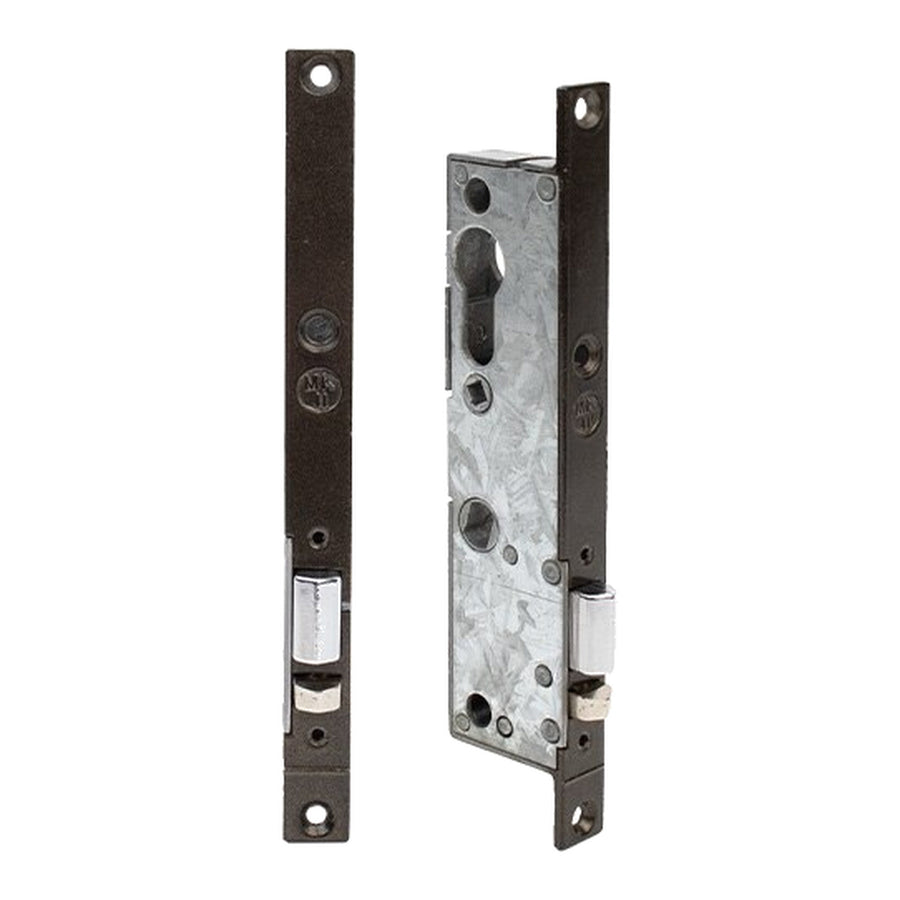

Tasman MK2 Mortise Lock

Part Number: 397100-BL Price: $40.00
COLOR: - Black
Tasman Security Screen Door Lock, Uses single or double keyed mortise cylinder - Not Included; Made in Australia

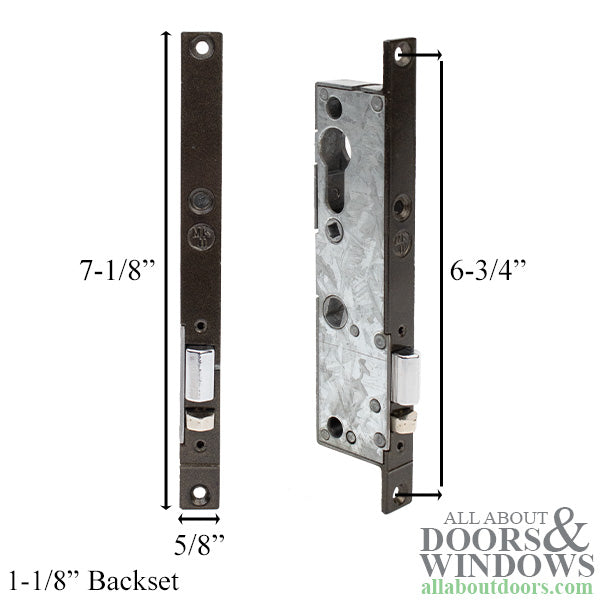

Product Details:
Faceplate Width: 5/8"
Faceplate Length: 7-1/8"
Backset 1-1/8"
Screw Hole Distance: 6-3/4"
Available Colors:
Black
White

Description:
Single or multi-point hinged security door lock with anti-jimmy bolt for added security.

Suitability:
Suits either left or right hand opening hinged security screen doors.

Features:
Automatic latching
Mortise lock with inside snib
Key overrides snib
Suit normal 20mm door thickness
Accepts Whitco Euro profile lazy cam cylinders
Recommended for use on security doors to assist in compliance to Australian Standards
High performance lock exceeds the requirements of the relevant Australian Standard AS 4145.2 to level S1 and D3

Related Parts:
397092 - Keyed Profile Cylinder Key / Key, Polished Chrome
397094 - Profile Cylinder Key / Thumb, Polished Chrome
397095 - Keyed Double Cylinder, Polished Chrome
