Whitco Security Screen Door Lock, Made in Australia, uses single or double keyed mortise cylinder - Not Included;

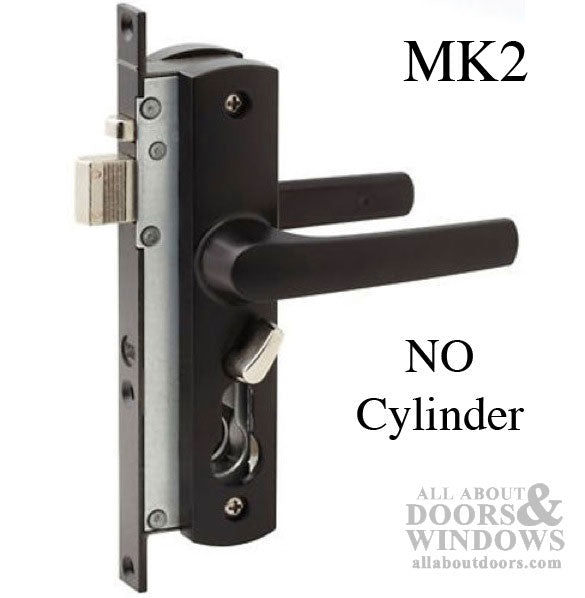

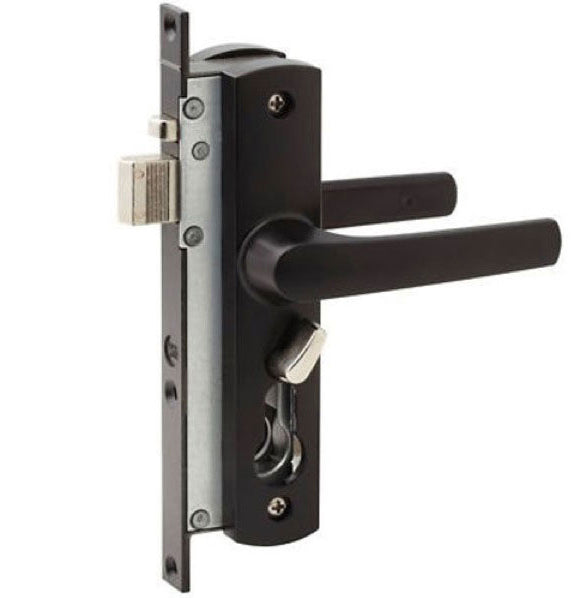

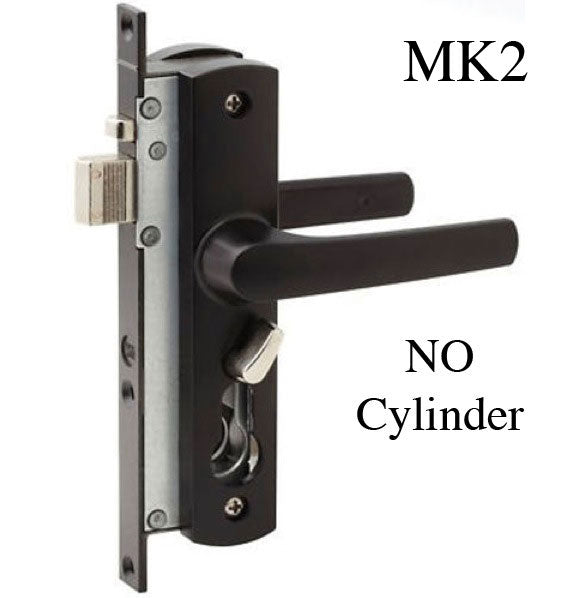

Tasman MK2 Lock for Hinged Security and Screen Doors
Backset: 1-1/8 inch (28mm)
Lock Body Width: 1-1/2 inch (38mm)
Faceplate Width: 5/8 inch (16mm)
Faceplate Length: 7-3/16 inches (185mm)
Screw Hole Spacing: 6-3/4 inches . (173mm)
Faceplate Color: Black
Escutcheon Plate Width: 1-3/16 inch (30mm)
Escutcheon Plate Length: 6 inch (153mm)
Handed: No, Suits either left or right hand opening hinged security screen doors.
Spindle Length: 2-1/4 inch (57mm)
Spindle Diameter: 5/16 inch (8mm)
Base Material: Zinc
Faceplate Color: Black
Markings: Whitco 7012, 7001, PAT. AU 604092
Keyed cylinder is not included with this lock
IMPORTANT NOTE:

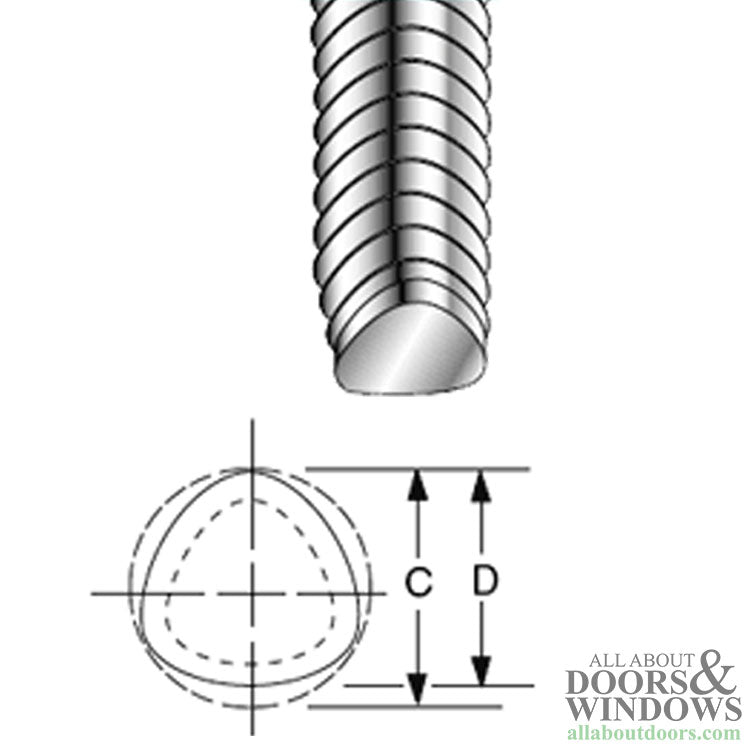

The screws are tri-lobular (self tappers) and are designed to cut their own threads in the lug on the handle set plates as they are screwed together.

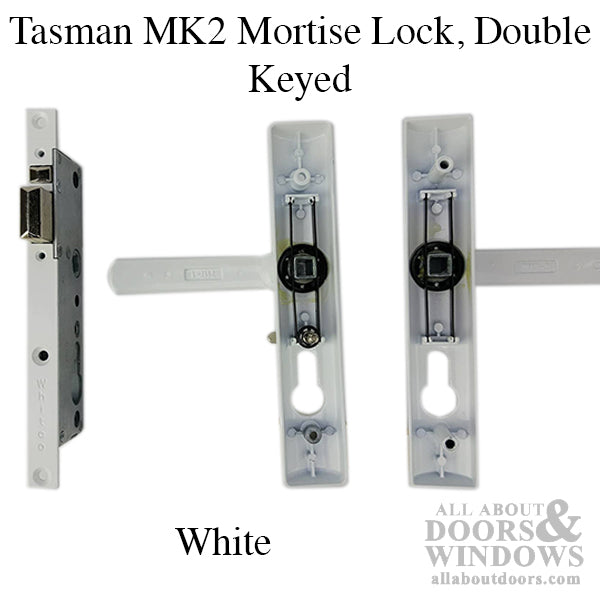

The lug doesn’t have a thread cut into it from the factory, the screw cuts the thread as it is tightened. This can help with slight misalignment issues. (see image 4)
Related Parts:
397092 - Keyed Profile Cylinder Key / Key, Polished Chrome
397094 - Profile Cylinder Key / Thumb, Polished Chrome
397095 - Keyed Double Cylinder, Polished Chrome
