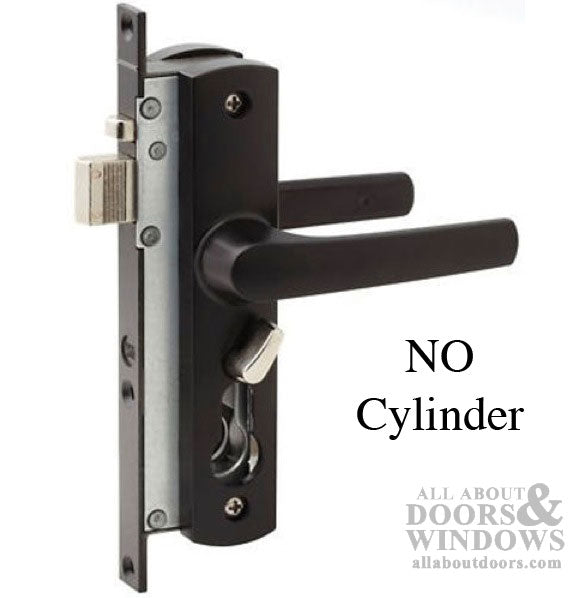

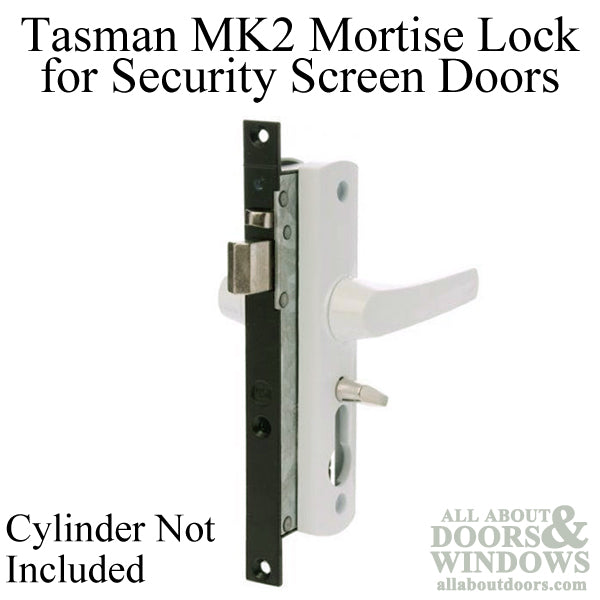

Tasman Security Screen Door Lock, Uses single or double keyed mortise cylinder - Not Included; Made in Australia
Product Details:
Width: 1-1/4 inch
Length: 6 inch
Spindle Length: 2-1/16 inch
Backset 1-1/8"
Handle Color: White
Mortise Lock Faceplate Color: Black
Faceplate Width: 5/8" (16mm)
Description
Single or multi-point hinged security door lock with anti-jimmy bolt for added security.
Suitability
Suits either left or right hand opening hinged security screen doors.
Features
Dualselect feature which offers safety and security for all occupants by giving a choice of selecting privacy lock or deadlock when exiting the home
Automatic latching
Mortice lock with inside snib
Key overrides snib
Suit normal 20mm door thickness
Accepts Whitco Euro profile lazy cam cylinders
Recommended for use on security doors to assist in compliance to Australian Standards
High performance lock exceeds the requirements of the relevant Australian Standard AS 4145.2 to level S1 and D3
IMPORTANT NOTE:

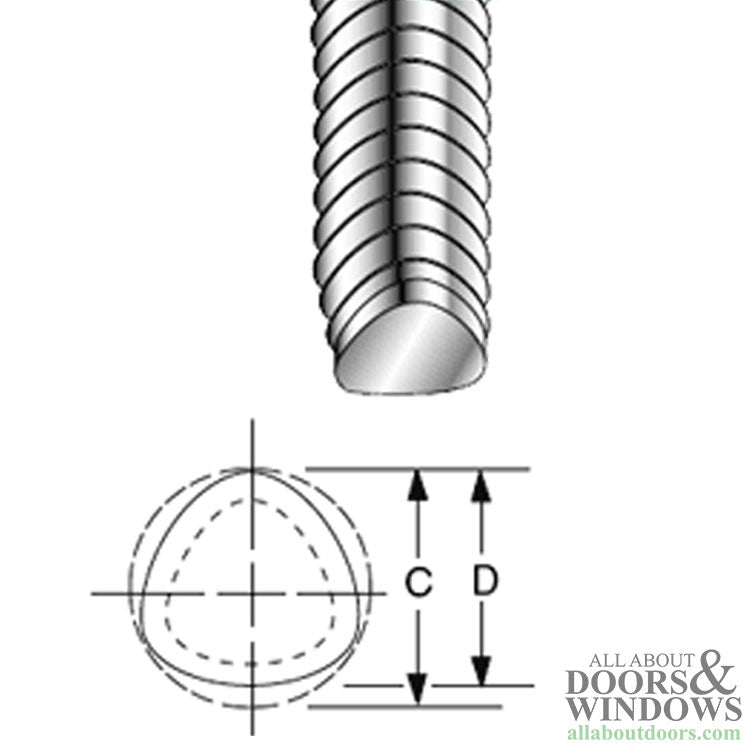

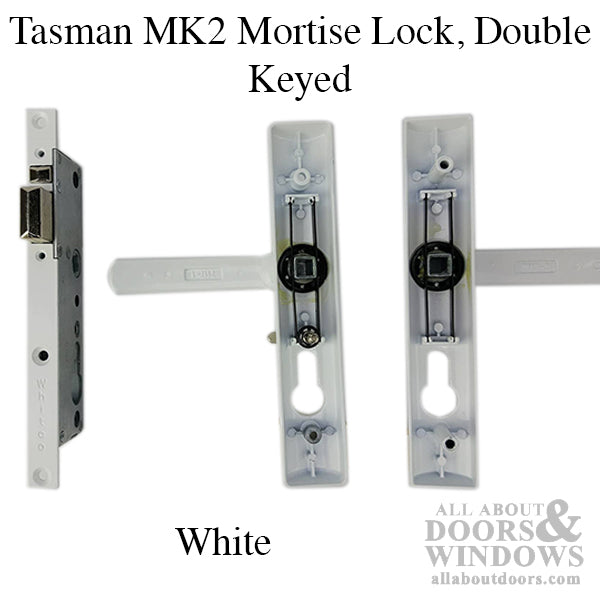

The screws are tri-lobular (self tappers) and are designed to cut their own threads in the lug on the handle set plates as they are screwed together. The lug doesn’t have a thread cut into it from the factory, the screw cuts the thread as it is tightened. This can help with slight misalignment issues. (see image 4)
Related Parts:
397092 - Keyed Profile Cylinder Key / Key, Polished Chrome
397094 - Profile Cylinder Key / Thumb, Polished Chrome
397095 - Keyed Double Cylinder, Polished Chrome
