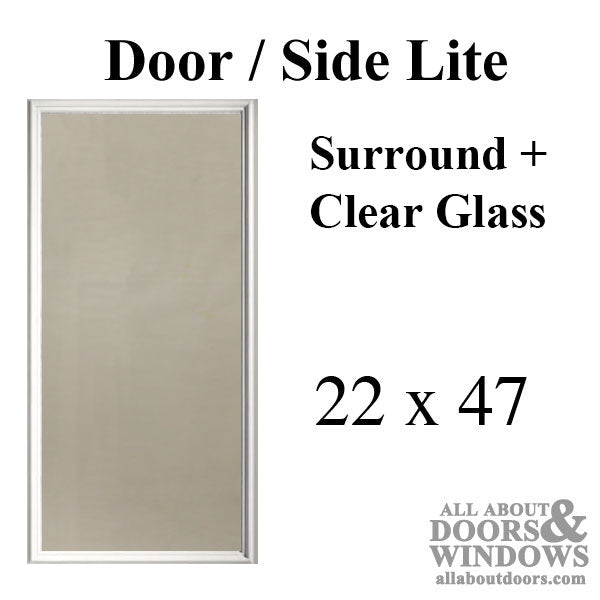

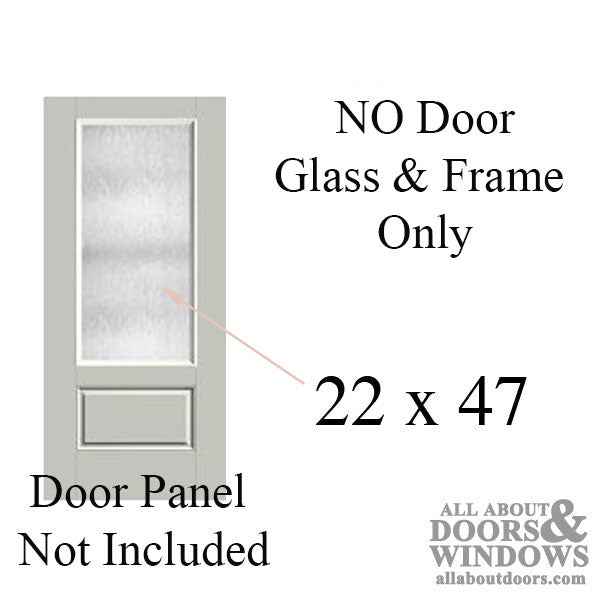

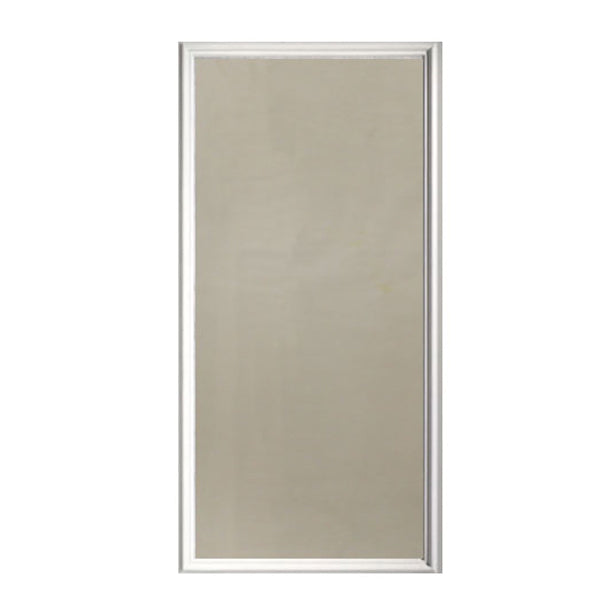

Therma-Tru 22" x 47" x 1" Insulated Glass, 3/4 Lite

Part Number: 330224721-CIG Price: $325.00 to $375.00
GLASS OPTIONS: - Low E Insulated Glass

We reserve the right to adjust shipping. We will notify the customer prior to adjustment, and if they do not agree we may cancel the order at our discretion.


3/4  Door Lite surround with Tempered Safety Glass.


Door Frame and insulated, dual pane, glass insert with plastic screw together frame.


Actual Glass Measurement: 22 inch x 47 inch

Insulated Glass Thickness: 1 inch

Door Cut-Out Hole: 23 inch x 48 inch

TIP-TIP Surround: 23 7/8 inch x 48 13/16 inch

Door Thickness: 1-3/4 inch

Normal Installation: Standard doors measuring 32 or 36 inch wide  by 80 inches tall.


Note: Low E-glass is a more energy efficient product and will reduce the amount of heat gain in summer and heat loss in winter.
