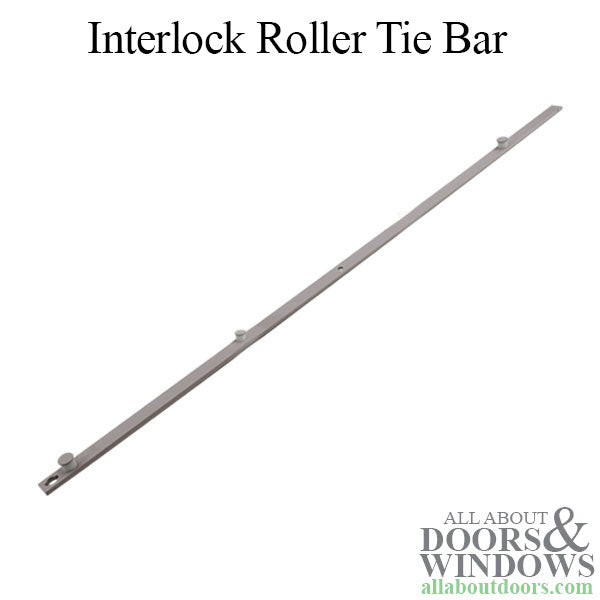

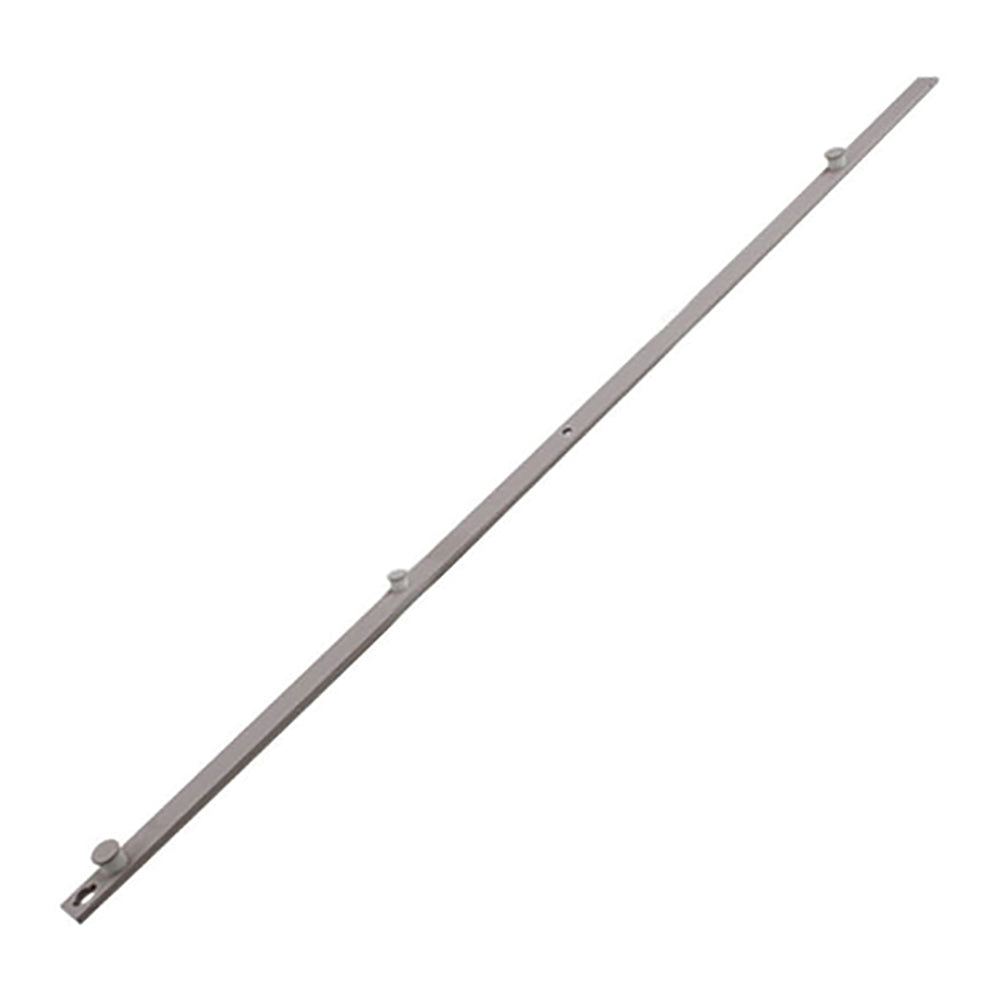

Tie Bar for Interlock Roller, 22-7/8"

Part Number: 11903.92-EG
MATERIAL: - E-Gard Plated
Tie Bar for Interlock Roller

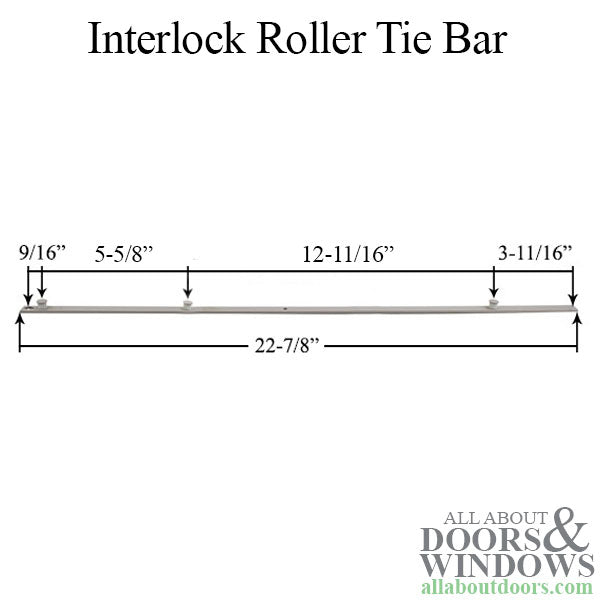

Measurements (see 3rd image):
Screw Hole to First Lock Drive Point: 9/16"
First Lock Drive Point to Second: 5-5/8"
Second Lock Drive Point to Third: 12-11/16"
Third Lock Drive Point to Tip: 3-11/16"
Overall Length: 22-7/8"
Width: 1/2"

Protective Options:
Egard (Corrosion Resistant)
Stainless Steel

Related Parts:
55660 - Maxim Multipoint Sash Lock, 1-3/8 inch projection
55657 - Maxim Multipoint Sash Lock, 1-5/8 inch projection
556076 - Adjustable Plastic Tie Bar Guide
556088 - Keeper, Right Hand
556089 - Keeper, Left Hand

Priced and sold each.
