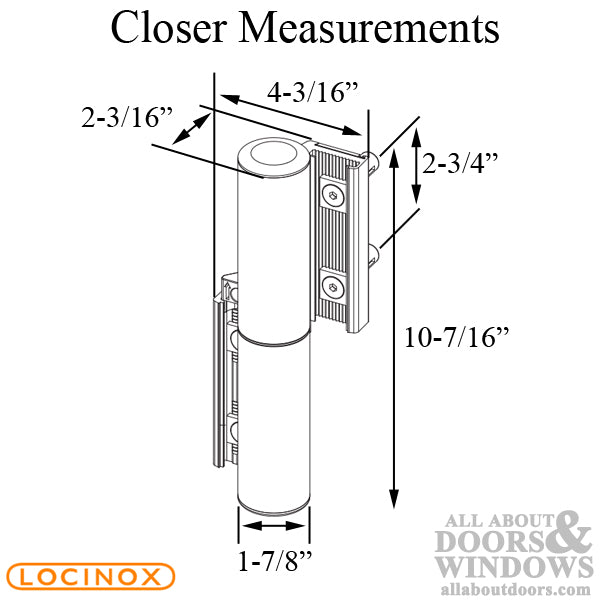

180° Self-closing Tiger Hydraulic Gate Hinge with Adjustable Speed and Final Snap

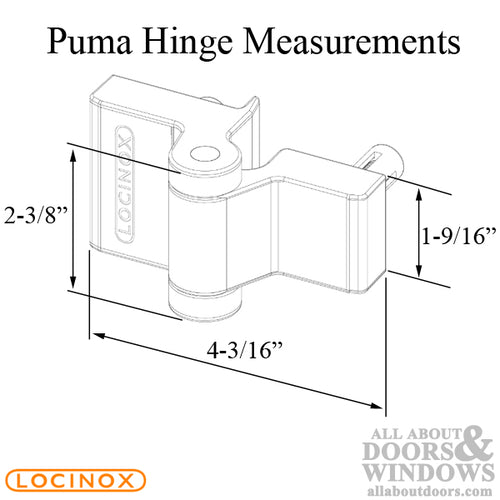

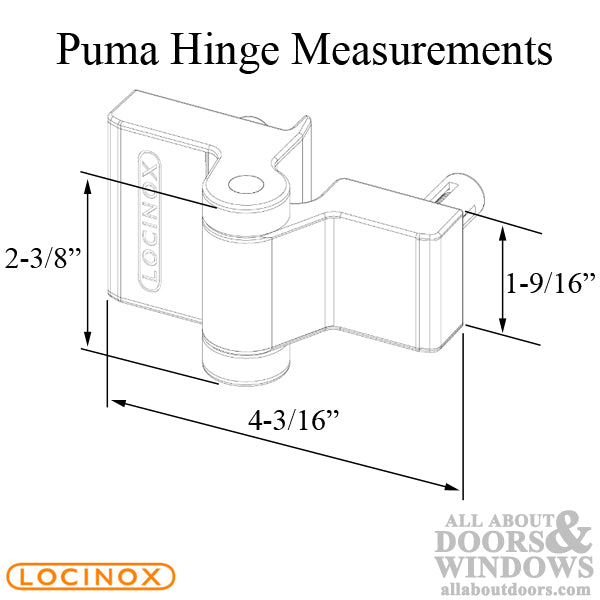

Includes adjustable surface-mounted Puma hinge

Manufactured by Locinox

Specifications:
180° range of closure
5/8” horizontal adjustability
3/4” vertical adjustability
Max 10.32 lb-ft.

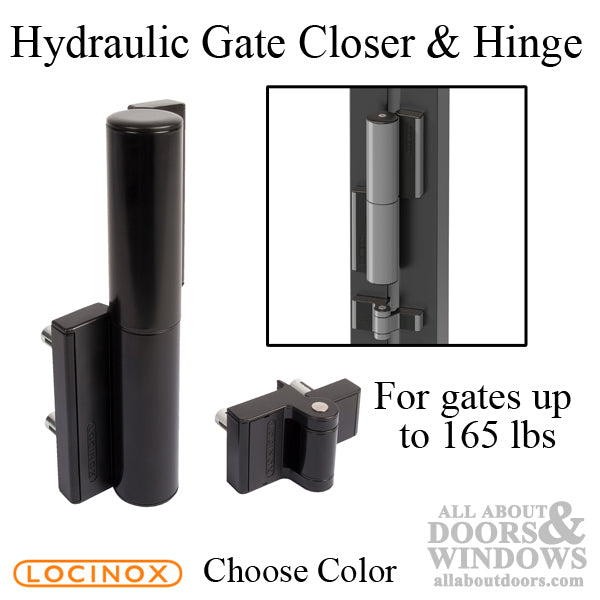

For gates up to 165 lbs and 4 feet wide

Features:
Automatic 180° closure
Reversible: can be used on right- or left-handed gates

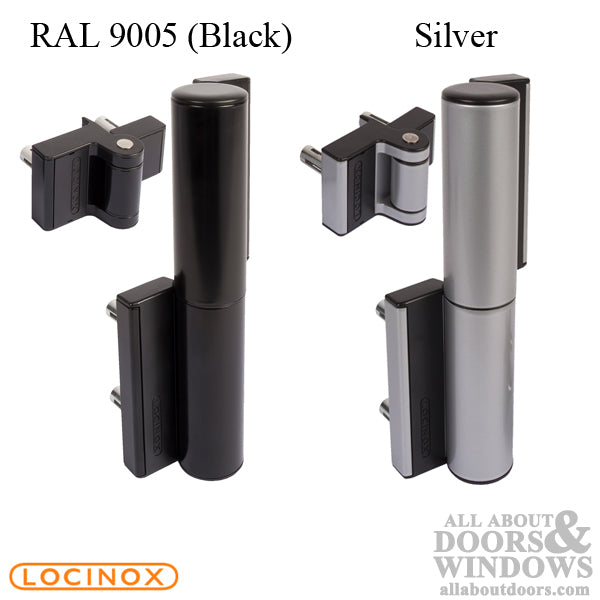

Weather-proof: aluminum powder coating allows for top functionality in any conditions, including temperatures ranging from -22° F to 158° F
3-Year warranty provided by Locinox

Related Parts:
Jig tool to simplify installation of the TIGER gate closer: TIGERDRILL
Bracket to mount TIGER closer on chain link fence: TIGERBRACKET

Resources:
PDF: Installation Instructions
Video: Installation Instructions
Drawing: Technical Drawing
