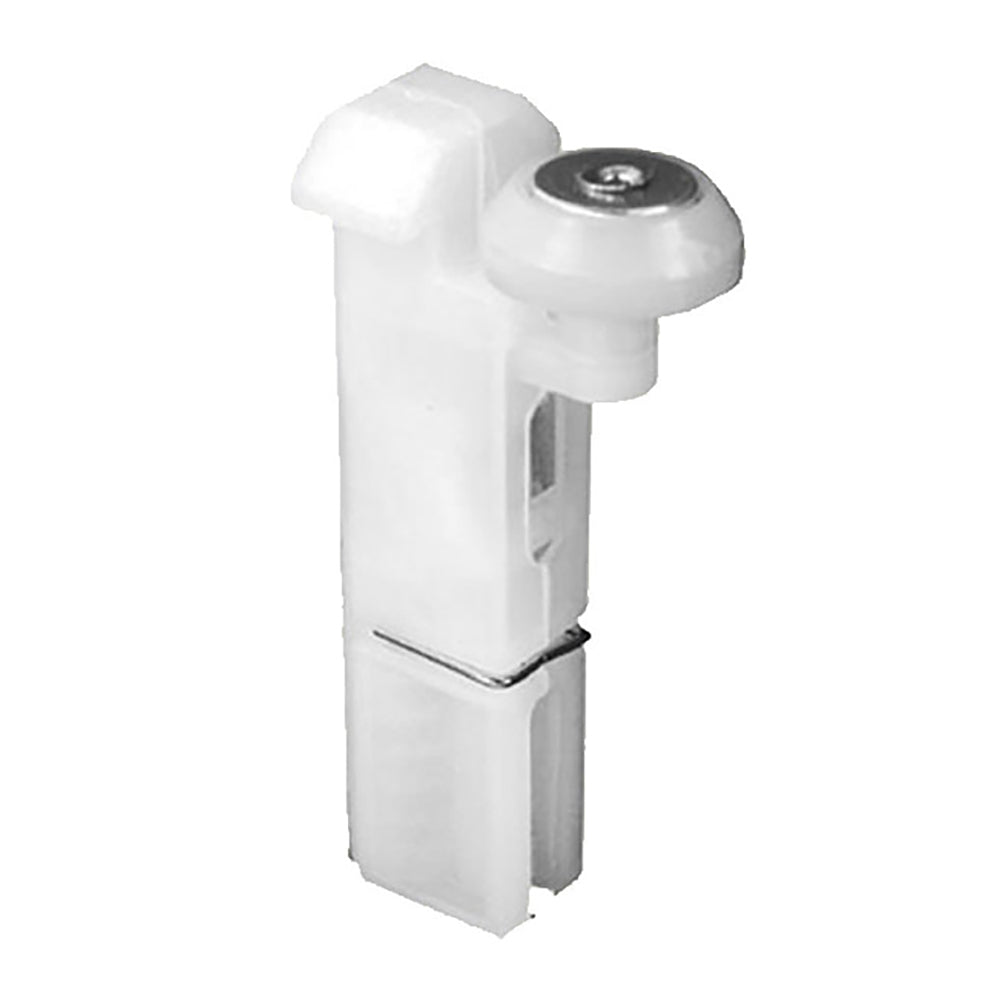

Top Hung Nylon Roller Assembly with 11/16 inch Wheel for Sliding Screen Door.
Roller Assembly consists of top hung nylon roller with 11/16 inch nylon ball bearing, oval edged wheel with built in guide.
This Roller is used on HiLite Doors.

Mount: Top
Roller Edge Type: Oval
Roller Material: Nylon
Roller Width: 1/4 Inch

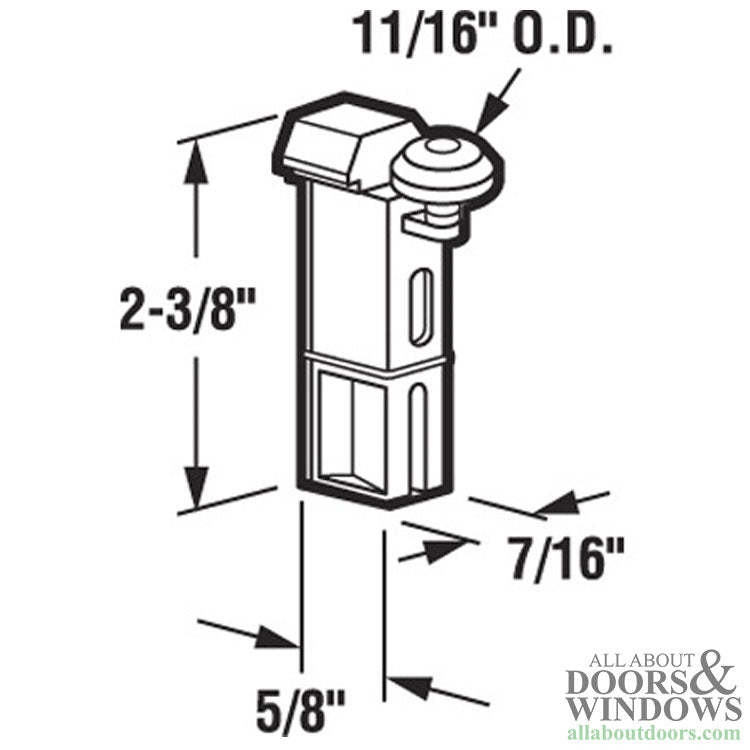

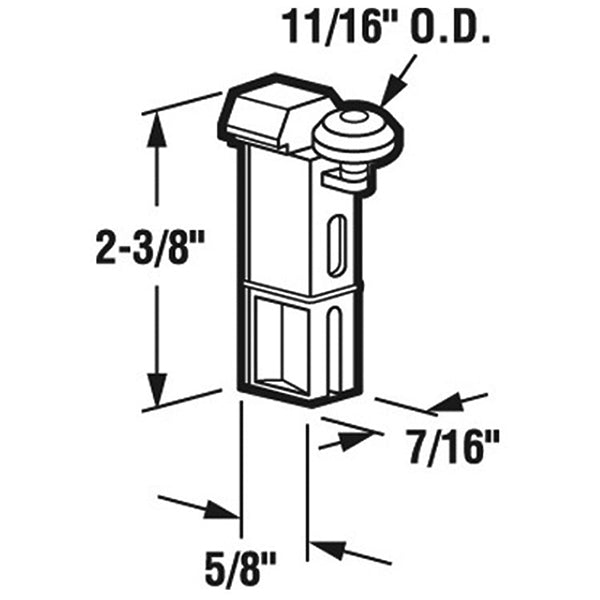

Roller Diameter: 11/16 Inch

Contents: 2 Roller Assemblies

Priced and Sold in Pairs.

INSTALLATION HINTS:
Remove door by lifting up and away from opening, and replace old rollers.
Adjust rollers so ball-bearing wheels 1/4" above top of door.
Hold screen at angle and insert up into outer track of header.
Swing door down into position.
Adjust top rollers by lifting door to desired position and turn adjustment screw in until screw remains a preferred position.
Do not tighten adjustment screw - it is not a lock screw.
Properly adjusted top rollers permit door to close evenly into jamb.
