Trilennium 3000 series Multi-Point Lock with looking Latch Bolts -  Multi-point lock Only

IMPORTANT: all locks are set up for INSWING doors. If you have an OUTSWING the Panic function needs to be checked before installation. See additional information below

Optional strike kit and accessories not included, ordered separately

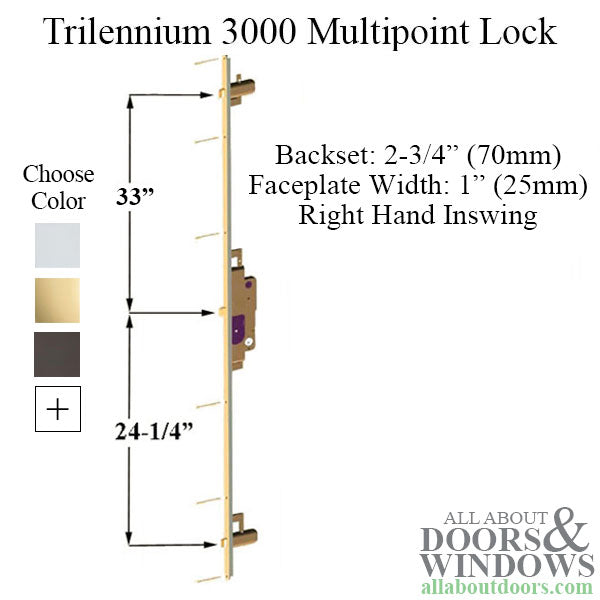

Lock Measurements:

Backset: 2-3/4 inch (70 mm)

Faceplate Width: 1 inch (25.4 mm)

Faceplate Length: 65-1/2 inch (1410 mm) Radius ends

Faceplate Color: 3 Finishes;  Polished Brass, Victorian Bronze,  Stainless Steel

Deadbolt Throw: 15/16 inch

Top Latching Bolt: 33 inch (measured from center bolt)

Bottom Latching Bolt: 24-1/4 inch (measured from center bolt)

Spindle Diameter: 1/4 inch (7 mm)

Cylinder Type: American with Flat tail piece, Not included

Country of Origin: Made in USA

Priced and sold each, Lock assembly only, no additional hardware

Handing: Right-hand inswing door

Handing As viewed from outside, hinge determines handing - If hinge is on Right, it is Right hand door.

Operation:

Handle moves down only

To lock - Use key or thumb turn - Extends Latch to Deadbolt function

To unlock - Use Key  Outside or Thumb Turn / Lever Inside

Panic Release: Yes, Pressing down on inside handle will unlock door

HARDWARE NOTE:

Standard Trilennium Cross Bore: 2-1/8 inch (use Pinnacle, Eclipse & Grip Hardware)

Optional Crossbore: 1-11/16 (use Europa, Horizon or Emtek hardware)

The Horizon and Europa plates are only 1-7/8 inches wide and will not cover the 2-1/8 inch crossbore used on Pella and other doors with larger holes
