The Trilennium 3070 Series Multipoint Lock is equipped with secure locking latch bolts, designed for robust performance and commonly used by Pella and other window and door manufacturers. Please note that this is a lock assembly only and does not include strike plates.

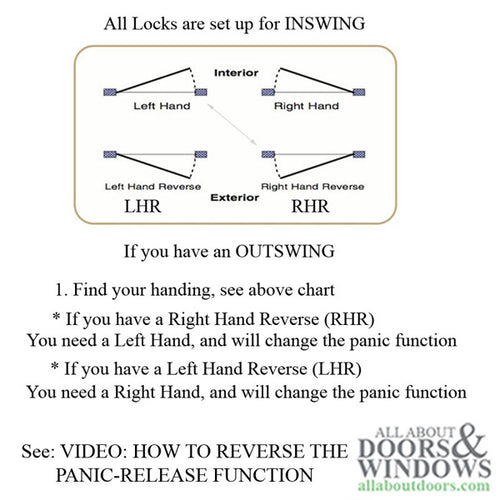

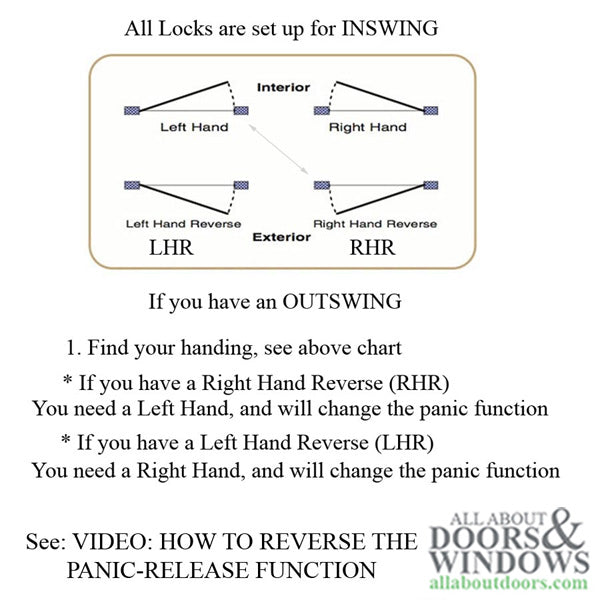

IMPORTANT - all locks are set up for INSWING doors. If you have an OUTSWING the Panic function needs to be changed before installation. If door is Outswing, use the opposite handing and change the panic function. LHIS will use a RHIS.

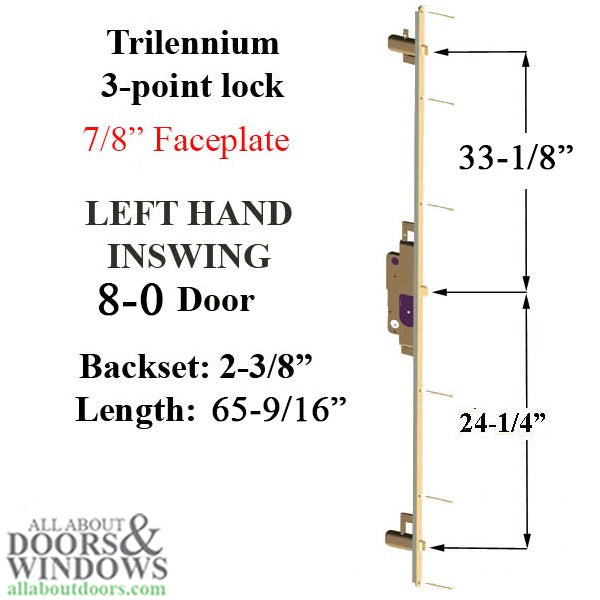

Lock Measurements:

Backset: 2-3/8 (60 mm)

Faceplate Width: 7/8 inch (22mm)

NOTE: Faceplate widths can be 7/8 or 1 inch wide

Faceplate Length: 65-9/16 inch (1,665.29 mm) Radius ends

Faceplate Color: Stainless Steel

Deadbolt Throw: 15/16 inch (23.81mm)

Top Latching Bolt: 33-3/32 inch ( 840.58mm)

Bottom Latching Bolt: 24-5/16 inch ( 617.54)

Spindle Diameter: 1/4 inch ( 7 mm)

Cylinder Type: American with Flat tail piece

Made in USA

Handed: Yes, Set up for Left or Right Hand doors

Handing: Left-handed Inswing

Note: As viewed from outside, hinge determines handing - If hinge is on Left, it is Left hand door.

Operation:

Handle moves down only

To lock - Use key or thumb turn - Extends Latch to Deadbolt function

To unlock - Use Key  Outside or Thumb Turn / Lever Inside

Panic Release: Yes, Pressing down on inside handle will unlock door

HARDWARE NOTE:

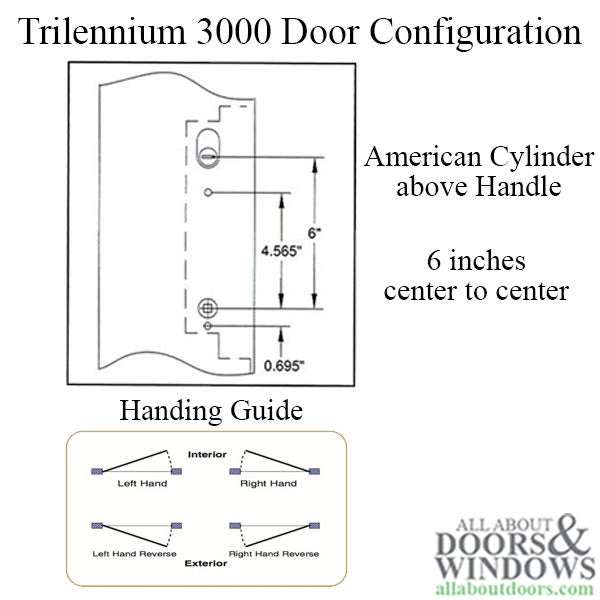

Standard Cross Bore: 2-1/8 inch (Use Trilennium Pinnacle, Eclipse, Rectangular, Curved or Grip Hardware)

Optional Crossbore: 1-11/16 (Use handle plate width 1-7/8 or wider)

The Horizon, Europa and Emtek plates are only 1-7/8-2" inches wide and will not cover the 2-1/8 inch crossbore used by Pella and other doors with larger holes

Rocky Mountain 2-1/2 wide plate fits either crossbore.

Related Parts:

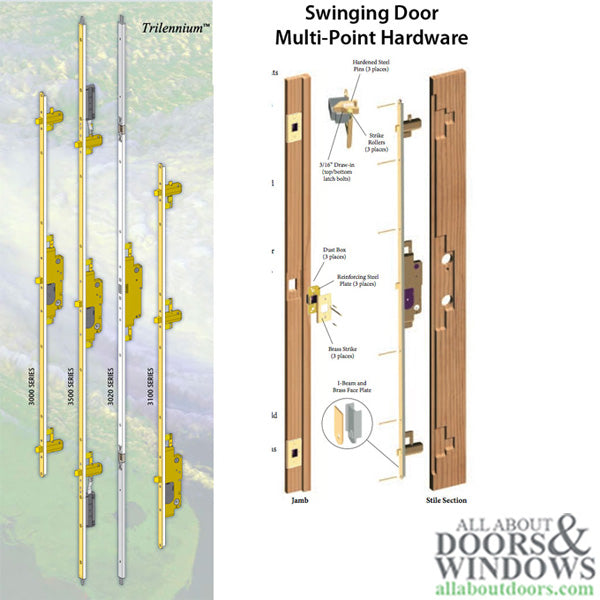

499130054 - Optional: 3 strikes, 3 Reinforcing plates, 3 Dust Boxes with Screws
