Trilennium Peachtree IPD Dummy Fixed Levers 1-3/4 Hinged door

Part Number: 40066-BB Price: $241.68
COLOR: - Bright Brass

Trilennium Peachtree IPD Dummy Fixed Levers 1-3/4 inch thick hinged door used by Peachtree on their Citadel IPD doors

Application: Dummy Handle
Style: Traditional

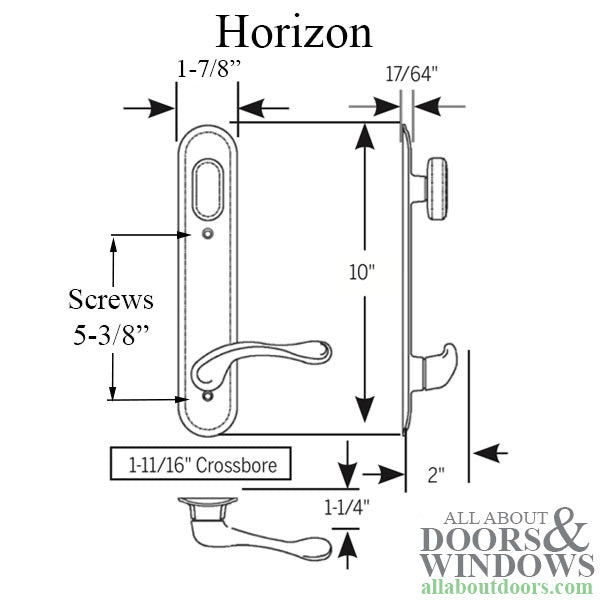

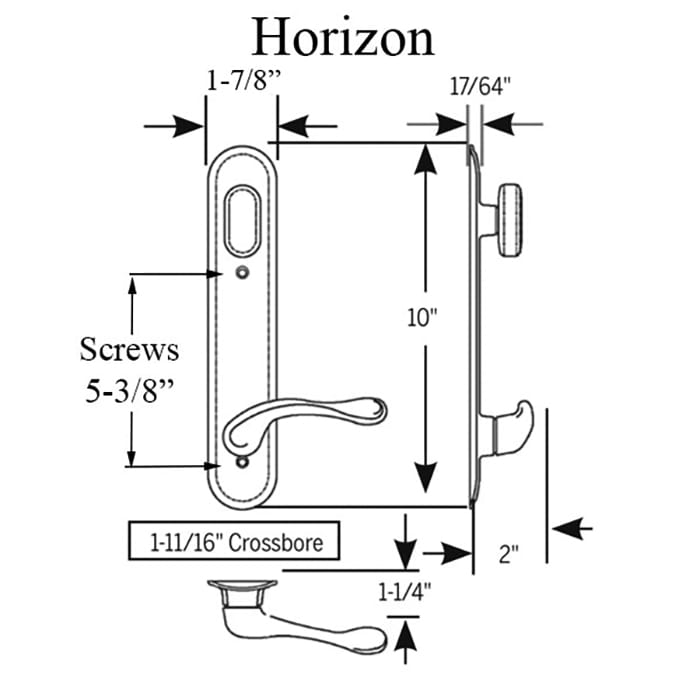

Handle to Cylinder PZ Distance: 6 inch es
Keyway: NONE, this is a dummy function
Door thickness: 1-3/4 inches (45mm)
Installation Screw Holes: 5-3/8 inches
Escutcheon Plate Width: 1-7/8 inches
Escutcheon Plate Height: 10 inches
Lock Cross bore: Fits 1-11/16
Door Thickness: 1-3/4" (45mm)
Handle Projection: 2-9/32 inches

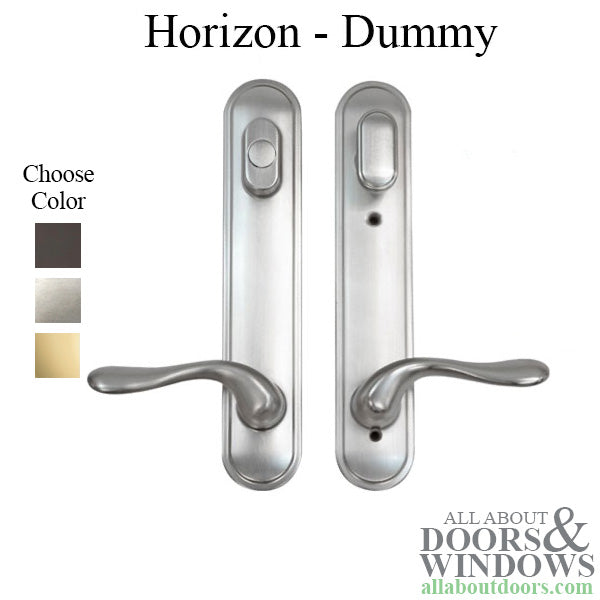

Available colors: Bright Brass, Victorian Bronze, Satin Nickel

Note: This is made for 1-3/4 inch thick doors. For 2-1/4 inch thick doors, conversion kit #40039-WR will be needed

<style type="text/css">
p.p1 {margin: 0.0px 0.0px 0.0px 0.0px; font: 13.0px Arial}
</style>


<p class="p1">http://www.wfmfg.com/pages/trilennium_hardware.html</p>
<p class="p1">W&amp;F Trilennium<span class="Apple-converted-space">&nbsp; </span>Part numbers for 1-3/4" Door</p>
<p class="p1">HORL-DUM-PB-175 = Bright Brass</p>
<p class="p1">HORL-DUM-SN-175 = Satin Nickel</p>
<p class="p1">HORL-DUM-VB-175 = Victorian Bronze</p>
<p class="p1">HORL-DUM-SNTL-175 = Satin Nickel, TriLast Finish</p>
<p class="p1">HORL-DUM-VBTL-175 = Victorian Bronze, TriLast Finish<br><br></p>
