Trilennium Peachtree Passive T-Turn Drive, Non-Keyed 3020 Series Handleset, 1-3/4 door
used by Peachtree on their Citadel IPD doors

Used ONLY with the 3020 Passive Multipoint lock which is operated by the thumb turn
Lever handles do NOT move on this handle set

Application: Inactive / Passive Door Handle
Style: Traditional
Handle to Cylinder PZ Distance: 6 inch
Keyway: NONE
Door thickness: 1-3/4 inch (45mm)

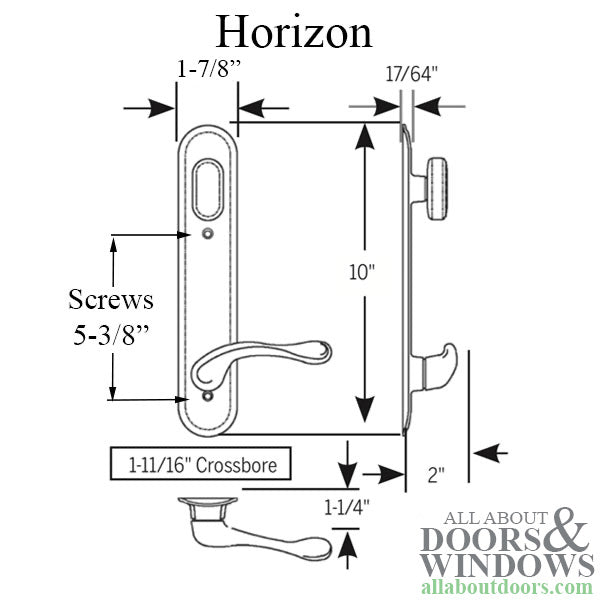

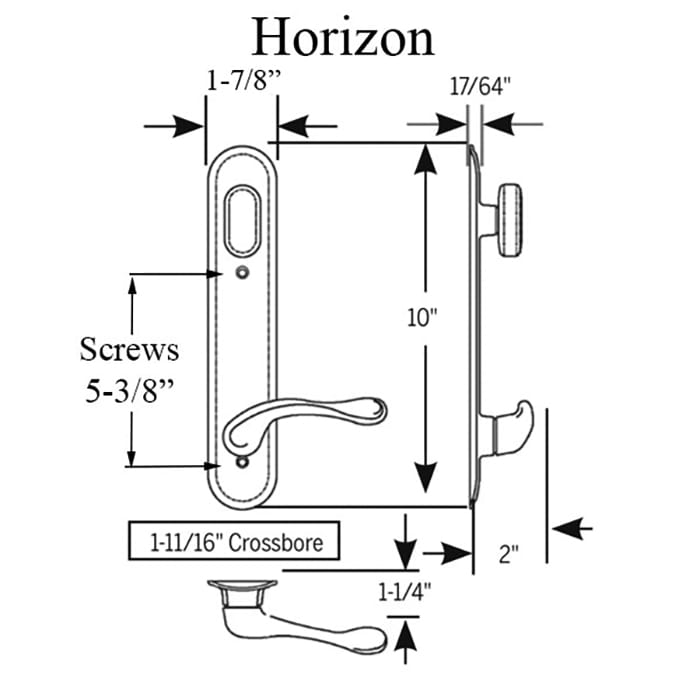

Escutcheon Plate Width: 1-7/8 inch
Escutcheon Plate Height: 10 inch
Installation Screw Holes: 5-3/8 inch
Lock Cross bore: Fits 1-11/16
Door Thickness: 1-3/4 inch (45mm)
Handle Projection: 2-9/32 inch

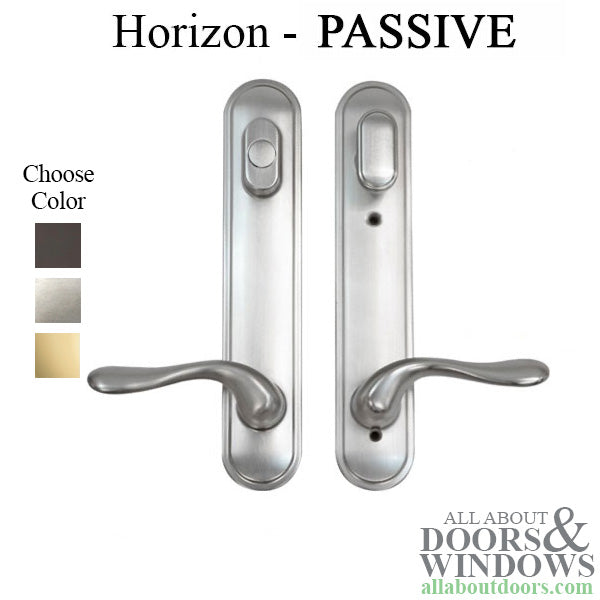

Available colors: Bright Brass, Victorian Bronze, Satin Nickel

Note: For 2-1/4 inch (57mm) doors order conversion kit, 40039-SC1 (Schlage keyway) or 40039-WR (Weiser keyway)
