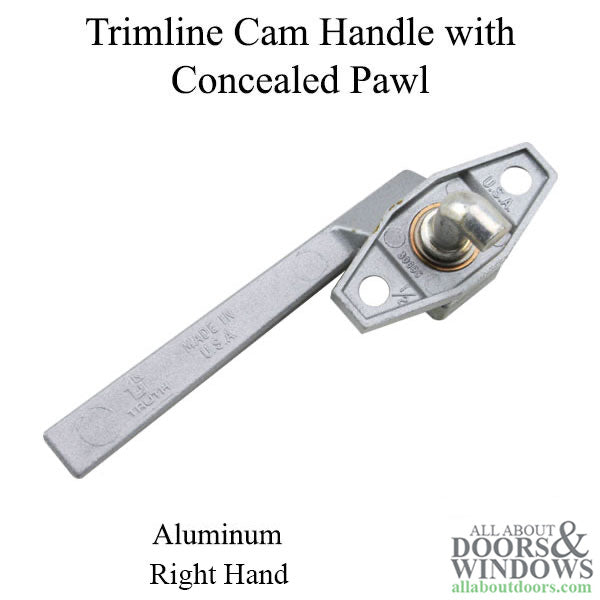

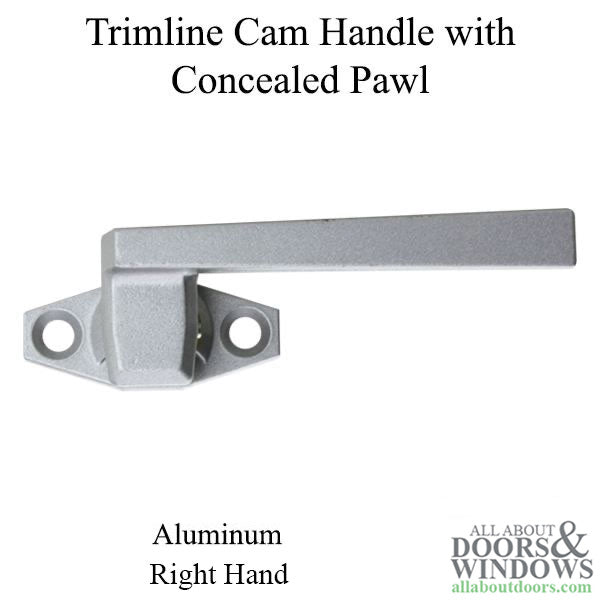

For use on in-swinging ventilators, this specially designed TrimLine Cam Handle is built with a concealed pawl.
A 90 rotation of the handle locks or unlocks the sash.

Color / Finish : aluminum
Material : High-pressure die-cast zinc handle and base. Zinc-plated steel pawl.

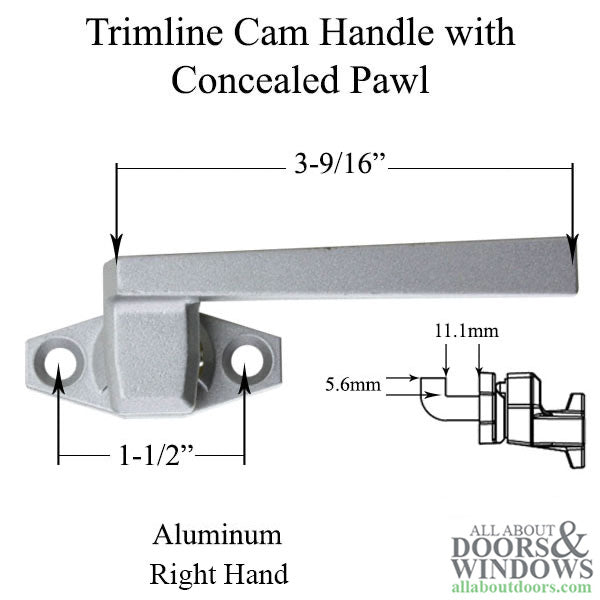

Handle Length : 3-9/16"
Screw Hole Distance : 1-1/2"

Handle Projection: 1 inch ( low profile)

Base: Inline
Handing: Right Hand

Projection of pawl from gasket to the inside of the vertical curve : 11.1mm (see the 3rd image's line drawing).

Handing is determined by the direction the handle points when viewed from the inside on an awning window. Handle points in opposite direction when used on a hopper top window.

Related Parts:
555096 - 12.7mm, Right Hand, Chestnut Bronze Handle
555098 - 11.1mm, Right Hand, Trimline, Aluminum Handle
555099 - 12.7mm, Aluminum Handle

Item may be slightly blemished due to bulk storage and time but functions like new.
Special pricing while supplies last.
No returns, refunds, or exchanges.

Priced and sold each.
