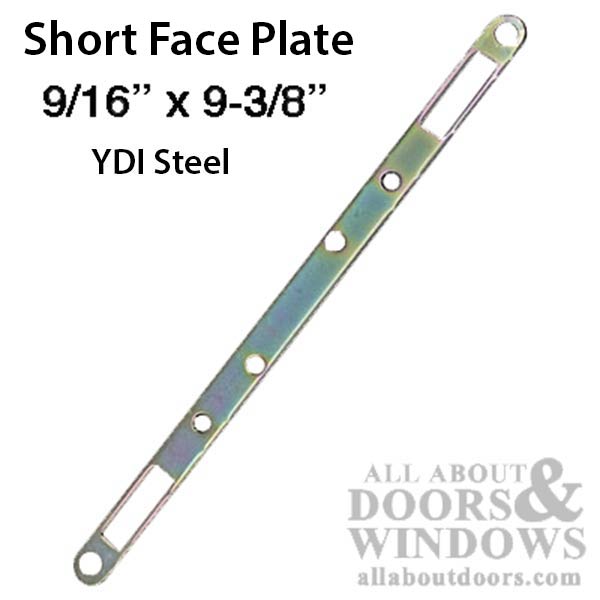

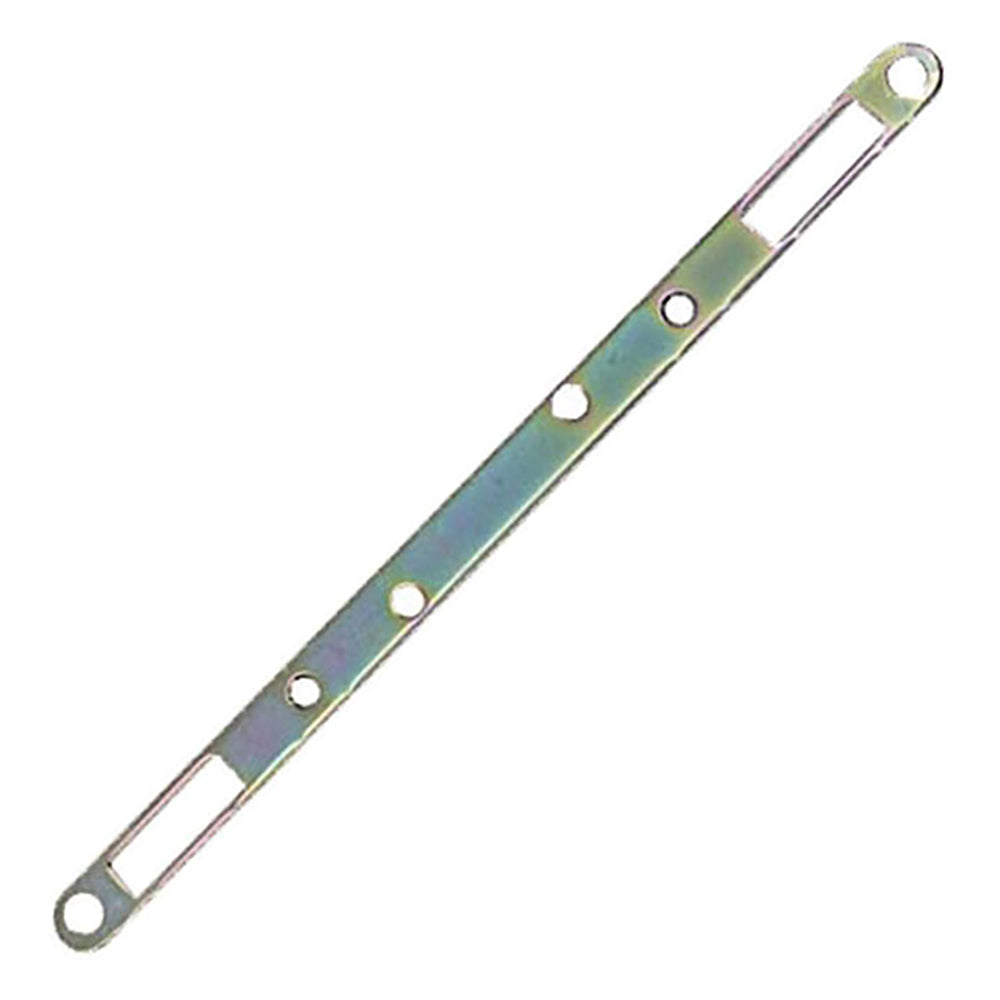

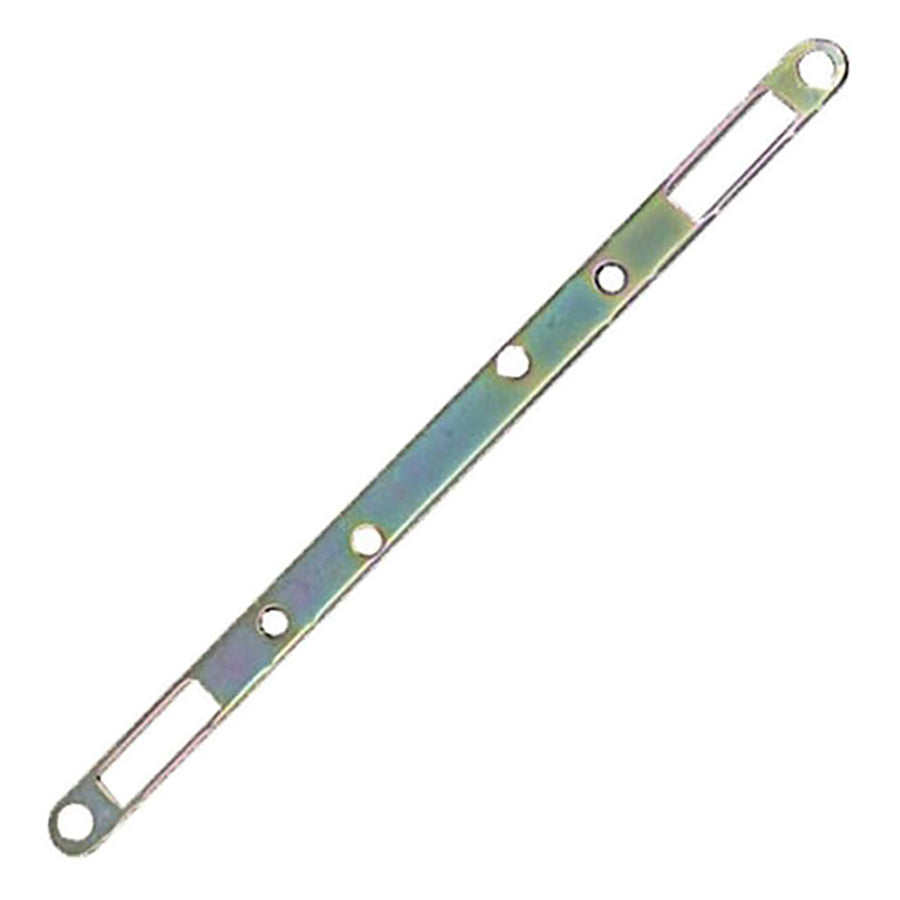

Short trim face plate for two point mortise lock.
Commonly used with the newer wood and vinyl sliding patio doors.
Width: 9/16 Inch
Length: 9-3/8 Inch
Material: Zinc yellow dichromate/raw steel
Note: We buy the locks with faceplates attached.
Face plate only for 2 point mortise lock; long trim plate
This is one of several sizes and shapes used with the 15183 mortise lock with 2 hooks
Stainless steel lock body with stainless steel faceplate attached, see part # 15185

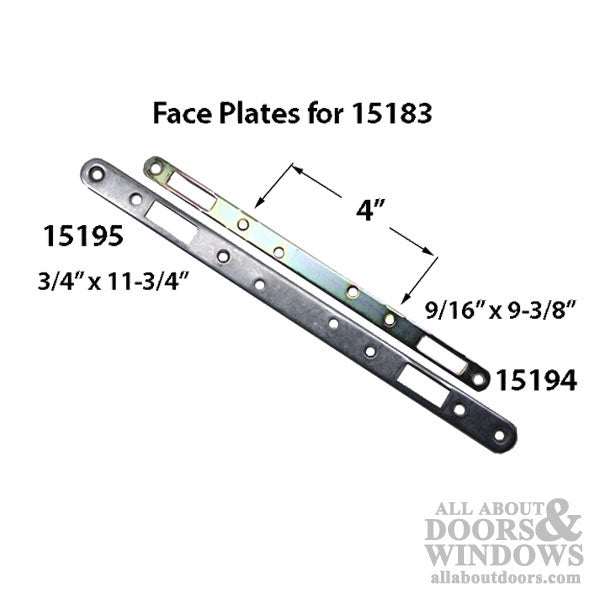

The 15183 mortise lock has several face plates that are used depending on application, some flat, others are raised.

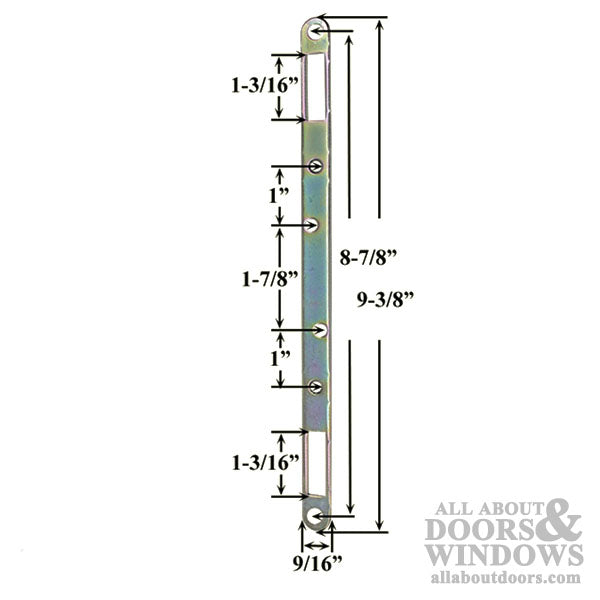

Basic screw hole spacing for the plate to lock mounting is 4 inch
the offset holes are for the anti-slam pin.
Priced and sold each.
Commonly used with the newer wood and vinyl sliding patio doors.
Width: 9/16 Inch
Length: 9-3/8 Inch
Material: Zinc yellow dichromate/raw steel
Note: We buy the locks with faceplates attached.
Face plate only for 2 point mortise lock; long trim plate
This is one of several sizes and shapes used with the 15183 mortise lock with 2 hooks
Stainless steel lock body with stainless steel faceplate attached, see part # 15185
The 15183 mortise lock has several face plates that are used depending on application, some flat, others are raised.
Basic screw hole spacing for the plate to lock mounting is 4 inch
the offset holes are for the anti-slam pin.
Priced and sold each.
