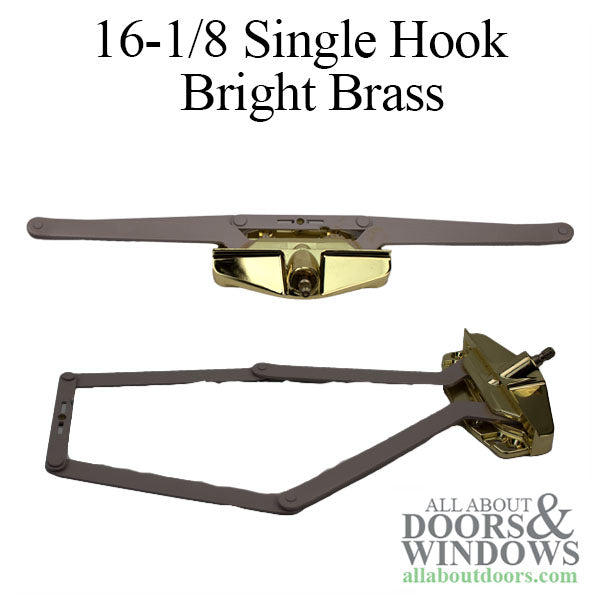

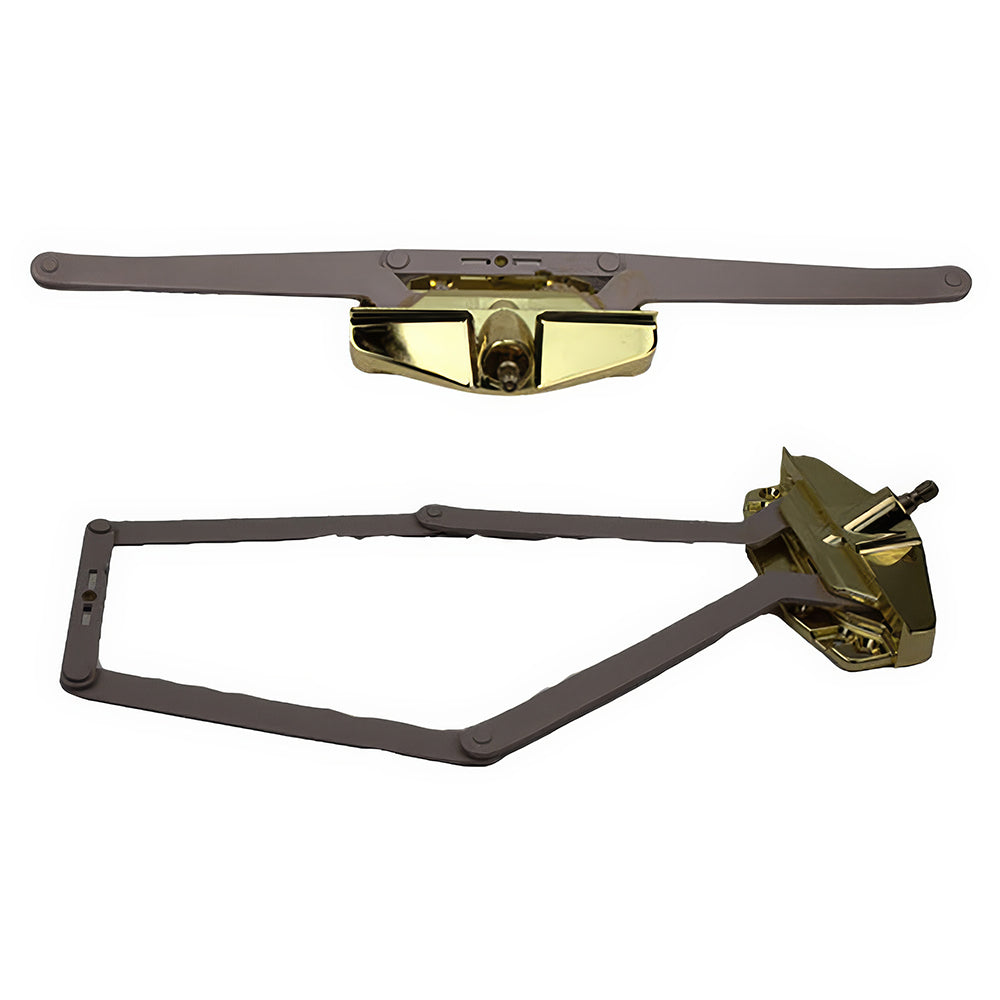

Truth 11.12 Roto Awning Operator, 16-1/8 inch Scissor Type, Single Hook - CHOOSE COLOR

Part Number: 11.12-Awn-EG-BRZ Price: $49.95 to $54.60
COLOR: - Satin Nickel / E-Gard Plated
MATERIAL: - Satin Nickel / E-Gard Plated

Weather Shield Awning and SCENA-VU operators for Glass Size less than 28 inches.

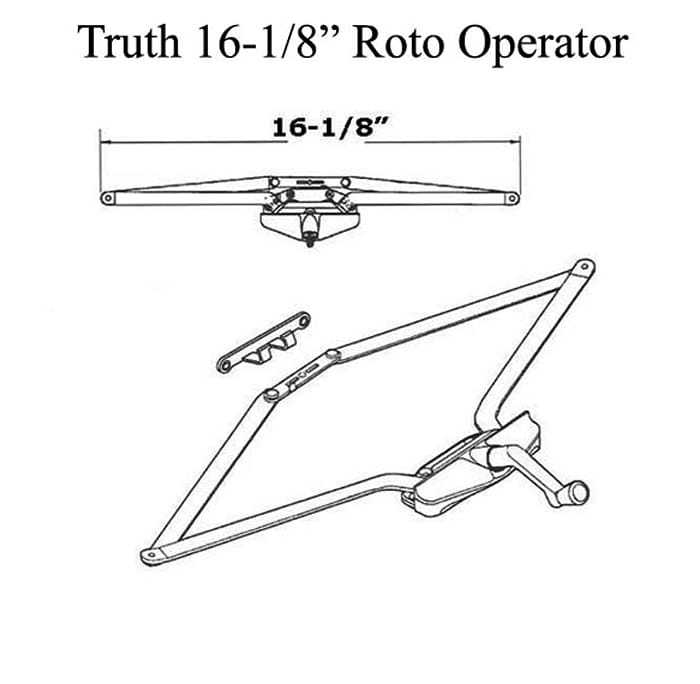

Truth Part 11.12.xx.xxx Awning Roto-Gear Operator with 16-1/8 inch arm span

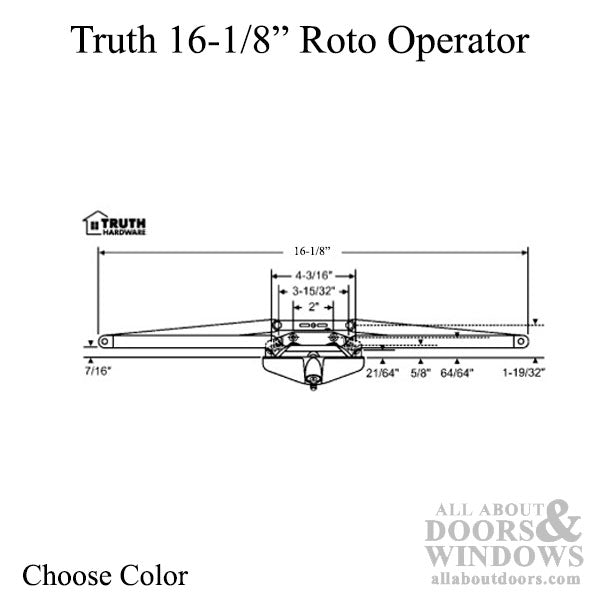

Tip to tip measurement of the arms in the widest position (as shown in photo) is 16-1/4 inches
Replaces awning window operators made by Truth Hardware and used by Weathershield, Caradco, Hurd, Marvin, Shelter, Seal-Rite and other wood window companies.

Application: Awning windows with less than 28 inch glass
Hooks: Single
Arm Width: 16-1/4 inch ( 4 widths available)
Color/ Finish: Limited to existing finishes shown
Handing: Awning operators are not handed.
Material: E-gard corrosion resistant steel or Seacoast Stainless Steel
Sold Each, Handle and screws Not included
Crank handles and matching screws (uses up to 6 screws per operator) are sold separately.
Truth hardware part # 11.12.xx.xxx x = Options

Weather Shield Part Numbers vs. Amesbury Truth Numbers
Truth 11.12 Series Small 16-1/8 inch arms, Standard E-Gard Finish
972995 White 11.12.38.001
972006 Gold Tone 11.12.09.001
972118 Adobe Bronze 11.12.03.001
972195 Bright Brass 11.12.13.001
941417 Oil Rubbed Bronze 11.12.51.001
941418 Brushed Satin Nickel 11.12.19.001
941419 Brushed Satin Chrome 11.12.53.001
943924 Faux Oil Rubbed Bronze 11.12.FB.001

Truth 11.12 Series Small 16-1/8 inch arms, Seacoast, Stainless Steel hardware
972996 White 11.12.38.280
972794 Goldtone 11.12.09.280
940870 Adobe 11.12.03.280
944054 Faux Oil Rubbed Bronze 11.12.FB.280

Weather Shield Awning and SCENA-VU operators for Glass Size less than 28 inches.<br />
<br />
Truth Part 11.12.xx.xxx Awning Roto-Gear Operator with 16-1/8 inch arm span<br />
Tip to tip measurement of the arms in the widest position (as shown in photo) is 16-1/4 inches<br />
Replaces awning window operators made by Truth Hardware and used by most window companies <br />
<br />
Application: Awning windows with less than 28 inch glass<br />
Hooks: Single <br />
Arm Width: 16-1/4 inch ( 4 widths available)<br />
Color/ Finish: Limited to existing finishes shown<br />
Handing: Awning operators are not handed.<br />
Material: E-gard corrosion resistant steel or Seacoast Stainless Steel<br />
Sold Each, Handle and screws Not included <br />
Crank handles and matching screws (uses up to 6 screws per operator) are sold separately. <br />
Truth hardware part # 11.12.xx.xxx x = Options <br />
<br />
Weather Shield Part Numbers vs. Amesbury Truth Numbers<br />
Truth 11.12 Series Small 16-1/8 inch arms, Standard E-Gard Finish<br />
972995 White 11.12.38.001 <br />
972006 Gold Tone 11.12.09.001 <br />
972118 Adobe Bronze 11.12.03.001 <br />
972195 Bright Brass 11.12.13.001 <br />
941417 Oil Rubbed Bronze 11.12.51.001 <br />
941418 Brushed Satin Nickel 11.12.19.001 <br />
941419 Brushed Satin Chrome 11.12.53.001 <br />
943924 Faux Oil Rubbed Bronze 11.12.FB.001 <br />
<br />
Truth 11.12 Series Small 16-1/8 inch arms, Seacoast, Stainless Steel hardware<br />
972996 White 11.12.38.280 <br />
972794 Goldtone 11.12.09.280 <br />
940870 Adobe 11.12.03.280 <br />
944054 Faux Oil Rubbed Bronze 11.12.FB.280
