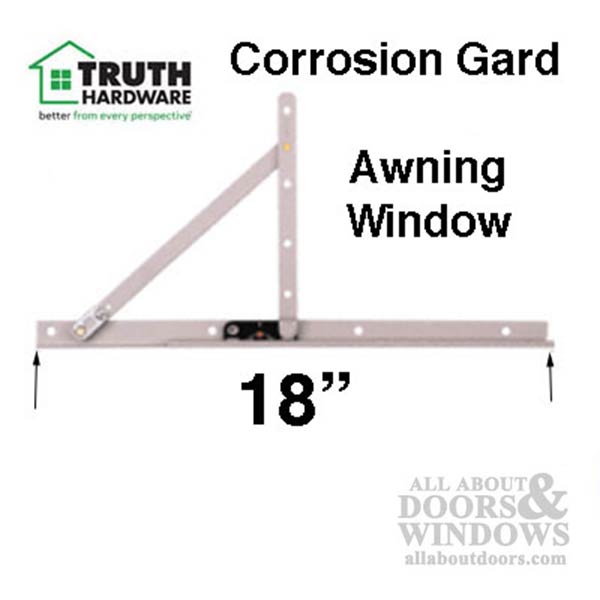

Truth 18 inch Awning hinge. for 19-26 inch sash height with maximum weight of 38 pounds.
Truth Number 13.18; 30132A stamped in hinge arm.

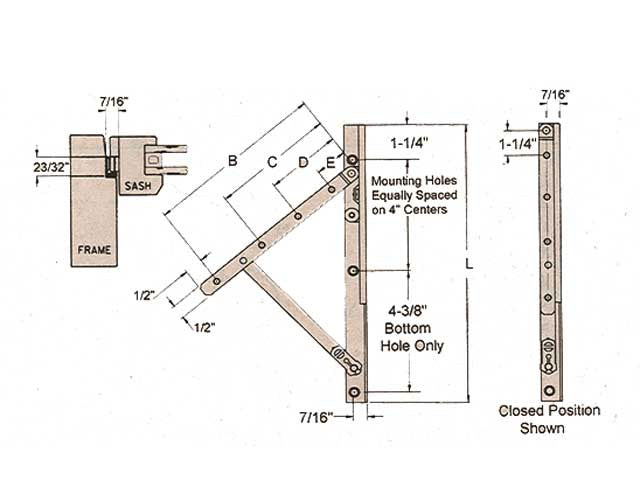

Measurements: B=8-1/4; C=6-1/4; D=2-5/8; E=1-1/4; L= 18 inch track length.

Steel track with heavy gauge steel support arms are plated with Corrosion Gard for protection
Acetal shoe guide with stainless steel insert
These hinges balance a sash as it opens, for smooth effortless operation
Detachable support arms allow quick installation of the sash into the frame

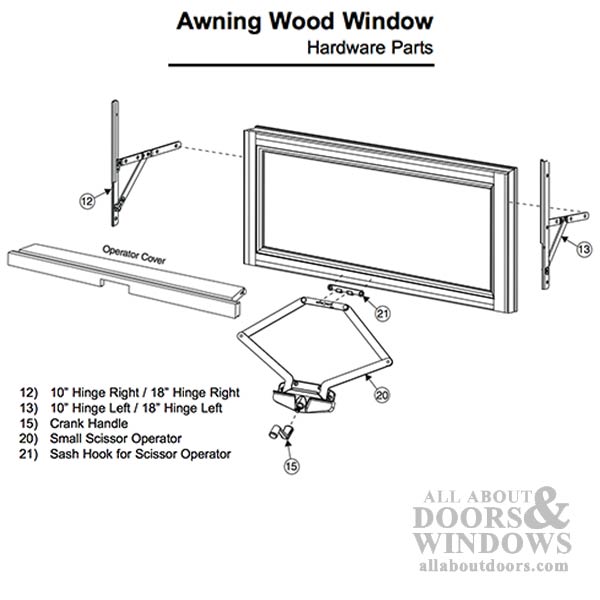

Used with awning window operators

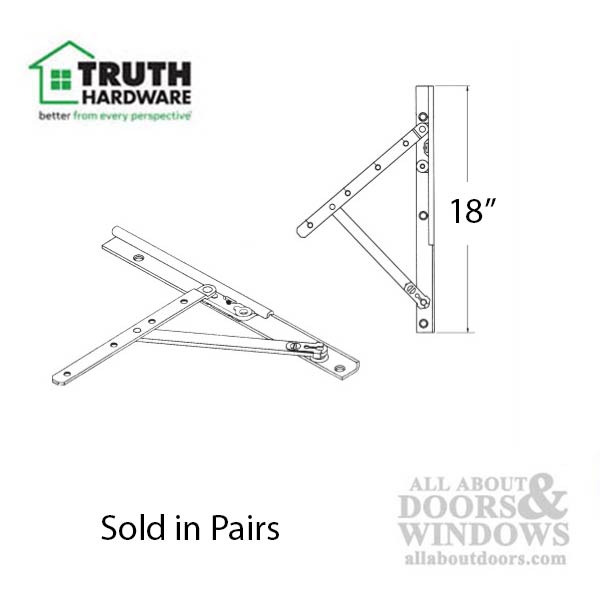

Includes one pair of hinges (1 left and 1 right)

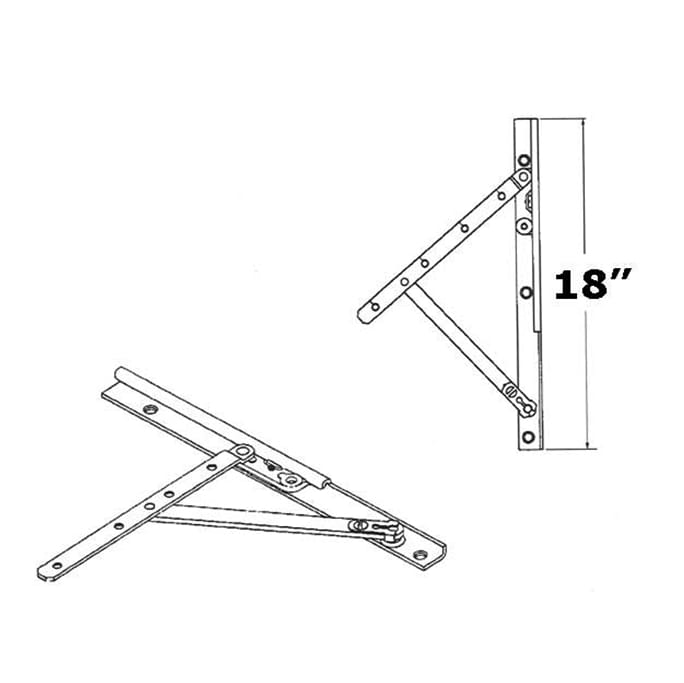

Dimension - 18 inch

Sold in Pairs, Priced in pairs.

Please specify finish below.
