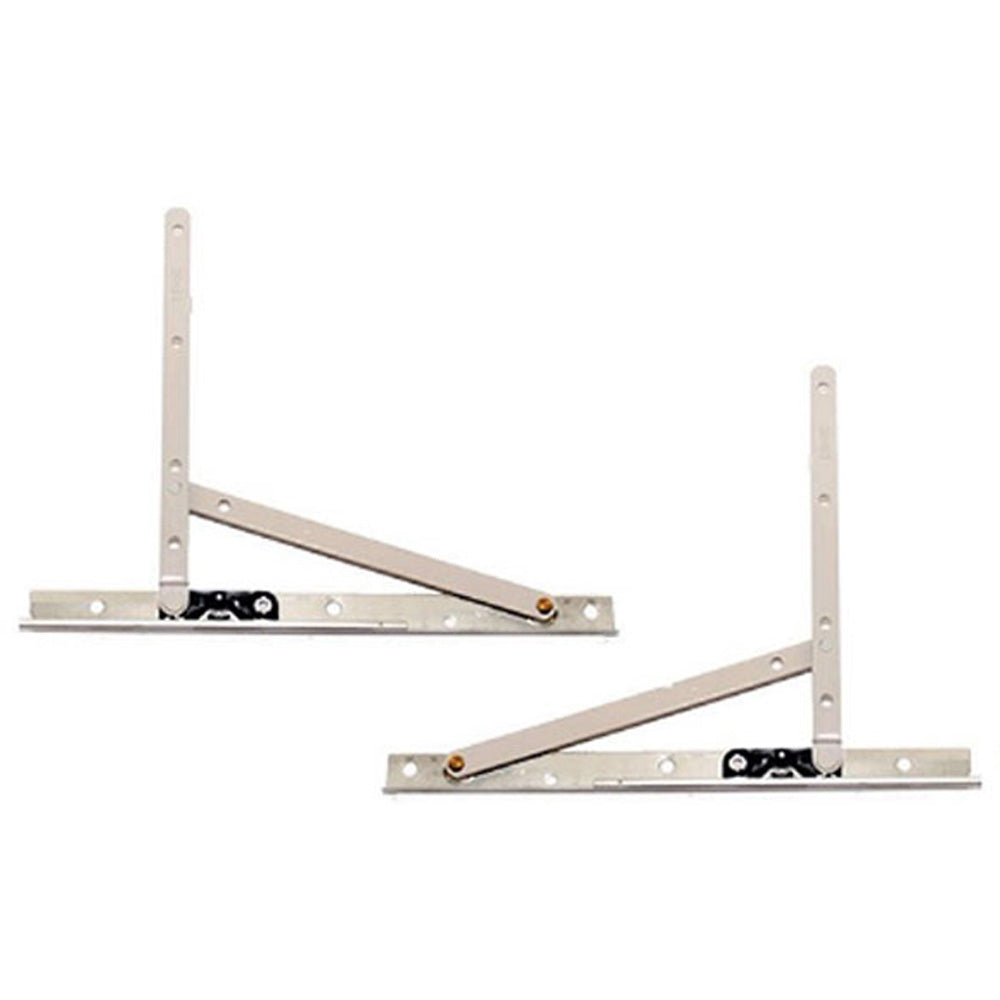

Amesbury Truth 14.77 Series concealed egress casement window hinge Kit. 2  stainless Steel tracks and 2  E-Gard® hinge arms, 1 left and 1 right ( upper - lower)
This Kit has the Adjustable Brass Stud post on Stainless Steel track

Application: Casement Windows, Egress Opening

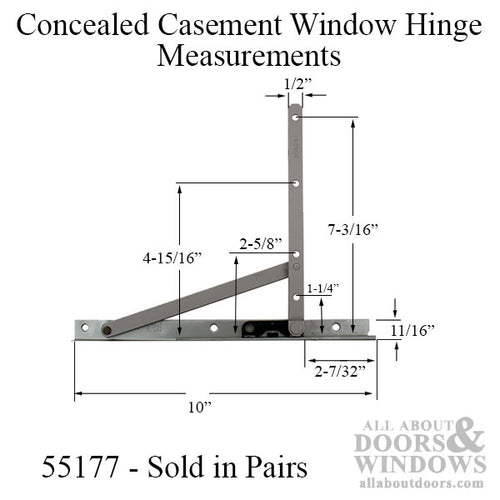

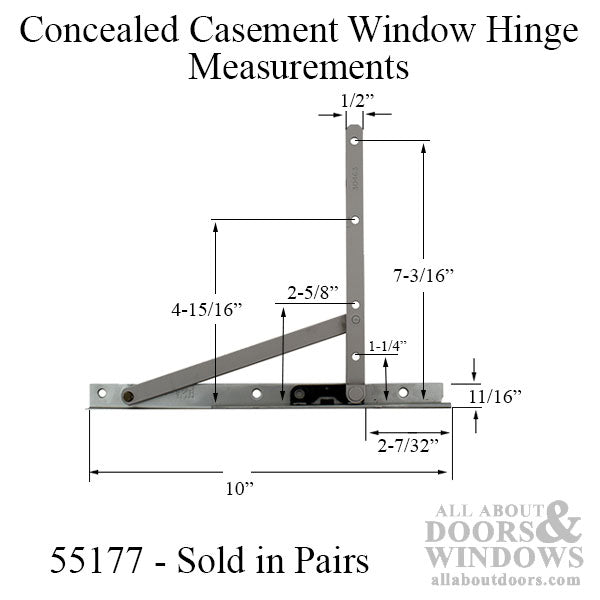

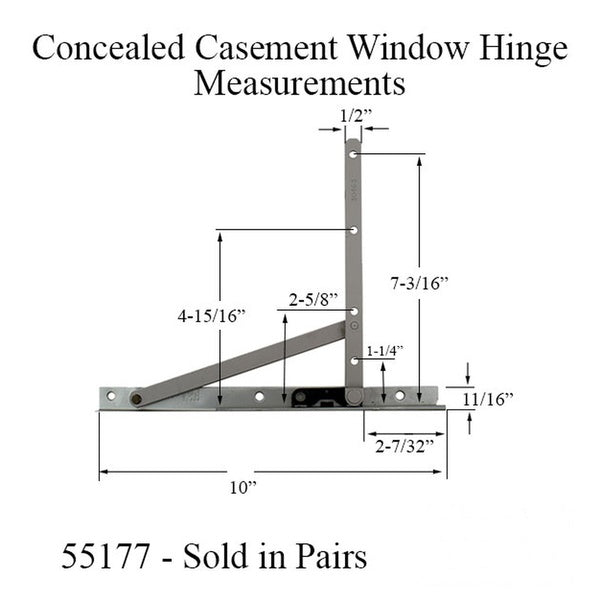

Hinge Opening: 2-9/32 inch (57..9mm) 2.281
Track Length: 10 inch
Track Type: Adjustable Brass Stud
Track Material: Stainless Steel

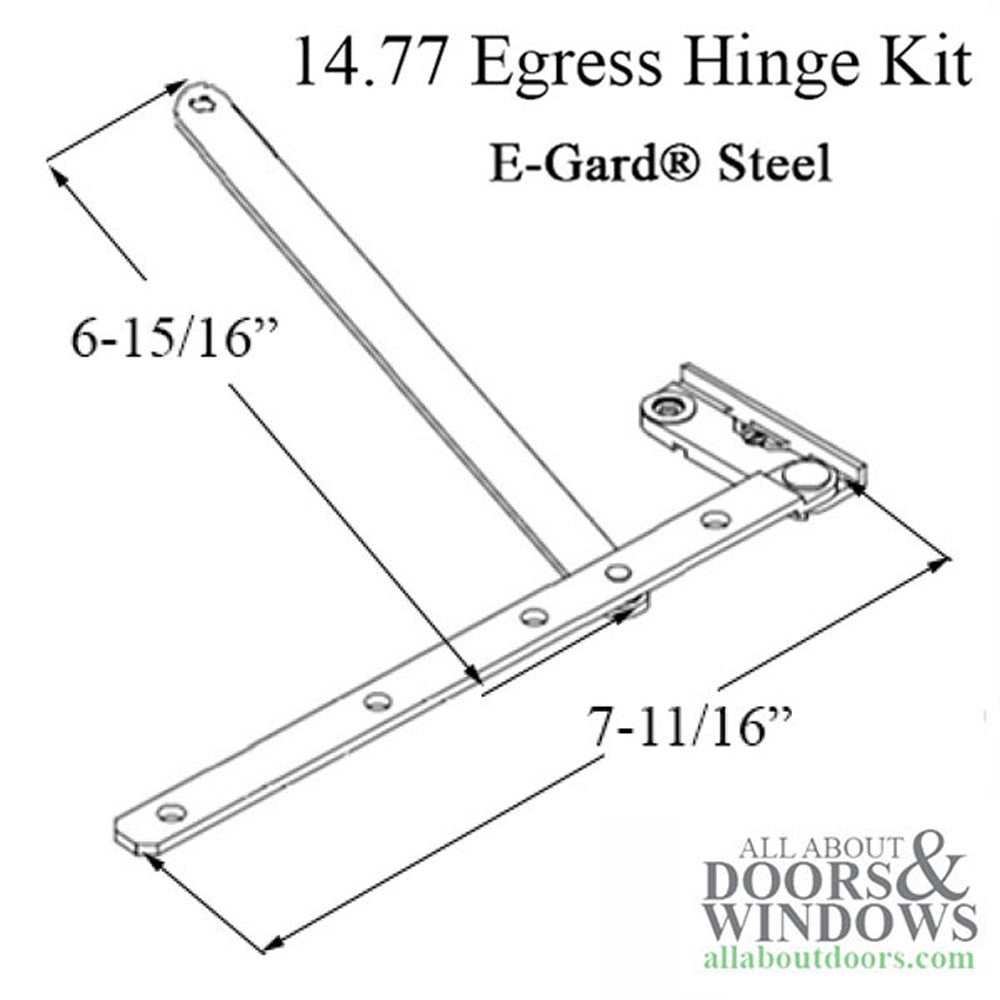

Hinge Arm: 7-11/16 inches Long Link, with Shoe
Hinge Linkage: 6-7/8 inches Short Link (detachable)
Short link Rivet to Hole: 6-1/2 inch
Arm Material: Steel, E-Gard® Corrosion Resistant Finish

Priced and sold in pairs - Upper and Lower
When purchased in pairs, you get a top and bottom hinges that can be used on windows opening to the left or the right.

Screws are NOT included, recommended size are #7 x 3/4 inch, stainless steel, Phillips Flat Head, Sheet Metal Screw. Actual screw will be determined by application and window material

Markings: Truth 14.77 hinge Part Numbers Long Arm Hinge 30463; Short Arm Hinge 30818 ( part numbers may vary or not shown). Tracks 40941 / 40942-A;

Additional Information:
* 14.77 E-Gard® and 14.93 Stainless Steel are the same size, different materials
* Amesbury Truth ‘egress’ hardware essentially stays tucked in close to the jamb, with minimal ‘pivoting’ towards the center of the unit—thereby creating a greater net-opening width.

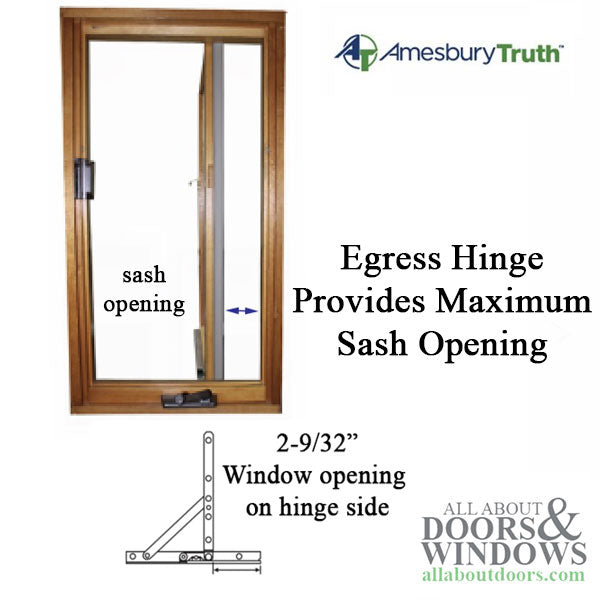

Egress hinge provides Approximately 2-5/8 inch wider opening to meet code requirements on Emergency Exit.

EGRESS INFO:
International Building Code advises that every bedroom must contain at least one egress window.
Basically, The operable portion of the window must be at least 24-inches high and at least 20-inches wide, with a net area at least 5.7 square feet, with an opening no higher than 44 inches from the floor. Check local codes for more information.
