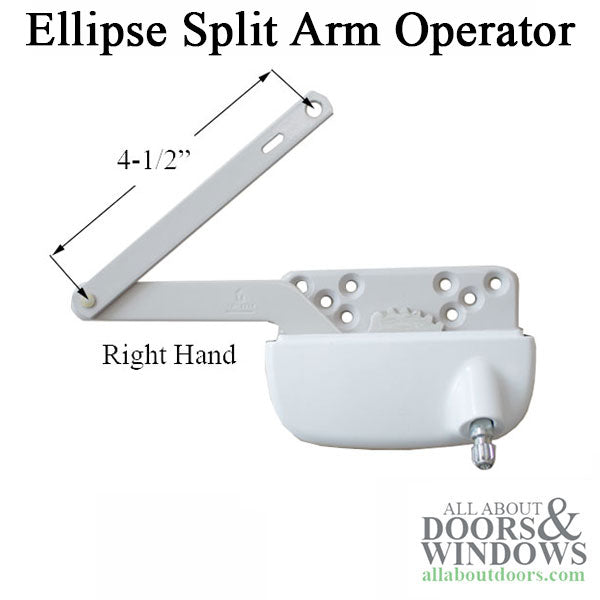

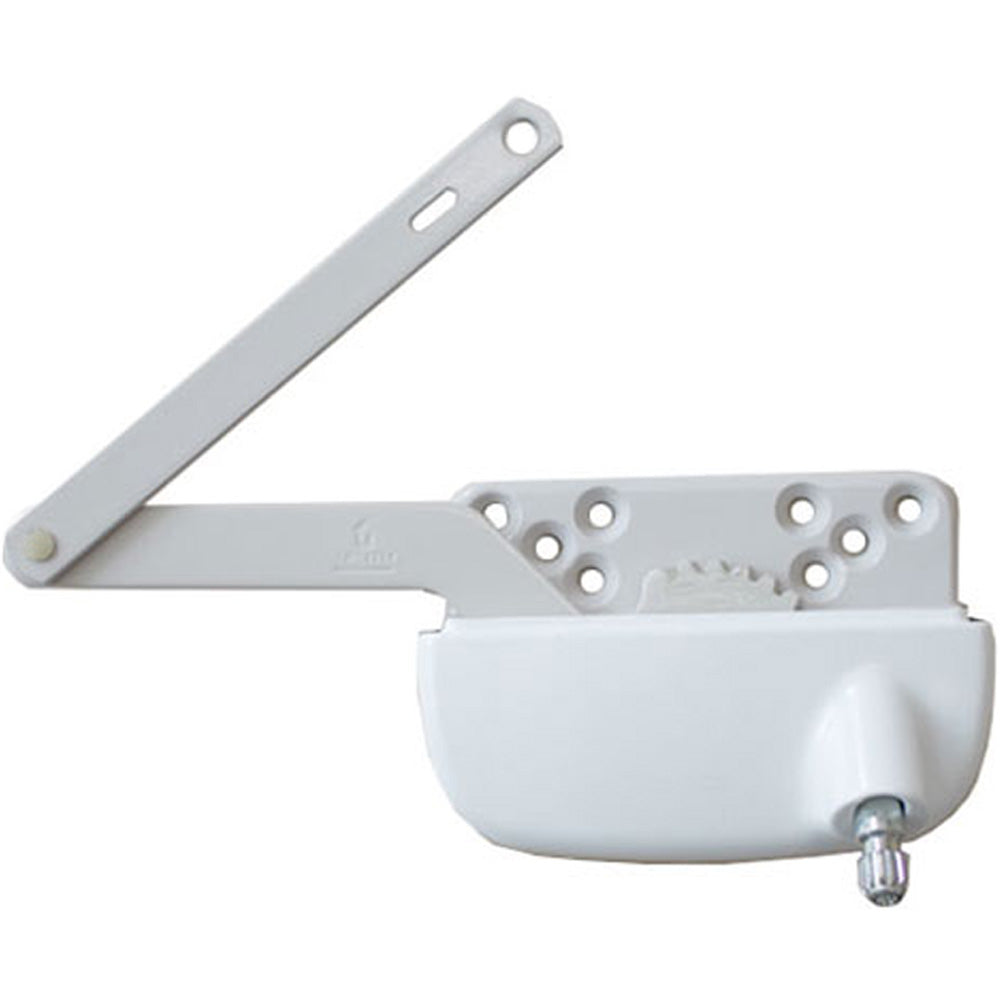

The Truth 15.30 Ellipse Split Arm Operator, featuring a straight arm, is compatible with wood or vinyl windows. Widely used across the industry, this operator is employed by multiple window manufacturers, including Weather Shield on their Visions 2000 vinyl casement windows. It combines functionality with a modern, streamlined design.

Application: Casement windows, Sill Mount
Operator Style: Ellipse
Window Type: Wood or Vinyl
Operator Type: Split Arm with Straight link
Arm Length: 5 inch
Link Length: Rivet to Stud post Hole: 4-1/2 inch
Link Mount: Mounted on Top of main arm
Detach clip: None

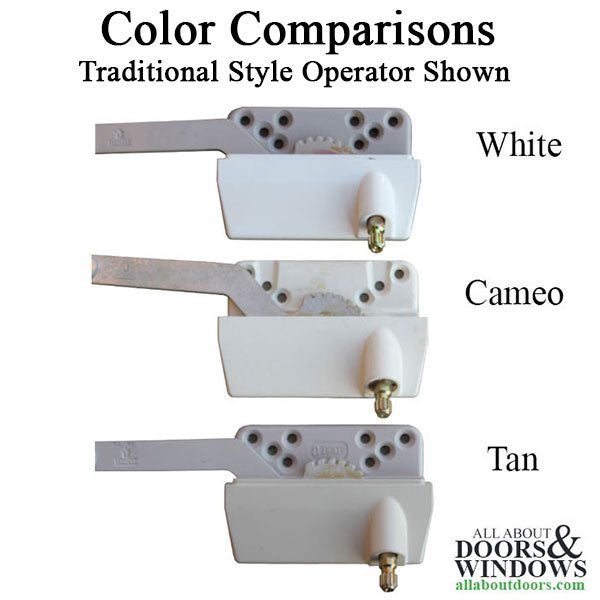

Color: Limited to existing shown
Handed: Yes, Left and Right handed as shown

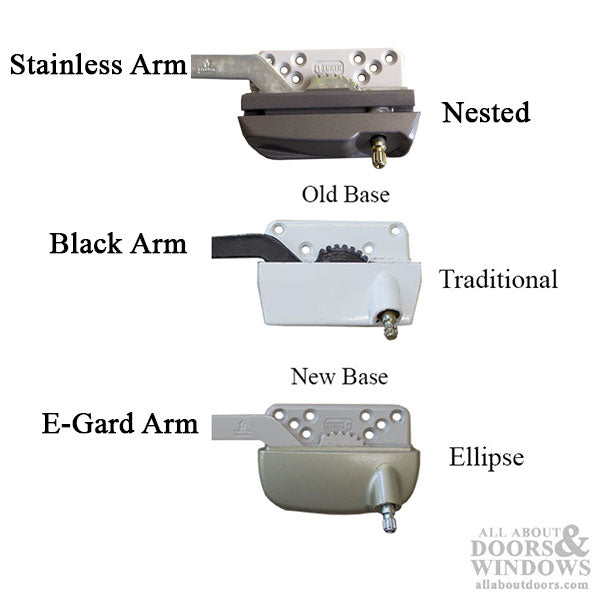

Material: Zinc Die Cast Body with E-Gard or stainless steel arms
Markings: Main Body, Truth # 45251
Markings on Main Arm: #40351
Markings: Straight Arm link, Truth # 31850

Sold Each, No screws or crank handle

Note 1: There are 4 Arm / Link configurations for this Truth Window crank operator

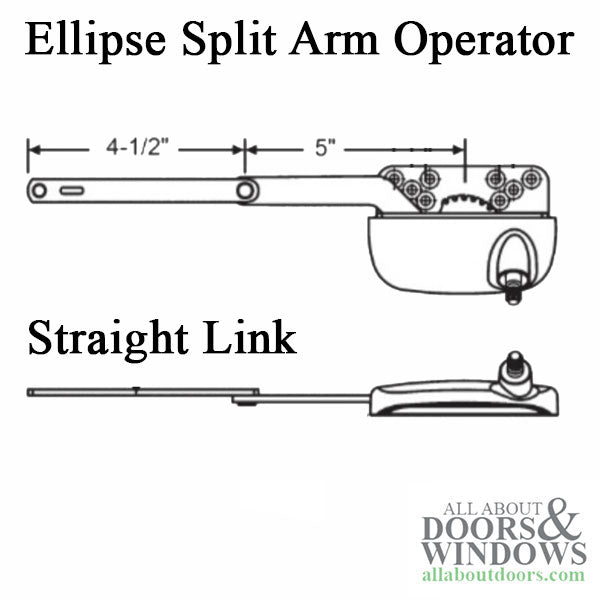

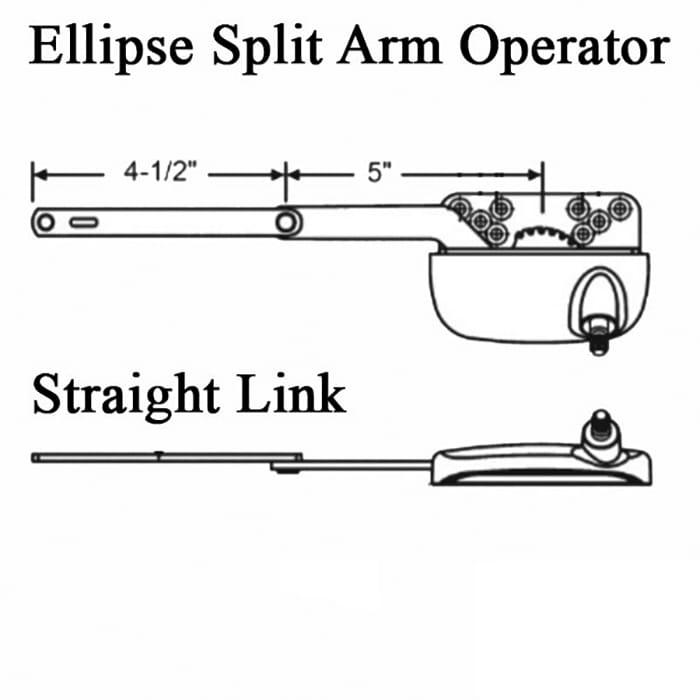

1. Straight link mounted on top, No Clip
2. Offset link, mounted on bottom -15/64 inch Offset, No Clip
3. Offset link, mounted on bottom - 7/16 inch Offset, No Clip
4. Offset link, mounted on bottom - 49/64 inch Offset, Detach Clip

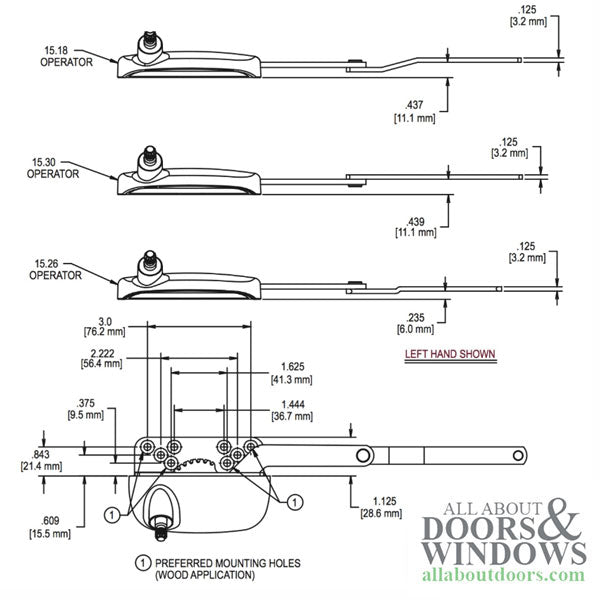

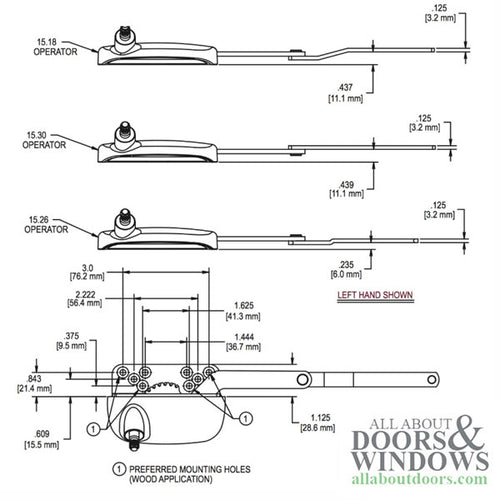

NOTE 2: See additional Pictures for line drawings

Related Parts:
55311 - Standard Crank Handle
55317 -Contour crank Handle
55312 Folding handle
55313 T-Handle
