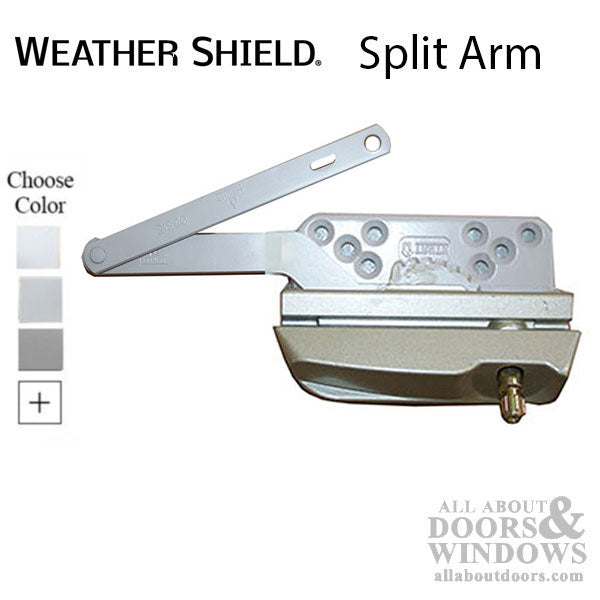

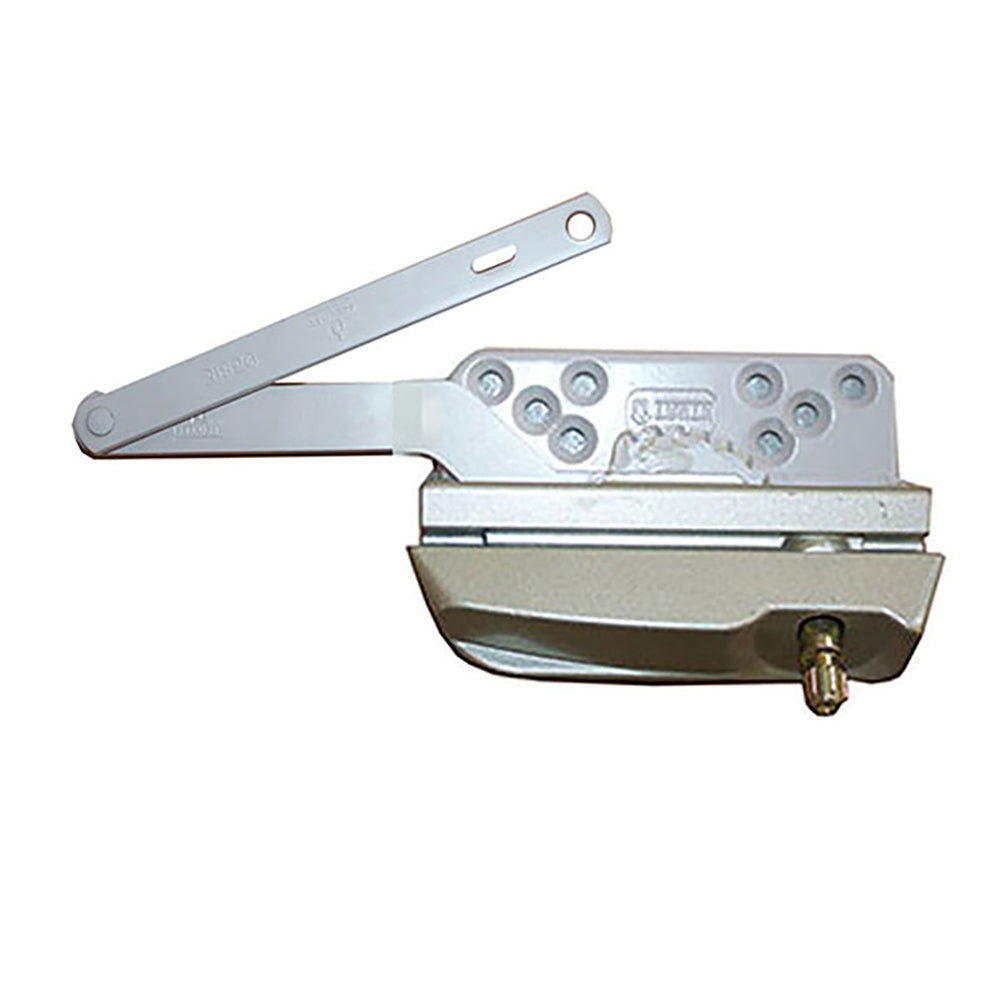

Truth 15.30 Weather Shield Split Arm Operator, Straight 4-1/2" Link, Right Hand

Part Number: 15.30-WS-RH-SS-FBZ Price: $33.80
COLOR: - Faux Bronze / Stainless Steel
MATERIAL: - Faux Bronze / Stainless Steel

Truth 15.30 Nested Split Arm operator (folding handle type) with Straight link, used with wood and Aluminum clad windows
Used by Weather Shield on their wood casement window.
This operator has been discontinued and limited to existing inventory

Application: Casement windows, Sill Mount
Operator Style: Nested Housing design for use with folding handle
Window Type: Wood or Vinyl
Operator Type: Split Arm with Straight link
Arm Length: 5 inch
Link Length: Rivet to Stud post Hole: 4-1/2 inch
Link Mount: Mounted on Top of main arm
Detach clip: None
Color: Limited to existing colors or finishes shown
Handed: Yes, Left and Right handed as shown
Material: Zinc Die Cast Body with E-Gard or stainless steel arms
Markings: Main Body, Truth # 45251
Markings on Main Arm: # 40351
Markings: Straight Arm link, Truth # 31850

Sold Each, No screws or crank handle

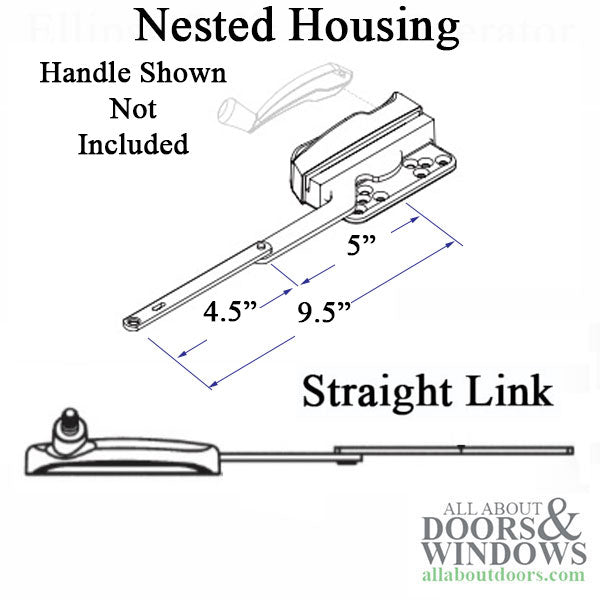

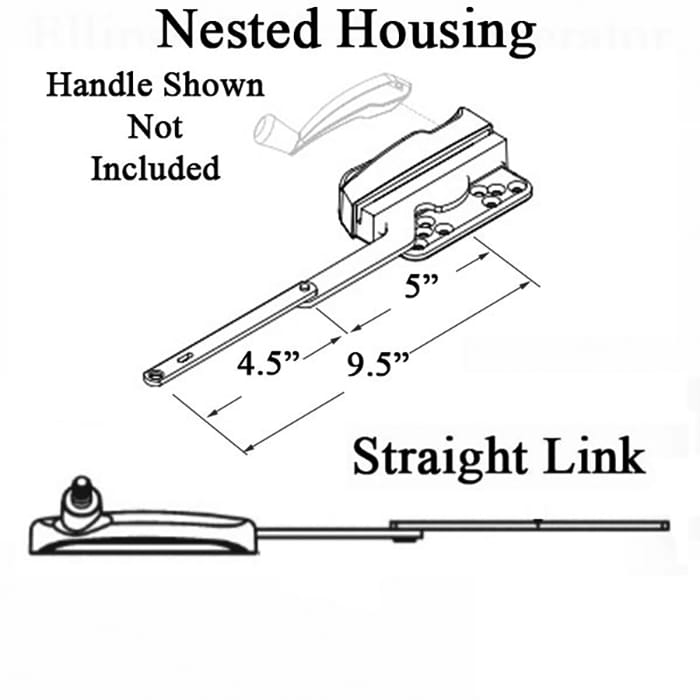

NOTE: See additional Pictures for line drawings

Related Hardware - Crank Handles:
55311 - Regular Handle
55312 - Folding handle
55313 - T-Handle
55316 - Round Handle
55317 - Contour Handle
