DISCONTINUED STYLE - Limited to Existing Inventory,  can be Replaced with Current Ellipse Style

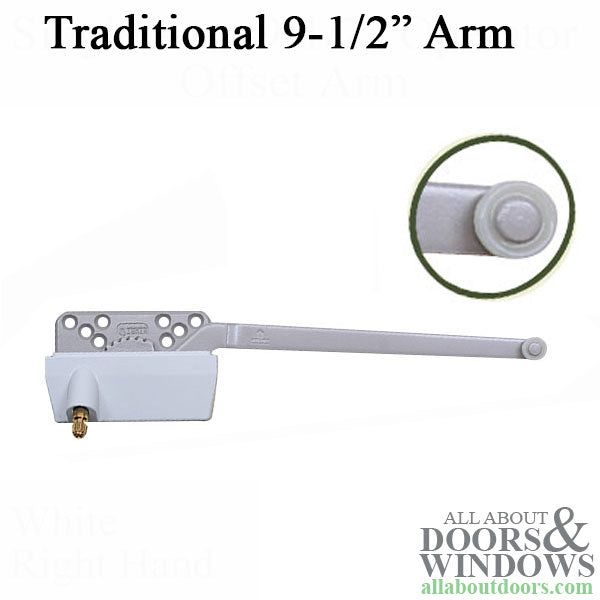

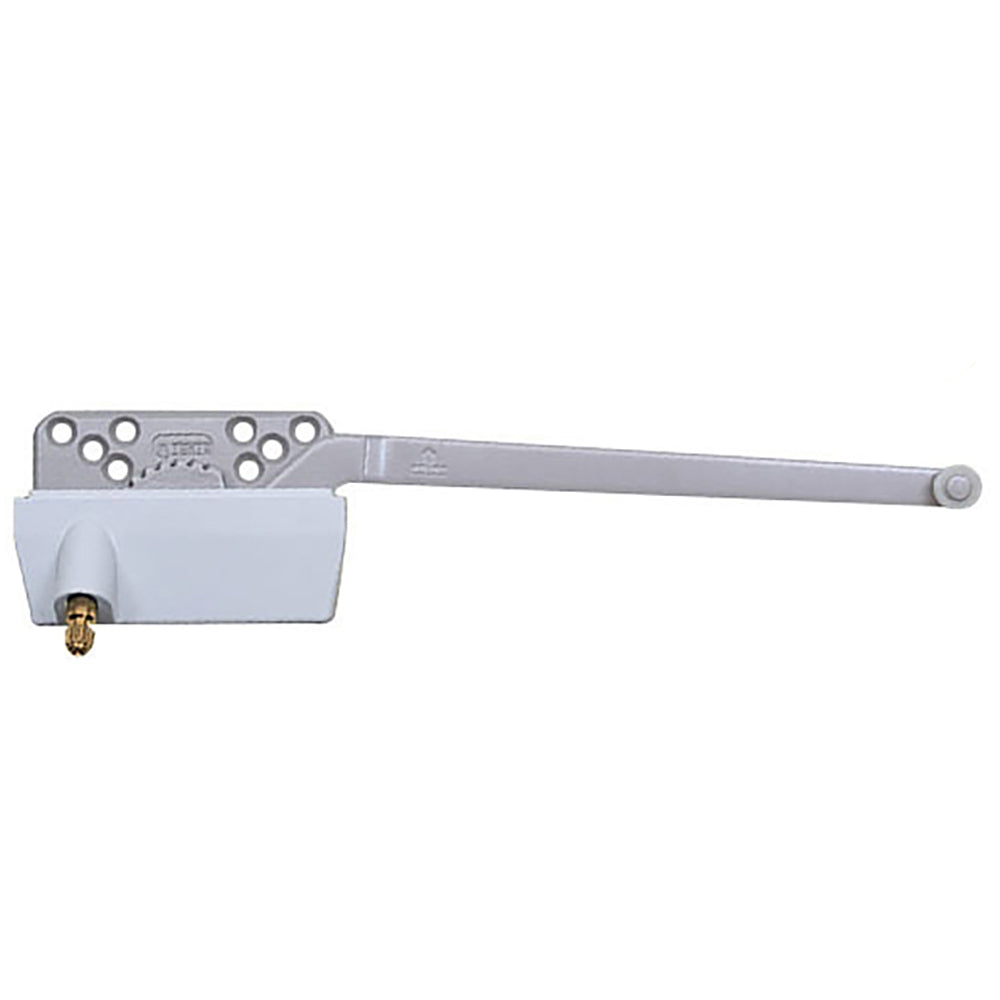

Truth Old Style Traditional Straight Arm Casement Operator used primarily with wood windows.
Note: Truth has redesigned and updated the look of this operator -These are Limited to Existing Inventory

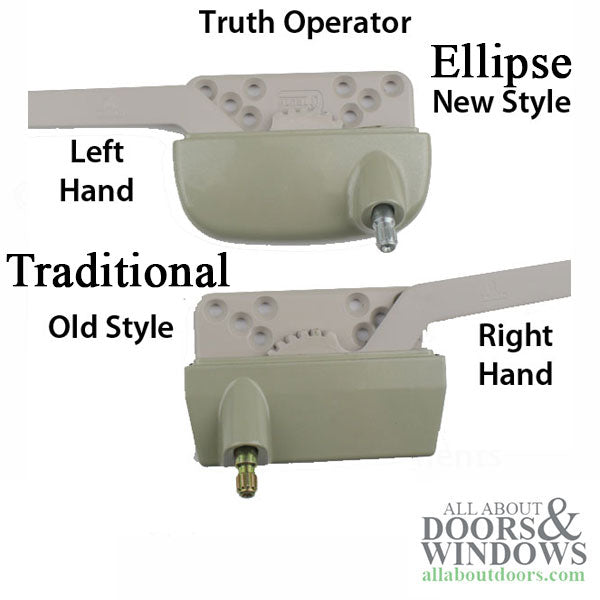

The new style ellipse contoured for a softer look. ( see additional Images)

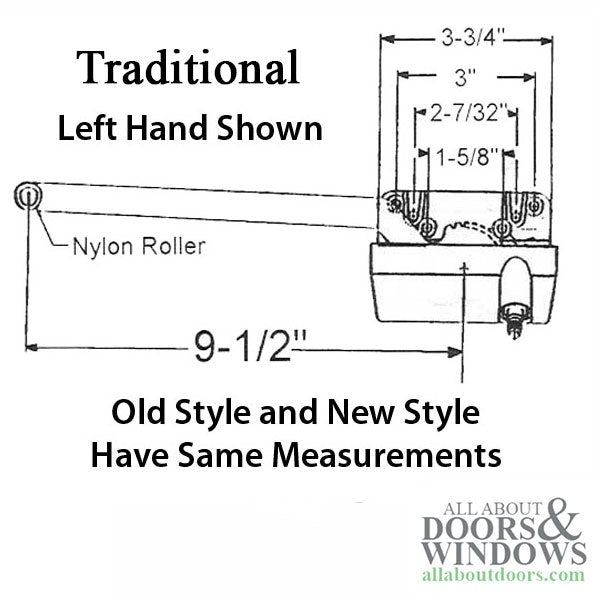

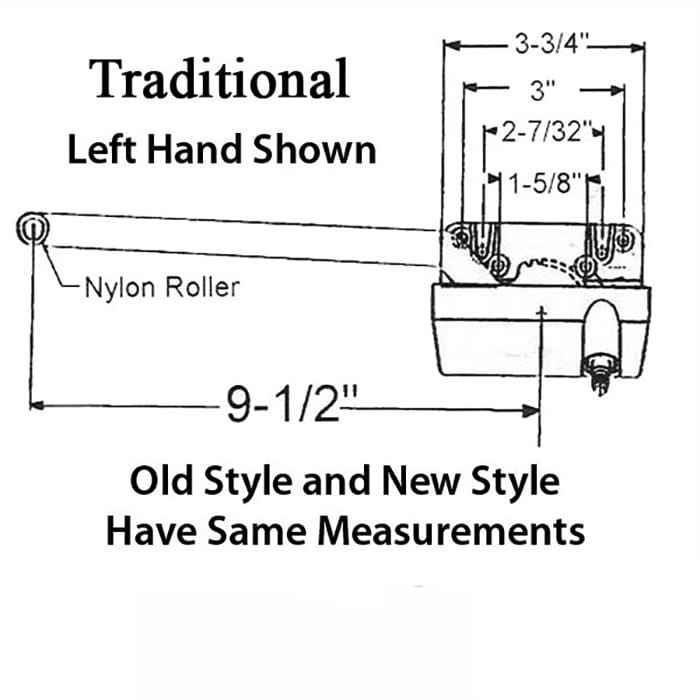

Arm Length: 9-1/2 inches; measured from center of operator to center of button
Arm Type: Straight Arm, No Offset
Roller Type: Nylon
Roller Size: 9/16 Diameter; 3/16 thick
Handing: Left and Right Hand Window Operators
Handing: as Shown in picture

Standard Color / Finish: White, Gold, Medium Bronze
Available Custom Colors : Weather Shield, limited to existing stock

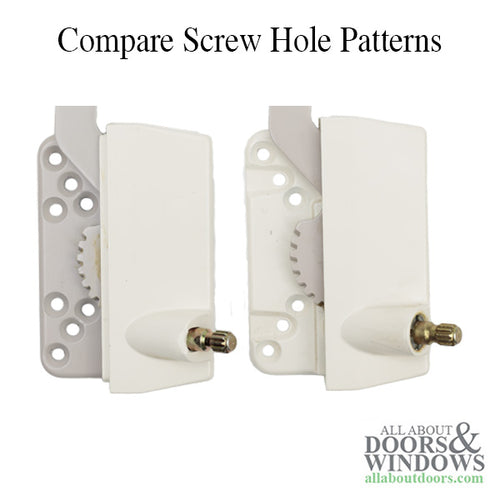

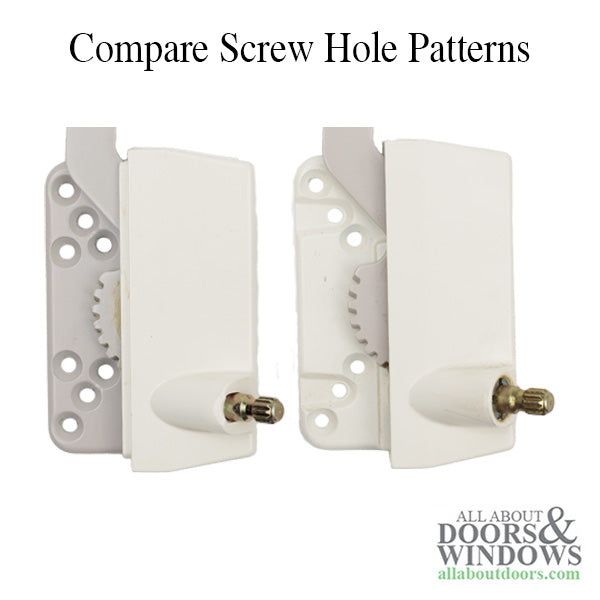

NOTE: These operators were made with two screw patterns. Both patterns are interchangeable. (see image 5)

Truth 15.31 Markings: 8 Hole Base 45251, 9-1/2, Arm 40049 / 40050
Handle Spline: 11/32 Diameter; Gold on Right Hand Cranks - Silver on Left Hand Cranks

Handle: Not Included - See Handle Options
Related Truth Handles:
55311 - Standard
55312 - Folding
55313 - T-Type
55315 - ADA
55316 - Round
55317 - Contour
