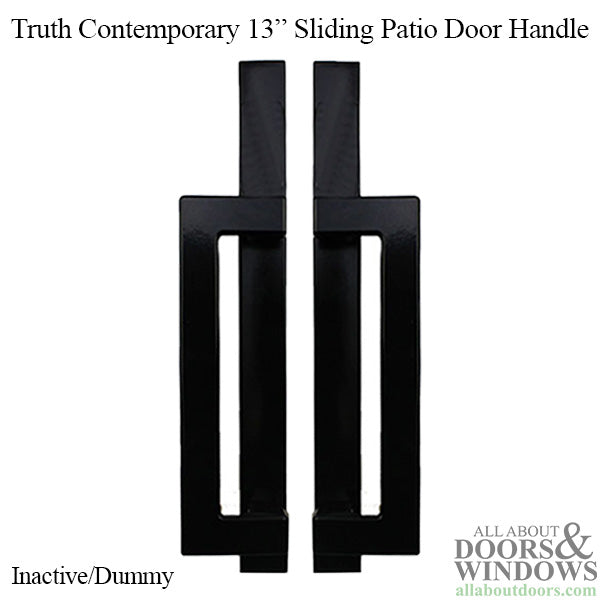

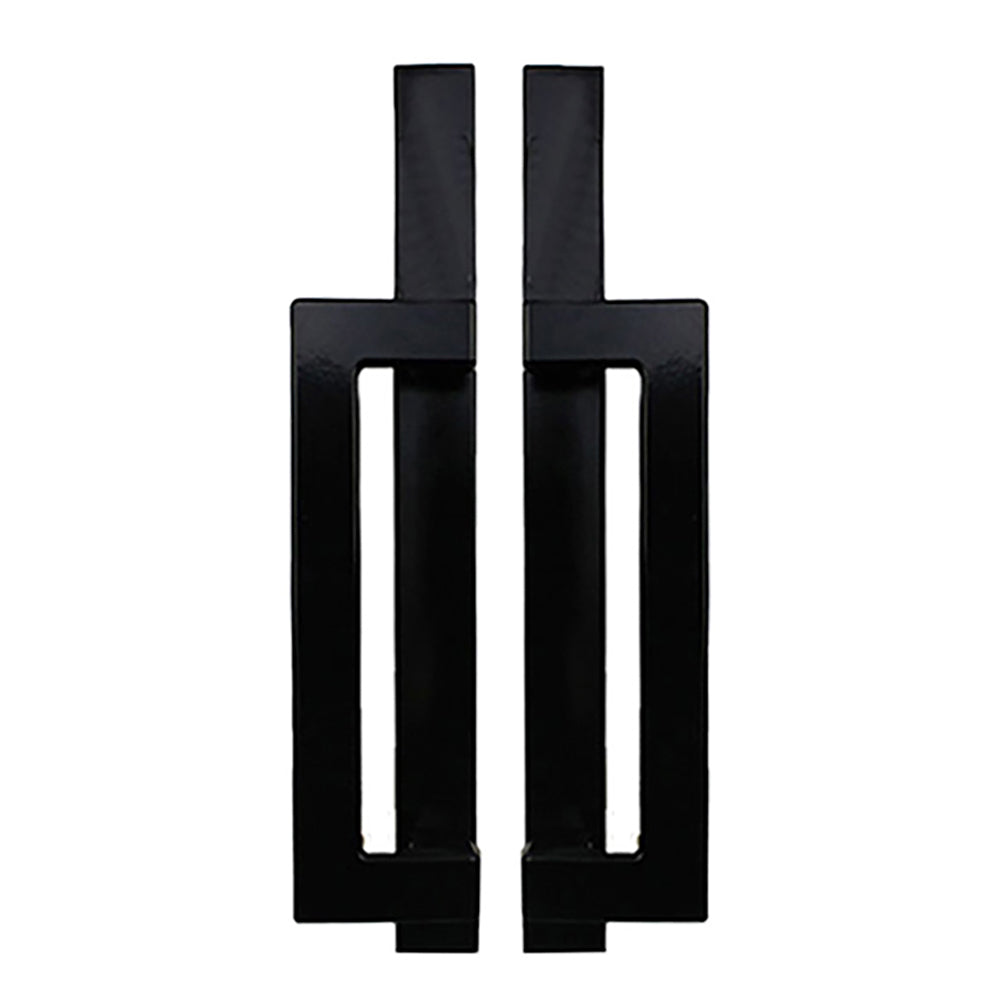

Amesbury Truth 40.70.02.102.1 Modern Contemporary 13" Sliding patio door handle Inactive Dummy

Typical installation is single, 2-Point or 3-point locking mortise lock with hooks.

Applications: Residential and Commercial sliding doors. Aluminum, Wood, Vinyl and Composite
Function: Inactive Dummy, fixed levers
Available Functions: Active Keyed, Semi-Active Non-keyed with Thumb-turn, inactive Dummy with fixed pulls
Door Thickness: stile thickness ranging from 1.25  to 2.25 inches (32 - 57mm)
Material: Brass substrate for Plated and PVD finishes Zinc substrate for Painted finishes

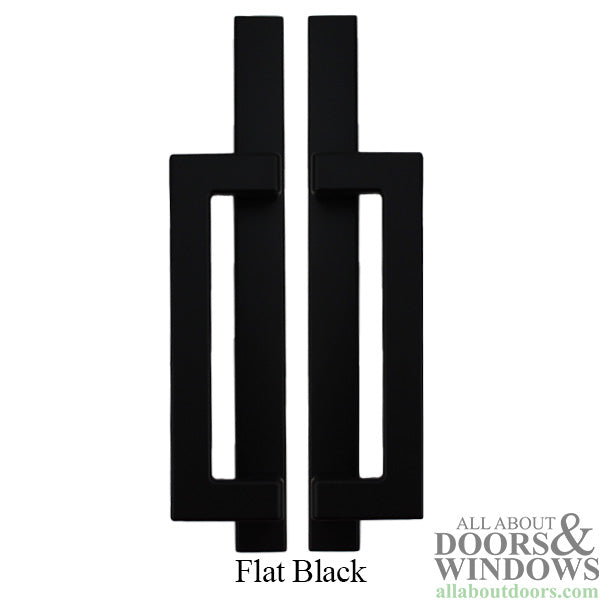

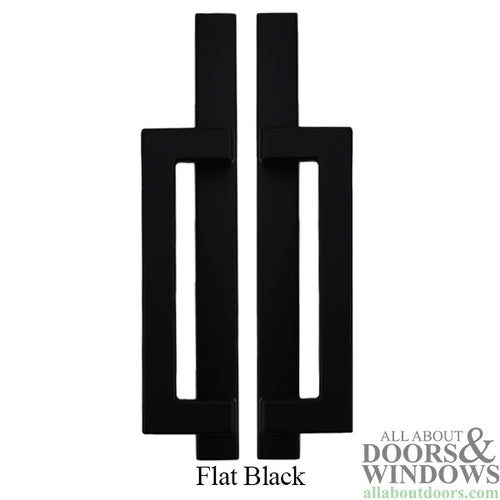

Color/Finish: Black, other finishes special order, 2-4 weeks

Installation Screw Holes:  11-15/16"
Installation Note:  Can be installed with thumb turn above or  below
Works With: Truth Single Point, Gemini or Nexus 2-point and Nexus 3-point locks

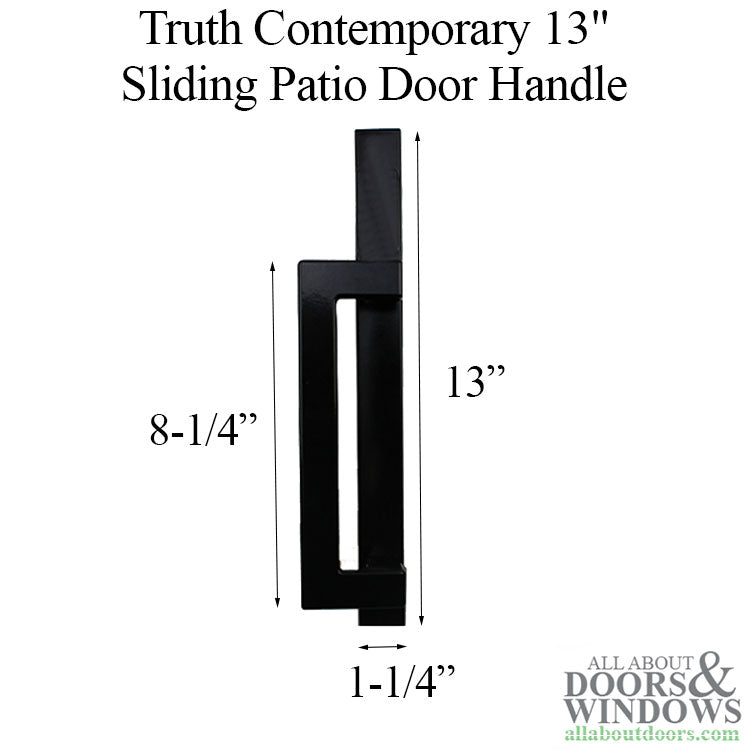

Escutcheon Plate Width: 1.25 inches (31.8mm) 1-1/4"
Escutcheon Plate Length: 13.00 inches (330.2mm) 13"
Center of Thumb-turn to Top screw: 1.97 inches (50mm) 1-31/32"
Mounting Screws: 2 x 8-32 Phillips Oval head machine (assorted lengths)
Key Cylinder: NONE

Amesbury Truth Related 13 inch Handle sets:
147188  Semi-Active, No Key with Thumb-turn
147189  Active, Keyed
