Truth 40709 Keeper Maxim Interlock Roller System, .371 Thick, Adjustable Right Hand

Part Number:556090 Price: $3.95

Truth 40709 white nylon multipoint lock keeper used with Maxim Interlock roller system.
3 sets of mounting holes allow for adjustment
Used by Weather Shield and many other window companies

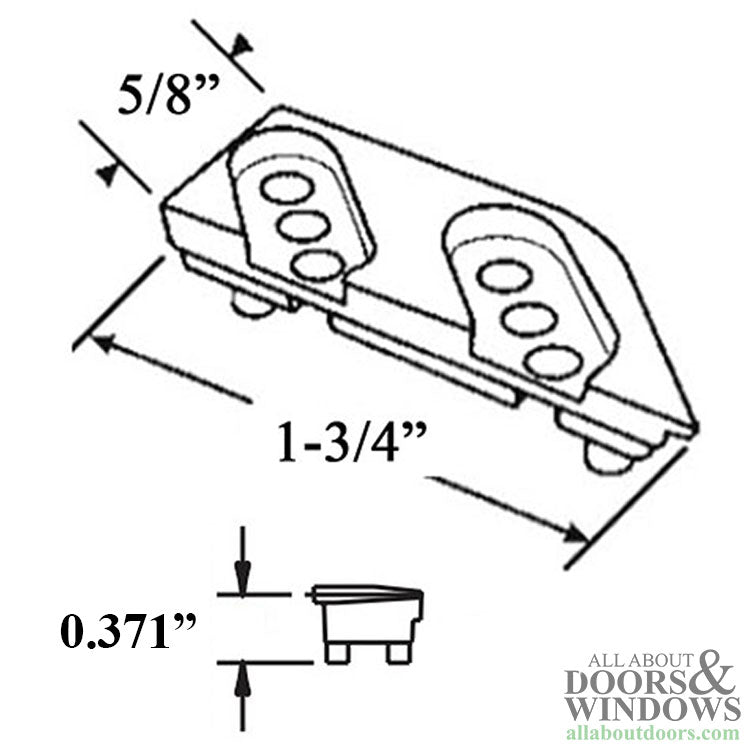

Measurements:
Length: 1-3/4" (44.9mm) 1.767
Width: 5/8" (15.9mm) 0.626
Leg Length: 3/16" (4.7mm)
Overall Thickness: .371 inch (9.42mm)

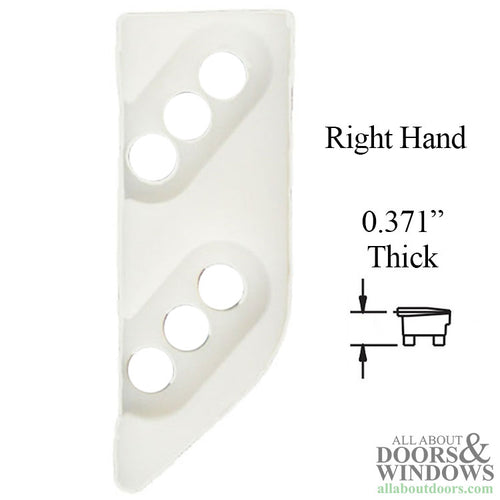

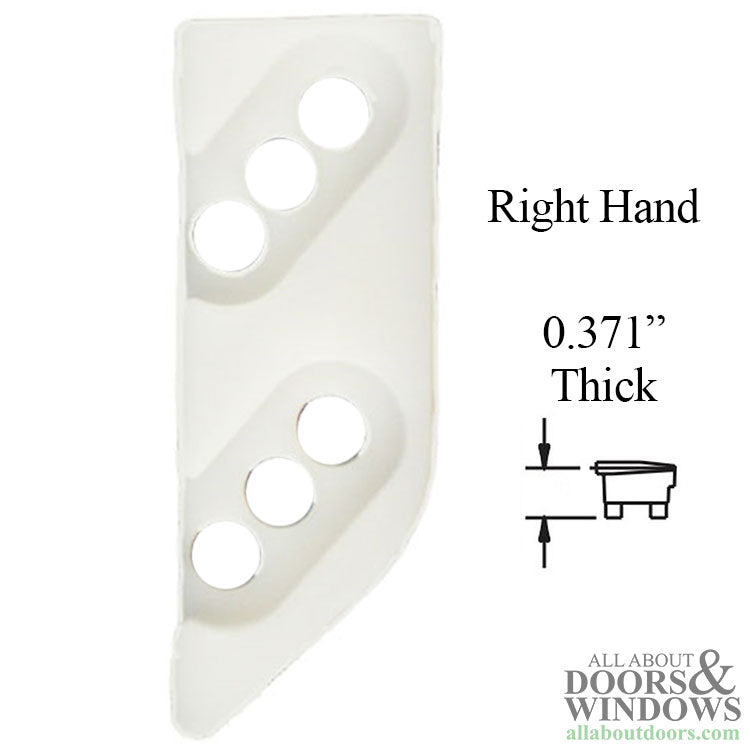

Handed: Yes, Left & Right as Shown
Material: Nylon (plastic )
Color: White
Priced and sold each.

Markings: Manufacturer part number stamped may be stamped on back (underside)
The best way to determine which one you need is the number stamped on the bottom or leg length.

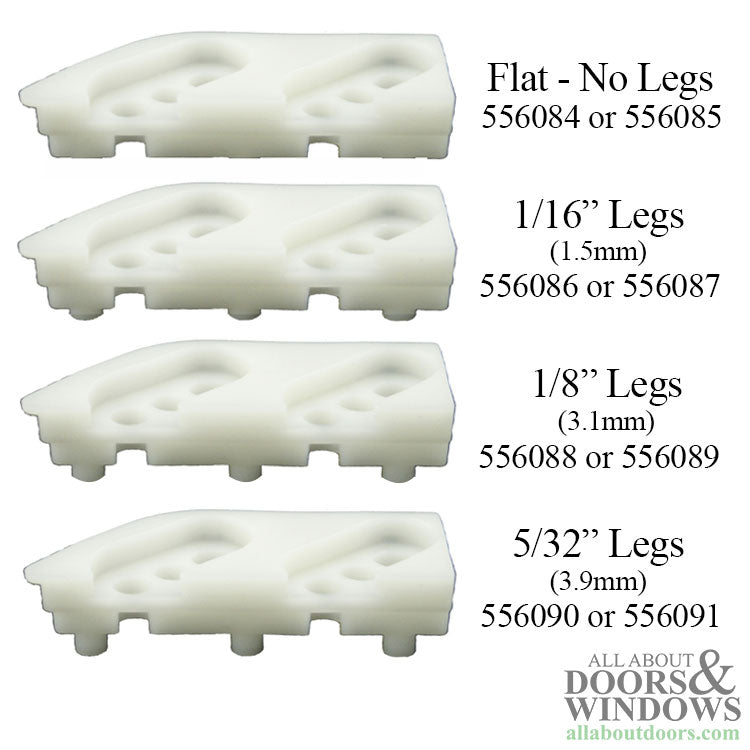

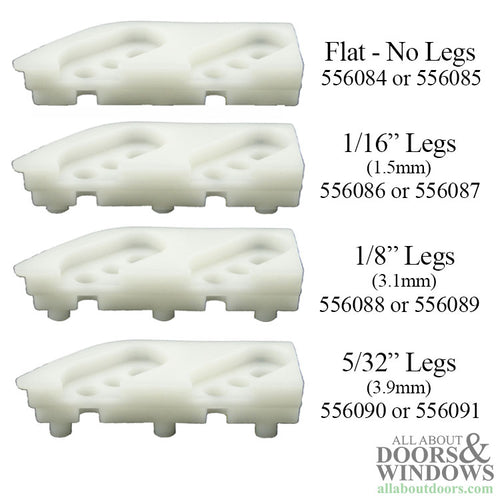

Related Parts:
556084 - .228 Thick, Flat Bottom RH
556085 - .228 Thick, Flat Bottom LH
556086 - .278 Thick, 1/16" Legs RH
556087 - .278 Thick, 1/16" Legs LH
556088 - .331 Thick, 1/8" Legs RH
556089 - .331 Thick, 1/8" Legs LH

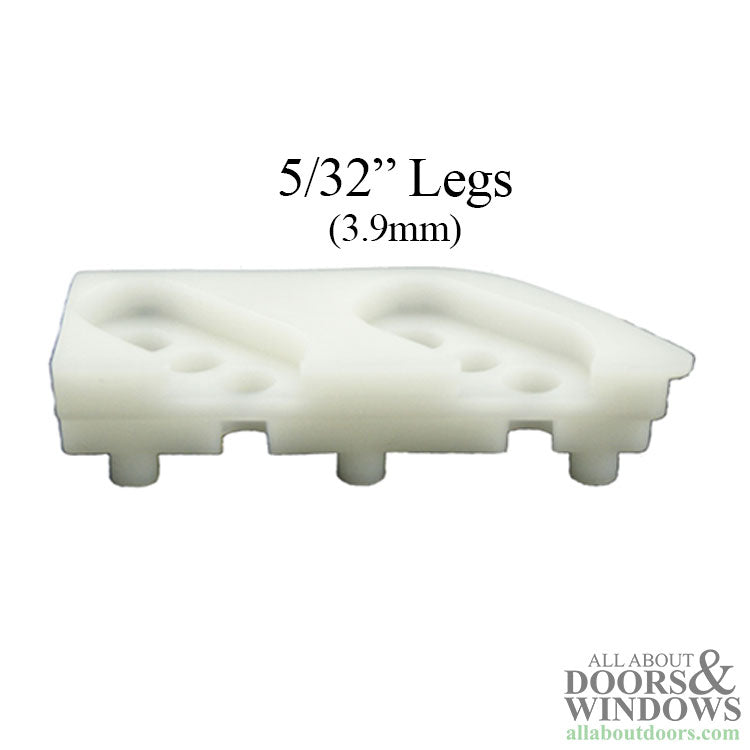

556090 - .371 Thick, 5/32" Legs RH
556091 - .371 Thick, 5/32" Legs LH
