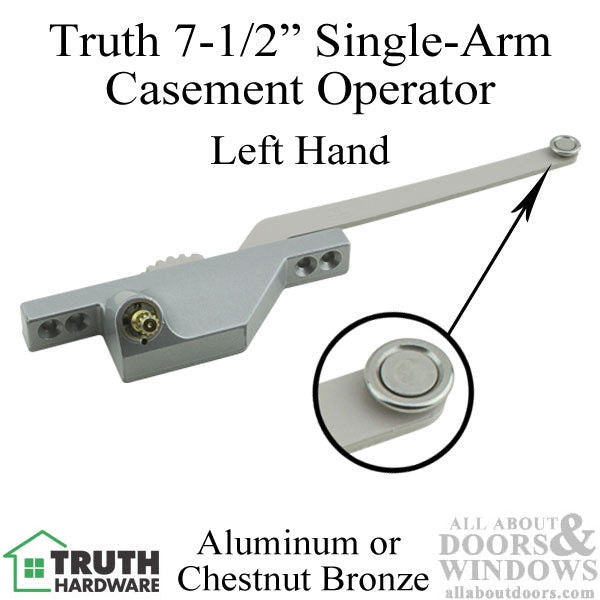

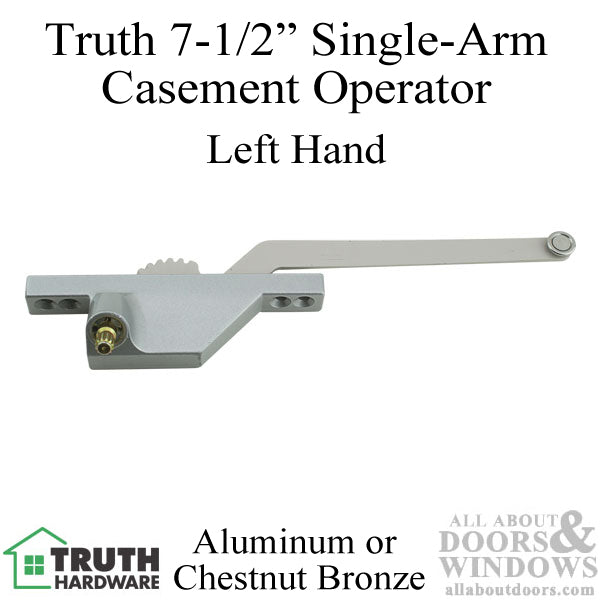

Truth 7-1/2 Single Arm Casement Operator, Front Mount, Left - Choose Color
Part Number: Price: $37.44 to $46.35Truth 23 Series Single Arm Casement Operator, Front Mount, 7-1/2
Application: Normally Commercial, used with aluminum, steel or vinyl casement windows
Mounting: Front Mount

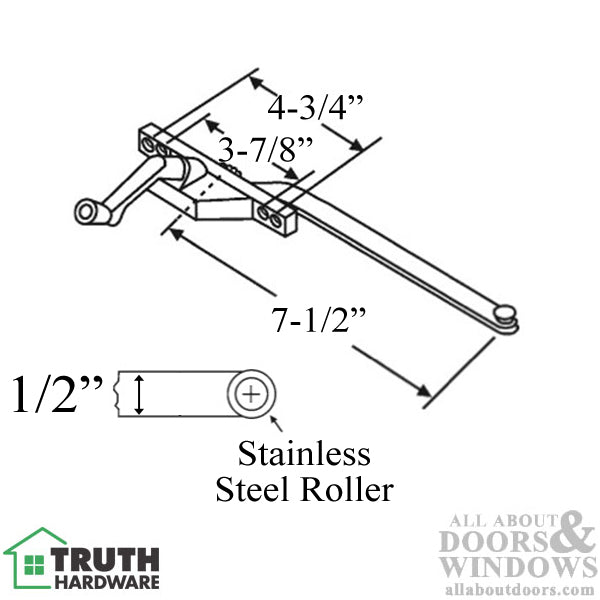

Mounting Screw Holes: 3-7/8 & 4-3/4
Arm Length: 7-1/2 inch, from center of operator to center of roller
Arm Width: 1/2 inch

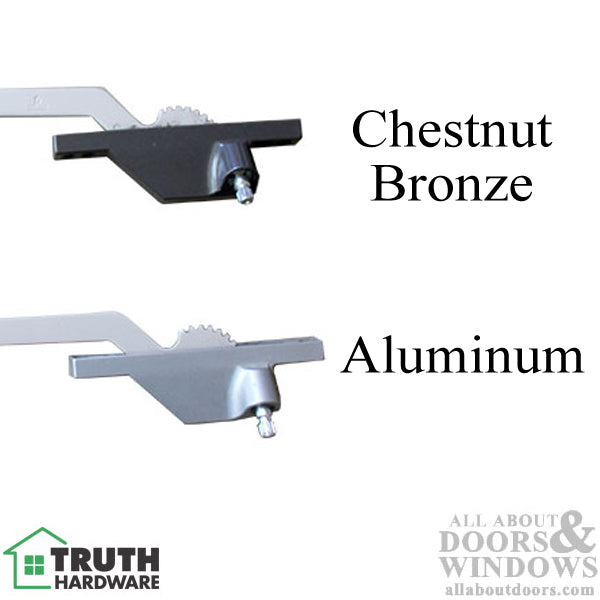

Finish: Silver Aluminum or Dark Chestnut Bronze
Roller: Stainless Steel
Roller Diameter: 9/16 inch
For left hand windows, as shown
Note: 23 Series Single Arm Operators are handed by the hinge side when viewed from the inside (commercially handed)
Related Parts:
58002 - Opposite Handing (right hand)
Priced and sold each.
Application: Normally Commercial, used with aluminum, steel or vinyl casement windows
Mounting: Front Mount
Mounting Screw Holes: 3-7/8 & 4-3/4
Arm Length: 7-1/2 inch, from center of operator to center of roller
Arm Width: 1/2 inch
Finish: Silver Aluminum or Dark Chestnut Bronze
Roller: Stainless Steel
Roller Diameter: 9/16 inch
For left hand windows, as shown
Note: 23 Series Single Arm Operators are handed by the hinge side when viewed from the inside (commercially handed)
Related Parts:
58002 - Opposite Handing (right hand)
Priced and sold each.
